Spring Boot + Dubbo + Zookpeer分布式案例

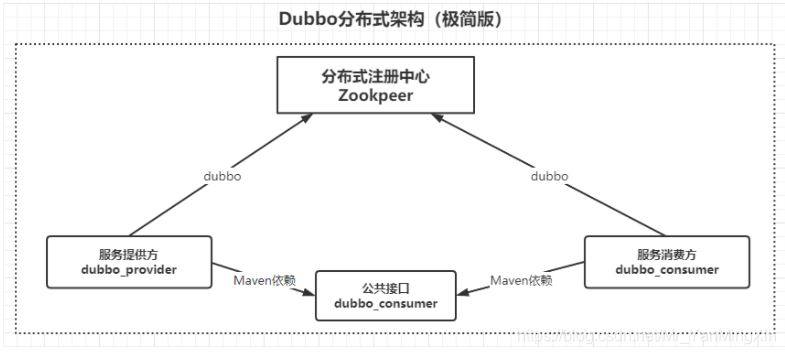

整体架构：

下载链接：

Doubbo：https://github.com/apache/dubbo

Zookeeper：https://downloads.apache.org/zookeeper/

Doubbo-admin：https://github.com/apache/dubbo-admin

1 首先安装Zookpeer

[root@bogon tmp]# ls
apache-zookeeper-3.7.0-bin.tar.gz  jdk1.8.0_141  jdk8.tar.gz
[root@bogon tmp]# tar -zxvf apache-zookeeper-3.7.0-bin.tar.gz
[root@bogon tmp]# tar -zxvf jdk8.tar.gz
[root@bogon tmp]# mv jdk1.8.0_141/ /usr/local/
[root@bogon tmp]# mv apache-zookeeper-3.7.0-bin/ /usr/local/zookpeer
[root@bogon tmp]# cd /usr/local/
[root@bogon local]# ls
bin  etc  games  include  jdk1.8.0_141  lib  lib64  libexec  sbin  share  src  zookeeper
[root@bogon local]# vim /etc/profile
# --------写入文件------------
export JAVA_HOME=/usr/local/jdk1.8.0_141
export JER_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib:$CLASSPATH
export JAVA_PATH=${JAVA_HOME}/bin:${JRE_HOME}/bin
export PATH=$PATH:${JAVA_PATH}
# --------写入文件完成------------
[root@bogon local]# source /etc/profile
[root@bogon local]# java -version
java version "1.8.0_141"
Java(TM) SE Runtime Environment (build 1.8.0_141-b15)
Java HotSpot(TM) 64-Bit Server VM (build 25.141-b15, mixed mode)
[root@bogon local]# cd zookeeper/
[root@bogon conf]# cp zoo_sample.cfg zoo.cfg
[root@bogon conf]# cd ../bin
[root@bogon bin]# ./zkServer.sh start
[root@bogon bin]# ./zkServer.sh start
ZooKeeper JMX enabled by default
Using config: /usr/local/zookeeper/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[root@bogon bin]# ./zkCli.sh
Connecting to localhost:2181
......
[zk: localhost:2181(CONNECTED) 1] ls /
[zookeeper]

zookpeer的启动和重启命令：

[root@bogon bin]# ./zkServer.sh start   //启动
[root@bogon bin]# ./zkServer.sh stop    //停止
[root@bogon bin]# ./zkServer.sh status  //查看当前状态
[root@bogon bin]# ./zkServer.sh restart  //重启
[root@bogon bin]# ./zkServer.sh version   //查看当前版本

2 创建Spring Boot项目

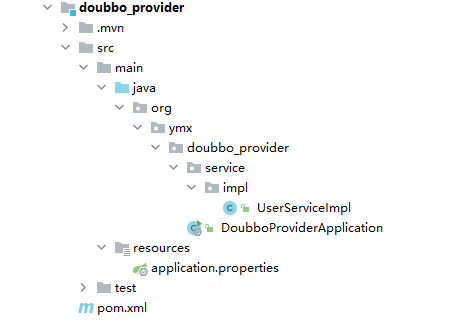

2.1 服务提供方dubbo_provider

pom.xml依赖：

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>com.alibaba.boot</groupId>
        <artifactId>dubbo-spring-boot-starter</artifactId>
        <version>0.2.0</version>
    </dependency>
    <dependency>
        <groupId>org.ymx</groupId>
        <artifactId>doubbo_interface</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>

application.properties配置文件：

server.port=8081
dubbo.application.name=my_provider
dubbo.registry.protocol=zookeeper
dubbo.registry.address=192.168.190.129:2181
dubbo.protocol.name=dubbo

UserServiceImpl接口实现类：

import com.alibaba.dubbo.config.annotation.Service;
import org.ymx.doubbo_interface.service.UserService;

/**
 * @desc: 接口实现类
 * @author: YanMingXin
 * @create: 2021/8/7-9:32
 **/
@Service
public class UserServiceImpl implements UserService {
    @Override
    public String sayHello(String name) {
        return "Hello " + name;
    }
}

主启动类：

@SpringBootApplication
@EnableDubbo(scanBasePackages = "org.ymx.*")
public class DoubboProviderApplication {
    public static void main(String[] args) {
        SpringApplication.run(DoubboProviderApplication.class, args);
    }
}

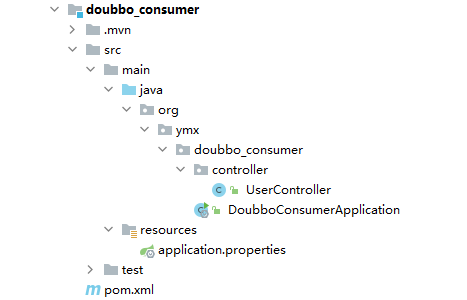

2.2 服务消费方dubbo_consumer

pom.xml依赖

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>com.alibaba.boot</groupId>
        <artifactId>dubbo-spring-boot-starter</artifactId>
        <version>0.2.0</version>
    </dependency>
    <dependency>
        <groupId>org.ymx</groupId>
        <artifactId>doubbo_interface</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>

application.properties配置文件

dubbo.application.name=my_consumer
dubbo.registry.protocol=zookeeper
dubbo.registry.address=192.168.190.129:2181
dubbo.protocol.name=dubbo

UserController控制器类

/**
 * @desc: Controller控制类
 * @author: YanMingXin
 * @create: 2021/8/7-10:08
 **/
@RestController
public class UserController {

    @Reference
    private UserService userService;

    @RequestMapping("/hello/{name}")
    public String hello(@PathVariable("name") String name) {
        return userService.sayHello(name);
    }

}

主启动类：

@SpringBootApplication
@EnableDubbo(scanBasePackages = "org.ymx.*")
public class DoubboConsumerApplication {
    public static void main(String[] args) {
        SpringApplication.run(DoubboConsumerApplication.class, args);
    }
}

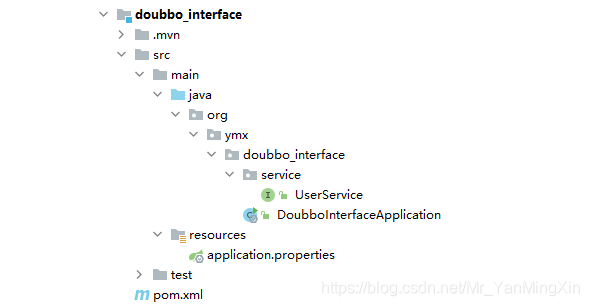

2.3 公共接口dubbo_interface

pom.xml依赖

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>

application.properties配置文件

空

UserService接口类

/**
 * @desc: 公共接口
 * @author: YanMingXin
 * @create: 2021/8/7-10:07
 **/
public interface UserService {

    String sayHello(String name);

}

主启动类：

@SpringBootApplication
public class DoubboInterfaceApplication {
    public static void main(String[] args) {
        SpringApplication.run(DoubboInterfaceApplication.class, args);
    }
}

@SpringBootApplication
public class DoubboInterfaceApplication {
    public static void main(String[] args) {
        SpringApplication.run(DoubboInterfaceApplication.class, args);
    }
}

2.4 启动后观察Zookpeer并测试

doubbo_interface不需要启动，只需要install就可以了

[zk: localhost:2181(CONNECTED) 14] ls /
[dubbo, zookeeper]
[zk: localhost:2181(CONNECTED) 15] ls /dubbo
[org.ymx.doubbo_consumer.service.UserService, org.ymx.doubbo_provider.service.UserService]

测试：

3 dubbo管理界面

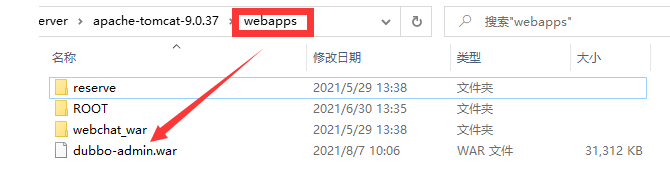

放到tomcat中

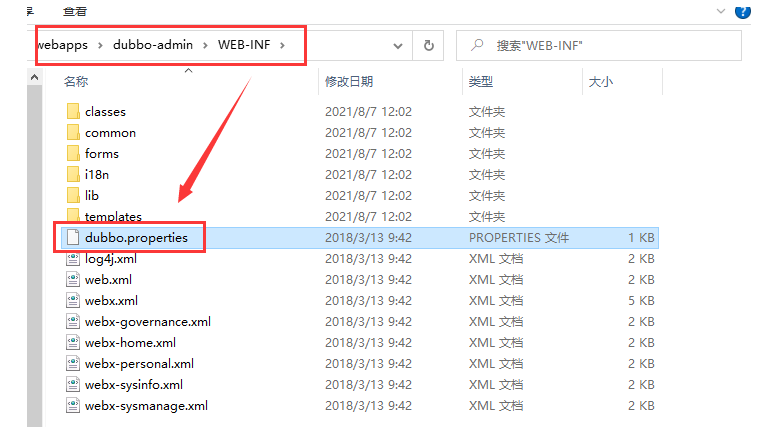

修改配置文件，在

修改内容

dubbo.registry.address=zookeeper://192.168.190.129:2181  # 注册中心地址
dubbo.admin.root.password=root   # root账户的密码
dubbo.admin.guest.password=guest  # guest账户的密码

启动

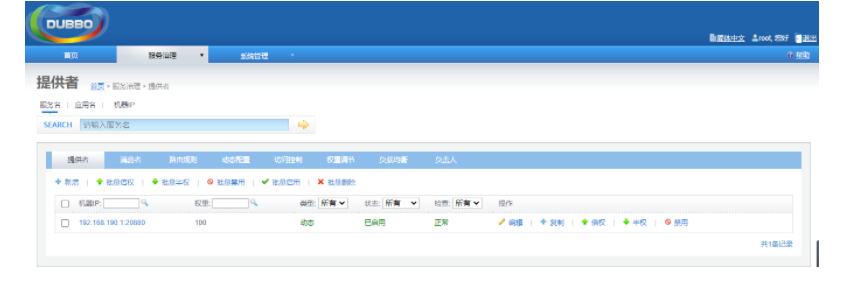

访问：http://localhost:8080/dubbo-admin/
