【WSN通信】基于matlab生物地理学优化HWSN节能聚类协议【含Matlab源码 1989期】

一、生物地理算法简介

1 基本思路

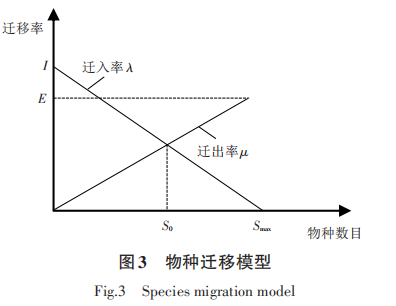

BBO 算法起源于生物地理学，它通过模拟多物种在不同栖息地的分布、迁移、突变等规律求解寻优问题，在多目标规划领域有广泛应用. 栖息地被认为是独立的区域，不同的栖息地拥有不同的适宜指数HSI（Habitat suitability index）。 HSI较高的栖息地物种丰富度较高，随着种群趋于饱和，其迁出率增高，迁入率减少，而HIS较低的栖息地与之相反，迁入率增高，迁出率减少. 当栖息地遭遇灾害或瘟疫等突发事件时，HIS将随之突变，打破动态平衡，为低HIS的栖息地添加了不可预见性，增大了搜索目标解的几率2.2 迁移和突变操作物种的迁移有其具体的物理模型，最常的有线性模型、二次模型、余弦模型等 . 以图 3线性模型为例，当某栖息地物种数目为 0 时迁入率最高，此刻 λ = I,随着迁入物种数目不断增加，受阳光、水、食物等资源限制，迁入率不断降低，迁出率不断增高 . 当栖息地物种数目为 S0时，恰好达到动态平衡，此时迁出率与迁入率相同 . 而栖息地达到饱和状态时，物种数量达到最大值Smax ,此刻不再有物种迁入，迁出率 μ = E.突变操作基于生物地理学统计公式完成：


式中：ms为栖息地发生突变的概率，mmax为最大突变率，用户可自行设定 . ps为栖息地容纳s种物种的概率， pmax代表容纳最大种群的概率。

二、部分源代码

%%


clc;

[bestfit, averagefit,CHNum,STATISTICS]=start();
function [Chromosome,Fitness,CHNum] = BBO(ProbFlag,Fitness,PopulationSize,NumberOfNodes,Chromosome,Sensor,Sink,ETX,ERX,Efs,Emp,EDA,do,NumofCH,Totenergy)

if ~exist('ProbFlag', 'var')
    ProbFlag = true;
end
pmodify = 1; % habitat modification probability
pmutate = 0.5; % initial mutation probability

Keep = 2; % elitism parameter: how many of the best habitats to keep from one generation to the next
lambdaLower = 0.0; % lower bound for immigration probabilty per gene
lambdaUpper = 1; % upper bound for immigration probabilty per gene
dt = 1; % step size used for numerical integration of probabilities
I = 1; % max immigration rate for each island
E = 1; % max emigration rate, for each island
P = PopulationSize; %max species count, for each island

for j = 1 : size(Chromosome,1)
    Prob(j) = 1 / size(Chromosome,1);
end

% Begin the optimization loop
for GenIndex = 1 : 20
%     GenIndex
    % Sorting of population
    [Chromosome,indices,Fitness]=PopSort(Chromosome,Fitness);
    MinFitness = [Fitness(1)];
    % Compute the average cost
   [AverageFitness] = ComputeAveCost(Chromosome,Fitness);
    AvgFitness = [AverageFitness];
    % Save the best habitats in a temporary array.
    for j = 1 : Keep
        chromKeep(j,:) = Chromosome(j,:);
        costKeep(j) = Fitness(j);
    end

    % Map cost values to species counts.

    for i = 1 : size(Chromosome,1)
        if Fitness(i)< inf
            SpeciesCount(i) = P - i;
        else
            SpeciesCount(i) = 0;
        end
    end

    % Compute immigration rate and emigration rate for each species count.
    for i = 1 : size(Chromosome,1)
        lambda(i) = I * (1 - SpeciesCount(i) / P);
        mu(i) = E * SpeciesCount(i) / P;
    end

    if ProbFlag
        % Compute the time derivative of Prob(i) for each habitat i.
        for j = 1 : size(Chromosome,1)

            lambdaMinus = I * (1 - (SpeciesCount(j) - 1) / P);
            muPlus = E * (SpeciesCount(j) + 1) / P;
            if j < size(Chromosome,1)
                ProbMinus = Prob(j+1);
            else
                ProbMinus = 0;
            end
            if j > 1
                ProbPlus = Prob(j-1);
            else
                ProbPlus = 0;
            end
            ProbDot(j) = -(lambda(j) + mu(j)) * Prob(j) + lambdaMinus * ProbMinus + muPlus * ProbPlus;
        end
        % Compute the new probabilities for each species count.
        Prob = Prob + ProbDot * dt;
        Prob = max(Prob, 0);
        Prob = Prob / sum(Prob);
    end
    % Now use lambda and mu to decide how much information to share between habitats.
    lambdaMin = min(lambda);
    lambdaMax = max(lambda);
    for k = 1 : size(Chromosome,1)
        if rand > pmodify
            continue;
        end
        % Normalize the immigration rate.
        lambdaScale = lambdaLower + (lambdaUpper - lambdaLower) * (lambda(k) - lambdaMin) / (lambdaMax - lambdaMin);
        % Probabilistically input new information into habitat i
        for j = 1 : NumberOfNodes
            if (Chromosome(k,j) ~= -1) && rand < lambdaScale
                % Pick a habitat from which to obtain a feature
                RandomNum = rand * sum(mu);
                Select = mu(1);
                SelectIndex = 1;
                while (RandomNum > Select) && (SelectIndex < PopulationSize)
                    SelectIndex = SelectIndex + 1;
                    Select = Select + mu(SelectIndex);
                end
                Chromosome(k,j) = Chromosome(SelectIndex,j);
            else
                Chromosome(k,j) = Chromosome(k,j);
            end
        end
    end
    if ProbFlag
        % Mutation
        Pmax = max(Prob);
        MutationRate = pmutate * (1 - Prob / Pmax);

        % Sorting of population
        [Chromosome,indices,Fitness]=PopSort(Chromosome,Fitness);

        % Mutate only the worst half of the solutions
        for k = 1 : size(Chromosome,1)
            for parnum = 1 : NumberOfNodes
                if (Chromosome(k,parnum) ~= -1) && MutationRate(k) > rand
                    if( Chromosome(k,parnum) == 0)
                        Chromosome(k,parnum)= 1;
                    else
                        Chromosome(k,parnum) = 0;
                    end
                end
            end
        end







1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128


三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 包子阳,余继周,杨杉.智能优化算法及其MATLAB实例（第2版）[M].电子工业出版社，2016.
[2]张岩,吴水根.MATLAB优化算法源代码[M].清华大学出版社，2017.

3 备注
