Google Earth Engine（GEE）——S2影像异常值

在计算索引并生成高质量马赛克时，有一个明显的图像是异常值。我已经确定了图像，问题在于 B5 波段的值非常低，这使得索引具有非常高的值。

编号：哥白尼/S2_SR/20200829T174909_20200829T175522_T13UFP

代码：














      var imageCollection = ee.ImageCollection("COPERNICUS/S2_SR"),













          geometry =












    /* color: #98ff00 */












    /* shown: false */












    /* displayProperties: [













       {













       "type": "rectangle"













       }













       ] */













          ee.Geometry.Polygon(













              [[[-103.99506389984352, 48.962358795597474],













                [-103.99506389984352, 46.88665586989701],













                [-99.68842327484352, 46.88665586989701],













                [-99.68842327484352, 48.962358795597474]]], null, false),













          geometry2 = /* color: #0b4a8b */ee.Geometry.Point([-102.87049298795543, 48.22935423511586]),













          geometry3 = /* color: #00ffff */ee.Geometry.Point([-101.57471425064051, 48.22316284019277]);


























      //get veg bare soil water













      function maskSCL(image) {












  var scl = image.select('SCL');












  var mask = scl.gte(4).and(scl.lte(6));












  return image.updateMask(mask);//.divide(10000);













      }


























      //calculate red edge chlorophyll index













      var getIndices = function(img){












  var im = img.divide(10000);












  var CIre=im.select('B7').divide(im.select('B5')).subtract(1).rename("CIre");












  return im.addBands(CIre).copyProperties(img,['system:time_start']);













      }







































      function addDOY(im){












  var doy = im.date().getRelative('day', 'year');












  var doyBand = ee.Image.constant(doy).uint16().rename('doy')













        doyBand = doyBand.updateMask(im.select('B8').mask())

























  var yr = im.date().get('year')












  var yrBand = ee.Image.constant(yr).uint16().rename('year')













        yrBand = yrBand.updateMask(im.select('B8').mask())

























  return im.addBands(doyBand).addBands(yrBand)













      }







































      //max CIre from July-Sept













      var dataset1 = imageCollection













      .filterBounds(geometry)













      .filter(ee.Filter.calendarRange(2018, 2021, 'year'))













      .filter(ee.Filter.calendarRange(7, 9, 'month'))













      .map(maskSCL)













      .map(getIndices)













      .map(addDOY)













      .select('CIre', 'doy', 'year');

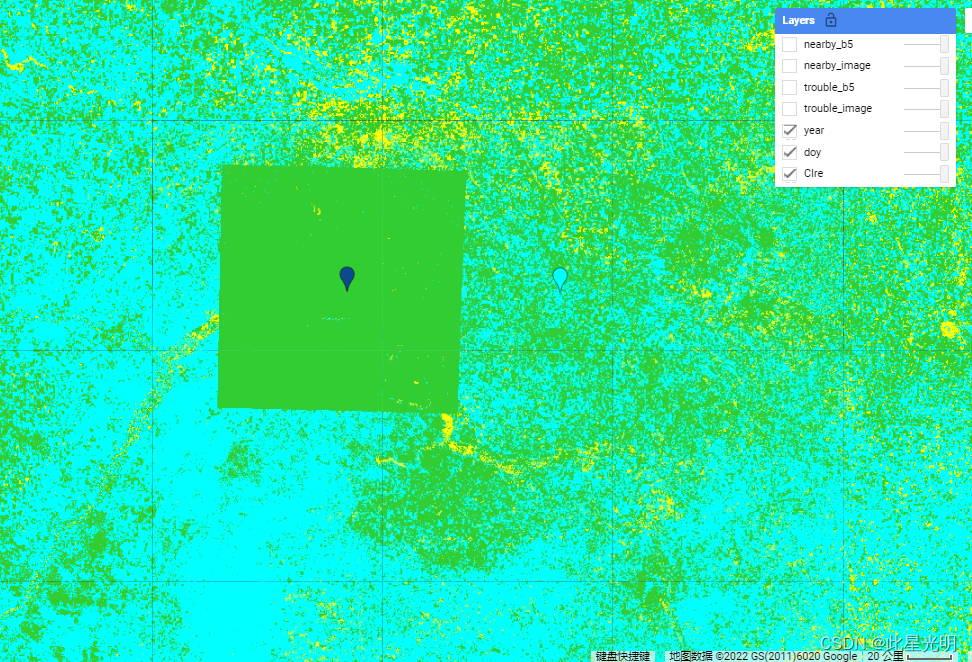

      var CIre_max = dataset1.qualityMosaic('CIre');


























      Map.addLayer(CIre_max.select('CIre'),













      {min:0,max:20,palette:['black','indigo','cyan','limegreen','yellow']},'CIre')

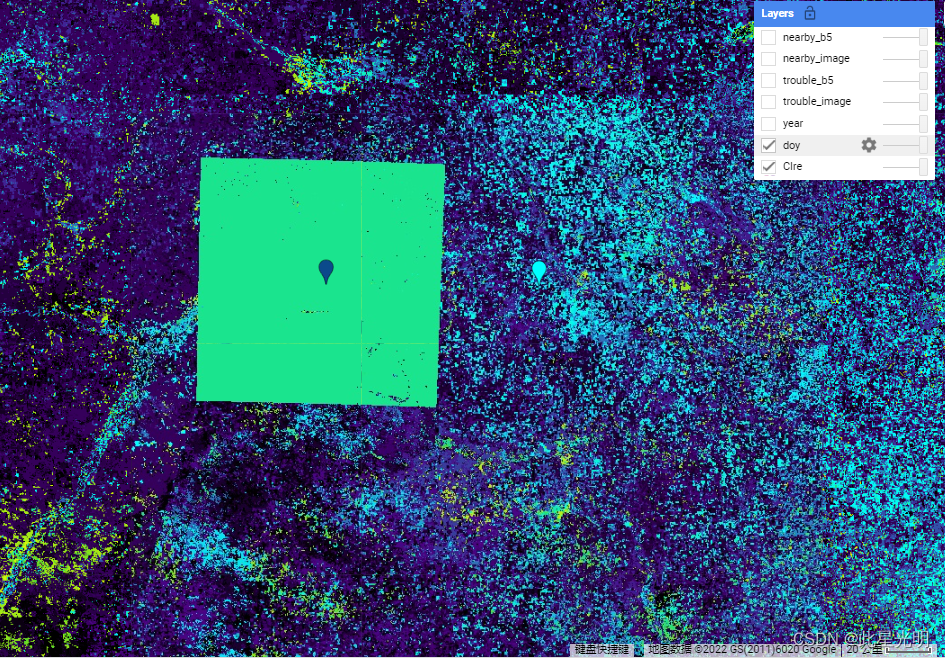

      Map.addLayer(CIre_max.select('doy'),













      {min:183,max:274,palette:['black','indigo','cyan','limegreen','yellow']},'doy')













      Map.addLayer(CIre_max.select('year'),













      {min:2018,max:2021,palette:['indigo','cyan','limegreen','yellow']},'year')







































      // var index = dataset1













      // .select('CIre')













      // .reduce(ee.Reducer.percentile([98]))


























      // //calculate band to use for quality mosaic of 98th percentile values













      // // loop over image collection













      // //get absolute difference from 98th percentile













      // //convert to 1/abs dif + .1 to use as band for quality mosaic













      // var forQM = dataset1.map(function(x){













      // // get absolute difference of the percentiles with the CI













      // var selector = x.select('CIre').subtract(index).abs();













      // var selector_fixed = selector.eq(0).multiply(0.1).add(selector)













      // // invert to let the min diff be the largest value













      // var invsel = ee.Image.constant(1).divide(selector_fixed);













      // // add inverted difference band to the image and name properly













      // return x.addBands(invsel.rename('selector_CIre'))













      // });


























      // // // // use the new selectors to perform the quality mosaic and add to map













      // var CIre_p98QM = forQM













      // .qualityMosaic('selector_CIre')













      // .select(['CIre', 'doy'])


























      // Map.addLayer(CIre_p98QM.select('CIre'),













      // {min:0,max:20,palette:['black','indigo','cyan','limegreen','yellow']},'CIre_p98')













      // Map.addLayer(CIre_p98QM.select('doy'),













      // {min:183,max:274,palette:['black','indigo','cyan','limegreen','yellow']},'doy_p98')

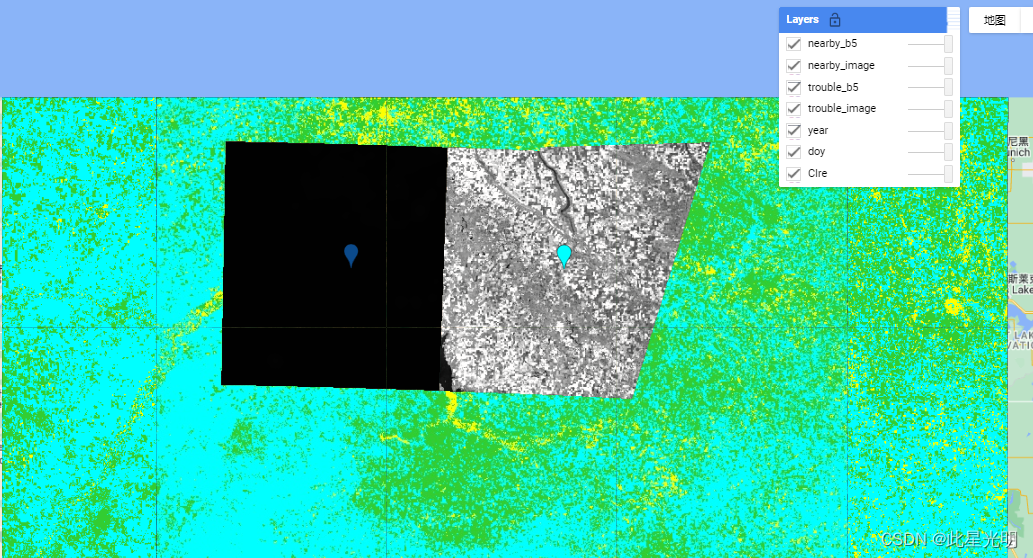

      ///print trouble image













      //ID COPERNICUS/S2_SR/20200829T174909_20200829T175522_T13UFP













      //Think B5 is not right













      var checkit = imageCollection













      .filterBounds(geometry2)













      .filter(ee.Filter.calendarRange(2020, 2020, 'year'))













      .filter(ee.Filter.calendarRange(240, 242, 'day_of_year'))













      print(checkit)













      Map.addLayer(checkit.max(),{bands:['B4','B3','B2'], min:100,max:2000},'trouble_image')













      Map.addLayer(checkit.max(),{bands:['B5'], min:100,max:2000},'trouble_b5')

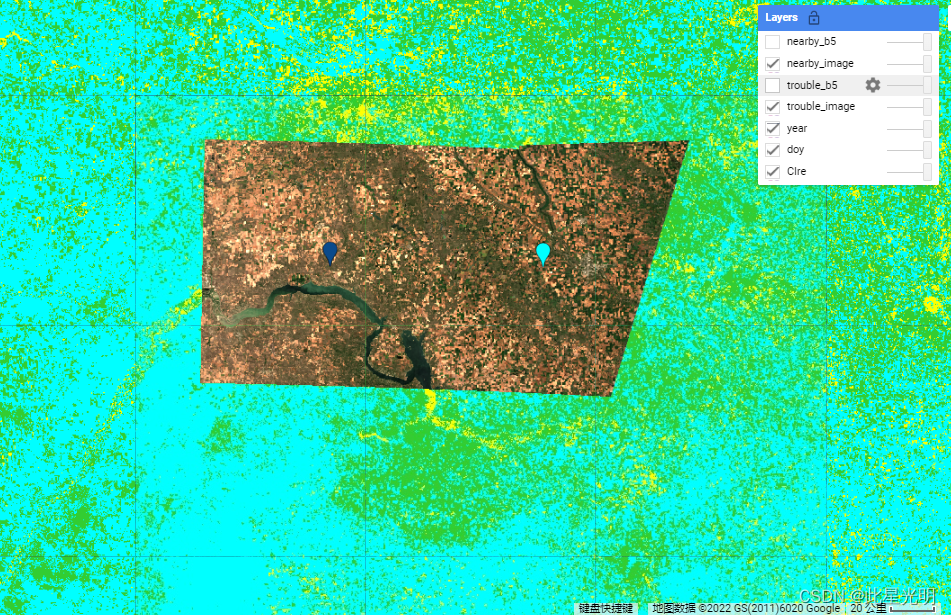

      ///nearby image same time period...B5 better













      var checkit = imageCollection













      .filterBounds(geometry3)













      .filter(ee.Filter.calendarRange(2020, 2020, 'year'))













      .filter(ee.Filter.calendarRange(240, 242, 'day_of_year'))













      print(checkit)













      Map.addLayer(checkit.max(),{bands:['B4','B3','B2'], min:100,max:2000},'nearby_image')













      Map.addLayer(checkit.max(),{bands:['B5'], min:100,max:2000},'nearby_b5')
