unity之模糊背景(带你欣赏女人的朦胧美)
【摘要】
最近项目用到了模糊背景效果。实现方法为:shader。代码来自百度。接下来给大家介绍一下模糊背景的实现过程。首先你需要一个先人已经写好的shader(当然,如果你有能力,也可以自己实现!) 没有的可以通过...
最近项目用到了模糊背景效果。实现方法为:shader。代码来自百度。接下来给大家介绍一下模糊背景的实现过程。首先你需要一个先人已经写好的shader(当然,如果你有能力,也可以自己实现!)
没有的可以通过以下链接下载材质球和对应的shader。
模糊背景shader
模糊背景材质球
shader如下:
Shader "FT/Blur/Back"
{
Properties
{
_Color ("Main Color", Color) = (1,1,1,1)
_Size ("Size", Range(0, 20)) = 1
}
Category {
// We must be transparent, so other objects are drawn before this one.
Tags {
"Queue"="Transparent"
"IgnoreProjector"="True"
"RenderType"="Transparent"
"PreviewType" = "Plane"
"CanUseSpriteAtlas" = "True"
}
SubShader {
// Horizontal blur
GrabPass
{
Tags { "LightMode" = "Always" }
}
Pass {
Tags { "LightMode" = "Always" }
Name "BackBlurHor"
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
#pragma fragmentoption ARB_precision_hint_fastest
#include "UnityCG.cginc"
struct appdata_t {
float4 vertex : POSITION;
float2 texcoord : TEXCOORD0;
float4 color : COLOR;
};
struct v2f {
float4 vertex : POSITION;
float4 uvgrab : TEXCOORD0;
float4 color : COLOR;
};
v2f vert (appdata_t v) {
v2f o;
o.vertex = UnityObjectToClipPos(v.vertex);
#if UNITY_UV_STARTS_AT_TOP
float scale = -1.0;
#else
float scale = 1.0;
#endif
o.uvgrab.xy = (float2(o.vertex.x, o.vertex.y*scale) + o.vertex.w) * 0.5;
o.uvgrab.zw = o.vertex.zw;
o.color = v.color;
return o;
}
sampler2D _GrabTexture;
float4 _GrabTexture_TexelSize;
float4 _MainTex_TexelSize;
float _Size;
uniform float4 _Color;
half4 GrabPixel(v2f i, float weight, float kernel){
kernel = sign(sign(abs(i.uvgrab.x)) + sign(abs(i.uvgrab.y))) * kernel;
return tex2Dproj(_GrabTexture, UNITY_PROJ_COORD(float4(i.uvgrab.x + _GrabTexture_TexelSize.x * kernel * _Size, i.uvgrab.y, i.uvgrab.z, i.uvgrab.w))) * weight;
}
half4 frag( v2f i ) : COLOR {
half4 sum = half4(0,0,0,0);
sum += GrabPixel(i, 0.05, -4.0);
sum += GrabPixel(i, 0.09, -3.0);
sum += GrabPixel(i, 0.12, -2.0);
sum += GrabPixel(i, 0.15, -1.0);
sum += GrabPixel(i, 0.18, 0.0);
sum += GrabPixel(i, 0.15, +1.0);
sum += GrabPixel(i, 0.12, +2.0);
sum += GrabPixel(i, 0.09, +3.0);
sum += GrabPixel(i, 0.05, +4.0);
float4 col5 = tex2Dproj(_GrabTexture, UNITY_PROJ_COORD(i.uvgrab));
fixed decayFactor = sign(sign(abs(i.uvgrab.x)) + sign(abs(i.uvgrab.y)));
sum = lerp(col5, sum, decayFactor) * i.color * _Color;
return sum;
}
ENDCG
}
// Vertical blur
GrabPass {
Tags { "LightMode" = "Always" }
}
Pass {
Tags { "LightMode" = "Always" }
Name "BackBlurVer"
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
#pragma fragmentoption ARB_precision_hint_fastest
#include "UnityCG.cginc"
struct appdata_t {
float4 vertex : POSITION;
float2 texcoord: TEXCOORD0;
float4 color : COLOR;
};
struct v2f {
float4 vertex : POSITION;
float4 uvgrab : TEXCOORD0;
float4 color : COLOR;
};
v2f vert (appdata_t v) {
v2f o;
o.vertex = UnityObjectToClipPos(v.vertex);
#if UNITY_UV_STARTS_AT_TOP
float scale = -1.0;
#else
float scale = 1.0;
#endif
o.uvgrab.xy = (float2(o.vertex.x, o.vertex.y*scale) + o.vertex.w) * 0.5;
o.uvgrab.zw = o.vertex.zw;
o.color = v.color;
return o;
}
sampler2D _GrabTexture;
float4 _GrabTexture_TexelSize;
float _Size;
uniform float4 _Color;
half4 GrabPixel(v2f i, float weight, float kernel){
kernel = sign(sign(abs(i.uvgrab.x)) + sign(abs(i.uvgrab.y))) * kernel;
return tex2Dproj( _GrabTexture, UNITY_PROJ_COORD(float4(i.uvgrab.x, i.uvgrab.y + _GrabTexture_TexelSize.y * kernel * _Size, i.uvgrab.z, i.uvgrab.w))) * weight;
}
half4 frag( v2f i ) : COLOR
{
half4 sum = half4(0,0,0,0);
sum += GrabPixel(i, 0.05, -4.0);
sum += GrabPixel(i, 0.09, -3.0);
sum += GrabPixel(i, 0.12, -2.0);
sum += GrabPixel(i, 0.15, -1.0);
sum += GrabPixel(i, 0.18, 0.0);
sum += GrabPixel(i, 0.15, +1.0);
sum += GrabPixel(i, 0.12, +2.0);
sum += GrabPixel(i, 0.09, +3.0);
sum += GrabPixel(i, 0.05, +4.0);
float4 col5 = tex2Dproj(_GrabTexture, UNITY_PROJ_COORD(i.uvgrab));
fixed decayFactor = sign(sign(abs(i.uvgrab.x)) + sign(abs(i.uvgrab.y)));
sum = lerp(col5, sum, decayFactor) * i.color * _Color;
return sum;
}
ENDCG
}
}
}
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
- 127
- 128
- 129
- 130
- 131
- 132
- 133
- 134
- 135
- 136
- 137
- 138
- 139
- 140
- 141
- 142
- 143
- 144
- 145
- 146
- 147
- 148
- 149
- 150
- 151
- 152
- 153
- 154
- 155
- 156
- 157
- 158
- 159
- 160
- 161
- 162
- 163
- 164
- 165
- 166
- 167
- 168
- 169
- 170
unity中使用方法:

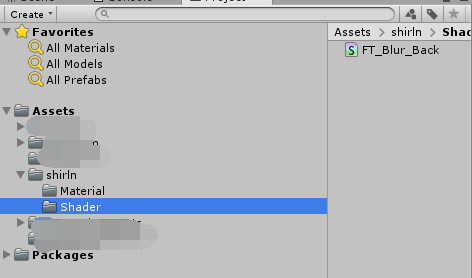

为工程导入下载的材质球和shader
通常我们新建Material文件夹存放材质球
创建Shader文件夹存放shader代码
新建背景Image,命名为bg,并为其赋上指定的图片资源,如下:

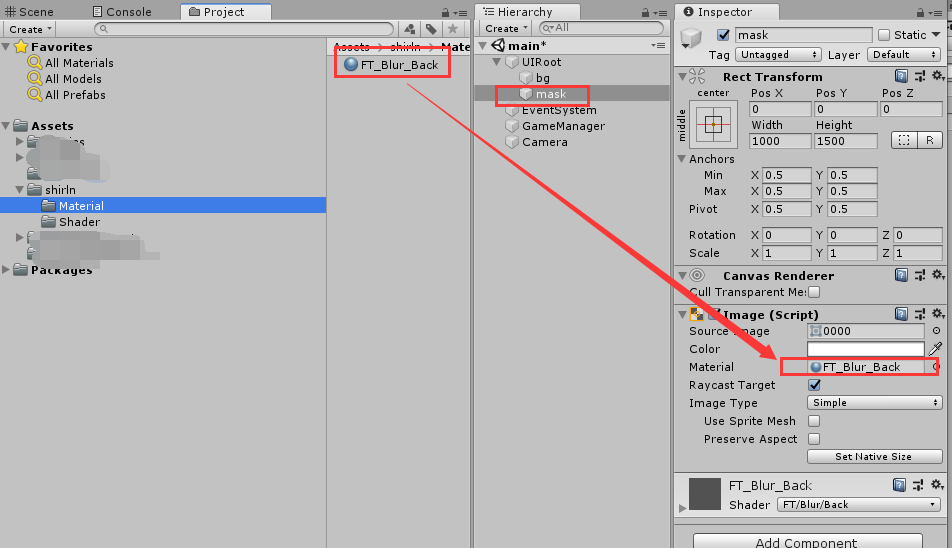

新建模糊材质背景Image,命名为mask,SourceImage指定任意值即可;Material指定下载的材质球
效果如下:
调节材质球的Size可以调节模糊程度。值越大,效果越模糊。
在这里插入图片描述
将size值拉到5效果如下:
