02 Tekton Pipeline

一 背景

二 Pipeline 步骤

2.1 代码拉取

代码是交付的基石，是后续的所有动作做铺垫的，我们需要创建一个拉取代码的Task。

不过这个Task，我们可以不用自己写，直接用Tekton Hub上别人写好的，地址是：https://hub.tekton.dev/tekton/task/git-clone。这个Task支持的功能比较全，参数也比较多，具体有哪些参数可以到上面的地址进行查看和学习。

其安装方式有两种：kubectl和tkn客户端。

（1）使用kubectl进行安装

$ kubectl apply -f https://raw.githubusercontent.com/tektoncd/catalog/main/task/git-clone/0.5/git-clone.yaml

（2）使用tkn客户端进行安装

$ tkn hub install task git-clone

查看task详情

$ tkn task list
$ kubectl get task git-clone -oyaml

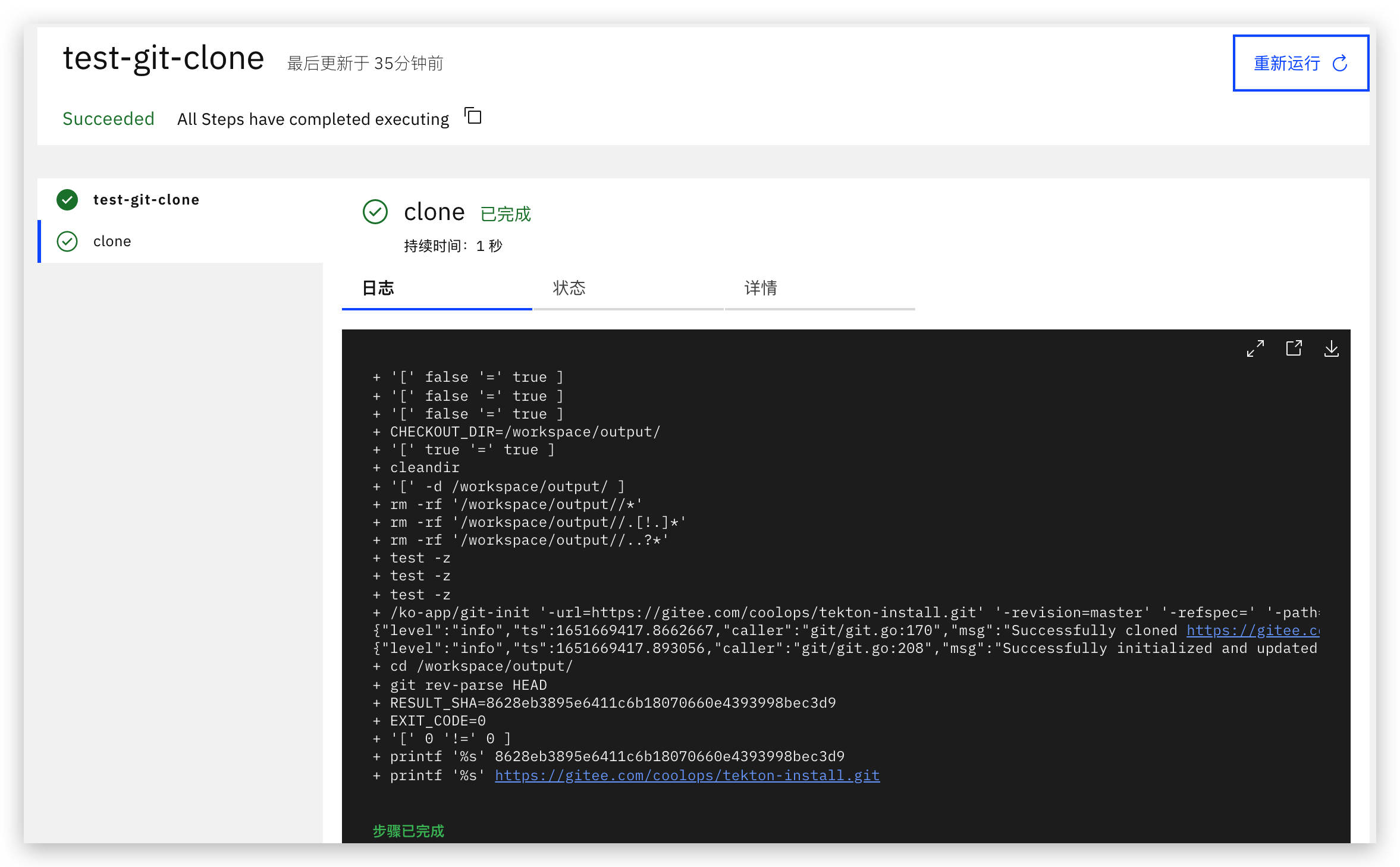

创建一个测试taskRun来测试师傅可以正常拉取代码。

cat > git-clone-taskrun.yaml << EOF
apiVersion: tekton.dev/v1beta1
kind: TaskRun
metadata:
  name: test-git-clone
  namespace: default
spec:
  workspaces:
    - name: output
      emptyDir: {}
  params:
  - name: url
    value: "https://gitee.com/coolops/tekton-install.git"
  - name: revision
    value: "master"
  - name: gitInitImage
    value: "registry.cn-hangzhou.aliyuncs.com/coolops/tekton-git-init:v0.29"
  taskRef:
    name: git-clone
EOF

2.2 单元测试

单元测试比较简单，基本就是执行go test ./...命令就行，比如。

> go test ./...
ok      devops-hello-world      0.313s
ok      devops-hello-world/pkg  (cached)

所以这个Task，只需要一个Go环境，能执行Go命令即可，如下：

cat > unit-test-task.yaml <<EOF
apiVersion: tekton.dev/v1beta1
kind: Task
metadata:
  name: unit-test
spec:
  workspaces:
    - name: source
  steps:
    - name: unit-test
      workingDir: \$(workspaces.source.path)
      image: golang:1.17.5
      env:
      - name: GOPROXY
        value: https://goproxy.cn
      command: ['go']
      args:
      - "test"
      - "./..."
EOF

2.3 镜像构建/推送

为什么这里没有单独把应用构建组成一个Task呢？主要是我们在这里采用了多阶段构建，我们可以将应用构建-镜像打包写在一个Dockerfile中，所以这里只需要写一个Task。

cat > docker-build-push.yaml << EOF
apiVersion: tekton.dev/v1beta1
kind: Task
metadata:
  name: build-push-image
spec:
  params:
    - name: pathToDockerfile
      description: The path to the dockerfile to build (relative to the context)
      default: Dockerfile
    - name: imageUrl
      description: Url of image repository
    - name: imageTag
      description: Tag to apply to the built image
      default: latest
  workspaces:
    - name: source
    - name: dockerconfig
      mountPath: /kaniko/.docker # config.json 的挂载目录
  steps:
    - name: build-and-push
      image: registry.cn-hangzhou.aliyuncs.com/coolops/kaniko-executor:v1.5.0
      workingDir: \$(workspaces.source.path)
      command:
        - /kaniko/executor
      args:
        - --dockerfile=\$(params.pathToDockerfile)
        - --destination=\$(params.imageUrl):\$(params.imageTag)
        - --context=\$(workspaces.source.path)

EOF

我们这里采用kaniko进行构建镜像，用这种方式不用挂载docker.sock文件，但是我们需要将docker config保存在/kaniko/.docker目录下。我们可以通过如下命令来创建secret。

kubectl create secret docker-registry dockerhub --docker-server=https://index.docker.io/v1/ --docker-username=xxxxxxxxx --docker-password=xxxxxxxxxxx --dry-run=client -o json | jq -r '.data.".dockerconfigjson"' | base64 -d > /tmp/config.json && kubectl create secret generic docker-config --from-file=/tmp/config.json && rm -f /tmp/config.json

因为在镜像推送的时候需要镜像仓库的密钥。

2.4 部署

将kubeconfig创建为secret

$ kubectl create secret generic kubernetes-config --from-file=/root/.kube/config

$ kubectl get secret
NAME                  TYPE                                  DATA   AGE
default-token-mcrdh   kubernetes.io/service-account-token   3      30h
docker-config         Opaque                                1      2m48s
kubernetes-config     Opaque                                1      6s

创建task

cat > deploy-to-k8s.yaml <<EOF
apiVersion: tekton.dev/v1alpha1
kind: Task
metadata:
  name: deploy-to-k8s
spec:
  workspaces:
    - name: source
    - name: kubernetesconfig
      mountPath: /root/.kube
  params:
    - name: pathToYamlFile
      description: The path to the yaml file to deploy within the git source
      default: deployment.yaml
    - name: IMAGE
    - name: TAG
  steps:
    - name: run-kubectl
      image: registry.cn-hangzhou.aliyuncs.com/coolops/kubectl:1.19.16
      workingDir: \$(workspaces.source.path)
      script: |
        sed -i s#IMAGE#\$(params.IMAGE)#g \$(params.pathToYamlFile)
        sed -i s#TAG#\$(params.TAG)#g \$(params.pathToYamlFile)
        kubectl apply -f \$(params.pathToYamlFile)
EOF

三 整合Pipeline

上面我们已经把每一步整理成了Task，下面就应该进行Pipeline的组合了，然后再声明需要的变量就可以，如下：

cat > pipeline.yaml <<EOF
apiVersion: tekton.dev/v1beta1
kind: Pipeline
metadata:
  name: devops-hello-world-pipeline
spec:
  workspaces: # 声明 workspaces
    - name: go-repo-pvc
    - name: docker-config
    - name: kubernetes-config
  params:
    - name: git_url
    - name: revision
      type: string
      default: "master"
    - name: gitInitImage
      type: string
      default: "registry.cn-hangzhou.aliyuncs.com/coolops/tekton-git-init:v0.29"
    - name: pathToDockerfile
      description: The path to the build context, used by Kaniko - within the workspace
      default: .
    - name: imageUrl
      description: Url of image repository
    - name: imageTag
      description: Tag to apply to the built image
      default: latest
  tasks: # 添加task到流水线中
    - name: clone
      taskRef:
        name: git-clone
      workspaces:
        - name: output
          workspace: go-repo-pvc
      params:
        - name: url
          value: \$(params.git_url)
        - name: revision
          value: \$(params.revision)
        - name: gitInitImage
          value: \$(params.gitInitImage)
    - name: unit-test
      workspaces: # 传递 workspaces
        - name: source
          workspace: go-repo-pvc
      taskRef:
        name: unit-test
      runAfter:
      - clone
    - name: build-push-image
      params:
      - name: pathToDockerfile
        value: \$(params.pathToDockerfile)
      - name: imageUrl
        value: \$(params.imageUrl)
      - name: imageTag
        value: \$(params.imageTag)
      taskRef:
        name: build-push-image
      runAfter:
        - unit-test
      workspaces: # 传递 workspaces
        - name: source
          workspace: go-repo-pvc
        - name: dockerconfig
          workspace: docker-config
    - name: deploy-to-k8s
      taskRef:
        name: deploy-to-k8s
      params:
        - name: pathToYamlFile
          value: deployment.yaml
        - name: IMAGE
          value: \$(params.imageUrl)
        - name: TAG
          value: \$(params.imageTag)
      workspaces:
        - name: source
          workspace: go-repo-pvc
        - name: kubernetesconfig
          workspace: kubernetes-config
      runAfter:
        - build-push-image
EOF

运行测试

运行测试就是创建PipelineRun，不过在创建之前，我们先创建需要的认证信息。

cat > auth.yaml <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: gitlab-auth
  annotations:
    tekton.dev/git-0: https://gitee.com/  # 这里使用的gitee仓库
type: kubernetes.io/basic-auth
stringData:
  username: xxxx
  password: xxxx
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: tekton-build-sa
secrets:
  - name: gitlab-auth
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: tekton-clusterrole-binding
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: edit
subjects:
- kind: ServiceAccount
  name: tekton-build-sa
  namespace: default

EOF

四 PipelineRun测试

cat > pipelinerun.yaml <<EOF
apiVersion: tekton.dev/v1beta1
kind: PipelineRun
metadata:
  name: devops-hello-world-pipeline-run
spec:
  pipelineRef:
    name: devops-hello-world-pipeline
  params:
    - name: revision
      value: master
    - name: git_url
      value: https://gitee.com/coolops/devops-hello-world.git
    - name: imageUrl
      value: registry.cn-hangzhou.aliyuncs.com/coolops/devops-hello-world
    - name: imageTag
      value: latest
    - name: pathToDockerfile
      value: Dockerfile
  workspaces:
    - name: go-repo-pvc
      volumeClaimTemplate:
        spec:
          accessModes:
          - ReadWriteOnce
          storageClassName: openebs-hostpath
          resources:
            requests:
              storage: 1Gi
    - name: docker-config
      secret:
        secretName: docker-config
    - name: kubernetes-config
      secret:
        secretName: kubernetes-config
  serviceAccountName: tekton-build-sa

EOF
