【摘要】 ## 10–[掌握]-Docker 配置阿里云镜像加速> ​        鉴于国内网络问题，后续拉取 Docker 镜像十分缓慢，配置加速器来解决，配置阿里云加速器。- 1）、登录阿里云地址（需要注册）[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-mLaguI8W-1651888604583)(/img/1615539708242.png)]- 2）、获取加...


## 10–[掌握]-Docker 配置阿里云镜像加速

> ​        鉴于国内网络问题，后续拉取 Docker 镜像十分缓慢，配置加速器来解决，配置阿里云加速器。

- 1）、登录阿里云地址（需要注册）

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-mLaguI8W-1651888604583)(/img/1615539708242.png)]


- 2）、获取加速器地址：

```
https://yeu2889p.mirror.aliyuncs.com
```


- 3）、配置加速器地址配置，执行如下命令即可

```ini
sudo mkdir -p /etc/docker
sudo tee /etc/docker/daemon.json <<-'EOF'
{
  "registry-mirrors": ["https://yeu2889p.mirror.aliyuncs.com"]
}
EOF
sudo systemctl daemon-reload
sudo systemctl restart docker
```


> Docker 引擎服务启动、停止和关闭命令：

![1615539901884](https://img-blog.csdnimg.cn/img_convert/aaac9696aaf49c255bad2e4d7de14488.png)



## 11–[掌握]-Docker 容器快速运行ContOS 系统

> 使用Docker创建容器Contanier，运行CentOS 7操作系统。

- 1）、拉取镜像（注册中心仓库）

```ini
[root@node1 ~]# docker pull centos:7
7: Pulling from library/centos
2d473b07cdd5: Pull complete
Digest: sha256:0f4ec88e21daf75124b8a9e5ca03c37a5e937e0e108a255d890492430789b60e
Status: Downloaded newer image for centos:7
docker.io/library/centos:7

[root@node1 ~]# docker images
REPOSITORY   TAG       IMAGE ID       CREATED        SIZE
centos       7         8652b9f0cb4c   3 months ago   204MB
```


- 2）、创建容器

```ini
[root@node1 ~]# docker run -di --name=mycentos centos:7
21cc295413f0730ecdc64605081bab53775f982c56163713c8d0360e6a5f015d

[root@node1 ~]#
[root@node1 ~]# docker ps
CONTAINER ID   IMAGE      COMMAND       CREATED          STATUS          PORTS     NAMES
21cc295413f0   centos:7   "/bin/bash"   11 seconds ago   Up 10 seconds             mycentos
```


- 3）、进入容器

```ini
[root@node1 ~]# docker exec -it mycentos /bin/bash
[root@21cc295413f0 /]#
[root@21cc295413f0 /]# hostname
21cc295413f0
[root@21cc295413f0 /]#
[root@21cc295413f0 /]# vi aa.txt
[root@21cc295413f0 /]#
[root@21cc295413f0 /]# more a
aa.txt             anaconda-post.log
[root@21cc295413f0 /]# more aa.txt
Hello Docker!
```


## 12-[掌握]-Docker 帮助命令

> ​        已经安装部署Docker引擎：`systemctl start docker`

```ini
[root@node1 ~]# ps -ef|grep docker
root       1851      1  0 08:56 ?        00:00:01 /usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
```

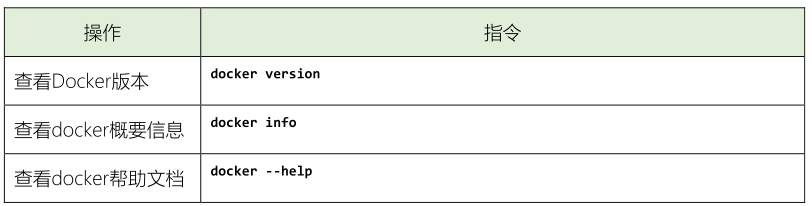

> Docker 容器引擎，提供客户端：`docker`

![1615600508387](https://img-blog.csdnimg.cn/img_convert/44d7a70448197fe6f2479e60131360f0.png)

```ini
[root@node1 ~]# docker version
Client: Docker Engine - Community
 Version:           20.10.5
 API version:       1.41
 Go version:        go1.13.15
 Git commit:        55c4c88
 Built:             Tue Mar  2 20:33:55 2021
 OS/Arch:           linux/amd64
 Context:           default
 Experimental:      true

Server: Docker Engine - Community
 Engine:
  Version:          20.10.5
  API version:      1.41 (minimum version 1.12)
  Go version:       go1.13.15
  Git commit:       363e9a8
  Built:            Tue Mar  2 20:32:17 2021
  OS/Arch:          linux/amd64


[root@node1 ~]# docker info
Client:
 Context:    default
 Debug Mode: false
 Plugins:
  app: Docker App (Docker Inc., v0.9.1-beta3)
  buildx: Build with BuildKit (Docker Inc., v0.5.1-docker)

Server:
 Containers: 1
  Running: 0
  Paused: 0
  Stopped: 1
 Images: 1
 Server Version: 20.10.5
 Storage Driver: overlay2
  Backing Filesystem: xfs

  [root@node1 ~]# docker --help

Usage:  docker [OPTIONS] COMMAND

A self-sufficient runtime for containers

Options:
      --config string      Location of client config files (default "/root/.docker")
  -c, --context string     Name of the context to use to connect to the daemon (overrides DOCKER_HOST env var and default
                           context set with "docker context use")
  -D, --debug              Enable debug mode
  -H, --host list          Daemon socket(s) to connect to
  -l, --log-level string   Set the logging level ("debug"|"info"|"warn"|"error"|"fatal") (default "info")
      --tls                Use TLS; implied by --tlsverify
      --tlscacert string   Trust certs signed only by this CA (default "/root/.docker/ca.pem")
      --tlscert string     Path to TLS certificate file (default "/root/.docker/cert.pem")
      --tlskey string      Path to TLS key file (default "/root/.docker/key.pem")
      --tlsverify          Use TLS and verify the remote
  -v, --version            Print version information and quit

Management Commands:
  app*        Docker App (Docker Inc., v0.9.1-beta3)
  builder     Manage builds
  buildx*     Build with BuildKit (Docker Inc., v0.5.1-docker)
  config      Manage Docker configs
  container   Manage containers
  context     Manage contexts
  image       Manage images
  manifest    Manage Docker image manifests and manifest lists
  network     Manage networks
  node        Manage Swarm nodes
  plugin      Manage plugins
  secret      Manage Docker secrets
  service     Manage services
  stack       Manage Docker stacks
  swarm       Manage Swarm
  system      Manage Docker
  trust       Manage trust on Docker images
  volume      Manage volumes

Commands:
  attach      Attach local standard input, output, and error streams to a running container
  build       Build an image from a Dockerfile
  commit      Create a new image from a container's changes
  cp          Copy files/folders between a container and the local filesystem
  create      Create a new container
  diff        Inspect changes to files or directories on a container's filesystem
  events      Get real time events from the server
  exec        Run a command in a running container
  export      Export a container's filesystem as a tar archive
  history     Show the history of an image
  images      List images
  import      Import the contents from a tarball to create a filesystem image
  info        Display system-wide information
  inspect     Return low-level information on Docker objects
  kill        Kill one or more running containers
  load        Load an image from a tar archive or STDIN
  login       Log in to a Docker registry
  logout      Log out from a Docker registry
  logs        Fetch the logs of a container
  pause       Pause all processes within one or more containers
  port        List port mappings or a specific mapping for the container
  ps          List containers
  pull        Pull an image or a repository from a registry
  push        Push an image or a repository to a registry
  rename      Rename a container
  restart     Restart one or more containers
  rm          Remove one or more containers
  rmi         Remove one or more images
  run         Run a command in a new container
  save        Save one or more images to a tar archive (streamed to STDOUT by default)
  search      Search the Docker Hub for images
  start       Start one or more stopped containers
  stats       Display a live stream of container(s) resource usage statistics
  stop        Stop one or more running containers
  tag         Create a tag TARGET_IMAGE that refers to SOURCE_IMAGE
  top         Display the running processes of a container
  unpause     Unpause all processes within one or more containers
  update      Update configuration of one or more containers
  version     Show the Docker version information
  wait        Block until one or more containers stop, then print their exit codes

Run 'docker COMMAND --help' for more information on a command.

To get more help with docker, check out our guides at https://docs.docker.com/go/guides/
```

> 在Docker容器引擎中，最重要命令就是：`镜像命令和容器命令`。

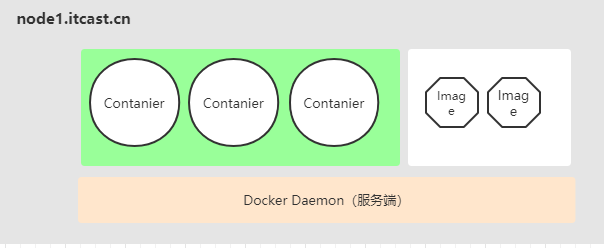

![1615600776170](https://img-blog.csdnimg.cn/img_convert/bece53f8e8e2298020b6e795ac9a59a1.png)


## 13-[掌握]-Docker 镜像命令

> 首先，看一下镜像相关常用命令：搜索镜像`search`、拉取镜像`pull`、查看镜像`list`及删除镜像`rmi`
>
> [从注册中心仓库中获取镜像，对镜像进行管理操作]()
>
> 注册中心，仓库地址：https://hub.docker.com

![1615600863236](https://img-blog.csdnimg.cn/img_convert/815fa96f785e50fcae5098f81c067de8.png)

```ini
# 搜索镜像image
[root@node1 ~]# clear
[root@node1 ~]# docker search elasticsearch
NAME                                 DESCRIPTION                                     STARS     OFFICIAL   AUTOMATED
elasticsearch                        Elasticsearch is a powerful open source sear…   4894      [OK]
nshou/elasticsearch-kibana           Elasticsearch-7.10.1 Kibana-7.10.1              125                  [OK]
itzg/elasticsearch                   Provides an easily configurable Elasticsearc…   71                   [OK]
elastichq/elasticsearch-hq           Official Docker image for ElasticHQ: Elastic…   70                   [OK]
```

> 搜索镜像时，更多在WEB 界面搜索

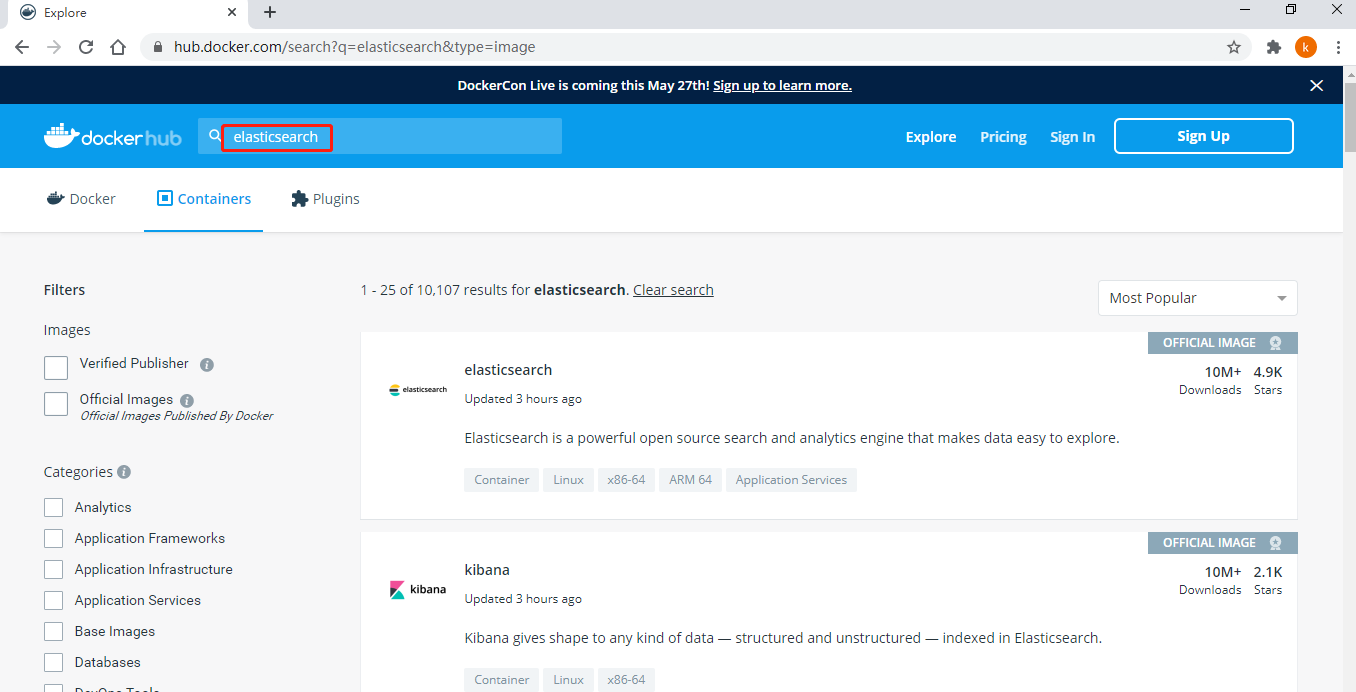

![1615601089585](https://img-blog.csdnimg.cn/img_convert/365a7e032702df534bb9cdb6c3872792.png)

> 当搜索到镜像以后，可以仓库中将镜像拉取pull到本地镜像
>
> ​        [每个镜像image，都有版本tag，所以在拉取镜像时，需要选择合适的版本tag]()，当拉取镜像时，不指定tag版本，默认情况下将会拉取最新tag版本镜像。

```ini
[root@node1 ~]# docker pull elasticsearch:7.11.1
7.11.1: Pulling from library/elasticsearch
7a0437f04f83: Downloading [===>                                               ]  5.934MB/75.18MB
744c7f8ba15d: Downloading [======================>                            ]  10.09MB/22.29MB
a2e5f03a9eab: Download complete
edcdb0cfb01b: Downloading [>                                                  ]  539.6kB/324.5MB
```

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-S1117LaN-1651888604585)(/img/1615601240320-1621314383189.png)]

> 当镜像拉取到本地以后，需要查看镜像和删除镜像
>

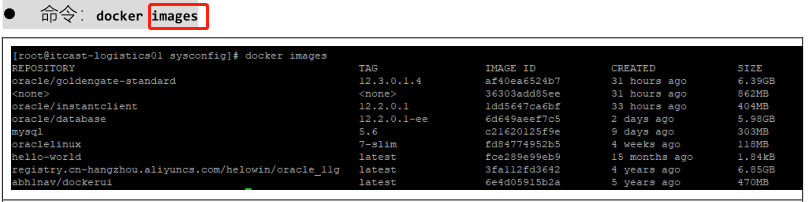

> - 1）、查看镜像

![1615601300360](https://img-blog.csdnimg.cn/img_convert/971214395ff081e7ec92625aa4cd500d.png)

> - 2）、删除镜像

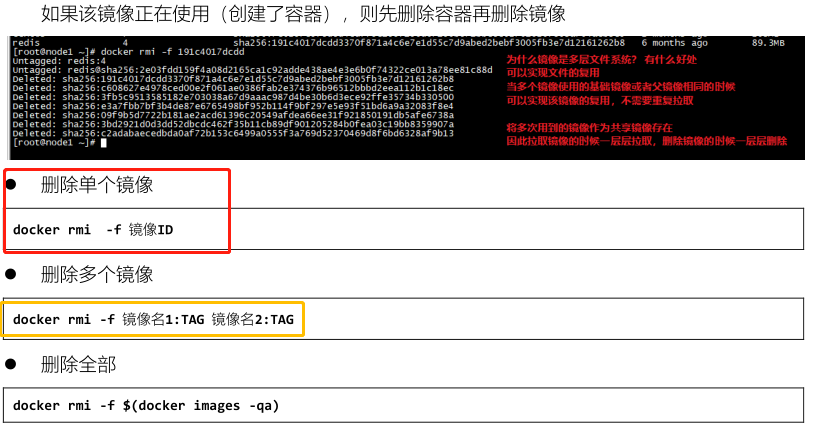

![1615601348789](https://img-blog.csdnimg.cn/img_convert/188a5f0b5f0368506e3fc4348c242799.png)

```ini
[root@node1 ~]# docker images
REPOSITORY   TAG       IMAGE ID       CREATED        SIZE
centos       7         8652b9f0cb4c   3 months ago   204MB
[root@node1 ~]#
[root@node1 ~]# docker rmi 8652b9f0cb4c
[root@node1 ~]#
[root@node1 ~]#
[root@node1 ~]# docker rmi centos:7
[root@node1 ~]#
```



## 14-[掌握]-Docker 容器命令之查看与创建

> ​    实际开发中，创建容器运行应用之前，首先获取对应镜像，往往都是从注册中心仓库中拉取，当将镜像拉取到本地以后，就可以创建容器。
>
> - 1）、容器查看，[本地有多少容器，有的运行，有的时停止的]()
>
>   `Docker 中容器Container运行以线程方式运行，所以使用ps查看`

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-ClkR1pwO-1651888604586)(/img/1615601617510-1621314383189.png)]

```ini
[root@node1 ~]# docker ps -a
CONTAINER ID   IMAGE      COMMAND       CREATED        STATUS                      PORTS     NAMES
21cc295413f0   centos:7   "/bin/bash"   17 hours ago   Exited (137) 17 hours ago             mycentos
[root@node1 ~]#
[root@node1 ~]# docker ps
CONTAINER ID   IMAGE     COMMAND   CREATED   STATUS    PORTS     NAMES
[root@node1 ~]#
[root@node1 ~]#
[root@node1 ~]# docker ps -l
CONTAINER ID   IMAGE      COMMAND       CREATED        STATUS                      PORTS     NAMES
21cc295413f0   centos:7   "/bin/bash"   17 hours ago   Exited (137) 17 hours ago             mycentos
[root@node1 ~]#
[root@node1 ~]# docker ps -f status=exited
CONTAINER ID   IMAGE      COMMAND       CREATED        STATUS                      PORTS     NAMES
21cc295413f0   centos:7   "/bin/bash"   17 hours ago   Exited (137) 17 hours ago             mycentos
```


> - 2）、容器创建，有2种方式，容器创建时需要指定使用镜像
>
>   [image（模板） -> container（实例）]()

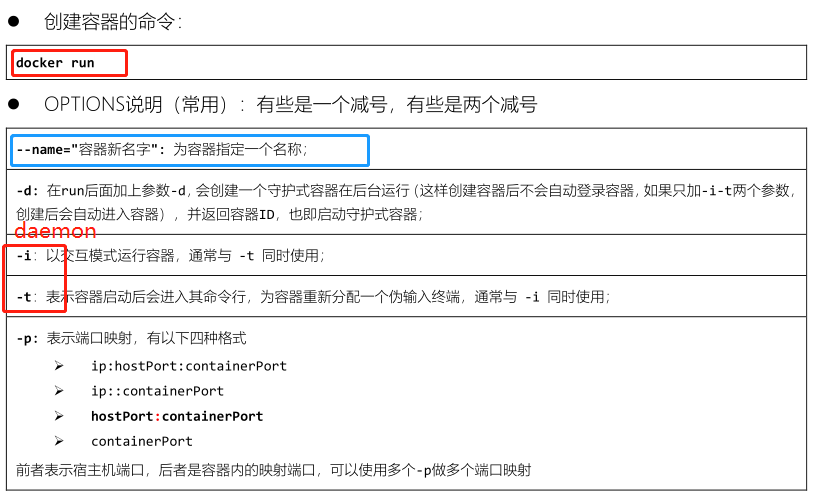

![1615601873246](https://img-blog.csdnimg.cn/img_convert/0730261caf7bd27123762ddc17577e38.png)

> - 方式一：启动交互式容器，`docker run -it --name=centos 镜像名称:标签 /bin/bash`

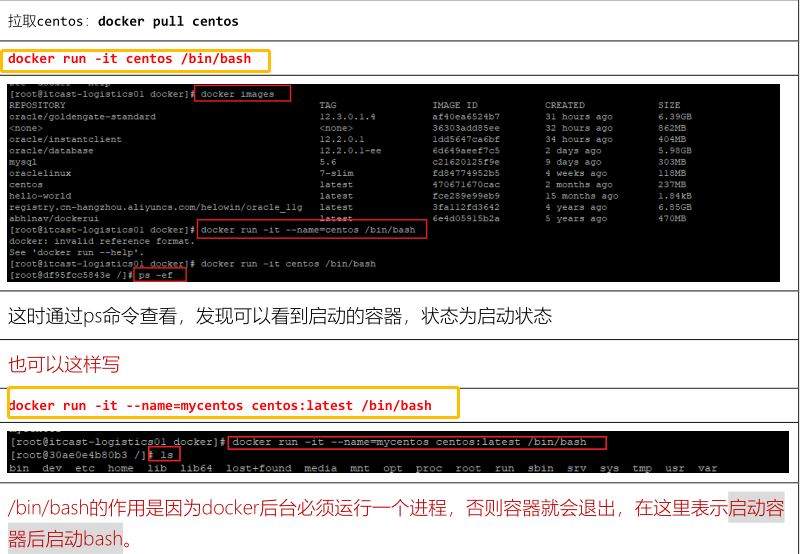

![1615601963095](https://img-blog.csdnimg.cn/img_convert/0106681f9f7f62dfc733caec5ee26617.png)

```ini
[root@node1 ~]# docker ps -a
CONTAINER ID   IMAGE      COMMAND       CREATED        STATUS                      PORTS     NAMES
21cc295413f0   centos:7   "/bin/bash"   17 hours ago   Exited (137) 17 hours ago             mycentos
[root@node1 ~]#
[root@node1 ~]# docker run -it centos:7 /bin/bash
[root@46188ebaf87f /]# hostname
46188ebaf87f
[root@46188ebaf87f /]#
[root@46188ebaf87f /]# exit
exit
[root@node1 ~]#
[root@node1 ~]# docker ps
CONTAINER ID   IMAGE     COMMAND   CREATED   STATUS    PORTS     NAMES
[root@node1 ~]#
[root@node1 ~]# docker ps -a
CONTAINER ID   IMAGE      COMMAND       CREATED          STATUS                      PORTS     NAMES
46188ebaf87f   centos:7   "/bin/bash"   32 seconds ago   Exited (0) 6 seconds ago              competent_fermi
21cc295413f0   centos:7   "/bin/bash"   17 hours ago     Exited (137) 17 hours ago             mycentos
```

> 当创建交互式容器时，创建完成以后，直接运行容器，并且进入容器中，如果退出容器，自动将容器关闭。


> - 2）、方式二：守护式方式创建容器，`docker run -di --name=容器名称 镜像名称:标签`
>   - 采用守护式方法创建容器以后，需要登录容器（相当于登录操作系统）
>   - 命令：`docker exec -it 容器名称(或者容器id) /bin/bash`

```ini
[root@node1 ~]# docker ps
CONTAINER ID   IMAGE     COMMAND   CREATED   STATUS    PORTS     NAMES
[root@node1 ~]#
[root@node1 ~]# docker run -di --name=mycentos2 centos:7
1741ea301b3f7c60992cd7b29a29747f15c46c6be6a916bbad213e16018a3303
[root@node1 ~]#
[root@node1 ~]# docker ps
CONTAINER ID   IMAGE      COMMAND       CREATED         STATUS         PORTS     NAMES
1741ea301b3f   centos:7   "/bin/bash"   6 seconds ago   Up 6 seconds             mycentos2
[root@node1 ~]#
[root@node1 ~]#
[root@node1 ~]# docker exec -it mycentos2 /bin/bash
[root@1741ea301b3f /]#
[root@1741ea301b3f /]# hostname
1741ea301b3f
[root@1741ea301b3f /]#
```

> 实际项目中，创建容器时采用守护方式创建，使用exec进入容器进行操作。


## 15-[掌握]-Docker 容器命令之启动与停止

> ​        当容器创建完成以后，有时需要停止容器运行、启动容器运行，相关命令如下：

![1615602427828](https://img-blog.csdnimg.cn/img_convert/dc99debafbd33eb03133a76663b2a183.png)

> 可以重启容器（先停止，再启动）

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-18MPfKlH-1651888604587)(/img/1615602461159-1621314383189.png)]

```ini
[root@node1 ~]# docker ps -a
CONTAINER ID   IMAGE      COMMAND       CREATED         STATUS                      PORTS     NAMES
1741ea301b3f   centos:7   "/bin/bash"   4 minutes ago   Up 4 minutes                          mycentos2
e56430030fff   centos:7   "/bin/bash"   5 minutes ago   Exited (0) 5 minutes ago              centos7
46188ebaf87f   centos:7   "/bin/bash"   8 minutes ago   Exited (0) 7 minutes ago              competent_fermi
21cc295413f0   centos:7   "/bin/bash"   17 hours ago    Exited (137) 17 hours ago             mycentos
[root@node1 ~]#
[root@node1 ~]# docker start mycentos
mycentos
[root@node1 ~]#
[root@node1 ~]# docker ps
CONTAINER ID   IMAGE      COMMAND       CREATED         STATUS         PORTS     NAMES
1741ea301b3f   centos:7   "/bin/bash"   4 minutes ago   Up 4 minutes             mycentos2
21cc295413f0   centos:7   "/bin/bash"   17 hours ago    Up 3 seconds             mycentos
[root@node1 ~]#
[root@node1 ~]# docker stop mycentos2
mycentos2
[root@node1 ~]#
[root@node1 ~]# docker kill 21cc295413f0
21cc295413f0
[root@node1 ~]# docker ps -a
CONTAINER ID   IMAGE      COMMAND       CREATED         STATUS                        PORTS     NAMES
1741ea301b3f   centos:7   "/bin/bash"   5 minutes ago   Exited (137) 25 seconds ago             mycentos2
e56430030fff   centos:7   "/bin/bash"   7 minutes ago   Exited (0) 6 minutes ago                centos7
46188ebaf87f   centos:7   "/bin/bash"   9 minutes ago   Exited (0) 8 minutes ago                competent_fermi
21cc295413f0   centos:7   "/bin/bash"   17 hours ago    Exited (137) 6 seconds ago              mycentos
```


## 16-[掌握]-Docker 容器命令之IP 地址

> 当使用Docker 容器引擎，创建容器以后，每个容器运行时，都有IP地址，属于Docker容器内部IP地址。

```ini
[root@node1 ~]# docker ps
CONTAINER ID   IMAGE      COMMAND       CREATED         STATUS         PORTS     NAMES
4148cf3b3dea   centos:7   "/bin/bash"   3 minutes ago   Up 3 minutes             centos7
827ff98c2a29   centos:7   "/bin/bash"   4 minutes ago   Up 4 minutes             centos
[root@node1 ~]#
[root@node1 ~]# ifconfig
docker0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.17.0.1  netmask 255.255.0.0  broadcast 172.17.255.255
        inet6 fe80::42:d4ff:fef5:9869  prefixlen 64  scopeid 0x20<link>
        ether 02:42:d4:f5:98:69  txqueuelen 0  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 13  bytes 1768 (1.7 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

ens33: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.88.10  netmask 255.255.255.0  broadcast 192.168.88.255
        inet6 fe80::20c:29ff:fea0:85  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:a0:00:85  txqueuelen 1000  (Ethernet)
        RX packets 485440  bytes 672923357 (641.7 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 129820  bytes 8330903 (7.9 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 48  bytes 4080 (3.9 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 48  bytes 4080 (3.9 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

veth94d4a57: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet6 fe80::3408:a4ff:fe46:7687  prefixlen 64  scopeid 0x20<link>
        ether 36:08:a4:46:76:87  txqueuelen 0  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 8  bytes 656 (656.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

vetha19c80a: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet6 fe80::cc15:1fff:fe6d:991d  prefixlen 64  scopeid 0x20<link>
        ether ce:15:1f:6d:99:1d  txqueuelen 0  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 8  bytes 656 (656.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

virbr0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        inet 192.168.122.1  netmask 255.255.255.0  broadcast 192.168.122.255
        ether 52:54:00:f6:83:da  txqueuelen 1000  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
```

> 如何查看容器中IP地址呢？

```ini
[root@node1 ~]# docker inspect centos
[
    {
        "Id": "827ff98c2a294a03191f4002bbf582d4e3ce84b0f3211c22c56ed3c561eb6dc1",
        "Created": "2021-03-13T03:02:42.354813578Z",
        "Path": "/bin/bash",
        "Args": [],
        "State": {
            "Status": "running",
            "Running": true,
            "Paused": false,
            "Restarting": false,
            "OOMKilled": false,
            "Dead": false,
            "Pid": 53376,
            "ExitCode": 0,
            "Error": "",
            "StartedAt": "2021-03-13T03:02:47.515567445Z",
            "FinishedAt": "0001-01-01T00:00:00Z"
        },
        "Image": "sha256:8652b9f0cb4c0599575e5a003f5906876e10c1ceb2ab9fe1786712dac14a50cf",
        "ResolvConfPath": "/var/lib/docker/containers/827ff98c2a294a03191f4002bbf582d4e3ce84b0f3211c22c56ed3c561eb6dc1/resolv.conf",
        "HostnamePath": "/var/lib/docker/containers/827ff98c2a294a03191f4002bbf582d4e3ce84b0f3211c22c56ed3c561eb6dc1/hostname",
        "HostsPath": "/var/lib/docker/containers/827ff98c2a294a03191f4002bbf582d4e3ce84b0f3211c22c56ed3c561eb6dc1/hosts",
        "LogPath": "/var/lib/docker/containers/827ff98c2a294a03191f4002bbf582d4e3ce84b0f3211c22c56ed3c561eb6dc1/827ff98c2a294a03191f4002bbf582d4e3ce84b0f3211c22c56ed3c561eb6dc1-json.log",
        "Name": "/centos",
        "RestartCount": 0,
        "Driver": "overlay2",
        "Platform": "linux",
        "MountLabel": "",
        "ProcessLabel": "",
        "AppArmorProfile": "",
        "ExecIDs": null,
        "HostConfig": {
            "Binds": null,
            "ContainerIDFile": "",
            "LogConfig": {
                "Type": "json-file",
                "Config": {}
            },
            "NetworkMode": "default",
            "PortBindings": {},
            "RestartPolicy": {
                "Name": "no",
                "MaximumRetryCount": 0
            },
            "AutoRemove": false,
            "VolumeDriver": "",
            "VolumesFrom": null,
            "CapAdd": null,
            "CapDrop": null,
            "CgroupnsMode": "host",
            "Dns": [],
            "DnsOptions": [],
            "DnsSearch": [],
            "ExtraHosts": null,
            "GroupAdd": null,
            "IpcMode": "private",
            "Cgroup": "",
            "Links": null,
            "OomScoreAdj": 0,
            "PidMode": "",
            "Privileged": false,
            "PublishAllPorts": false,
            "ReadonlyRootfs": false,
            "SecurityOpt": null,
            "UTSMode": "",
            "UsernsMode": "",
            "ShmSize": 67108864,
            "Runtime": "runc",
            "ConsoleSize": [
                0,
                0
            ],
            "Isolation": "",
            "CpuShares": 0,
            "Memory": 0,
            "NanoCpus": 0,
            "CgroupParent": "",
            "BlkioWeight": 0,
            "BlkioWeightDevice": [],
            "BlkioDeviceReadBps": null,
            "BlkioDeviceWriteBps": null,
            "BlkioDeviceReadIOps": null,
            "BlkioDeviceWriteIOps": null,
            "CpuPeriod": 0,
            "CpuQuota": 0,
            "CpuRealtimePeriod": 0,
            "CpuRealtimeRuntime": 0,
            "CpusetCpus": "",
            "CpusetMems": "",
            "Devices": [],
            "DeviceCgroupRules": null,
            "DeviceRequests": null,
            "KernelMemory": 0,
            "KernelMemoryTCP": 0,
            "MemoryReservation": 0,
            "MemorySwap": 0,
            "MemorySwappiness": null,
            "OomKillDisable": false,
            "PidsLimit": null,
            "Ulimits": null,
            "CpuCount": 0,
            "CpuPercent": 0,
            "IOMaximumIOps": 0,
            "IOMaximumBandwidth": 0,
            "MaskedPaths": [
                "/proc/asound",
                "/proc/acpi",
                "/proc/kcore",
                "/proc/keys",
                "/proc/latency_stats",
                "/proc/timer_list",
                "/proc/timer_stats",
                "/proc/sched_debug",
                "/proc/scsi",
                "/sys/firmware"
            ],
            "ReadonlyPaths": [
                "/proc/bus",
                "/proc/fs",
                "/proc/irq",
                "/proc/sys",
                "/proc/sysrq-trigger"
            ]
        },
        "GraphDriver": {
            "Data": {
                "LowerDir": "/var/lib/docker/overlay2/daba5b9305c5e683eafbe5e087d1bebee34c98be005db15649d54ad4477b5fe7-init/diff:/var/lib/docker/overlay2/c907f57265207bf28d834e05f41753b198a5b3df2b84ddd064e053d741e3ad5f/diff",
                "MergedDir": "/var/lib/docker/overlay2/daba5b9305c5e683eafbe5e087d1bebee34c98be005db15649d54ad4477b5fe7/merged",
                "UpperDir": "/var/lib/docker/overlay2/daba5b9305c5e683eafbe5e087d1bebee34c98be005db15649d54ad4477b5fe7/diff",
                "WorkDir": "/var/lib/docker/overlay2/daba5b9305c5e683eafbe5e087d1bebee34c98be005db15649d54ad4477b5fe7/work"
            },
            "Name": "overlay2"
        },
        "Mounts": [],
        "Config": {
            "Hostname": "827ff98c2a29",
            "Domainname": "",
            "User": "",
            "AttachStdin": false,
            "AttachStdout": false,
            "AttachStderr": false,
            "Tty": false,
            "OpenStdin": true,
            "StdinOnce": false,
            "Env": [
                "PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin"
            ],
            "Cmd": [
                "/bin/bash"
            ],
            "Image": "centos:7",
            "Volumes": null,
            "WorkingDir": "",
            "Entrypoint": null,
            "OnBuild": null,
            "Labels": {
                "org.label-schema.build-date": "20201113",
                "org.label-schema.license": "GPLv2",
                "org.label-schema.name": "CentOS Base Image",
                "org.label-schema.schema-version": "1.0",
                "org.label-schema.vendor": "CentOS",
                "org.opencontainers.image.created": "2020-11-13 00:00:00+00:00",
                "org.opencontainers.image.licenses": "GPL-2.0-only",
                "org.opencontainers.image.title": "CentOS Base Image",
                "org.opencontainers.image.vendor": "CentOS"
            }
        },
        "NetworkSettings": {
            "Bridge": "",
            "SandboxID": "958164ab6fd78db5b500d75ec0c798318a7d1a89cc4e1de3e168e3a062e7f8d9",
            "HairpinMode": false,
            "LinkLocalIPv6Address": "",
            "LinkLocalIPv6PrefixLen": 0,
            "Ports": {},
            "SandboxKey": "/var/run/docker/netns/958164ab6fd7",
            "SecondaryIPAddresses": null,
            "SecondaryIPv6Addresses": null,
            "EndpointID": "1da3cb4de7247d1002b27ced094ea5d7a6a2a2c23d8157b77461cbee886e8f1c",
            "Gateway": "172.17.0.1",
            "GlobalIPv6Address": "",
            "GlobalIPv6PrefixLen": 0,
            "IPAddress": "172.17.0.2",
            "IPPrefixLen": 16,
            "IPv6Gateway": "",
            "MacAddress": "02:42:ac:11:00:02",
            "Networks": {
                "bridge": {
                    "IPAMConfig": null,
                    "Links": null,
                    "Aliases": null,
                    "NetworkID": "051cdc01a196f22b35b248f863b7212fa2256adb4f1decf877a09bd05bdd4d59",
                    "EndpointID": "1da3cb4de7247d1002b27ced094ea5d7a6a2a2c23d8157b77461cbee886e8f1c",
                    "Gateway": "172.17.0.1",
                    "IPAddress": "172.17.0.2",
                    "IPPrefixLen": 16,
                    "IPv6Gateway": "",
                    "GlobalIPv6Address": "",
                    "GlobalIPv6PrefixLen": 0,
                    "MacAddress": "02:42:ac:11:00:02",
                    "DriverOpts": null
                }
            }
        }
    }
]
```

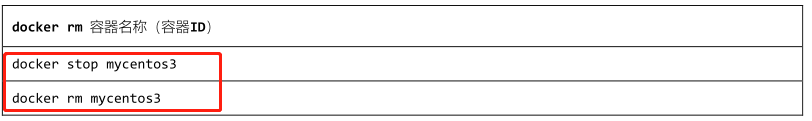

>  删除容器：当容器不再被使用时，可以直接删除容器Contanier

![1615605219378](https://img-blog.csdnimg.cn/img_convert/aa108c489b4f9db4d4b033a0d20a4c3b.png)

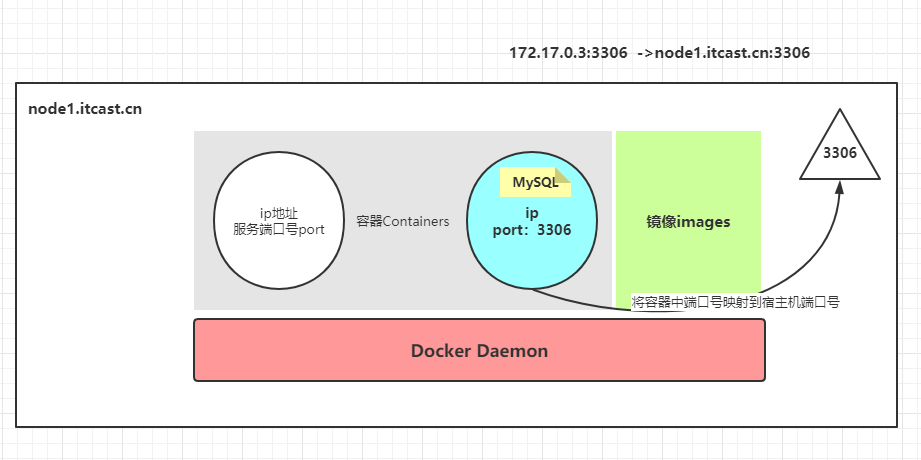

> 当创建容器以后，并且运行时，包含IP地址，提供相关网络适配器将宿主机IP地址转换为容器IP地址。[此外，如果容器中运行服务，需要暴露端口号，需要设置容器端口号与宿主机端口号映射。]()

![image-20210518175026918](https://img-blog.csdnimg.cn/img_convert/06dd81d00cf1c749450d61ade1f733e7.png)


## 17-[理解]-Docker 应用部署之MySQL

> 接下来，采用Docker容器部署数据库和服务：MySQL数据库。
>
> 步骤：[①搜索镜像、②拉取镜像、③查看镜像、④启动容器、⑤停止容器、⑥移除容器]()

```ini
[root@node1 ~]# docker search mysql

[root@node1 ~]# docker pull centos/mysql-57-centos7
Using default tag: latest
latest: Pulling from centos/mysql-57-centos7
d8d02d457314: Pull complete
a11069b6e245: Pull complete
596303fb1aa3: Pull complete
a29499e779a7: Pull complete
17d1a52c2e00: Pull complete
ed24591227fe: Pull complete
de0ad46e3ed9: Pull complete
c62e4a984a9c: Pull complete
01d54c6bda68: Pull complete
Digest: sha256:e08ee4d43b7356607685b69bde6335e27cf20c020f345b6c6c59400183882764
Status: Downloaded newer image for centos/mysql-57-centos7:latest
docker.io/centos/mysql-57-centos7:latest

[root@node1 ~]# docker images
centos/mysql-57-centos7   latest    f83a2938370c   17 months ago   452MB


```

> 命令：`docker run -dt --name=mysql -p 3306:3306 -e MYSQL_ROOT_PASSWORD=123456 centos/mysql-57-centos7`
>

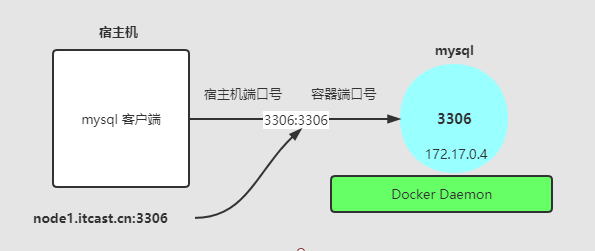

> 其中在创建容器时，需要指定端口号映射

![1615605653675](https://img-blog.csdnimg.cn/img_convert/64e8826a420af065f8e89b1cedda9015.png)

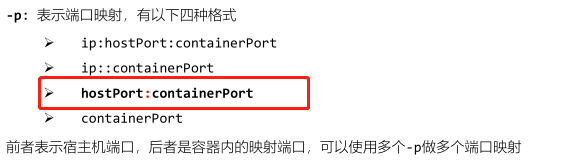

> 指定端口号映射方式：

![1615605683345](https://img-blog.csdnimg.cn/img_convert/784f07f0f9b9e7d8ae7e1bfe2ba0d064.png)

```ini
[root@node1 ~]# docker run -di --name=mysql -p 3306:3306 -e MYSQL_ROOT_PASSWORD=123456 centos/mysql-57-centos7
b3da50687358586f0b0a430ba138b0a080b39dbf244de4f92152919f51a3dae9


[root@node1 ~]#
[root@node1 ~]#
[root@node1 ~]#
[root@node1 ~]#
[root@node1 ~]#
[root@node1 ~]# docker ps
CONTAINER ID   IMAGE                     COMMAND                  CREATED          STATUS          PORTS                    NAMES
b3da50687358   centos/mysql-57-centos7   "container-entrypoin…"   40 seconds ago   Up 6 seconds    0.0.0.0:3306->3306/tcp   mysql

[root@node1 ~]# docker exec -it mysql /bin/bash
bash-4.2$ ps
   PID TTY          TIME CMD
   202 pts/0    00:00:02 bash
   211 pts/0    00:00:00 ps
bash-4.2$
bash-4.2$ ps -ef|grep mysql
mysql         1      0  2 03:22 ?        00:00:02 /opt/rh/rh-mysql57/root/usr/libexec/mysqld --defaults-file=/etc/my.cnf
mysql       202      0 12 03:23 pts/0    00:00:02 /bin/bash
mysql       212    202  0 03:23 pts/0    00:00:00 ps -ef
mysql       213    202  0 03:23 pts/0    00:00:00 grep mysql
```

![1615605915549](https://img-blog.csdnimg.cn/img_convert/4bca3e6e75d01f65d82476e980310892.png)

【版权声明】本文为华为云社区用户原创内容，转载时必须标注文章的来源（华为云社区）、文章链接、文章作者等基本信息， 否则作者和本社区有权追究责任。如果您发现本社区中有涉嫌抄袭的内容，欢迎发送邮件进行举报，并提供相关证据，一经查实，本社区将立刻删除涉嫌侵权内容，举报邮箱： cloudbbs@huaweicloud.com
Docker 大数据 智慧物流
  • 点赞
  • 收藏
  • 关注作者

评论（0）

0/1000
抱歉，系统识别当前为高风险访问，暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称，即可参与社区互动！

*长度不超过10个汉字或20个英文字符，设置后3个月内不可修改。

*长度不超过10个汉字或20个英文字符，设置后3个月内不可修改。

确认 取消

加入云驻计划，成为创作者

  • 华为云周边好礼
  • 免费体验产品
  • 特殊身份标识
  • 线下官方门票
  • 内部专家零距离
  • 与10000+优质创作者共同成长
立即加入
