【运动学】基于matlab GUI模拟鱼类目标追击问题【含Matlab源码 166期】

一、获取代码方式

获取代码方式1：
完整代码已上传我的资源：【运动学】基于matlab GUI模拟鱼类目标追击问题【含Matlab源码 166期】

获取代码方式2：
通过订阅紫极神光博客付费专栏，凭支付凭证，私信博主，可获得此代码。

备注：
订阅紫极神光博客付费专栏，可免费获得1份代码（有效期为订阅日起，三天内有效）；

二、部分源代码

function varargout = TorpedoAndAim(varargin)
% TORPEDOANDAIM MATLAB code for TorpedoAndAim.fig
%      TORPEDOANDAIM, by itself, creates a new TORPEDOANDAIM or raises the existing
%      singleton*.
%
%      H = TORPEDOANDAIM returns the handle to a new TORPEDOANDAIM or the handle to
%      the existing singleton*.
%
%      TORPEDOANDAIM('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in TORPEDOANDAIM.M with the given input arguments.
%
%      TORPEDOANDAIM('Property','Value',...) creates a new TORPEDOANDAIM or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before TorpedoAndAim_OpeningFcn gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to TorpedoAndAim_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help TorpedoAndAim

% Last Modified by GUIDE v2.5 22-Jun-2021 20:00:58

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @TorpedoAndAim_OpeningFcn, ...
                   'gui_OutputFcn',  @TorpedoAndAim_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before TorpedoAndAim is made visible.
function TorpedoAndAim_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to TorpedoAndAim (see VARARGIN)

% Choose default command line output for TorpedoAndAim
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes TorpedoAndAim wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = TorpedoAndAim_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes on button press in pushbutton1.
function pushbutton1_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
AimSpeed=str2double(get(handles.edit1,'string'));  %目标初始速度
AimSpeedAngel=str2double(get(handles.edit2,'string'));  %目标速度与x方向夹角
TorpedoSpeed=str2double(get(handles.edit3,'string'));    %鱼雷速度
AimOriginX=str2double(get(handles.edit4,'string'));   %目标初始位置
AimOriginY=str2double(get(handles.edit5,'string'));
TorpedoOriginX=str2double(get(handles.edit6,'string'));  %鱼雷初始位置
TorpedoOriginY=str2double(get(handles.edit7,'string'));

%-------------%%输入完毕—————————————

AimSpeedAngel=AimSpeedAngel/180*pi;        %角度转弧度
AimSpeedX=AimSpeed*cos(AimSpeedAngel);       %目标速度x分量
AimSpeedY=AimSpeed*sin(AimSpeedAngel);     %目标速度y分量
TorpedoX=TorpedoOriginX;
TorpedoY=TorpedoOriginY;
t=0;t0=0.1;
axes(handles.axes1);
while(1)
    t=t+t0;
    set(handles.text12,'string',[num2str(t),'s']);
    AimX=AimOriginX+AimSpeedX*t;
    AimY=AimOriginY+AimSpeedY*t;
    ATAngel=atan((AimY-TorpedoY)/(AimX-TorpedoX));    %舷角
    if AimX>=TorpedoX&&AimY>=TorpedoY       %%鱼雷路径优化
        TorpedoX=TorpedoX+TorpedoSpeed*cos(ATAngel)*t0;
        TorpedoY=TorpedoY+TorpedoSpeed*abs(sin(ATAngel))*t0;
    elseif AimX<TorpedoX&&AimY>=TorpedoY
        TorpedoX=TorpedoX-TorpedoSpeed*cos(ATAngel)*t0;
        TorpedoY=TorpedoY+TorpedoSpeed*abs(sin(ATAngel))*t0;
    elseif AimX>=TorpedoX&&AimY<TorpedoY
        TorpedoX=TorpedoX+TorpedoSpeed*cos(ATAngel)*t0;
        TorpedoY=TorpedoY-TorpedoSpeed*abs(sin(ATAngel))*t0;
    else
        TorpedoX=TorpedoX-TorpedoSpeed*cos(ATAngel)*t0;
        TorpedoY=TorpedoY-TorpedoSpeed*abs(sin(ATAngel))*t0;
    end
    h1=plot(TorpedoX,TorpedoY,'*');             %鱼雷路径为***线
    xlabel('x方向','Fontsize',16);
    ylabel('y方向','Fontsize',16);
    hold on
    h2=plot(AimX,AimY,'.');                     %目标路径为...线
    r=(AimY-TorpedoY)^2+(AimX-TorpedoX)^2;      %鱼目距离
    if(r)<=1                                    %击中判定
        set(handles.text11,'string','成功击中目标!');
        break;
    end
    if(t>60)                                    %丢失判定
        set(handles.text11,'string','超时!丢失目标!');
        break;
    end
    pause(0.01);
end


function edit1_Callback(hObject, eventdata, handles)
% hObject    handle to edit1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of edit1 as text
%        str2double(get(hObject,'String')) returns contents of edit1 as a double


% --- Executes during object creation, after setting all properties.
function edit1_CreateFcn(hObject, eventdata, handles)
% hObject    handle to edit1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
    set(hObject,'BackgroundColor','white');
end








1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

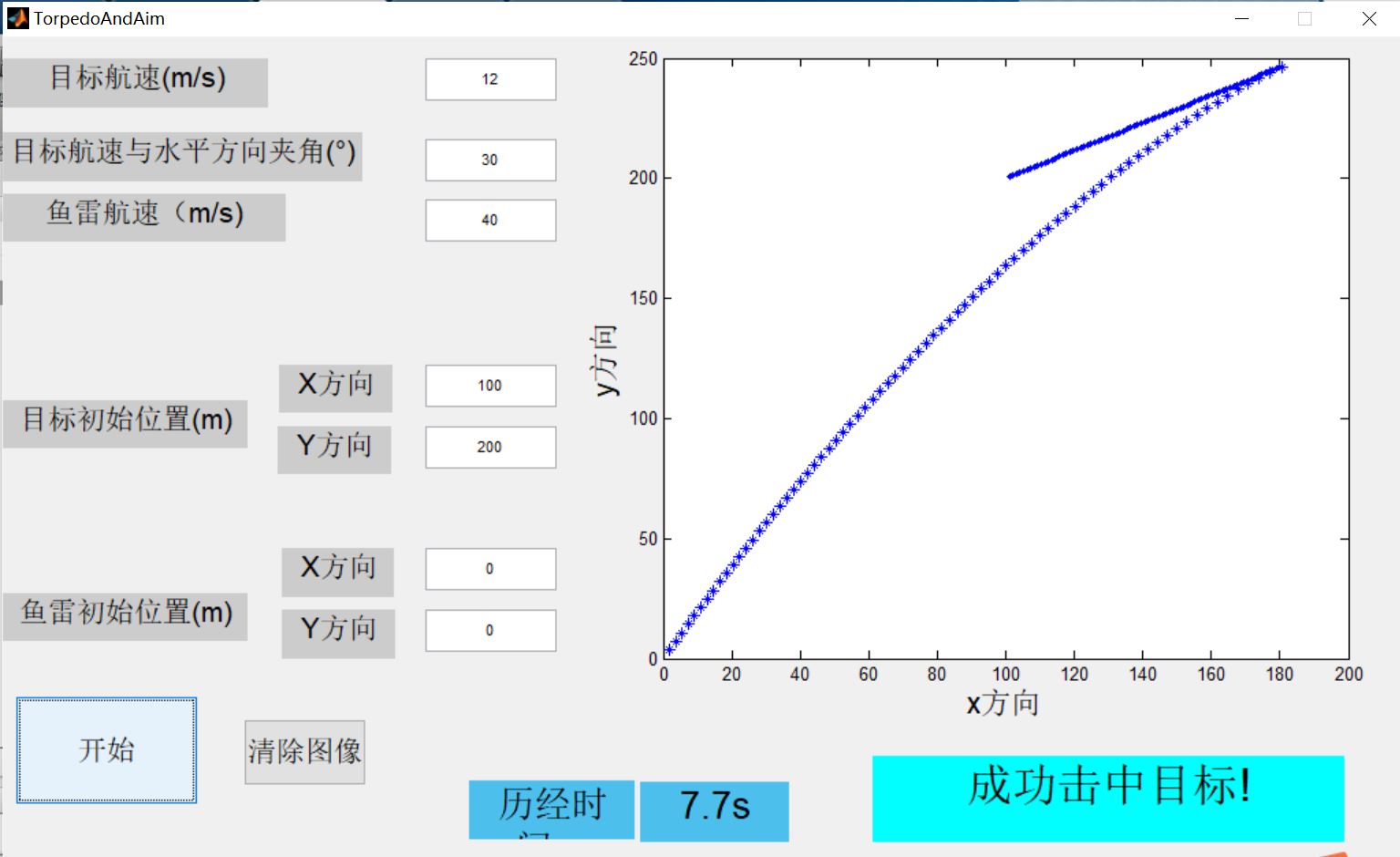

三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 门云阁.MATLAB物理计算与可视化[M].清华大学出版社，2013.
