function bb()
% BB Bouncing Ball Physics
% BB is a graphical User Interface that creates a simple simulation of a ball bouncing
% off the ground.
%
% Ball Parameters are:
%
% Height from the center of the ball to the ground is 10. This is constant and cannot
% change. Instead, change the other parameters since they're all relative.
%
% Radius: Radius of the ball. It's best to put it between 1 and 9. Any value equal to
% or above 10 will present problems as 10 is the distance from the centre of the ball
% to the ground.
%
% Gravity: Affect the ratio in which the ball gains speed in the negative Y direction.
%
% Initial Yv: Initial velocity in the Y direction. Can be positive, negative, or anything.
%
% Initial Xv: Initial velocity in the X direction. Can be positive, negative, or anything.
%
% Vertical Speed Conservation (%): Affects how much energy (velocity) is retained in the
% Y direction after hitting the ground. A value of 0 to 100 is normal. A value of 0 means
% no energy is retained and the ball comes to a halt after hitting the ground. A value
% of 100 means all energy is retained and the ball will bounce indefinitely. A value of
% over 100 will cause energy to increase after hitting the ground.
%
% Horizontal Speed Conservation (%): Same as Vertical Speed Conservation but in the
% X direction.
%
% Colour: Three element vector ([R G B]) in which the ball appears in. Each
% element should be between or equal 0 and 1.
%
%
% Plotting a path enables you to see the x-y diagram of the ball's movement and gives
% you the ability to pan the axes with the mouse.
%
% To launch the GUI, type bb in the command window with this file in the current
% directory. Alternatively, you can choose Debug -> Run from this editor window, or
% press F5.
%
%

figure('units','normalized','position',[.2 .2 .65 .65],'menubar','none','numbertitle','off','color','w','name','Bouncing Ball')
axes('position',[.25 .05 .65 .75])
ed1=uicontrol('style','edit','units','normalized','position',[.025 .895 .1 .05],'backgroundcolor','w','string','1','callback',@init);
uicontrol('style','text','units','normalized','position',[.025 .96 .1 .025],'backgroundcolor','w','string','Radius');
ed2=uicontrol('style','edit','units','normalized','position',[.025 .775 .1 .05],'backgroundcolor','w','string','9.81');
uicontrol('style','text','units','normalized','position',[.025 .84 .1 .025],'backgroundcolor','w','string','Gravity');
ed3=uicontrol('style','edit','units','normalized','position',[.025 .65 .1 .05],'backgroundcolor','w','string','0');
uicontrol('style','text','units','normalized','position',[.025 .72 .1 .025],'backgroundcolor','w','string','Initial Yv');
ed4=uicontrol('style','edit','units','normalized','position',[.025 .535 .1 .05],'backgroundcolor','w','string','500');
uicontrol('style','text','units','normalized','position',[.025 .6 .1 .025],'backgroundcolor','w','string','Initial Xv');
ed5=uicontrol('style','edit','units','normalized','position',[.025 .415 .1 .05],'backgroundcolor','w','string','70');
uicontrol('style','text','units','normalized','position',[.005 .48 .21 .025],'backgroundcolor','w','string',...
	'Vertical Speed Conservation (%)','horizontalalignment','left');
ed6=uicontrol('style','edit','units','normalized','position',[.025 .295 .1 .05],'backgroundcolor','w','string','50');
uicontrol('style','text','units','normalized','position',[.005 .36 .21 .025],'backgroundcolor','w','string',...
	'Horizontal Speed Conservation (%)','horizontalalignment','left');
ed7=uicontrol('style','edit','units','normalized','position',[.025 .175 .1 .05],'backgroundcolor','w','string','1 0 0','callback',@init);
uicontrol('style','text','units','normalized','position',[.025 .24 .1 .025],'backgroundcolor','w','string','Colour ([R G B])');
tb=uicontrol('style','togglebutton','string','Start','callback',@go,'units','normalized','position',[.025 .05 .1 .05],...
	'backgroundcolor','w');
chk=uicontrol('style','checkbox','string','Plot Path','units','normalized','position',[.025 .125 .1 .025],'backgroundcolor','w');

init;

	function [hb,h2,hx,h1,r,t]=init(varargin)
		r=str2double(get(ed1,'string'));
		t=linspace(0,2*pi,100);
		cla reset
		hold on
		cl=str2num(get(ed7,'string')); %#ok
		h1=fill((5)+r*cos(t),(10)+r*sin(t),cl);
		axis([0 10 -1 10+r+1])
		axis equal
		hx=axis;
		hL=line(1000.*[hx(1),hx(2)],[0 0]);
		set(hL,'color','k','linestyle','-','linewidth',3)
		hL=line(1000.*[hx(1),hx(2)],[10 10]);
		axis(hx)
		set(hL,'color','c','linestyle','--')
		set(h1,'linewidth',2)
		h2=plot(5,10,'k+');
		hb=[h1,h2];
	end

	function go(varargin)
		set(tb,'value',0)
		if strcmp(get(tb,'string'),'Start')
			set(tb,'string','Stop')
		else
			set(tb,'string','Start')
			return
		end
		dt=1;
		[hb,h2,hx,h1,r,t]=init;
		a=str2double(get(ed2,'string'))/2000;
		Yv=str2double(get(ed3,'string'))/2000;
		Xv=str2double(get(ed4,'string'))/2000;
		e=str2double(get(ed5,'string'))/100;
		f=str2double(get(ed6,'string'))/100;

		while strcmp(get(tb,'string'),'Stop')
			yc=get(h2,'ydata');
			if get(chk,'value')
				plot(get(h2,'xdata'),yc,'k.')
				pan on
			end
			Yv=Yv+a*dt;
			if yc-(Yv+a*dt)*dt<=r
				Yv=Yv+a*dt/(Yv+a*dt)*(yc-r);
				Yv=-Yv*e;
				set(h2,'ydata',r)
				set(h1,'ydata',r+(r)*sin(t))
				Xv=Xv*f;
			else
				for k=1:2
					set(hb(k),'ydata',get(hb(k),'ydata')-Yv*dt)
				end
			end




  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
  • 68
  • 69
  • 70
  • 71
  • 72
  • 73
  • 74
  • 75
  • 76
  • 77
  • 78
  • 79
  • 80
  • 81
  • 82
  • 83
  • 84
  • 85
  • 86
  • 87
  • 88
  • 89
  • 90
  • 91
  • 92
  • 93
  • 94
  • 95
  • 96
  • 97
  • 98
  • 99
  • 100
  • 101
  • 102
  • 103
  • 104
  • 105
  • 106
  • 107
  • 108
  • 109
  • 110
  • 111
  • 112
  • 113
  • 114
  • 115
  • 116
  • 117
  • 118
  • 119
  • 120
  • 121

三、运行结果

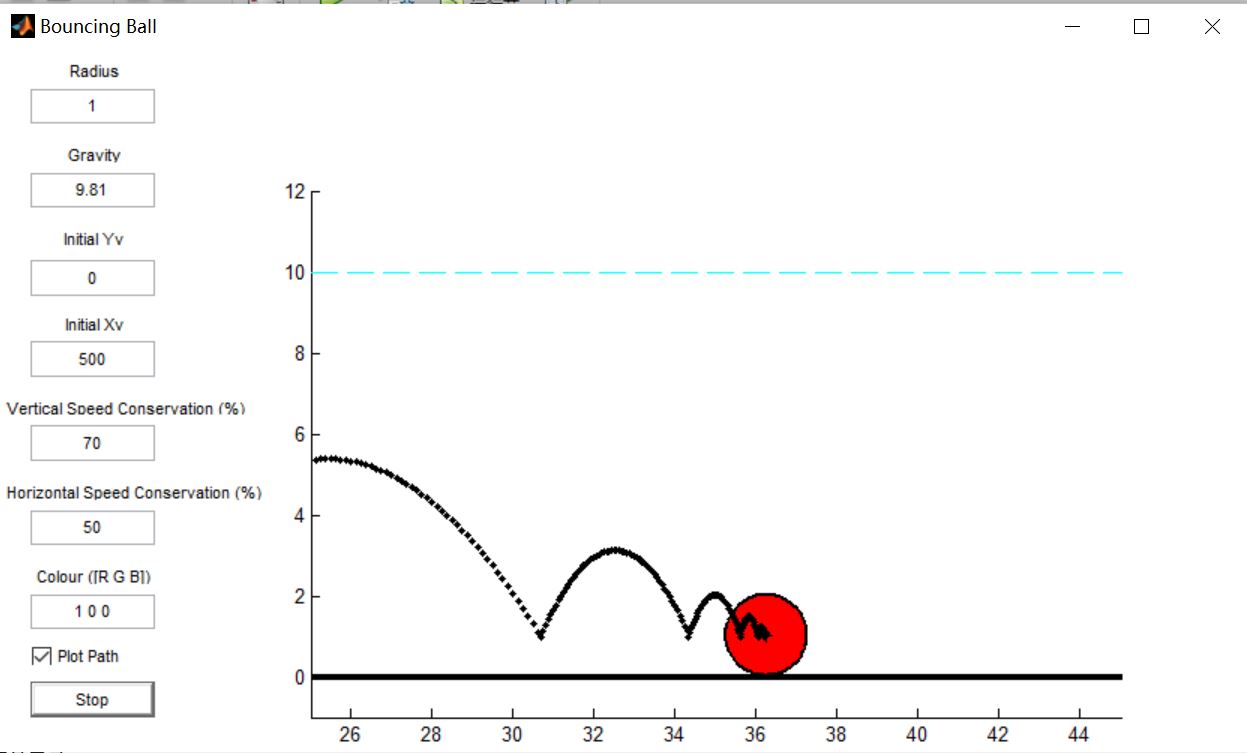

在这里插入图片描述
