【优化算法】多目标蝙蝠优化算法（MOBA）【含Matlab源码 005期】

一、获取代码方式

获取代码方式1：
完整代码已上传我的资源：【优化算法】多目标蝙蝠优化算法（MOBA）【含Matlab源码 005期】

获取代码方式2：
通过订阅紫极神光博客付费专栏，凭支付凭证，私信博主，可获得此代码。

备注：
订阅紫极神光博客付费专栏，可免费获得1份代码（有效期为订阅日起，三天内有效）；

二、蝙蝠优化算法（MOBA）简介

蝙蝠算法( BA) 是 Yang 教授于 2010 年基于群体智能提出的启发式搜索算法,是一种搜索全局最优解的有效方法。该算法是一种基于迭代的优化技术,初始化为一组随机解,然后 通过迭代搜寻最优解,且在最优解周围通过随机飞行产生局部新解,加强了局部搜索。与其他算法相比,BA 在准确性和有效性方面远优于其他算法,且没有许多参数要进行调整。

三、部分源代码

% ============================================================   %

% ------------------------------------------------------------   %

function Q=moba_demo(NPareto)
if nargin<1,
    NPareto=40;  % Number of points on the Pareto front
end
global w;

for k=1:NPareto,
    % Generate a weighting coefficient:w so that w1=w, w2=1-w, w1+w2=1.
    % Observations suggest that systematically monotonic weights are
    % better than random weights.
    w=k/NPareto;
    [best,fmin]=bat_algorithm;
    [obj1,obj2]=Funobj(best);
    Q(k,:)=[obj1,obj2];
    % Output/display
  disp(['Weight: ',num2str(w)]);
  disp(['Best Obj1=',num2str(obj1),'   Obj2=',num2str(obj2)]);

end
% Display the Pareto front
plot(Q(:,1),Q(:,2),'o');
xlabel('Obj_1'); ylabel('Obj_2');


% The main part of the Bat Algorithm                       %
% Usage: bat_algorithm([20 0.25 0.5]);                     %

function [best,fmin,N_iter]=bat_algorithm(para)
% Default parameters
if nargin<1,  para=[10 0.25 0.5];  end
n=para(1);      % Population size, typically 10 to 25
A=para(2);      % Loudness  (constant or decreasing)
r=para(3);      % Pulse rate (constant or decreasing)
% This frequency range determines the scalings
Qmin=0;         % Frequency minimum
Qmax=2;         % Frequency maximum
% Iteration parameters
%% In order to obtain better/more accurate results, N_iter
%% should be increased to N_iter=2000 or more if necessary.
N_iter=1000;       % Total number of function evaluations
% Dimension of the search variables
d=3;
% Initial arrays
Q=zeros(n,1);   % Frequency
v=zeros(n,d);   % Velocities
% Initialize the population/solutions
for i=1:n,
  Sol(i,:)=randn(1,d);
  Fitness(i)=Fun(Sol(i,:));
end
% Find the current best
[fmin,I]=min(Fitness);
best=Sol(I,:);

% ======================================================  %
% Note: As this is a demo, here we did not implement the  %
% reduction of loudness and increase of emission rates.   %
% Interested readers can do some parametric studies       %
% and also implementation various changes of A and r etc  %
% ======================================================  %

% Start the iterations -- Bat Algorithm
for i_ter=1:N_iter,
        % Loop over all bats/solutions
        for i=1:n,
          Q(i)=Qmin+(Qmin-Qmax)*rand;
          v(i,:)=v(i,:)+(Sol(i,:)-best)*Q(i);
          S(i,:)=Sol(i,:)+v(i,:);
          % Pulse rate
          if rand>r
              S(i,:)=best+0.01*randn(1,d);
          end

     % Evaluate new solutions
           Fnew=Fun(S(i,:));
     % If the solution improves or not too loudness
           if (Fnew<=Fitness(i)) & (rand<A) ,


           end

          % Update the current best
          if Fnew<=fmin,
                best=S(i,:);
                fmin=Fnew;
          end
        end

end
% End of the main bat algorithm and output/display can be added here.






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

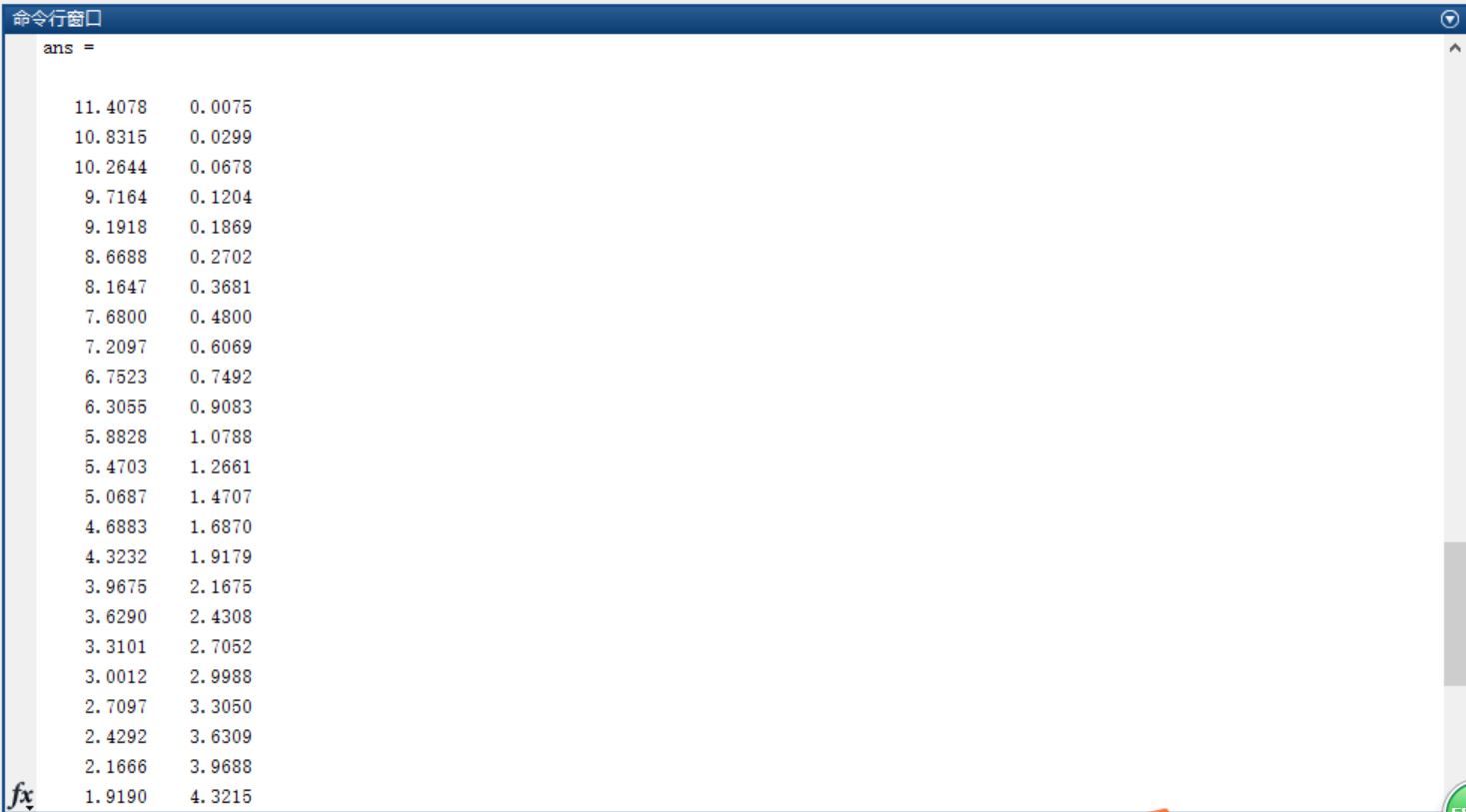

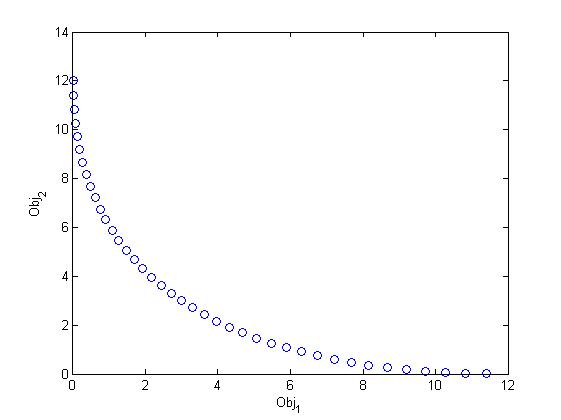

四、运行结果

五、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 包子阳,余继周,杨杉.智能优化算法及其MATLAB实例（第2版）[M].电子工业出版社，2016.
[2]张岩,吴水根.MATLAB优化算法源代码[M].清华大学出版社，2017.
