一、双边滤波图像去噪简介

理论知识参考文献:基于联合双边滤波的图像去噪与融合方法研究

二、部分源代码

% Image Denoising using Optimally Weighted Bilateral Filters
%

%
%  Acronyms:
%
%  SBF: Standard Bilateral Filter.
%  RBF: Robust Bilater Filter.
%  WBF: Weighted Bilateral Filter.
%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%
% parameters
sigma = 30;        %  noise
sigmas = 4;        %  spatial gaussian kernel
sigmar1 = 20;    %  range gaussian kernel for SBF
sigmar2 = 20;    %  range gaussian kernel  for RBF
w = 6*round(sigmas)+1;
tol = 0.01;
%
% read input image
%
f0 = double(imread('./images/cameraman.tif'));
[m,n]=size(f0);
%
% generate noise
%
noise=sigma*randn(m,n);
%
% noisy input for the algorithm
%
f = double(f0) + noise;
%
% compute SBF and divergence
%
L = 0;
[M, N]=computeTruncation(f, sigmar1, w, tol);
[f1, div1] = computeDivergence(f, f, sigmas,sigmar1,L,w,N,M);
%
% compute RBF and divergence
%
L = 1;
h = ones(2*L+1, 2*L+1) /((2*L+1)^2) ;
barf  =  imfilter(f,h);
[M, N] = computeTruncation(barf, sigmar2, w, tol);
[f2, div2] = computeDivergence(f, barf,sigmas,sigmar2,L,w,N,M);
%
% compute optimal weights
%
A = [norm(f1,'fro')^2,  sum(sum(f1.*f2));
         sum(sum(f1.*f2)), norm(f2,'fro')^2];
b = [sum(sum(f1.*f)) - sigma^2*div1;
        sum(sum(f2.*f)) - sigma^2*div2];
theta = A\b;
%
% form the WBF
%
bfoptSURE = theta(1)*f1 + theta(2)*f2;
% computing PSNR's
peak=255;
PSNRnoisy = 10 * log10(m*n*peak^2/ ...
    sum(sum((f - f0).^2)) );         % noisy PSNR
PSNR_f1 = 10 * log10(m * n * peak^2 ...
    / sum(sum((f1 - f0).^2)) );       % SBF PSNR
PSNR_f2 = 10 * log10(m * n * peak^2 ...
    / sum(sum((f2 - f0).^2)) );       % RBF PSNR
PSNRb_f = 10 * log10(m * n * peak^2 ...
    / sum(sum((bfoptSURE - f0).^2)) );  % WBF PSNR
%
% display
%
h=figure('Units','normalized','Position',[0 0.5 1 0.5]);
set(h,'name','Denoising Results')
colormap gray,
%
subplot(2,3,1)
imshow(uint8(f0));
title('Clean Image')
%
subplot(2,3,2)
imshow(uint8(f));
title(['Noisy Image, PSNR = ', ...
    num2str(PSNRnoisy,'%.2f')]);
%
subplot(2,3,3)
imshow(uint8(f1));
title(['SBF, PSNR = ', ...
    num2str(PSNR_f1,'%.2f')]);
%
subplot(2,3,4)
imshow(uint8(f2));
title(['RBF, PSNR = ', ...
    num2str(PSNR_f2,'%.2f')]);
%
subplot(2,3,5)
imshow(uint8(bfoptSURE));
title(['WBF, PSNR = ', ...
    num2str(PSNRb_f,'%.2f')]);
%
subplot(2,3,6)
imshow(uint8(bfoptSURE-f0));
title('Residual Noise in WBF');
% compute filter and divergence using shiftable algorithm
%
function [F, div] = computeDivergence ...
    (f,barf,sigmas,sigmar,L,w,N,M)
filt   = fspecial('gaussian', [w w], sigmas);
ct = (w+1)/2;
centerWt = filt(ct,ct);
gamma  =  1/(sqrt(N)*sigmar);
twoN    =  2^N;
[m,n] = size(f);

S = zeros(m,n);
delR = zeros(m,n);
delS = zeros(m,n);
if M == 0
    for k = 0 : N
        omegak = (2*k - N)*gamma;
        ck = nchoosek(N,k)/twoN;
        U = exp(-ii*omegak*barf);
        W = conj(U);
        V = W.*f;
        barV  = imfilter(V, filt);
        barW = imfilter(W, filt);
        B = ck*U.*barV;
        C = ck*U.*barW;
        R = R + B;
        S  = S + C;
        delR = delR + omegak*B;
        delS = delS  + omegak*C;
    end
    F = real(R./S);
    delR =  centerWt - (1/(2*L+1))^2*ii*delR;
    delS  = -ii*(1/(2*L+1))^2*delS;
else
    sumck = 0;
    sumckwk = 0;
    if N < 50
        for k = M : N - M
            omegak = (2*k - N)*gamma;
            warning('off'); %#ok<WNOFF>
            ck = nchoosek(N,k)/twoN;
            U = exp(-ii*omegak*barf);
            W = conj(U);
            V = W.*f;
            barV  = imfilter(V, filt);
            barW = imfilter(W, filt);
            B = ck*U.*barV;
            C = ck*U.*barW;
            sumck = sumck + ck;
            sumckwk = sumckwk + ck*omegak;
            R = R + B;
            S  = S + C;
            delR = delR + omegak*B;
            delS = delS  + omegak*C;
        end
    else
        for k = M : N - M
            omegak = (2*k - N)*gamma;
            warning('off'); %#ok<WNOFF>
            % Sterling's approximation
            ck = exp(logfactorial(N) - logfactorial(k) ...
            - logfactorial(N-k) - N*log(2));

            W = conj(U);
            V = W.*f;
            barV  = imfilter(V, filt);
            barW = imfilter(W, filt);
            B = ck*U.*barV;
            C = ck*U.*barW;
            sumck = sumck + ck;
            sumckwk = sumckwk + ck*omegak;
            R = R + B;
            S  = S + C;
            delR = delR + omegak*B;
            delS = delS  + omegak*C;
        end
    end
    F =real(R./S);
    delR = centerWt*sumck + ii*(1/(2*L+1))^2* ...
        (centerWt*sumckwk*f - delR);
    delS = ii*(1/(2*L+1))^2*(centerWt*sumckwk - delS);
end
div  = real(sum(sum((S.*delR - R.*delS)./S.^2)));
end





  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
  • 68
  • 69
  • 70
  • 71
  • 72
  • 73
  • 74
  • 75
  • 76
  • 77
  • 78
  • 79
  • 80
  • 81
  • 82
  • 83
  • 84
  • 85
  • 86
  • 87
  • 88
  • 89
  • 90
  • 91
  • 92
  • 93
  • 94
  • 95
  • 96
  • 97
  • 98
  • 99
  • 100
  • 101
  • 102
  • 103
  • 104
  • 105
  • 106
  • 107
  • 108
  • 109
  • 110
  • 111
  • 112
  • 113
  • 114
  • 115
  • 116
  • 117
  • 118
  • 119
  • 120
  • 121
  • 122
  • 123
  • 124
  • 125
  • 126
  • 127
  • 128
  • 129
  • 130
  • 131
  • 132
  • 133
  • 134
  • 135
  • 136
  • 137
  • 138
  • 139
  • 140
  • 141
  • 142
  • 143
  • 144
  • 145
  • 146
  • 147
  • 148
  • 149
  • 150
  • 151
  • 152
  • 153
  • 154
  • 155
  • 156
  • 157
  • 158
  • 159
  • 160
  • 161
  • 162
  • 163
  • 164
  • 165
  • 166
  • 167
  • 168
  • 169
  • 170
  • 171
  • 172
  • 173
  • 174
  • 175
  • 176
  • 177
  • 178
  • 179
  • 180
  • 181
  • 182
  • 183
  • 184
  • 185
  • 186
  • 187
  • 188

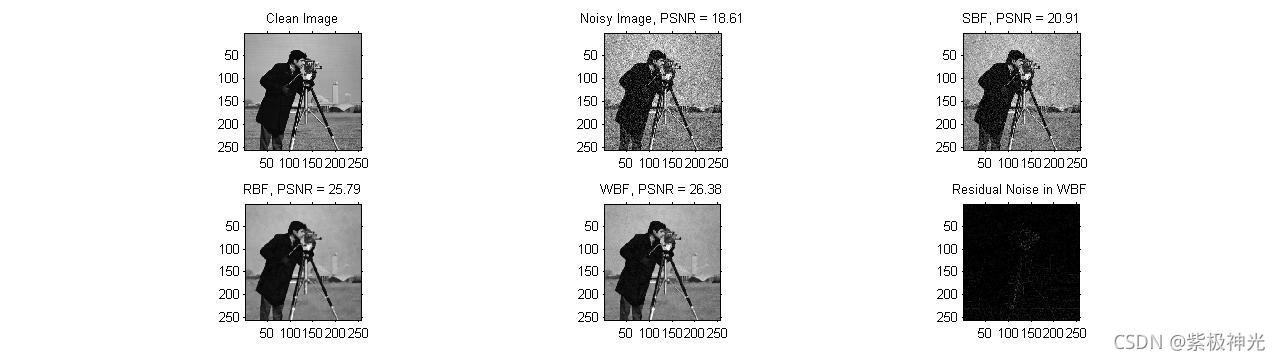

三、运行结果

在这里插入图片描述

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 蔡利梅.MATLAB图像处理——理论、算法与实例分析[M].清华大学出版社,2020.
[2]杨丹,赵海滨,龙哲.MATLAB图像处理实例详解[M].清华大学出版社,2013.
[3]周品.MATLAB图像处理与图形用户界面设计[M].清华大学出版社,2013.
[4]刘成龙.精通MATLAB图像处理[M].清华大学出版社,2015.
