【人民币识别】基于matlab GUI RGB和BP神经网络的人民币识别系统【含Matlab源码 097期】

一、简介

本设计为基于MATLAB的人民币识别系统。带有一个GUI界面。先利用radon进行倾斜校正，根据不同纸币，选择不同维度的参数识别纸币金额，有通过RGB分量识别100元；

通过面额图像的宽度识别1元、5元；通过构建矩形结构体识别10元 ；通过RGB分量识别 20元 与 50元。

二、部分源代码

function varargout = main(varargin)
% MAIN MATLAB code for main.fig
%      MAIN, by itself, creates a new MAIN or raises the existing
%      singleton*.
%
%      H = MAIN returns the handle to a new MAIN or the handle to
%      the existing singleton*.
%
%      MAIN('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in MAIN.M with the given input arguments.
%
%      MAIN('Property','Value',...) creates a new MAIN or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before main_OpeningFcn gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to main_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help main

% Last Modified by GUIDE v2.5 29-May-2020 00:04:07

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
    'gui_Singleton',  gui_Singleton, ...
    'gui_OpeningFcn', @main_OpeningFcn, ...
    'gui_OutputFcn',  @main_OutputFcn, ...
    'gui_LayoutFcn',  [] , ...
    'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before main is made visible.
function main_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to main (see VARARGIN)

% Choose default command line output for main
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes main wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = main_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes on button press in pushbutton1.
function pushbutton1_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
%% 图像读取
[filename, pathname] = uigetfile({'*.jpg;*.tif;*.png;*.gif','All Image Files';...
    '*.*','All Files' });
l = imread([ pathname,filename]);
axes(handles.axes1)
imshow(l);
title('原始图像')
l1=rgb2gray(l);                %将真彩色图像转换为灰度图像
bw1=edge(l1,'sobel', 'both');  %采用sobel算子进行边缘检测
handles.bw1=bw1;
theta=0:179;                   %定义theta角度范围
r=radon(bw1,theta);            %对图像进行Radon变换

%%%%%检测Radon变换矩阵中的峰值所对应的列坐标%%%%
[m,n]=size(r);
c=1;
for i=1:m
    for j=1:n
        if  r(1,1)<r(i,j)
            r(1,1)=r(i,j);
            c=j;
        end
    end
end
rot=90-c;
pic=imrotate(l,rot,'crop');                     %对图片进行旋转矫正
handles.pic=pic;
pic_gray=rgb2gray(pic);                         %转换为灰度图像
handles.pic_gray=pic_gray;
pic_a=imadjust(pic_gray,[0,0.001],[1,0]);       %明暗反转
pic_b=1.3*pic_gray+0.7*pic_a;
pic_c=imadjust(pic_b,[0.5,1],[0,1]);            %明暗反转
handles.pic_c=pic_c;
pic_b_edge=edge(pic_c,'sobel');                 %采用sobel算子进行边缘检测
handles.pic_b_edge=pic_b_edge;
se=[1;1;1];                                     %线型结构元素
pic_imerode=imerode(pic_b_edge,se);             %腐蚀图像
handles.pic_imerode=pic_imerode;
se=strel('rectangle',[60,60]);                  %矩形结构元素
pic_imclose=imclose(pic_imerode,se);            %图像聚类、填充图像
handles.pic_imclose=pic_imclose;
pic_bwareaopen=bwareaopen(pic_imclose,10000);   %去除聚团灰度值小于10000的部分


%%%%%求纸币行起始位置和终止位置%%%%%
[y,x]=size(pic_bwareaopen);
I6=double(pic_bwareaopen);
Y1=zeros(y,1);
for i=1:y
    for j=1:x
        if(I6(i,j,1)==1)
            Y1(i,1)= Y1(i,1)+1;
        end
    end
end
[temp MaxY]=max(Y1);
%%
%%%%%%求纸币列起始位置和终止位置%%%%%

PY1=MaxY;
while ((Y1(PY1,1)>=50)&&(PY1>1))
    PY1=PY1-1;
end
PY2=MaxY;
while ((Y1(PY2,1)>=50)&&(PY2<y))
    PY2=PY2+1;
end
IY=pic(PY1:PY2,:,:);
X1=zeros(1,x);
for j=1:x
    for i=PY1:PY2
        if(I6(i,j,1)==1)
            X1(1,j)= X1(1,j)+1;
        end
    end
end
%%
%%提取并画出背景中的RMB图像%%

PX1=1;
while ((X1(1,PX1)<3)&&(PX1<x))
    PX1=PX1+1;
end
PX2=x;
while ((X1(1,PX2)<3)&&(PX2>PX1))
    PX2=PX2-1;
end
dw=pic(PY1:PY2,PX1:PX2,:);
dw_gray=rgb2gray(dw);
dw_gray=imadjust(dw_gray,[0,1],[1,0]);
dw_bw=im2bw(dw_gray);
handles.dw_bw=dw_bw;
%%
%%分割提取RMB数值图像%%

[m,n]=size(dw_bw);
m1=round(m/3);
m2=round(2*m/3);
n1=round(n/6);
n2=round(n/3);
n3=round(2*n/3);
n4=round(5*n/6);
sum1=sum(sum(dw_bw(m1:m2,n1:n2)));
sum2=sum(sum(dw_bw(m1:m2,n3:n4)));
if sum1>sum2
    dw=imrotate(dw,180,'crop');
end

%%
%%图像处理%%
x=dw;
x1=imresize(x,[236,500]);%'缩放图像
z=imcrop(x1,[270,150,160,65]);%对图像进行剪切，选取有效区域
%%
I=imcrop(x1,[130,60,130,65]);    %对图像进行剪切，选取有效区域
handles.I=I;
I1=rgb2gray(I);    %转换为灰度图像
I2=medfilt2(I1);    %滤波默认窗口
I3=imadjust(I2,[0.3,0.5],[0,1],1);   %明暗反转
I4=im2bw(I3);
handles.I4=I4;
se=strel('rectangle',[3,3]);   %构造结构函数，以长方形构造一个se






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

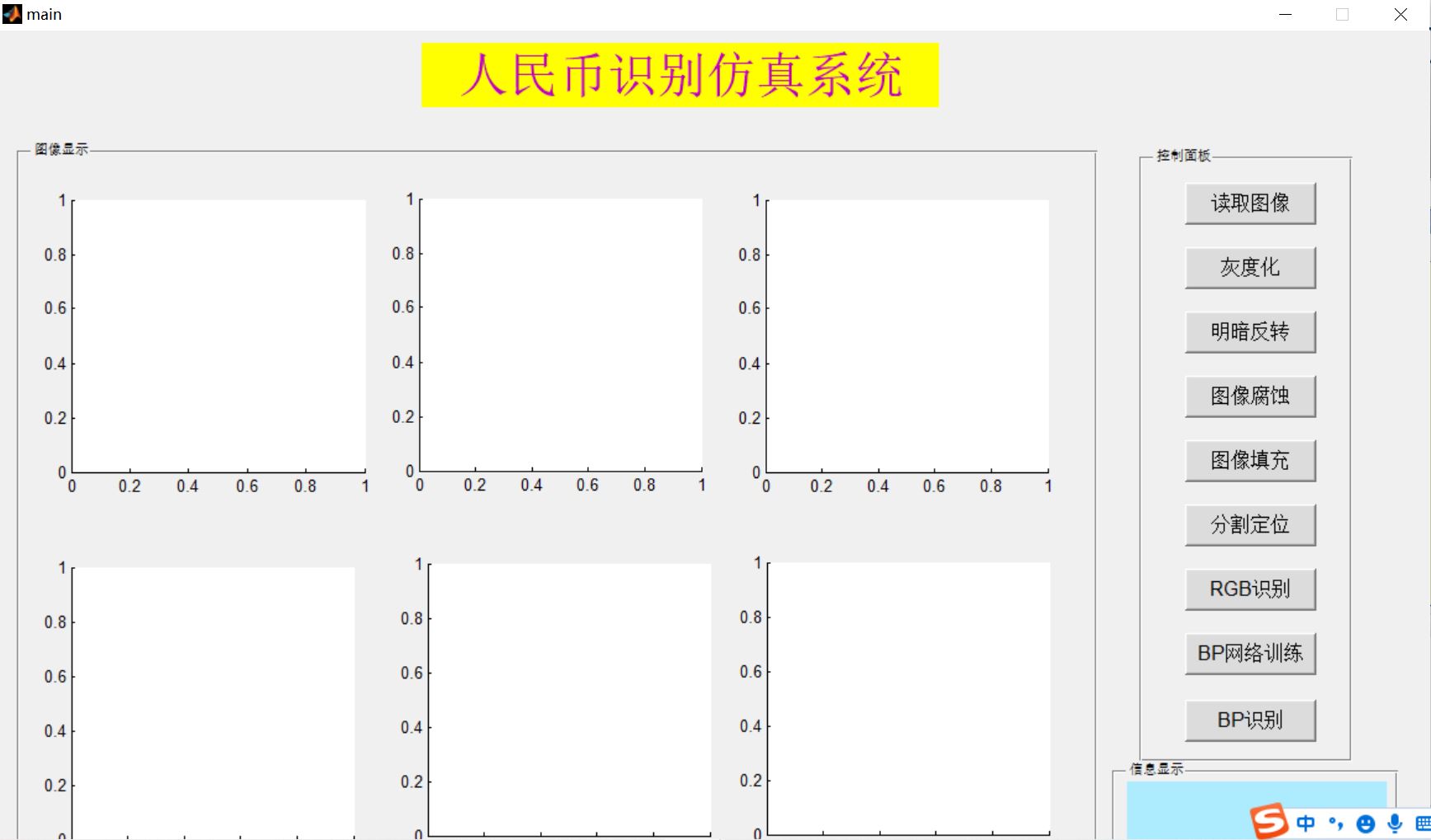

三、运行结果
