【图像融合】基于matlab curvelet变换图像融合（评价指标）【含Matlab源码 781期】

一、简介

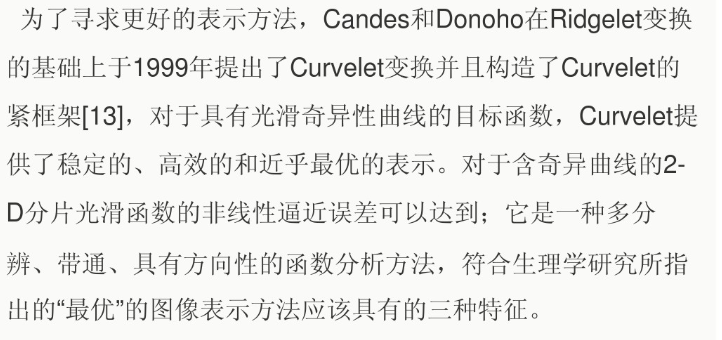

1 curvelet变换的提出

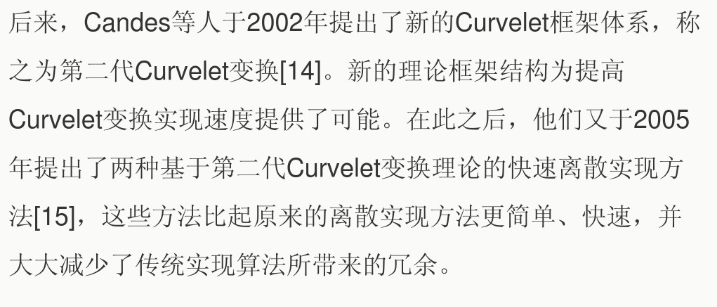

2 curvelet变换的研究进展及现状

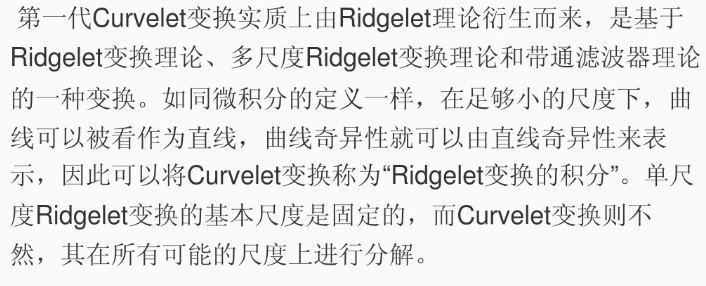

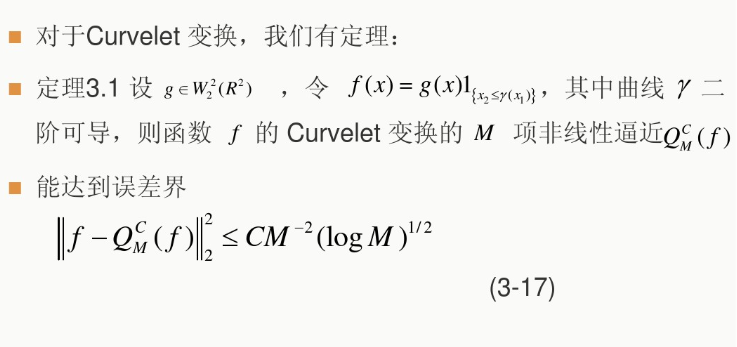

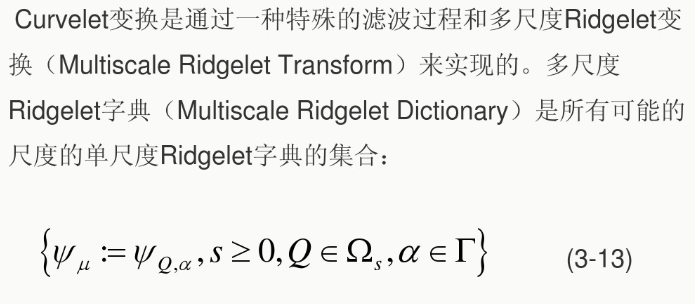

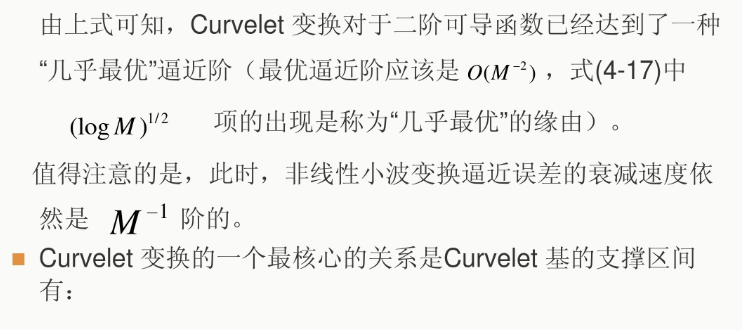

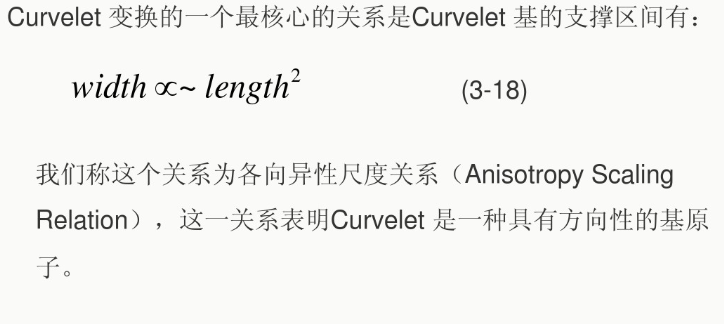

3 第一代curvelet变换

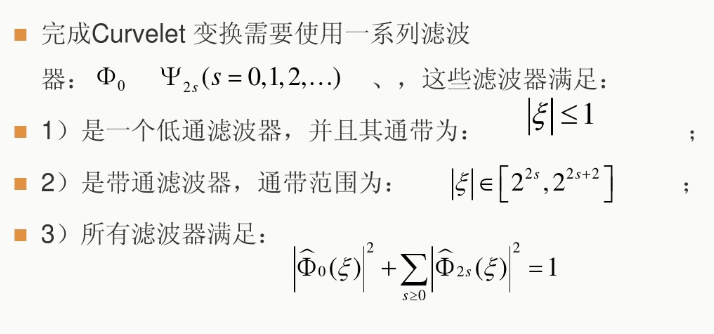

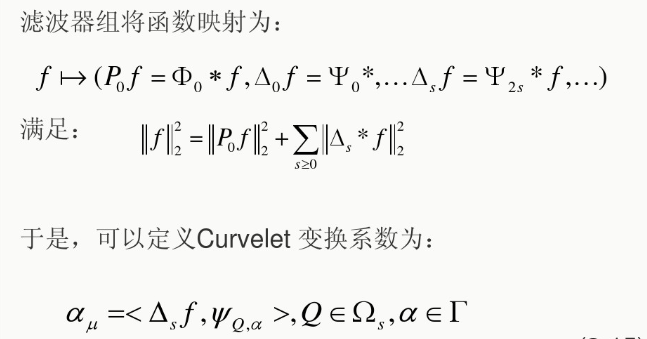

4 实现过程

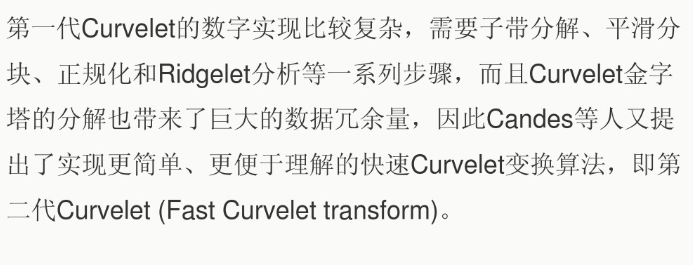

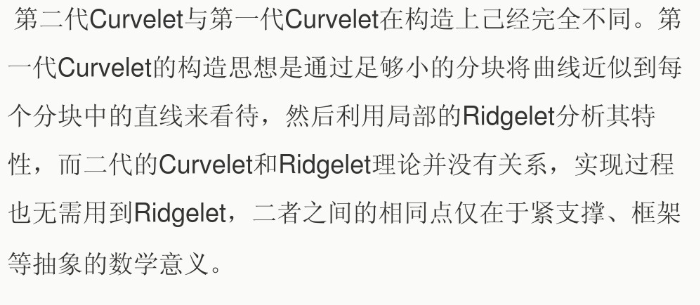

5 第二代 curvelet变换

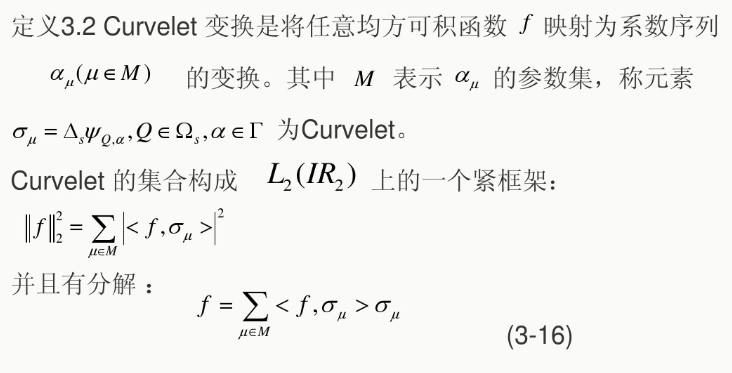

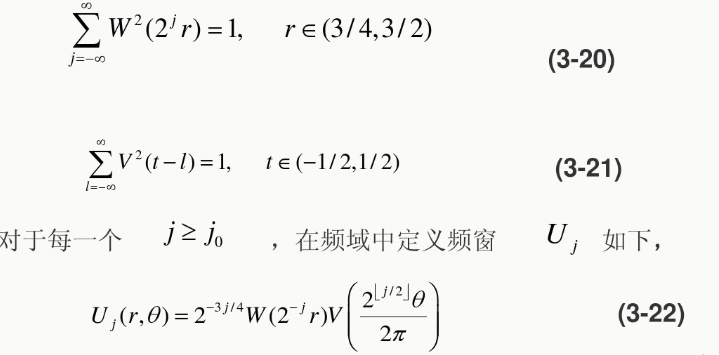

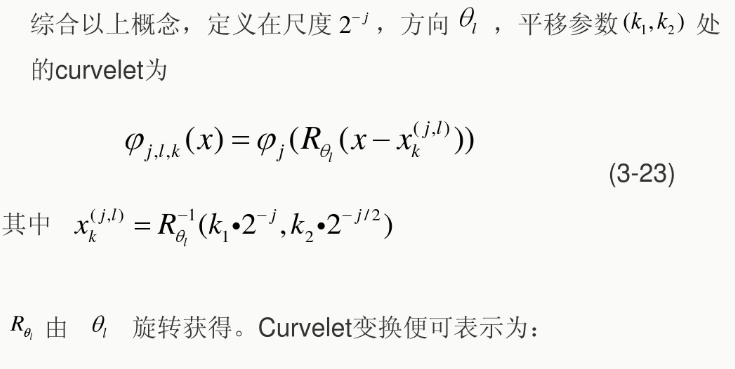

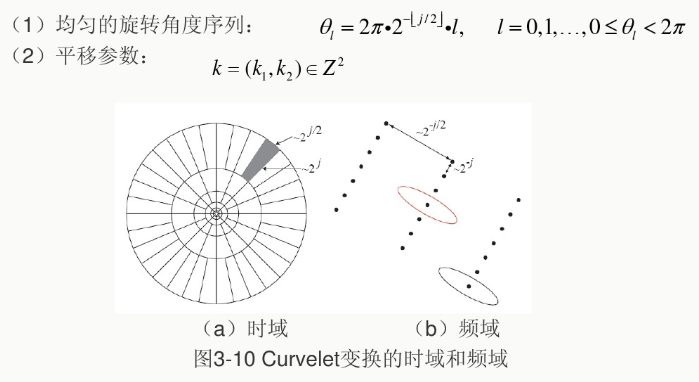

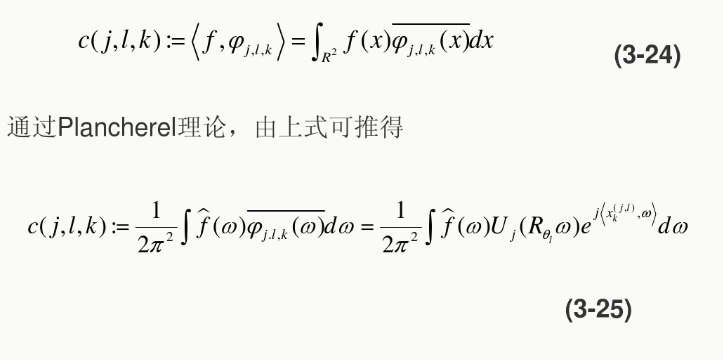

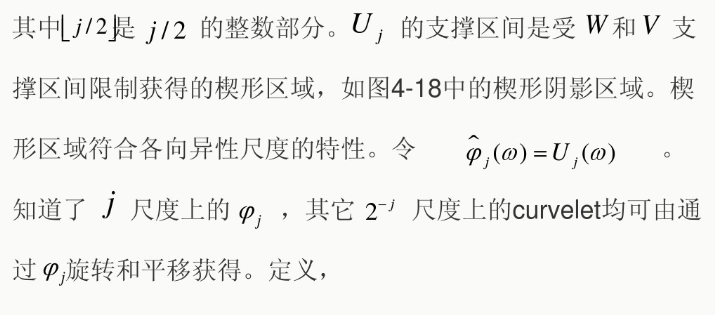

6 连续的curvelet变换

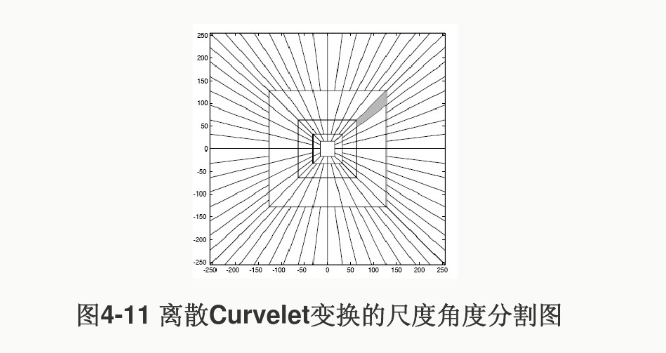

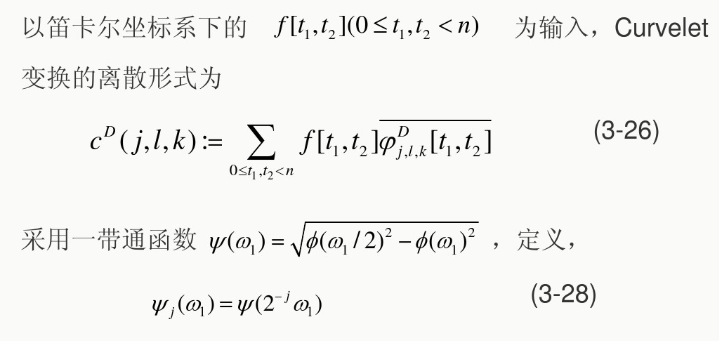

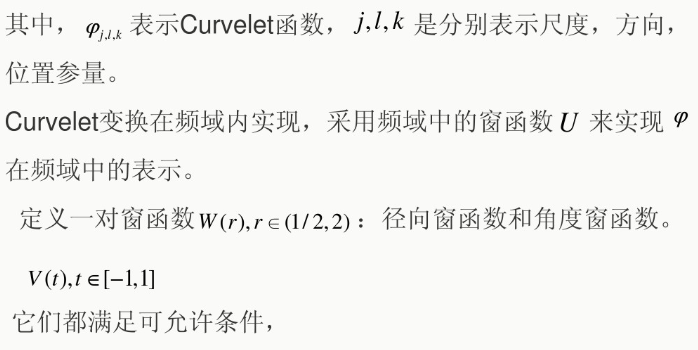

7 离散的curvelet变换

二、源代码

function x = ifdct_wrapping(C, is_real, M, N)

% ifdct_wrapping.m - Inverse Fast Discrete Curvelet Transform via wedge wrapping - Version 1.0
% This is in fact the adjoint, also the pseudo-inverse
%
% Inputs
%   C           Cell array containing curvelet coefficients (see
%               description in fdct_wrapping.m)
%   is_real     As used in fdct_wrapping.m
%   M, N        Size of the image to be recovered (not necessary if finest
%               = 2)
%
% Outputs
%   x           M-by-N matrix
%
% See also fdct_wrapping.m
%
% By Laurent Demanet, 2004

% Initialization
nbscales = length(C);
nbangles_coarse = length(C{2});
nbangles = [1, nbangles_coarse .* 2.^(ceil((nbscales-(nbscales:-1:2))/2))];
if length(C{end}) == 1, finest = 2; else finest = 1; end;
if finest == 2, nbangles(nbscales) = 1; end;
if nargin < 2, is_real = 0; end;
if nargin < 4,
    if finest == 1, error('Syntax: IFCT_wrapping(C,M,N) where the matrix to be recovered is M-by-N'); end;
    [N1,N2] = size(C{end}{1});
else
    N1 = M;
    N2 = N;
end;

M1 = N1/3;
M2 = N2/3;

if finest == 1;

    bigN1 = 2*floor(2*M1)+1;
    bigN2 = 2*floor(2*M2)+1;
    X = zeros(bigN1,bigN2);

    % Initialization: preparing the lowpass filter at finest scale
    window_length_1 = floor(2*M1) - floor(M1) - 1 - (mod(N1,3)==0);
    window_length_2 = floor(2*M2) - floor(M2) - 1 - (mod(N2,3)==0);
    coord_1 = 0:(1/window_length_1):1;
    coord_2 = 0:(1/window_length_2):1;
    [wl_1,wr_1] = fdct_wrapping_window(coord_1);
    [wl_2,wr_2] = fdct_wrapping_window(coord_2);
    lowpass_1 = [wl_1, ones(1,2*floor(M1)+1), wr_1];
    if mod(N1,3)==0, lowpass_1 = [0, lowpass_1, 0]; end;
    lowpass_2 = [wl_2, ones(1,2*floor(M2)+1), wr_2];
    if mod(N2,3)==0, lowpass_2 = [0, lowpass_2, 0]; end;
    lowpass = lowpass_1'*lowpass_2;

    scales = nbscales:-1:2;

else

    M1 = M1/2;
    M2 = M2/2;

    bigN1 = 2*floor(2*M1)+1;
    bigN2 = 2*floor(2*M2)+1;
    X = zeros(bigN1,bigN2);

    window_length_1 = floor(2*M1) - floor(M1) - 1;
    window_length_2 = floor(2*M2) - floor(M2) - 1;
    coord_1 = 0:(1/window_length_1):1;
    coord_2 = 0:(1/window_length_2):1;
    [wl_1,wr_1] = fdct_wrapping_window(coord_1);
    [wl_2,wr_2] = fdct_wrapping_window(coord_2);
    lowpass_1 = [wl_1, ones(1,2*floor(M1)+1), wr_1];
    lowpass_2 = [wl_2, ones(1,2*floor(M2)+1), wr_2];
    lowpass = lowpass_1'*lowpass_2;
    hipass_finest = sqrt(1 - lowpass.^2);

    scales = (nbscales-1):-1:2;

end;

% Loop: pyramidal reconstruction

Xj_topleft_1 = 1;
Xj_topleft_2 = 1;
for j = scales,

    M1 = M1/2;
    M2 = M2/2;
    window_length_1 = floor(2*M1) - floor(M1) - 1;
    window_length_2 = floor(2*M2) - floor(M2) - 1;
    coord_1 = 0:(1/window_length_1):1;
    coord_2 = 0:(1/window_length_2):1;
    [wl_1,wr_1] = fdct_wrapping_window(coord_1);
    [wl_2,wr_2] = fdct_wrapping_window(coord_2);
    lowpass_1 = [wl_1, ones(1,2*floor(M1)+1), wr_1];
    lowpass_2 = [wl_2, ones(1,2*floor(M2)+1), wr_2];
    lowpass_next = lowpass_1'*lowpass_2;
    hipass = sqrt(1 - lowpass_next.^2);
    Xj = zeros(2*floor(4*M1)+1,2*floor(4*M2)+1);

    % Loop: angles
    l = 0;
    nbquadrants = 2 + 2*(~is_real);
    nbangles_perquad = nbangles(j)/4;
    for quadrant = 1:nbquadrants

        M_horiz = M2 * (mod(quadrant,2)==1) + M1 * (mod(quadrant,2)==0);
        M_vert = M1 * (mod(quadrant,2)==1) + M2 * (mod(quadrant,2)==0);
        if mod(nbangles_perquad,2),
            wedge_ticks_left = round((0:(1/(2*nbangles_perquad)):.5)*2*floor(4*M_horiz) + 1);
            wedge_ticks_right = 2*floor(4*M_horiz) + 2 - wedge_ticks_left;
            wedge_ticks = [wedge_ticks_left, wedge_ticks_right(end:-1:1)];
        else
            wedge_ticks_left = round((0:(1/(2*nbangles_perquad)):.5)*2*floor(4*M_horiz) + 1);
            wedge_ticks_right = 2*floor(4*M_horiz) + 2 - wedge_ticks_left;
            wedge_ticks = [wedge_ticks_left, wedge_ticks_right((end-1):-1:1)];
        end;
        wedge_endpoints = wedge_ticks(2:2:(end-1));         % integers
        wedge_midpoints = (wedge_endpoints(1:(end-1)) + wedge_endpoints(2:end))/2;

        % Left corner wedge

        l = l+1;
        first_wedge_endpoint_vert = round(2*floor(4*M_vert)/(2*nbangles_perquad) + 1);
        length_corner_wedge = floor(4*M_vert) - floor(M_vert) + ceil(first_wedge_endpoint_vert/4);
        Y_corner = 1:length_corner_wedge;
        [XX,YY] = meshgrid(1:(2*floor(4*M_horiz)+1),Y_corner);
        width_wedge = wedge_endpoints(2) + wedge_endpoints(1) - 1;
        slope_wedge = (floor(4*M_horiz) + 1 - wedge_endpoints(1))/floor(4*M_vert);
        left_line = round(2 - wedge_endpoints(1) + slope_wedge*(Y_corner - 1));
        [wrapped_XX, wrapped_YY] = deal(zeros(length_corner_wedge,width_wedge));
        first_row = floor(4*M_vert)+2-ceil((length_corner_wedge+1)/2)+...
            mod(length_corner_wedge+1,2)*(quadrant-2 == mod(quadrant-2,2));
        first_col = floor(4*M_horiz)+2-ceil((width_wedge+1)/2)+...
            mod(width_wedge+1,2)*(quadrant-3 == mod(quadrant-3,2));

        for row = Y_corner
            cols = left_line(row) + mod((0:(width_wedge-1))-(left_line(row)-first_col),width_wedge);
            new_row = 1 + mod(row - first_row, length_corner_wedge);
            admissible_cols = round(1/2*(cols+1+abs(cols-1)));
            wrapped_XX(new_row,:) = XX(row,admissible_cols);
            wrapped_YY(new_row,:) = YY(row,admissible_cols);
        end;

        slope_wedge_right = (floor(4*M_horiz)+1 - wedge_midpoints(1))/floor(4*M_vert);
        mid_line_right = wedge_midpoints(1) + slope_wedge_right*(wrapped_YY - 1);
                                                            % not integers
                                                            % in general
        coord_right = 1/2 + floor(4*M_vert)/(wedge_endpoints(2) - wedge_endpoints(1)) * ...
            (wrapped_XX - mid_line_right)./(floor(4*M_vert)+1 - wrapped_YY);
        C2 = 1/(1/(2*(floor(4*M_horiz))/(wedge_endpoints(1) - 1) - 1) + 1/(2*(floor(4*M_vert))/(first_wedge_endpoint_vert - 1) - 1));
        C1 = C2 / (2*(floor(4*M_vert))/(first_wedge_endpoint_vert - 1) - 1);
        wrapped_XX((wrapped_XX - 1)/floor(4*M_horiz) + (wrapped_YY-1)/floor(4*M_vert) == 2) = ...
            wrapped_XX((wrapped_XX - 1)/floor(4*M_horiz) + (wrapped_YY-1)/floor(4*M_vert) == 2) + 1;
        coord_corner = C1 + C2 * ((wrapped_XX - 1)/(floor(4*M_horiz)) - (wrapped_YY - 1)/(floor(4*M_vert))) ./ ...
            (2-((wrapped_XX - 1)/(floor(4*M_horiz)) + (wrapped_YY - 1)/(floor(4*M_vert))));
        wl_left = fdct_wrapping_window(coord_corner);
        [wl_right,wr_right] = fdct_wrapping_window(coord_right);
        switch is_real
         case 0
          wrapped_data = fftshift(fft2(ifftshift(C{j}{l})))/sqrt(prod(size(C{j}{l})));
          wrapped_data = rot90(wrapped_data,(quadrant-1));
         case 1
          x = C{j}{l} + sqrt(-1)*C{j}{l+nbangles(j)/2};
          wrapped_data = fftshift(fft2(ifftshift(x)))/sqrt(prod(size(x)))/sqrt(2);
          wrapped_data = rot90(wrapped_data,(quadrant-1));
        end;
        wrapped_data = wrapped_data .* (wl_left .* wr_right);

        % Unwrapping data
        for row = Y_corner
            cols = left_line(row) + mod((0:(width_wedge-1))-(left_line(row)-first_col),width_wedge);
            admissible_cols = round(1/2*(cols+1+abs(cols-1)));
            new_row = 1 + mod(row - first_row, length_corner_wedge);
            Xj(row,admissible_cols) = Xj(row,admissible_cols) + wrapped_data(new_row,:);
                                % We use the following property: in an assignment
                                % A(B) = C where B and C are vectors, if
                                % some value x repeats in B, then the
                                % last occurrence of x is the one
                                % corresponding to the eventual assignment.
        end;

        % Regular wedges
        length_wedge = floor(4*M_vert) - floor(M_vert);
        Y = 1:length_wedge;
        first_row = floor(4*M_vert)+2-ceil((length_wedge+1)/2)+...
            mod(length_wedge+1,2)*(quadrant-2 == mod(quadrant-2,2));
        for subl = 2:(nbangles_perquad-1);
            l = l+1;
            width_wedge = wedge_endpoints(subl+1) - wedge_endpoints(subl-1) + 1;
            slope_wedge = ((floor(4*M_horiz)+1) - wedge_endpoints(subl))/floor(4*M_vert);
            left_line = round(wedge_endpoints(subl-1) + slope_wedge*(Y - 1));
            [wrapped_XX, wrapped_YY] = deal(zeros(length_wedge,width_wedge));
            first_col = floor(4*M_horiz)+2-ceil((width_wedge+1)/2)+...
                mod(width_wedge+1,2)*(quadrant-3 == mod(quadrant-3,2));
            for row = Y
                cols = left_line(row) + mod((0:(width_wedge-1))-(left_line(row)-first_col),width_wedge);
                new_row = 1 + mod(row - first_row, length_wedge);
                wrapped_XX(new_row,:) = XX(row,cols);
                wrapped_YY(new_row,:) = YY(row,cols);
            end;
            slope_wedge_left = ((floor(4*M_horiz)+1) - wedge_midpoints(subl-1))/floor(4*M_vert);
            mid_line_left = wedge_midpoints(subl-1) + slope_wedge_left*(wrapped_YY - 1);
            coord_left = 1/2 + floor(4*M_vert)/(wedge_endpoints(subl) - wedge_endpoints(subl-1)) * ...
                (wrapped_XX - mid_line_left)./(floor(4*M_vert)+1 - wrapped_YY);
            slope_wedge_right = ((floor(4*M_horiz)+1) - wedge_midpoints(subl))/floor(4*M_vert);
            mid_line_right = wedge_midpoints(subl) + slope_wedge_right*(wrapped_YY - 1);
            coord_right = 1/2 + floor(4*M_vert)/(wedge_endpoints(subl+1) - wedge_endpoints(subl)) * ...
                (wrapped_XX - mid_line_right)./(floor(4*M_vert)+1 - wrapped_YY);
            wl_left = fdct_wrapping_window(coord_left);
            [wl_right,wr_right] = fdct_wrapping_window(coord_right);
            switch is_real
             case 0
              wrapped_data = fftshift(fft2(ifftshift(C{j}{l})))/sqrt(prod(size(C{j}{l})));
              wrapped_data = rot90(wrapped_data,(quadrant-1));
             case 1
              x = C{j}{l} + sqrt(-1)*C{j}{l+nbangles(j)/2};
              wrapped_data = fftshift(fft2(ifftshift(x)))/sqrt(prod(size(x)))/sqrt(2);
              wrapped_data = rot90(wrapped_data,(quadrant-1));
            end;
            wrapped_data = wrapped_data .* (wl_left .* wr_right);

            % Unwrapping data
            for row = Y
                cols = left_line(row) + mod((0:(width_wedge-1))-(left_line(row)-first_col),width_wedge);
                new_row = 1 + mod(row - first_row, length_wedge);
                Xj(row,cols) = Xj(row,cols) + wrapped_data(new_row,:);
            end;

        end;    % for subl

        % Right corner wedge
        l = l+1;
        width_wedge = 4*floor(4*M_horiz) + 3 - wedge_endpoints(end) - wedge_endpoints(end-1);
        slope_wedge = ((floor(4*M_horiz)+1) - wedge_endpoints(end))/floor(4*M_vert);
        left_line = round(wedge_endpoints(end-1) + slope_wedge*(Y_corner - 1));
        [wrapped_XX, wrapped_YY] = deal(zeros(length_corner_wedge,width_wedge));
        first_row = floor(4*M_vert)+2-ceil((length_corner_wedge+1)/2)+...
            mod(length_corner_wedge+1,2)*(quadrant-2 == mod(quadrant-2,2));
        first_col = floor(4*M_horiz)+2-ceil((width_wedge+1)/2)+...
            mod(width_wedge+1,2)*(quadrant-3 == mod(quadrant-3,2));
            function y= xinxishang(x)
%信息熵
x=uint8(x);
temp=unique(x);   %temp就是x中全部不同的元素，例如x=[1,1,3,4,1,5];那么temp=[1;3;4;5]
temp=temp';
len=length(temp); %求出x矩阵中不同元素的个数
p=zeros(1,len);   %p向量用来存储矩阵x中每个不同元素的个数
[m,n]=size(x);
for k=1:len
    for i=1:m
        for j=1:n
            if x(i,j)==temp(1,k)
                p(1,k)=p(1,k)+1;
            end
        end
    end
end






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

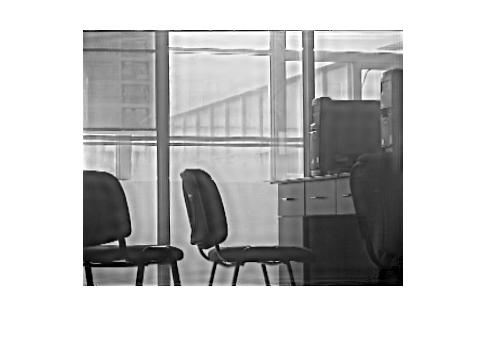

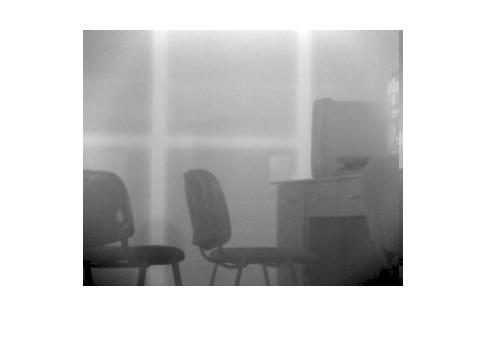

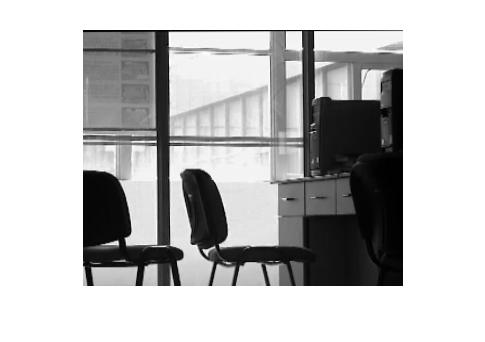

三、运行结果

四、备注

版本：2014a

文章来源: qq912100926.blog.csdn.net，作者：海神之光，版权归原作者所有，如需转载，请联系作者。

原文链接：qq912100926.blog.csdn.net/article/details/115742351
