二、四旋翼飞行器简介

0 引 言
四旋翼飞行器由于具有可垂直起降、机动性强、操作方便等诸多优点,在军事和民用场合得到广泛应用,从而成为众多学者的研究热点。四旋翼飞行器是具有四输入、六输出的欠驱动、非线性、强耦合系统。其姿态控制精度和抗干扰问题一直是研究重点。目前国内较普遍的飞行器控制算法主要包括:反步法、自适应控制、H控制、滑模控制、自抗扰控制等,对实现四旋翼飞行器的姿态控制具有重要的理论和实践意义。文献提出应用反步算法为飞行器上下、前后、左右、偏航4个子系统配置控制律,实现了四旋翼飞行器对设定轨迹的精确跟踪。该算法在构造Lyapunov函数的过程中,是以其导数小于零为前提,因此应用受到局限。文献针对传统的离散线性滑模应用于四旋翼飞行器控制具有跟踪误差大、响应速度慢、不能有限时间收敛等问题,提出了干扰观测器补偿的自适应离散终端滑模控制,使响应时间更快、跟踪效果更理想、鲁棒性更强。文献利用线性扩张状态观测器对四旋翼飞行器内部不确定干扰和外部干扰进行实时估计,进而采取线性状态反馈控制对扰动的估计值进行在线补偿,以实现四旋翼飞行器的姿态控制。

1 四旋翼飞行器动力学模型的建立
1. 1 四旋翼飞行器受力分析
对于飞行器的每个旋翼,剖面呈非对称,一旦旋翼旋转,由于上表面空气流速比下表面快,故上表面受到的空气压力小于下表面,上下表面受到的压差形成升力,如图1所示。旋翼1、3逆时针旋转,旋翼2、4顺时针旋转。由叶素动量理论可知,每个旋翼产生的升力Fi与电机转速ωi的平方成正比,即Fi=kFω2i(i=1,2,3,4),其中kF为升力系数。
在这里插入图片描述
图1 四旋翼飞行器受力分析图
当旋翼旋转时,空气阻力会阻碍其旋转。这种阻力形成施加在机体上的反扭转力矩,当4个旋翼转速相等时,旋翼产生的反扭矩作用相互抵消。四旋翼飞行器通过改变2对正反螺旋桨的转速实现对其运动控制。在4个旋翼转速相等的情况下,同时增加或者减少4个旋翼转速,可以实现飞行器上升或者下降。如果4个旋翼产生的升力之和等于机体重力,可以实现飞行器空中悬停。保持旋翼2、4的转速不变,改变旋翼1或者旋翼3的转速,飞行器在力矩l(F3-F1)或l(F1-F3)的作用下(其中l为电机轴线到飞行器中心距离),可实现俯仰运动。保持旋翼1和旋翼3的转速不变,改变旋翼2或者旋翼4的转速,飞行器在力矩l(F4-F2)或l(F2-F4)的作用下,可实现横滚运动。如果同时改变旋翼1和旋翼3的转速,或者同时改变旋翼2和旋翼4的转速,并保持飞行器总升力与机体重力相等,飞行器会在反扭矩的作用下实现偏航运动。由此可见,实现飞行器垂直运动的升力,以及实现俯仰、横滚、偏航运动的旋转力矩可以表示为
在这里插入图片描述
式中: F——飞行器垂直运动的升力;
Mx、My、Mz——四旋翼俯仰、横滚和偏航运动的旋转力矩;
kF——升力系数;
kM——旋转力矩系数。

1. 2 动力学模型建立
为了描述飞行器的姿态和运动状态,需要引入地理坐标系n(X,Y,Z)与载体坐标系b(x,y,z)。地理坐标系又称为东北天坐标系,载体坐标系与飞行器固连,原点为飞行器中心。将地理坐标系与载体坐标系原点重合,并将地理坐标系分别绕X、Y、Z轴旋转3次之后可得到载体坐标系,地理坐标系到载体坐标系的转换矩阵可表示为
在这里插入图片描述
在这里插入图片描述
由式(5)和式(2)可求得地理坐标系n中飞行器在X、Y、Z轴方向所受旋翼升力向量:
在这里插入图片描述
在这里插入图片描述
在低速飞行过程中,角速度矢量较小,式(8)中左边第二项可近似认为为零,则式(8)可化简为
在这里插入图片描述
将式(10)转换可得:
在这里插入图片描述
由式(7)和式(11)可得四旋翼飞行器在低速飞行情况下的非线性动力学模型:
在这里插入图片描述
由式(12)可知,四旋翼飞行器线运动不影响角运动,但是角运动会影响线运动。以u1、u2、u3、u4为系统输入,通过改变这4个输入变量的值,可以改变飞行器的3个线位移和3个角位移,从而实现对飞行器的运动控制。

2 四旋翼飞行器的控制系统构建与仿真
经典PID算法结构简单,基于偏差设计反馈律,不依赖受控对象的具体数学模型,在很多过程控制中均有良好表现。尽管各种新的控制算法不断涌现,但是并没有改变PID控制算法在工业控制中的主导地位。本文根据四旋翼在飞行过程中经常会遇到不确定外界干扰等情况,设计了基于小扰动的PID控制器,如图2所示。
在这里插入图片描述
图2 PID控制器结构图
在这里插入图片描述

三、部分源代码

Model {
  Name			  "subsystem"
  Version		  8.7
  MdlSubVersion		  1
  SavedCharacterEncoding  "GBK"
  GraphicalInterface {
    NumRootInports	    0
    NumRootOutports	    0
    ParameterArgumentNames  ""
    ComputedModelVersion    "1.24"
    NumModelReferences	    0
    NumTestPointedSignals   0
    NumProvidedFunctions    0
    NumRequiredFunctions    0
  }
  slprops.hdlmdlprops {
    $PropName		    "HDLParams"
    $ObjectID		    1
    Array {
      Type		      "Cell"
      Dimension		      2
      Cell		      "HDLSubsystem"
      Cell		      "subsystem"
      PropName		      "mdlProps"
    }
  }
  ScopeRefreshTime	  0.035000
  OverrideScopeRefreshTime on
  DisableAllScopes	  off
  DataTypeOverride	  "UseLocalSettings"
  DataTypeOverrideAppliesTo "AllNumericTypes"
  MinMaxOverflowLogging	  "UseLocalSettings"
  MinMaxOverflowArchiveMode "Overwrite"
  FPTRunName		  "Run 1"
  MaxMDLFileLineLength	  120
  LastSavedArchitecture	  "win64"
  Object {
    $PropName		    "BdWindowsInfo"
    $ObjectID		    2
    $ClassName		    "Simulink.BDWindowsInfo"
    Object {
      $PropName		      "WindowsInfo"
      $ObjectID		      3
      $ClassName	      "Simulink.WindowInfo"
      IsActive		      [1]
      Location		      [-8.0, -8.0, 1382.0, 744.0]
      Object {
	$PropName		"ModelBrowserInfo"
	$ObjectID		4
	$ClassName		"Simulink.ModelBrowserInfo"
	Visible			[1]
	DockPosition		"Left"
	Width			[50]
	Height			[50]
	Filter			[9]
      }
      Object {
	$PropName		"ExplorerBarInfo"
	$ObjectID		5
	$ClassName		"Simulink.ExplorerBarInfo"
	Visible			[1]
      }
      Array {
	Type			"Simulink.EditorInfo"
	Dimension		2
	Object {
	  $ObjectID		  6
	  IsActive		  [1]
	  ViewObjType		  "SimulinkSubsys"
	  LoadSaveID		  "169"
	  Extents		  [1139.0, 563.0]
	  ZoomFactor		  [1.25]
	  Offset		  [-186.516666666667, -26.850000000000364]
	}
	Object {
	  $ObjectID		  7
	  IsActive		  [0]
	  ViewObjType		  "SimulinkTopLevel"
	  LoadSaveID		  "0"
	  Extents		  [1139.0, 563.0]
	  ZoomFactor		  [1.0]
	  Offset		  [930.66666666666652, -274.91190476190457]
	}
	PropName		"EditorsInfo"
      }
    }
  }
  Created		  "Wed May 10 20:59:45 2017"
  Creator		  "Administrator"
  UpdateHistory		  "UpdateHistoryNever"
  ModifiedByFormat	  "%<Auto>"
  LastModifiedBy	  "Administrator"
  ModifiedDateFormat	  "%<Auto>"
  LastModifiedDate	  "Mon Jun 05 16:15:33 2017"
  RTWModifiedTimeStamp	  418579696
  ModelVersionFormat	  "1.%<AutoIncrement:24>"
  ConfigurationManager	  "none"
  SampleTimeColors	  off
  SampleTimeAnnotations	  off
  LibraryLinkDisplay	  "disabled"
  WideLines		  off
  ShowLineDimensions	  off
  ShowPortDataTypes	  off
  ShowEditTimeErrors	  on
  ShowEditTimeWarnings	  off
  ShowEditTimeAdvisorChecks off
  ShowPortUnits		  off
  ShowDesignRanges	  off
  ShowLoopsOnError	  on
  IgnoreBidirectionalLines off
  ShowStorageClass	  off
  ShowTestPointIcons	  on
  ShowSignalResolutionIcons on
  ShowViewerIcons	  on
  SortedOrder		  off
  VariantCondition	  off
  ExecutionContextIcon	  off
  ShowLinearizationAnnotations on
  ShowVisualizeInsertedRTB on
  ShowMarkup		  on
  BlockNameDataTip	  off
  BlockParametersDataTip  off
  BlockDescriptionStringDataTip	off
  ToolBar		  on
  StatusBar		  on
  BrowserShowLibraryLinks off
  FunctionConnectors	  off
  BrowserLookUnderMasks	  off
  SimulationMode	  "normal"
  PauseTimes		  "5"
  NumberOfSteps		  1
  SnapshotBufferSize	  10
  SnapshotInterval	  10
  NumberOfLastSnapshots	  0
  LinearizationMsg	  "none"
  Profile		  off
  ParamWorkspaceSource	  "MATLABWorkspace"
  AccelSystemTargetFile	  "accel.tlc"
  AccelTemplateMakefile	  "accel_default_tmf"
  AccelMakeCommand	  "make_rtw"
  TryForcingSFcnDF	  off
  Object {
    $PropName		    "DataLoggingOverride"
    $ObjectID		    8
    $ClassName		    "Simulink.SimulationData.ModelLoggingInfo"
    model_		    "subsystem"
    overrideMode_	    [0.0]
    Array {
      Type		      "Cell"
      Dimension		      1
      Cell		      "subsystem"
      PropName		      "logAsSpecifiedByModels_"
    }
    Array {
      Type		      "Cell"
      Dimension		      1
      Cell		      []
      PropName		      "logAsSpecifiedByModelsSSIDs_"
    }
  }
  ExtModeBatchMode	  off
  ExtModeEnableFloating	  on
  ExtModeTrigType	  "manual"
  ExtModeTrigMode	  "normal"
  ExtModeTrigPort	  "1"
  ExtModeTrigElement	  "any"
  ExtModeTrigDuration	  1000
  ExtModeTrigDurationFloating "auto"
  ExtModeTrigHoldOff	  0
  ExtModeTrigDelay	  0
  ExtModeTrigDirection	  "rising"
  ExtModeTrigLevel	  0
  ExtModeArchiveMode	  "off"
  ExtModeAutoIncOneShot	  off
  ExtModeIncDirWhenArm	  off
  ExtModeAddSuffixToVar	  off
  ExtModeWriteAllDataToWs off
  ExtModeArmWhenConnect	  on
  ExtModeSkipDownloadWhenConnect off
  ExtModeLogAll		  on
  ExtModeAutoUpdateStatusClock on
  ShowModelReferenceBlockVersion off
  ShowModelReferenceBlockIO off
  Array {
    Type		    "Handle"
    Dimension		    1
    Simulink.ConfigSet {
      $ObjectID		      9
      Version		      "1.16.2"
      Array {
	Type			"Handle"
	Dimension		10
	Simulink.SolverCC {
	  $ObjectID		  10
	  Version		  "1.16.2"
	  StartTime		  "0.0"
	  StopTime		  "20"
	  AbsTol		  "auto"
	  FixedStep		  "auto"
	  InitialStep		  "auto"
	  MaxNumMinSteps	  "-1"
	  MaxOrder		  5
	  ZcThreshold		  "auto"
	  ConsecutiveZCsStepRelTol "10*128*eps"
	  MaxConsecutiveZCs	  "1000"
	  ExtrapolationOrder	  4
	  NumberNewtonIterations  1
	  MaxStep		  "auto"
	  MinStep		  "auto"
	  MaxConsecutiveMinStep	  "1"
	  RelTol		  "1e-2"
	  SolverMode		  "Auto"
	  EnableConcurrentExecution off
	  ConcurrentTasks	  off
	  Solver		  "ode45"
	  SolverName		  "ode45"
	  SolverJacobianMethodControl "auto"
	  ShapePreserveControl	  "DisableAll"
	  ZeroCrossControl	  "UseLocalSettings"
	  ZeroCrossAlgorithm	  "Adaptive"
	  AlgebraicLoopSolver	  "TrustRegion"
	  SolverInfoToggleStatus  off
	  IsAutoAppliedInSIP	  off
	  SolverResetMethod	  "Fast"
	  PositivePriorityOrder	  off
	  AutoInsertRateTranBlk	  off
	  SampleTimeConstraint	  "Unconstrained"
	  InsertRTBMode		  "Whenever possible"
	}
	Simulink.DataIOCC {
	  $ObjectID		  11
	  Version		  "1.16.2"
	  Decimation		  "1"
	  ExternalInput		  "[t, u]"
	  FinalStateName	  "xFinal"
	  InitialState		  "xInitial"
	  LimitDataPoints	  on
	  MaxDataPoints		  "1000"
	  LoadExternalInput	  off
	  LoadInitialState	  off
	  SaveFinalState	  off
	  SaveCompleteFinalSimState off
	  SaveFormat		  "Array"
	  SignalLoggingSaveFormat "ModelDataLogs"
	  SaveOutput		  on
	  SaveState		  off
	  SignalLogging		  on
	  DSMLogging		  on
	  InspectSignalLogs	  off
	  VisualizeSimOutput	  on
	  StreamToWorkspace	  off
	  StreamVariableName	  "streamout"
	  SaveTime		  on
	  ReturnWorkspaceOutputs  off
	  StateSaveName		  "xout"
	  TimeSaveName		  "tout"
	  OutputSaveName	  "yout"
	  SignalLoggingName	  "logsout"
	  DSMLoggingName	  "dsmout"
	  OutputOption		  "RefineOutputTimes"
	  OutputTimes		  "[]"
	  ReturnWorkspaceOutputsName "out"
	  Refine		  "1"
	  LoggingToFile		  off
	  LoggingFileName	  "out.mat"
	  LoggingIntervals	  "[-inf, inf]"
	}
	Simulink.OptimizationCC {
	  $ObjectID		  12
	  Version		  "1.16.2"
	  Array {
	    Type		    "Cell"
	    Dimension		    8
	    Cell		    "BooleansAsBitfields"
	    Cell		    "PassReuseOutputArgsAs"
	    Cell		    "PassReuseOutputArgsThreshold"
	    Cell		    "ZeroExternalMemoryAtStartup"
	    Cell		    "ZeroInternalMemoryAtStartup"
	    Cell		    "OptimizeModelRefInitCode"
	    Cell		    "NoFixptDivByZeroProtection"
	    Cell		    "UseSpecifiedMinMax"
	    PropName		    "DisabledProps"
	  }
	  BlockReduction	  on
	  BooleanDataType	  on
	  ConditionallyExecuteInputs on
	  DefaultParameterBehavior "Tunable"
	  UseDivisionForNetSlopeComputation "off"
	  UseFloatMulNetSlope	  off
	  DefaultUnderspecifiedDataType	"double"
	  UseSpecifiedMinMax	  off
	  InlineInvariantSignals  off
	  OptimizeBlockIOStorage  on
	  BufferReuse		  on
	  EnhancedBackFolding	  off
	  CachingGlobalReferences off
	  GlobalBufferReuse	  on
	  StrengthReduction	  off
	  ExpressionFolding	  on
	  BooleansAsBitfields	  off
	  BitfieldContainerType	  "uint_T"
	  EnableMemcpy		  on
	  MemcpyThreshold	  64
	  PassReuseOutputArgsAs	  "Structure reference"
	  PassReuseOutputArgsThreshold 12
	  ExpressionDepthLimit	  2147483647
	  LocalBlockOutputs	  on
	  RollThreshold		  5
	  StateBitsets		  off
	  DataBitsets		  off
	  ActiveStateOutputEnumStorageType "Native Integer"
	  ZeroExternalMemoryAtStartup on
	  ZeroInternalMemoryAtStartup on
	  InitFltsAndDblsToZero	  off
	  NoFixptDivByZeroProtection off
	  EfficientFloat2IntCast  off
	  EfficientMapNaN2IntZero on
	  OptimizeModelRefInitCode off
	  LifeSpan		  "inf"
	  MaxStackSize		  "Inherit from target"
	  BufferReusableBoundary  on
	  SimCompilerOptimization "off"
	  AccelVerboseBuild	  off
	}
	Simulink.DebuggingCC {
	  $ObjectID		  13
	  Version		  "1.16.2"
	  RTPrefix		  "error"
	  ConsistencyChecking	  "none"
	  ArrayBoundsChecking	  "none"
	  SignalInfNanChecking	  "none"
	  SignalRangeChecking	  "none"
	  ReadBeforeWriteMsg	  "UseLocalSettings"
	  WriteAfterWriteMsg	  "UseLocalSettings"
	  WriteAfterReadMsg	  "UseLocalSettings"
	  AlgebraicLoopMsg	  "warning"
	  ArtificialAlgebraicLoopMsg "warning"
	  SaveWithDisabledLinksMsg "warning"
	  SaveWithParameterizedLinksMsg	"warning"
	  CheckSSInitialOutputMsg on
	  UnderspecifiedInitializationDetection	"Classic"
	  MergeDetectMultiDrivingBlocksExec "none"
	  CheckExecutionContextPreStartOutputMsg off
	  CheckExecutionContextRuntimeOutputMsg	off
	  SignalResolutionControl "UseLocalSettings"
	  BlockPriorityViolationMsg "warning"
	  MinStepSizeMsg	  "warning"
	  TimeAdjustmentMsg	  "none"
	  MaxConsecutiveZCsMsg	  "error"
	  MaskedZcDiagnostic	  "warning"
	  IgnoredZcDiagnostic	  "warning"
	  SolverPrmCheckMsg	  "warning"
	  InheritedTsInSrcMsg	  "warning"
	  MultiTaskDSMMsg	  "error"
	  MultiTaskCondExecSysMsg "error"
	  MultiTaskRateTransMsg	  "error"
	  SingleTaskRateTransMsg  "none"
	  TasksWithSamePriorityMsg "warning"
	  SigSpecEnsureSampleTimeMsg "warning"
	  CheckMatrixSingularityMsg "none"
	  IntegerOverflowMsg	  "warning"
	  Int32ToFloatConvMsg	  "warning"
	  ParameterDowncastMsg	  "error"
	  ParameterOverflowMsg	  "error"
	  ParameterUnderflowMsg	  "none"
	  ParameterPrecisionLossMsg "warning"
	  ParameterTunabilityLossMsg "warning"
	  FixptConstUnderflowMsg  "none"
	  FixptConstOverflowMsg	  "none"
	  FixptConstPrecisionLossMsg "none"
	  UnderSpecifiedDataTypeMsg "none"
	  UnnecessaryDatatypeConvMsg "none"
	  VectorMatrixConversionMsg "none"
	  InvalidFcnCallConnMsg	  "error"
	  FcnCallInpInsideContextMsg "EnableAllAsWarning"
	  SignalLabelMismatchMsg  "none"
	  UnconnectedInputMsg	  "warning"
	  UnconnectedOutputMsg	  "warning"
	  UnconnectedLineMsg	  "warning"
	  SFcnCompatibilityMsg	  "none"
	  FrameProcessingCompatibilityMsg "error"
	  UniqueDataStoreMsg	  "none"
	  BusObjectLabelMismatch  "warning"
	  RootOutportRequireBusObject "warning"
	  AssertControl		  "UseLocalSettings"
	  AllowSymbolicDim	  on
	  ModelReferenceIOMsg	  "none"
	  ModelReferenceMultiInstanceNormalModeStructChecksumCheck "error"
	  ModelReferenceVersionMismatchMessage "none"
	  ModelReferenceIOMismatchMessage "none"
	  UnknownTsInhSupMsg	  "warning"
	  ModelReferenceDataLoggingMessage "warning"
	  ModelReferenceSymbolNameMessage "warning"
	  ModelReferenceExtraNoncontSigs "error"
	  StateNameClashWarn	  "warning"
	  SimStateInterfaceChecksumMismatchMsg "warning"
	  SimStateOlderReleaseMsg "error"
	  InitInArrayFormatMsg	  "warning"
	  StrictBusMsg		  "ErrorLevel1"
	  BusNameAdapt		  "WarnAndRepair"
	  NonBusSignalsTreatedAsBus "none"
	  SymbolicDimMinMaxWarning "warning"
	  LossOfSymbolicDimsSimulationWarning "warning"
	  LossOfSymbolicDimsCodeGenerationWarning "error"
	  BlockIODiagnostic	  "none"
	  SFUnusedDataAndEventsDiag "warning"
	  SFUnexpectedBacktrackingDiag "warning"
	  SFInvalidInputDataAccessInChartInitDiag "warning"
	  SFNoUnconditionalDefaultTransitionDiag "warning"
	  SFTransitionOutsideNaturalParentDiag "warning"
	  SFUnconditionalTransitionShadowingDiag "warning"
	  SFUndirectedBroadcastEventsDiag "warning"
	  SFTransitionActionBeforeConditionDiag	"warning"
	  SFOutputUsedAsStateInMooreChartDiag "error"
	  IntegerSaturationMsg	  "warning"
	  AllowedUnitSystems	  "all"
	  UnitsInconsistencyMsg	  "warning"
	  AllowAutomaticUnitConversions	on
	}
	Simulink.HardwareCC {
	  $ObjectID		  14
	  Version		  "1.16.2"
	  ProdBitPerChar	  8
	  ProdBitPerShort	  16
	  ProdBitPerInt		  32
	  ProdBitPerLong	  32
	  ProdBitPerLongLong	  64
	  ProdBitPerFloat	  32
	  ProdBitPerDouble	  64
	  ProdBitPerPointer	  32
	  ProdLargestAtomicInteger "Char"
	  ProdLargestAtomicFloat  "None"
	  ProdIntDivRoundTo	  "Undefined"
	  ProdEndianess		  "Unspecified"
	  ProdWordSize		  32
	  ProdShiftRightIntArith  on
	  ProdLongLongMode	  off
	  ProdHWDeviceType	  "32-bit Generic"
	  TargetBitPerChar	  8
	  TargetBitPerShort	  16
	  TargetBitPerInt	  32
	  TargetBitPerLong	  32
	  TargetBitPerLongLong	  64
	  TargetBitPerFloat	  32
	  TargetBitPerDouble	  64
	  TargetBitPerPointer	  32
	  TargetLargestAtomicInteger "Char"
	  TargetLargestAtomicFloat "None"
	  TargetShiftRightIntArith on
	  TargetLongLongMode	  off
	  TargetIntDivRoundTo	  "Undefined"
	  TargetEndianess	  "Unspecified"
	  TargetWordSize	  32
	  TargetPreprocMaxBitsSint 32
	  TargetPreprocMaxBitsUint 32
	  TargetHWDeviceType	  "Specified"
	  TargetUnknown		  off
	  ProdEqTarget		  on
	  UseEmbeddedCoderFeatures on
	  UseSimulinkCoderFeatures on
	}
	Simulink.ModelReferenceCC {
	  $ObjectID		  15
	  Version		  "1.16.2"
	  UpdateModelReferenceTargets "IfOutOfDateOrStructuralChange"
	  EnableRefExpFcnMdlSchedulingChecks on
	  CheckModelReferenceTargetMessage "error"
	  EnableParallelModelReferenceBuilds off
	  ParallelModelReferenceErrorOnInvalidPool on
	  ParallelModelReferenceMATLABWorkerInit "None"
	  ModelReferenceNumInstancesAllowed "Multi"
	  PropagateVarSize	  "Infer from blocks in model"
	  ModelReferencePassRootInputsByReference on
	  ModelReferenceMinAlgLoopOccurrences off
	  PropagateSignalLabelsOutOfModel off
	  SupportModelReferenceSimTargetCustomCode off
	}
	Simulink.SFSimCC {
	  $ObjectID		  16
	  Version		  "1.16.2"
	  SFSimEcho		  on
	  SimCtrlC		  on
	  SimIntegrity		  on
	  SimUseLocalCustomCode	  off
	  SimParseCustomCode	  on
	  SimBuildMode		  "sf_incremental_build"
	  SimGenImportedTypeDefs  off
	}
	Simulink.RTWCC {
	  $BackupClass		  "Simulink.RTWCC"
	  $ObjectID		  17
	  Version		  "1.16.2"
	  Array {
	    Type		    "Cell"
	    Dimension		    9
	    Cell		    "IncludeHyperlinkInReport"
	    Cell		    "GenerateTraceInfo"
	    Cell		    "GenerateTraceReport"
	    Cell		    "GenerateTraceReportSl"
	    Cell		    "GenerateTraceReportSf"
	    Cell		    "GenerateTraceReportEml"
	    Cell		    "GenerateWebview"
	    Cell		    "GenerateCodeMetricsReport"
	    Cell		    "GenerateCodeReplacementReport"
	    PropName		    "DisabledProps"
	  }
	  SystemTargetFile	  "grt.tlc"
	  HardwareBoard		  "None"
	  TLCOptions		  ""
	  GenCodeOnly		  off
	  MakeCommand		  "make_rtw"
	  GenerateMakefile	  on
	  PackageGeneratedCodeAndArtifacts off
	  TemplateMakefile	  "grt_default_tmf"
	  PostCodeGenCommand	  ""
	  Description		  ""
	  GenerateReport	  off
	  SaveLog		  off
	  RTWVerbose		  on
	  RetainRTWFile		  off
	  ProfileTLC		  off
	  TLCDebug		  off
	  TLCCoverage		  off
	  TLCAssert		  off
	  RTWUseLocalCustomCode	  off
	  RTWUseSimCustomCode	  off
	  Toolchain		  "Automatically locate an installed toolchain"
	  BuildConfiguration	  "Faster Builds"
	  IncludeHyperlinkInReport off
	  LaunchReport		  off
	  PortableWordSizes	  off
	  CreateSILPILBlock	  "None"
	  CodeExecutionProfiling  off
	  CodeExecutionProfileVariable "executionProfile"
	  CodeProfilingSaveOptions "SummaryOnly"
	  CodeProfilingInstrumentation off
	  SILDebugging		  off
	  TargetLang		  "C"
	  IncludeBusHierarchyInRTWFileBlockHierarchyMap	off
	  GenerateTraceInfo	  off
	  GenerateTraceReport	  off
	  GenerateTraceReportSl	  off
	  GenerateTraceReportSf	  off
	  GenerateTraceReportEml  off
	  GenerateWebview	  off
	  GenerateCodeMetricsReport off
	  GenerateCodeReplacementReport	off
	  GenerateMissedCodeReplacementReport off
	  RTWCompilerOptimization "off"
	  RTWCustomCompilerOptimizations ""
	  CheckMdlBeforeBuild	  "Off"
	  SharedConstantsCachingThreshold 1024
	  Array {
	    Type		    "Handle"
	    Dimension		    2
	    Simulink.CodeAppCC {
	      $ObjectID		      18
	      Version		      "1.16.2"
	      Array {
		Type			"Cell"
		Dimension		21
		Cell			"IgnoreCustomStorageClasses"
		Cell			"IgnoreTestpoints"
		Cell			"InsertBlockDesc"
		Cell			"InsertPolySpaceComments"
		Cell			"SFDataObjDesc"
		Cell			"MATLABFcnDesc"
		Cell			"SimulinkDataObjDesc"
		Cell			"DefineNamingRule"
		Cell			"SignalNamingRule"
		Cell			"ParamNamingRule"
		Cell			"InlinedPrmAccess"
		Cell			"CustomSymbolStr"
		Cell			"CustomSymbolStrGlobalVar"
		Cell			"CustomSymbolStrType"
		Cell			"CustomSymbolStrField"
		Cell			"CustomSymbolStrFcn"
		Cell			"CustomSymbolStrFcnArg"
		Cell			"CustomSymbolStrBlkIO"
		Cell			"CustomSymbolStrTmpVar"
		Cell			"CustomSymbolStrMacro"
		Cell			"ReqsInCode"
		PropName		"DisabledProps"
	      }
	      ForceParamTrailComments off
	      GenerateComments	      on
	      CommentStyle	      "Auto"
	      IgnoreCustomStorageClasses on
	      IgnoreTestpoints	      off
	      IncHierarchyInIds	      off
	      MaxIdLength	      31
	      PreserveName	      off
	      PreserveNameWithParent  off
	      ShowEliminatedStatement off
	      OperatorAnnotations     off
	      IncAutoGenComments      off
	      SimulinkDataObjDesc     off
	      SFDataObjDesc	      off
	      MATLABFcnDesc	      off
	      IncDataTypeInIds	      off
	      MangleLength	      1
	      CustomSymbolStrGlobalVar "$R$N$M"
	      CustomSymbolStrType     "$N$R$M_T"
	      CustomSymbolStrField    "$N$M"
	      CustomSymbolStrFcn      "$R$N$M$F"
	      CustomSymbolStrFcnArg   "rt$I$N$M"
	      CustomSymbolStrBlkIO    "rtb_$N$M"
	      CustomSymbolStrTmpVar   "$N$M"
	      CustomSymbolStrMacro    "$R$N$M"
	      CustomSymbolStrUtil     "$N$C"
	      DefineNamingRule	      "None"
	      ParamNamingRule	      "None"
	      SignalNamingRule	      "None"
	      InsertBlockDesc	      off
	      InsertPolySpaceComments off
	      SimulinkBlockComments   on
	      MATLABSourceComments    off
	      EnableCustomComments    off
	      InternalIdentifier      "Shortened"
	      InlinedPrmAccess	      "Literals"
	      ReqsInCode	      off
	      UseSimReservedNames     off
	    }
	    Simulink.GRTTargetCC {
	      $BackupClass	      "Simulink.TargetCC"
	      $ObjectID		      19
	      Version		      "1.16.2"
	      Array {
		Type			"Cell"
		Dimension		15
		Cell			"GeneratePreprocessorConditionals"
		Cell			"IncludeMdlTerminateFcn"
		Cell			"GenerateAllocFcn"
		Cell			"SuppressErrorStatus"
		Cell			"ERTCustomFileBanners"
		Cell			"GenerateSampleERTMain"
		Cell			"GenerateTestInterfaces"
		Cell			"ModelStepFunctionPrototypeControlCompliant"
		Cell			"CPPClassGenCompliant"
		Cell			"PortableWordSizes"
		Cell			"PurelyIntegerCode"
		Cell			"SupportComplex"
		Cell			"SupportAbsoluteTime"
		Cell			"SupportContinuousTime"
		Cell			"SupportNonInlinedSFcns"
		PropName		"DisabledProps"
	      }
	      TargetFcnLib	      "ansi_tfl_table_tmw.mat"
	      TargetLibSuffix	      ""
	      GenFloatMathFcnCalls    "NOT IN USE"
	      TargetLangStandard      "C89/C90 (ANSI)"
	      CodeReplacementLibrary  "None"
	      UtilityFuncGeneration   "Auto"
	      ERTMultiwordTypeDef     "System defined"
	      ERTMultiwordLength      256
	      MultiwordLength	      2048
	      GenerateFullHeader      on
	      InferredTypesCompatibility off
	      GenerateSampleERTMain   off
	      GenerateTestInterfaces  off
	      ModelReferenceCompliant on
	      ParMdlRefBuildCompliant on
	      CompOptLevelCompliant   on
	      ConcurrentExecutionCompliant on
	      IncludeMdlTerminateFcn  on
	      GeneratePreprocessorConditionals "Disable all"
	      CombineOutputUpdateFcns on
	      CombineSignalStateStructs	off
	      SuppressErrorStatus     off
	      ERTFirstTimeCompliant   off
	      IncludeFileDelimiter    "Auto"
	      ERTCustomFileBanners    off
	      SupportAbsoluteTime     on
	      LogVarNameModifier      "rt_"
	      MatFileLogging	      on
	      MultiInstanceERTCode    off
	      CodeInterfacePackaging  "Nonreusable function"
	      SupportNonFinite	      on
	      SupportComplex	      on






  • 1
    •

  • 2
    •

  • 3
    •

  • 4
    •

  • 5
    •

  • 6
    •

  • 7
    •

  • 8
    •

  • 9
    •

  • 10
    •

  • 11
    •

  • 12
    •

  • 13
    •

  • 14
    •

  • 15
    •

  • 16
    •

  • 17
    •

  • 18
    •

  • 19
    •

  • 20
    •

  • 21
    •

  • 22
    •

  • 23
    •

  • 24
    •

  • 25
    •

  • 26
    •

  • 27
    •

  • 28
    •

  • 29
    •

  • 30
    •

  • 31
    •

  • 32
    •

  • 33
    •

  • 34
    •

  • 35
    •

  • 36
    •

  • 37
    •

  • 38
    •

  • 39
    •

  • 40
    •

  • 41
    •

  • 42
    •

  • 43
    •

  • 44
    •

  • 45
    •

  • 46
    •

  • 47
    •

  • 48
    •

  • 49
    •

  • 50
    •

  • 51
    •

  • 52
    •

  • 53
    •

  • 54
    •

  • 55
    •

  • 56
    •

  • 57
    •

  • 58
    •

  • 59
    •

  • 60
    •

  • 61
    •

  • 62
    •

  • 63
    •

  • 64
    •

  • 65
    •

  • 66
    •

  • 67
    •

  • 68
    •

  • 69
    •

  • 70
    •

  • 71
    •

  • 72
    •

  • 73
    •

  • 74
    •

  • 75
    •

  • 76
    •

  • 77
    •

  • 78
    •

  • 79
    •

  • 80
    •

  • 81
    •

  • 82
    •

  • 83
    •

  • 84
    •

  • 85
    •

  • 86
    •

  • 87
    •

  • 88
    •

  • 89
    •

  • 90
    •

  • 91
    •

  • 92
    •

  • 93
    •

  • 94
    •

  • 95
    •

  • 96
    •

  • 97
    •

  • 98
    •

  • 99
    •

  • 100
    •

  • 101
    •

  • 102
    •

  • 103
    •

  • 104
    •

  • 105
    •

  • 106
    •

  • 107
    •

  • 108
    •

  • 109
    •

  • 110
    •

  • 111
    •

  • 112
    •

  • 113
    •

  • 114
    •

  • 115
    •

  • 116
    •

  • 117
    •

  • 118
    •

  • 119
    •

  • 120
    •

  • 121
    •

  • 122
    •

  • 123
    •

  • 124
    •

  • 125
    •

  • 126
    •

  • 127
    •

  • 128
    •

  • 129
    •

  • 130
    •

  • 131
    •

  • 132
    •

  • 133
    •

  • 134
    •

  • 135
    •

  • 136
    •

  • 137
    •

  • 138
    •

  • 139
    •

  • 140
    •

  • 141
    •

  • 142
    •

  • 143
    •

  • 144
    •

  • 145
    •

  • 146
    •

  • 147
    •

  • 148
    •

  • 149
    •

  • 150
    •

  • 151
    •

  • 152
    •

  • 153
    •

  • 154
    •

  • 155
    •

  • 156
    •

  • 157
    •

  • 158
    •

  • 159
    •

  • 160
    •

  • 161
    •

  • 162
    •

  • 163
    •

  • 164
    •

  • 165
    •

  • 166
    •

  • 167
    •

  • 168
    •

  • 169
    •

  • 170
    •

  • 171
    •

  • 172
    •

  • 173
    •

  • 174
    •

  • 175
    •

  • 176
    •

  • 177
    •

  • 178
    •

  • 179
    •

  • 180
    •

  • 181
    •

  • 182
    •

  • 183
    •

  • 184
    •

  • 185
    •

  • 186
    •

  • 187
    •

  • 188
    •

  • 189
    •

  • 190
    •

  • 191
    •

  • 192
    •

  • 193
    •

  • 194
    •

  • 195
    •

  • 196
    •

  • 197
    •

  • 198
    •

  • 199
    •

  • 200
    •

  • 201
    •

  • 202
    •

  • 203
    •

  • 204
    •

  • 205
    •

  • 206
    •

  • 207
    •

  • 208
    •

  • 209
    •

  • 210
    •

  • 211
    •

  • 212
    •

  • 213
    •

  • 214
    •

  • 215
    •

  • 216
    •

  • 217
    •

  • 218
    •

  • 219
    •

  • 220
    •

  • 221
    •

  • 222
    •

  • 223
    •

  • 224
    •

  • 225
    •

  • 226
    •

  • 227
    •

  • 228
    •

  • 229
    •

  • 230
    •

  • 231
    •

  • 232
    •

  • 233
    •

  • 234
    •

  • 235
    •

  • 236
    •

  • 237
    •

  • 238
    •

  • 239
    •

  • 240
    •

  • 241
    •

  • 242
    •

  • 243
    •

  • 244
    •

  • 245
    •

  • 246
    •

  • 247
    •

  • 248
    •

  • 249
    •

  • 250
    •

  • 251
    •

  • 252
    •

  • 253
    •

  • 254
    •

  • 255
    •

  • 256
    •

  • 257
    •

  • 258
    •

  • 259
    •

  • 260
    •

  • 261
    •

  • 262
    •

  • 263
    •

  • 264
    •

  • 265
    •

  • 266
    •

  • 267
    •

  • 268
    •

  • 269
    •

  • 270
    •

  • 271
    •

  • 272
    •

  • 273
    •

  • 274
    •

  • 275
    •

  • 276
    •

  • 277
    •

  • 278
    •

  • 279
    •

  • 280
    •

  • 281
    •

  • 282
    •

  • 283
    •

  • 284
    •

  • 285
    •

  • 286
    •

  • 287
    •

  • 288
    •

  • 289
    •

  • 290
    •

  • 291
    •

  • 292
    •

  • 293
    •

  • 294
    •

  • 295
    •

  • 296
    •

  • 297
    •

  • 298
    •

  • 299
    •

  • 300
    •

  • 301
    •

  • 302
    •

  • 303
    •

  • 304
    •

  • 305
    •

  • 306
    •

  • 307
    •

  • 308
    •

  • 309
    •

  • 310
    •

  • 311
    •

  • 312
    •

  • 313
    •

  • 314
    •

  • 315
    •

  • 316
    •

  • 317
    •

  • 318
    •

  • 319
    •

  • 320
    •

  • 321
    •

  • 322
    •

  • 323
    •

  • 324
    •

  • 325
    •

  • 326
    •

  • 327
    •

  • 328
    •

  • 329
    •

  • 330
    •

  • 331
    •

  • 332
    •

  • 333
    •

  • 334
    •

  • 335
    •

  • 336
    •

  • 337
    •

  • 338
    •

  • 339
    •

  • 340
    •

  • 341
    •

  • 342
    •

  • 343
    •

  • 344
    •

  • 345
    •

  • 346
    •

  • 347
    •

  • 348
    •

  • 349
    •

  • 350
    •

  • 351
    •

  • 352
    •

  • 353
    •

  • 354
    •

  • 355
    •

  • 356
    •

  • 357
    •

  • 358
    •

  • 359
    •

  • 360
    •

  • 361
    •

  • 362
    •

  • 363
    •

  • 364
    •

  • 365
    •

  • 366
    •

  • 367
    •

  • 368
    •

  • 369
    •

  • 370
    •

  • 371
    •

  • 372
    •

  • 373
    •

  • 374
    •

  • 375
    •

  • 376
    •

  • 377
    •

  • 378
    •

  • 379
    •

  • 380
    •

  • 381
    •

  • 382
    •

  • 383
    •

  • 384
    •

  • 385
    •

  • 386
    •

  • 387
    •

  • 388
    •

  • 389
    •

  • 390
    •

  • 391
    •

  • 392
    •

  • 393
    •

  • 394
    •

  • 395
    •

  • 396
    •

  • 397
    •

  • 398
    •

  • 399
    •

  • 400
    •

  • 401
    •

  • 402
    •

  • 403
    •

  • 404
    •

  • 405
    •

  • 406
    •

  • 407
    •

  • 408
    •

  • 409
    •

  • 410
    •

  • 411
    •

  • 412
    •

  • 413
    •

  • 414
    •

  • 415
    •

  • 416
    •

  • 417
    •

  • 418
    •

  • 419
    •

  • 420
    •

  • 421
    •

  • 422
    •

  • 423
    •

  • 424
    •

  • 425
    •

  • 426
    •

  • 427
    •

  • 428
    •

  • 429
    •

  • 430
    •

  • 431
    •

  • 432
    •

  • 433
    •

  • 434
    •

  • 435
    •

  • 436
    •

  • 437
    •

  • 438
    •

  • 439
    •

  • 440
    •

  • 441
    •

  • 442
    •

  • 443
    •

  • 444
    •

  • 445
    •

  • 446
    •

  • 447
    •

  • 448
    •

  • 449
    •

  • 450
    •

  • 451
    •

  • 452
    •

  • 453
    •

  • 454
    •

  • 455
    •

  • 456
    •

  • 457
    •

  • 458
    •

  • 459
    •

  • 460
    •

  • 461
    •

  • 462
    •

  • 463
    •

  • 464
    •

  • 465
    •

  • 466
    •

  • 467
    •

  • 468
    •

  • 469
    •

  • 470
    •

  • 471
    •

  • 472
    •

  • 473
    •

  • 474
    •

  • 475
    •

  • 476
    •

  • 477
    •

  • 478
    •

  • 479
    •

  • 480
    •

  • 481
    •

  • 482
    •

  • 483
    •

  • 484
    •

  • 485
    •

  • 486
    •

  • 487
    •

  • 488
    •

  • 489
    •

  • 490
    •

  • 491
    •

  • 492
    •

  • 493
    •

  • 494
    •

  • 495
    •

  • 496
    •

  • 497
    •

  • 498
    •

  • 499
    •

  • 500
    •

  • 501
    •

  • 502
    •

  • 503
    •

  • 504
    •

  • 505
    •

  • 506
    •

  • 507
    •

  • 508
    •

  • 509
    •

  • 510
    •

  • 511
    •

  • 512
    •

  • 513
    •

  • 514
    •

  • 515
    •

  • 516
    •

  • 517
    •

  • 518
    •

  • 519
    •

  • 520
    •

  • 521
    •

  • 522
    •

  • 523
    •

  • 524
    •

  • 525
    •

  • 526
    •

  • 527
    •

  • 528
    •

  • 529
    •

  • 530
    •

  • 531
    •

  • 532
    •

  • 533
    •

  • 534
    •

  • 535
    •

  • 536
    •

  • 537
    •

  • 538
    •

  • 539
    •

  • 540
    •

  • 541
    •

  • 542
    •

  • 543
    •

  • 544
    •

  • 545
    •

  • 546
    •

  • 547
    •

  • 548
    •

  • 549
    •

  • 550
    •

  • 551
    •

  • 552
    •

  • 553
    •

  • 554
    •

  • 555
    •

  • 556
    •

  • 557
    •

  • 558
    •

  • 559
    •

  • 560
    •

  • 561
    •

  • 562
    •

  • 563
    •

  • 564
    •

  • 565
    •

  • 566
    •

  • 567
    •

  • 568
    •

  • 569
    •

  • 570
    •

  • 571
    •

  • 572
    •

  • 573
    •

  • 574
    •

  • 575
    •

  • 576
    •

  • 577
    •

  • 578
    •

  • 579
    •

  • 580
    •

  • 581
    •

  • 582
    •

  • 583
    •

  • 584
    •

  • 585
    •

  • 586
    •

  • 587
    •

  • 588
    •

  • 589
    •

  • 590
    •

  • 591
    •

  • 592
    •

  • 593
    •

  • 594
    •

  • 595
    •

  • 596
    •

  • 597
    •

  • 598
    •

  • 599
    •

  • 600
    •

  • 601
    •

  • 602
    •

  • 603
    •

  • 604
    •

  • 605
    •

  • 606
    •

  • 607
    •

  • 608
    •

  • 609
    •

  • 610
    •

  • 611
    •

  • 612
    •

  • 613
    •

  • 614
    •

  • 615
    •

  • 616
    •

  • 617
    •

  • 618
    •

  • 619
    •

  • 620
    •

  • 621
    •

  • 622
    •

  • 623
    •

  • 624
    •

  • 625
    •

  • 626
    •

  • 627
    •

  • 628
    •

  • 629
    •

  • 630
    •

  • 631
    •

  • 632
    •

  • 633
    •

  • 634
    •

  • 635
    •

  • 636
    •

  • 637
    •

  • 638
    •

  • 639
    •

  • 640
    •

  • 641
    •

  • 642
    •

  • 643
    •

  • 644
    •

  • 645
    •

  • 646
    •

  • 647
    •

  • 648
    •

  • 649
    •

  • 650
    •

  • 651
    •

  • 652
    •

  • 653
    •

  • 654
    •

  • 655
    •

  • 656
    •

  • 657
    •

  • 658
    •

  • 659
    •

  • 660
    •

  • 661
    •

  • 662
    •

  • 663
    •

  • 664
    •

  • 665
    •

  • 666
    •

  • 667
    •

  • 668
    •

  • 669
    •

  • 670
    •

  • 671
    •

  • 672
    •

  • 673
    •

  • 674
    •

  • 675
    •

  • 676
    •

  • 677
    •

  • 678
    •

  • 679
    •

  • 680
    •

四、运行结果

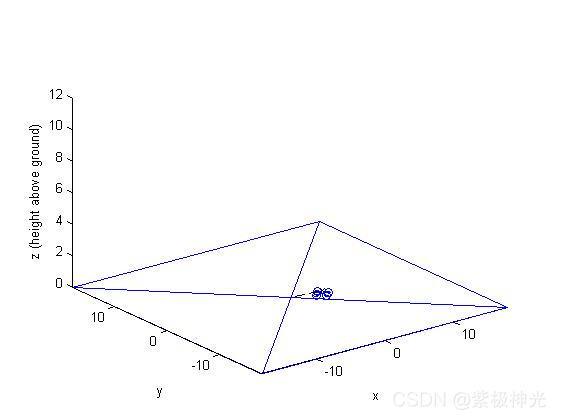

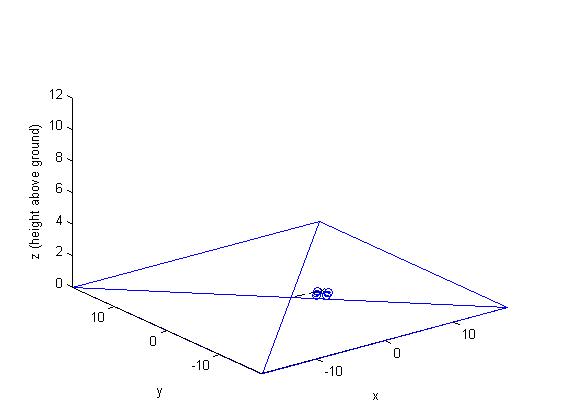

在这里插入图片描述

五、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 包子阳,余继周,杨杉.智能优化算法及其MATLAB实例（第2版）[M].电子工业出版社，2016.
[2]张岩,吴水根.MATLAB优化算法源代码[M].清华大学出版社，2017.
[3]张萍.四旋翼飞行器姿态控制建模与仿真[J].电机与控制应用. 2019,46(12)
[4]刘岩,杨牧.四旋翼飞行器飞行控制系统研究与设计[J].山东工业技术. 2019,(07)

文章来源: qq912100926.blog.csdn.net，作者：海神之光，版权归原作者所有，如需转载，请联系作者。

原文链接：qq912100926.blog.csdn.net/article/details/113775368

【版权声明】本文为华为云社区用户转载文章，如果您发现本社区中有涉嫌抄袭的内容，欢迎发送邮件进行举报，并提供相关证据，一经查实，本社区将立刻删除涉嫌侵权内容，举报邮箱： cloudbbs@huaweicloud.com
MATLAB
  • 点赞
  • 收藏
  • 关注作者

评论（0）

0/1000
抱歉，系统识别当前为高风险访问，暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称，即可参与社区互动！

*长度不超过10个汉字或20个英文字符，设置后3个月内不可修改。

*长度不超过10个汉字或20个英文字符，设置后3个月内不可修改。

确认 取消

加入云驻计划，成为创作者

  • 华为云周边好礼
  • 免费体验产品
  • 特殊身份标识
  • 线下官方门票
  • 内部专家零距离
  • 与10000+优质创作者共同成长
立即加入
