一、获取代码方式

获取代码方式1:
完整代码已上传我的资源: 【手势识别】基于matlab k-means聚类手势识别【含Matlab源码 386期】

获取代码方式2:
通过订阅紫极神光博客付费专栏,凭支付凭证,私信博主,可获得此代码。

备注:订阅紫极神光博客付费专栏,可免费获得1份代码(有效期为订阅日起,三天内有效);

二、k-means聚类算法简介

提取手部轮廓特征,k-means聚类算法,训练得到手势识别模型,然后用测试数据测试。
在这里插入图片描述
1 K-means算法原理
K-means算法是最常用的一种聚类算法。算法的输入为一个样本集(或者称为点集),通过该算法可以将样本进行聚类,具有相似特征的样本聚为一类。
针对每个点,计算这个点距离所有中心点最近的那个中心点,然后将这个点归为这个中心点代表的簇。一次迭代结束之后,针对每个簇类,重新计算中心点,然后针对每个点,重新寻找距离自己最近的中心点。如此循环,直到前后两次迭代的簇类没有变化。
下面通过一个简单的例子,说明K-means算法的过程。如下图所示,目标是将样本点聚类成3个类别。

2 基本的步骤
step1:选定要聚类的类别数目k(如上例的k=3类),选择k个中心点。
step2:针对每个样本点,找到距离其最近的中心点(寻找组织),距离同一中心点最近的点为一个类,这样完成了一次聚类。
step3:判断聚类前后的样本点的类别情况是否相同,如果相同,则算法终止,否则进入step4。
step4:针对每个类别中的样本点,计算这些样本点的中心点,当做该类的新的中心点,继续step2。

3 上述步骤的关键
(1)找到距离自己最近的中心点。
(2)更新中心点。

三、部分源代码

%------------------hand shape analysis
%
close all
format long     %显示小数点后4位的数据
%读入hand的landmark数值

fid=fopen('shapes.txt');
hand=fscanf(fid, '%g %g',[40,inf]); %  X(1,1)X(2,1)...X(56,1);X(1,2)X(2,2)...X(56,2)
% choose 40 shapes as a row column
Shape=600*hand;

%-----------------------------------------------------
%   shape 矩阵每行112列,对应一个手的数据,
%56列对应X坐标 后56列对应Y坐标
%   Odata中所有形状的质点已经平移到原点
temp=Shape;
[temp,X,Y]=show2D(temp);

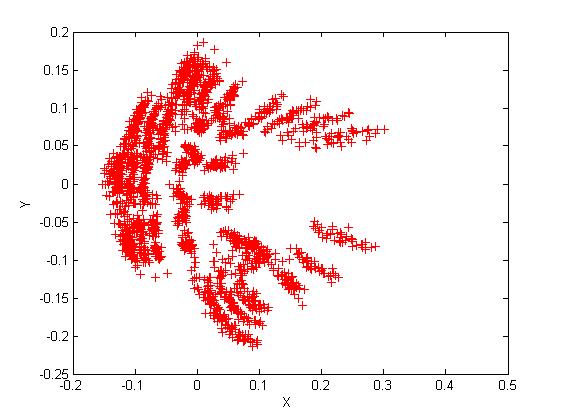

% %--------Show unaligned shape
% plot(X,Y,'r*');
% title('unaligned hands');
%------------------Compute the shape metric---------------------------

%-------------------------计算each Shape Size-------------------------
T=temp*temp';                             % Diag的对角元素为∑(x^2+y^2)
V=diag(T);                                % compute 对角线
size=sqrt(V);                             % Size 为40×1矩阵

%------------------------将Size归一化--------------------------------
%%%         根据形状大小的函数满足S(ax)=aS(x),每个坐标都除以对应Size的值
for i=1:40
  preHand(i,:)=temp(i,:)/size(i);               % preHand 为已经对准质点和大小
end


% -------------------------将各个形状以hand1为mean旋转------------------------
x1=preHand(1,:);      % vector 1*40

x1=reshape(x1,56,2);
x2=preHand(2,:);

for i=2:40
    x3=preHand(i,:);
    x2=reshape(x3,56,2);
    XD=x1'*x2;
    [U,S,V]=svd(XD);
    I=x2*V*U';
    preHand(i,:)=reshape(I,1,112);
end

aligned=preHand;
for i=1:40
for j=1:56
     XX(i,j)=aligned(i,j);            % the mean x-axis coordinate of every landmark
     YY(i,j)=aligned(i,j+56);         % the mean y-axis coordinate of every landmark
end
end
plot(XX,YY,'ro')
%-----------------compute the mean shape coordinates
%   every column of colm is the mean cooridnate of all the 40 hands'
%   coordinate respectively
colm=mean(aligned);              % mean(X) 求每一列元素的均值
for i=1:56
     XX(i)=colm(i);            % the mean x-axis coordinate of every landmark
     YY(i)=colm(i+56);         % the mean y-axis coordinate of every landmark
end

% subplot(1,2,1);
% figure;

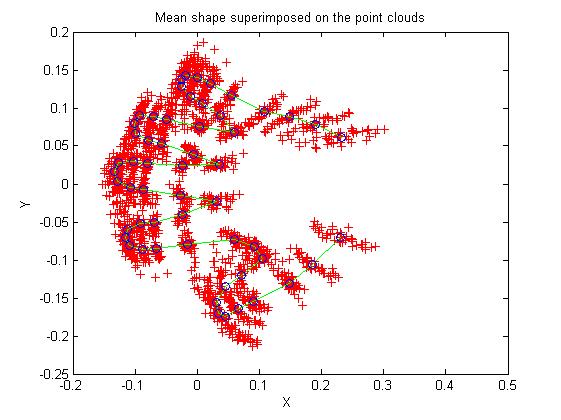

% plot(XX,YY,'g-',XX,YY,'rx');               % show the mean shape of 40 hands
% title('the Mean Shape of Aligned');
% title('b1=0');
%---------------------------------------------------------------
%   tangent space projection
absx=colm*colm';absx=absx*absx;
for i=1:40
    xo=dot(colm,aligned(i,:));          % 矩阵点乘
    xt(i,:)=absx*aligned(i,:)/xo;
end

%---------------------------------------------------------------
%    PCA
[signals,PC,V] = pca1(xt');

% eAB=xt*xt';       % 应该减去均值球协方差矩阵
% eAb=xt*xt'/39;
% % eBA=xt'*xt;
% [PC,V]=eig(eAB);
% [PC1,V1]=eig(eAb);
% V=diag(V);
% V1=diag(V1);
% sumV=40*mean(V);
%   compute the eigenvector of eBA
% PC1=xt'*PC;
% figure(2)
% bar(V);
% title('Shape eigenvalue');
% xlabel('Eigenvalue');
% ylabel('variance expansion factor(percent)');
%   now the shape model can be x=xmean+PC1*B,
%   where b {-3*sqrt(λ)3*sqrt(λ)}
% Pb=PC(:,1)*3*sqrt(V1(1));
Pb1=signals(:,1)*3*sqrt(V(1));
%
% Xz=colm+Pb1';
% Xz=colm-Pb1';
Pb2=signals(:,2)*3*sqrt(V(2));
 Xz=colm-Pb2';
% Xz=colm-Pb2';

% for i=1:56
%      Xp(i)=Xz(i);            % the mean x-axis coordinate of every landmark
%      Yp(i)=Xz(i+56);         % the mean y-axis coordinate of every landmark
% end

function edgedemo(action, varargin)
%EDGEDEMO Edge detection demo.
%   This demo uses the EDGE function to apply different edge detection
%   methods to a variety of images.  Use the pop-up menus to select an
%   image and an edge detection method.  You can control the parameters
%   for the different methods by setting the values in the middle frame
%   at the bottom of the figure.  (The set of parameters differs
%   depending on the method you choose.)  Press the "Apply" button to
%   calculate the edge map using the specified method and parameters.
%
%   For the Sobel, Prewitt, and Roberts methods, the EDGE function
%   finds edges by thresholding the gradient.  For the Laplacian of
%   Gaussian method, EDGE thresholds the slope of the zero crossings
%   after filtering the image with a LoG filter.  For the Canny method,
%   EDGE thresholds the gradient using the derivative of a Gaussian
%   filter.
%
%   By default, the EDGE function automatically computes the threshold
%   to use.  To specify a different threshold manually (in order to
%   detect more or fewer edges), click the radio button next to the
%   edit box in the middle frame and enter the value in the text field.
%   If you are using the Canny method, two thresholds are used:  the
%   high threshold is the value you specify, and the low threshold is
%   0.4 times the high threshold.
%
%   For the Sobel and Prewitt methods, you can choose to detect
%   horizontal edges, vertical edges, or both.
%
%   For the Laplacian of Gaussian and Canny methods, you can specify
%   sigma, the parameter that controls the spread of the Gaussian
%   function.  The size of the filter is set automatically by EDGE,
%   based on the value of sigma.
%
%   The Saturn and Lifting Body images are courtesy of NASA.
%
%   See also EDGE.

%   Copyright 1993-2004 The MathWorks, Inc.
%   $Revision: 1.19.4.7 $  $Date: 2004/04/01 16:12:06 $

% Function subroutines:
%
% InitializeEDGEDEMO -      Initialization of controls, axes, and
%                           Images.
%
% ComputeEdgeMap -          Computes the Edge map of the original
%                           image using edge.m
%
% SelectMethod -            Selects Edge Detection method and enable/disable
%                           the appropriate controls
%
% LoadNewImage -            Loads the selected Image
%
% UpdateThreshCtrl -     Grabs the threshold from the Edit box and
%                           enables the Apply button
%
% UpdateDirectionality -    Sets the directionality string based on the
%                           popup menu.
%
% Radio -                   Sets values for Radio Buttons and enables/disables
%                           the threshold edit box.
%
% UpdateLOGSize -           Grabs the LOG filter size from edit box
%
% UpdateLOGSigma -          Grabs LOG filter Sigma from edit box
%
% ActivateSPRControls -     Turns on controls for Sobel, Prewitt, Roberts
%
% ActivateLOGControls -     Turns on controls for LOG.

if nargin<1,
   action='InitializeEDGEDEMO';
end;

feval(action,varargin{:});
return;


%%%
%%%  Sub-function - InitializeEDGEDEMO
%%%

function InitializeEDGEDEMO()

% If dctdemo is already running, bring it to the foreground.
h = findobj(allchild(0), 'tag', 'Edge Detection Demo');
if ~isempty(h)
   figure(h(1))
   return
end

screenD = get(0, 'ScreenDepth');
if screenD>8
   grayres=256;
else
   grayres=128;
end


EdgeDemoFig = figure( ...
   'Name','Edge Detection Demo', ...
   'NumberTitle','off', 'HandleVisibility', 'on', ...
   'tag', 'Edge Detection Demo', ...
   'Visible','off', 'Resize', 'off',...
   'BusyAction','Queue','Interruptible','off', ...
   'Color', [.8 .8 .8], ...
   'IntegerHandle', 'off', ...
   'DoubleBuffer', 'on', ...
   'Colormap', gray(grayres));

figpos = get(EdgeDemoFig, 'position');

% Adjust the size of the figure window
figpos(3:4) = [560 420];
horizDecorations = 10;  % resize controls, etc.
vertDecorations = 45;   % title bar, etc.
screenSize = get(0,'ScreenSize');
if (screenSize(3) <= 1)
    % No display connected (apparently)
    screenSize(3:4) = [100000 100000]; % don't use Inf because of vms
end
if (((figpos(3) + horizDecorations) > screenSize(3)) | ...
            ((figpos(4) + vertDecorations) > screenSize(4)))
    % Screen size is too small for this demo!
    delete(EdgeDemoFig);
    error(['Screen resolution is too low ', ...
          '(or text fonts are too big) to run this demo']);
end
dx = screenSize(3) - figpos(1) - figpos(3) - horizDecorations;
dy = screenSize(4) - figpos(2) - figpos(4) - vertDecorations;
if (dx < 0)
    figpos(1) = max(5,figpos(1) + dx);
end
if (dy < 0)
    figpos(2) = max(5,figpos(2) + dy);
end
set(EdgeDemoFig, 'position', figpos);

rows = figpos(4); cols = figpos(3);
hs = (cols-512) / 3;        % Horizantal Spacing
bot = rows-2*hs-256;        % Bottom of the images

%====================================
% Parameters for all buttons and menus
ifs = hs/2;   % Intraframe Spacing

Std.Interruptible = 'off';
Std.BusyAction = 'queue';

%================================
% Original Image Axes
hdl.ImageAxes = axes(Std, ...
   'Units', 'Pixels', ...
   'Parent',EdgeDemoFig,...
   'ydir', 'reverse', ...
   'XLim', [.5 256.5], ...
   'YLim', [.5 256.5],...
   'CLim', [0 255], ...
   'Position',[hs bot 256 256], ...
   'XTick',[],'YTick',[]);
set(get(hdl.ImageAxes, 'title'), 'string', 'Original Image');

%================================
% Edge Map Axes
hdl.EdgeAxes = axes(Std, ...
   'Units', 'Pixels', ...
   'Parent',EdgeDemoFig,...
   'ydir', 'reverse', ...
   'XLim', [.5 256.5], ...
   'YLim', [.5 256.5],...
   'CLim', [0 1], ...
   'Position',[cols-hs-256 bot 256 256], ...
   'XTick',[],'YTick',[]);
set(get(hdl.EdgeAxes, 'title'), 'string', 'Edge Map');

%================================
% Original Image
hdl.Image = image(Std, ...
   'CData', [], ...
   'CDataMapping', 'scaled', ...
   'Parent',hdl.ImageAxes,...
   'Xdata', [1 256],...
   'Ydata', [1 256],...
   'EraseMode', 'none');

%================================
% Edge Map Image
hdl.Edge = image(Std, ...
   'CData', [], ...
   'CDataMapping', 'scaled', ...
   'Parent',hdl.EdgeAxes,...
   'Xdata', [1 256],...
   'Ydata', [1 256],...
   'EraseMode', 'none');

% Background color for frames
bgcolor = [0.45 0.45 0.45];
fgcolor = [1 1 1];  % For text

%================================
% The Menu frame - image and method popups go here
mfleft=hs;
mfbot=hs;
mfwid=(3*cols/8)-1.5*hs; % 2*cols/7
mfht=bot-2*hs;
hdl.MenuFrame = uicontrol(Std, ...
   'Parent', EdgeDemoFig, ...
   'Style', 'frame', ...
   'Units', 'pixels', ...
   'Position', [mfleft mfbot mfwid mfht], ...
   'BackgroundColor', bgcolor);

%====================================
% The LoadNewImage menu : ip-> Image Popup
ipwid = mfwid-2*ifs;
ipht = 21;       % (mfht-5*ifs)/3;
ipleft = mfleft+ifs;
ipbot = mfbot+1.7*ifs + 2*ipht;
hdl.ImgPop=uicontrol(Std, ...
   'Parent', EdgeDemoFig, ...
   'Style','popupmenu', ...
   'Units','pixels', ...
   'Position',[ipleft ipbot ipwid ipht], ...
   'Enable','on', ...
   'String','Coins|Circuit|Vertigo|Lifting Body|Rice|Saturn|Eight Bit|Glass', ...
   'Tag','ImagesPop',...
   'Callback','edgedemo(''LoadNewImage'')');

% Text label for Image Menu Popup
uicontrol( Std, ...
   'Parent', EdgeDemoFig, ...
   'Style','text', ...
   'Units','pixels', ...
   'Position',[ipleft ipbot+ipht ipwid 18], ...
   'Horiz','left', ...
   'Background',bgcolor, ...
   'Foreground',fgcolor, ...
   'String','Select an Image:');


%====================================
% The Method menu : mp-> Method Popup
hdl.Method = 'Sobel';
mpwid = ipwid;
mpht = ipht;
mpleft = ipleft;
mpbot = mfbot+1.2*ifs;
hdl.MethodPop=uicontrol(Std, ...
   'Parent', EdgeDemoFig, ...
   'Style','popupmenu', ...
   'Units','pixels', ...
   'Position',[mpleft mpbot mpwid mpht], ...
   'Enable','on', ...
   'String','Sobel|Prewitt|Roberts|Laplacian of Gaussian|Canny', ...
   'Tag','MethodPop',...
   'Callback','edgedemo(''SelectMethod'')');

% Text label for Method Popup
uicontrol( Std, ...
   'Parent', EdgeDemoFig, ...
   'Style','text', ...
   'Units','pixels', ...
   'Position',[mpleft mpbot+mpht mpwid 18], ...
   'Horiz','left', ...
   'Background',bgcolor, ...
   'Foreground',fgcolor, ...
   'String','Edge Detection Method:');


%================================
% The Parameter frame - method specific parameters go here
pfleft =(3*cols/8)+0.5*hs; % 2*cols/7
pfbot = 1.5*hs;
pfwid =(3*cols/8)-hs; % 3*cols/7
pfht = bot-2.5*hs;
hdl.ParamFrame = uicontrol(Std, ...
   'Parent', EdgeDemoFig, ...
   'Style', 'frame', ...
   'Units', 'pixels', ...
   'Position', [ pfleft pfbot pfwid pfht ], ...
   'BackgroundColor', bgcolor);

%====================================
% Controls for Sobel/Prewitt/Roberts edge detectors:

% Text label for Threshold Controls
labelleft = pfleft+ifs;
labelwid = pfwid/2-hs;
labelbot = pfbot+2*pfht/3;
hdl.sprThLbl = uicontrol(Std,...
   'Parent', EdgeDemoFig, ...
   'Style','text', ...
   'Units','pixels', ...
   'Position',[labelleft labelbot labelwid 18], ...
   'Horiz','left', ...
   'String','Threshold:', ...
   'BackgroundColor',bgcolor, ...
   'ForegroundColor',fgcolor);
hdl.Threshold = 0;             % Initial value

raleft = pfleft + pfwid/2 - hs/2;
rabot = pfbot+2*pfht/3+hs/6;
rawid = pfwid/2;
raht = ipht;
hdl.RadioAutomatic=uicontrol(Std, ...
   'Parent', EdgeDemoFig, ...
   'Style','radiobutton', ...
   'Units','pixels', ...
   'Position',[raleft rabot rawid raht], ...
   'String','Automatic', ...
   'value',1,'Userdata',1, ...
   'Callback','edgedemo(''Radio'',''auto'')');

rmleft = pfleft + pfwid/2 - hs/2;
rmbot = pfbot+pfht/3+hs/3;
rmwid = hs*1.5;
rmht = ipht;
hdl.RadioManual=uicontrol(Std, ...
   'Parent', EdgeDemoFig, ...
   'Style','radiobutton', ...
   'Units','pixels', ...
   'Position',[rmleft rmbot rmwid rmht], ...
   'String','', ...
   'value',0,'Userdata',0, ...
   'Callback','edgedemo(''Radio'',''manual'')');

thleft = rmleft+rmwid;
thwid = rawid-rmwid;
thbot = rmbot;
thht = rmht;
hdl.ThreshCtrl = uicontrol(Std, ...
   'Parent', EdgeDemoFig, ...
   'Enable', 'off', ...
   'Style','edit', ...
   'Units','pixels', ...
   'Position',[thleft thbot thwid thht], ...
   'Horiz','right', ...
   'Background','white', ...
   'Foreground','black', ...
   'String','0',...
   'callback','edgedemo(''UpdateSprThresh'')');



% The Directionality Popup menu : dp-> Direction Popup
dpwid = pfwid/2;
dpht = ipht;
dpleft = pfleft + pfwid/2 - hs/2;
dpbot = pfbot+.4*hs;
hdl.sprDirPop=uicontrol(Std, ...
   'Parent', EdgeDemoFig, ...
   'Style','popupmenu', ...
   'Units','pixels', ...
   'Position',[dpleft dpbot dpwid dpht], ...
   'Enable','on', ...
   'String','Both|Horizontal|Vertical', ...
   'Tag','DirectionPop',...
   'Callback','edgedemo(''UpdateDirectionality'')');
% Text label for Directionality Popup
labelleft = pfleft+ifs;
labelwid = pfwid/2-hs;     %5*hs/4
labelbot = dpbot;
hdl.sprDirLbl = uicontrol( Std, ...
   'Parent', EdgeDemoFig, ...
   'Style','text', ...
   'Units','pixels', ...
   'Position',[labelleft labelbot labelwid 18], ...
   'Horiz','left', ...
   'Background',bgcolor, ...
   'Foreground',fgcolor, ...
   'String','Direction:');
hdl.Directionality = 'both';


hdl.logSigmaCtrl=uicontrol(Std, ...
   'Parent', EdgeDemoFig, ...
   'Style','edit', ...
   'Units','pixels', ...
   'Position',[dpleft dpbot dpwid dpht], ...
   'Horiz','right', ...
   'Background','white', ...
   'Foreground','black', ...
   'String','2', ...
   'Tag','DirectionPop',...
   'Visible', 'off', ...
   'Callback','edgedemo(''UpdateLOGSigma'')');
% Text label for Sigma edit box
hdl.logSigmaLbl = uicontrol( Std, ...
   'Parent', EdgeDemoFig, ...
   'Style','text', ...
   'Units','pixels', ...
   'Position',[labelleft labelbot labelwid 18], ...
   'Horiz','left', ...
   'Background',bgcolor, ...
   'Foreground',fgcolor, ...
   'Visible', 'off', ...
   'String','Sigma:');
hdl.LogSigma = 2;

%====================================
% Status bar
colr = get(EdgeDemoFig,'Color');
hdl.Status = uicontrol( Std, ...
   'Parent', EdgeDemoFig, ...
   'Style','text', ...
   'Units','pixels', ...
   'Background', colr, ...
   'Foreground', [.8 0 0], ...
   'Position',[pfleft 2 pfwid 18], ...
   'Horiz','center', ...
   'Tag', 'Status', ...
   'String','Initializing Edge Detection Demo...');

%================================
% The Button frame - Apply, Info, and Close buttons go here
bfleft = (3*cols/4)+.5*hs; % 5*cols/7
bfbot = hs;
bfwid = (cols/4)-1.5*hs; % 2*cols/7
bfht = bot-2*hs;
hdl.ButtonFrame = uicontrol(Std, ...
   'Parent', EdgeDemoFig, ...
   'Style', 'frame', ...
   'Units', 'pixels', ...
   'Position', [ bfleft bfbot bfwid bfht ], ...
   'BackgroundColor', bgcolor);


%====================================
% The APPLY button
btnwid = bfwid - 2*ifs;
btnht =  (bfht-4*ifs)/3;     % 21
btnleft = bfleft + ifs;
btnbot = bfbot + bfht - ifs - btnht;
hdl.Apply=uicontrol(Std, ...
   'Parent', EdgeDemoFig, ...
   'Style','pushbutton', ...
   'Units','pixels', ...
   'Position',[btnleft btnbot btnwid btnht], ...
   'Enable','off', ...
   'String','Apply', ...
   'Callback','edgedemo(''ComputeEdgeMap'')');

%====================================
% The INFO button
btnbot = bfbot + bfht - 2*ifs - 2*btnht;
hdl.Help=uicontrol(Std, ...
   'Parent', EdgeDemoFig, ...
   'Style','pushbutton', ...
   'Units','pixels', ...
   'Position',[btnleft btnbot btnwid btnht], ...
   'Enable','off', ...
   'String','Info', ...
   'Callback','helpwin edgedemo');

%====================================
% The CLOSE button
btnbot = bfbot + ifs;
hdl.Close=uicontrol(Std, ...
   'Parent', EdgeDemoFig, ...
   'Style','pushbutton', ...
   'Units','pixels', ...
   'Position',[btnleft btnbot btnwid btnht], ...
   'Enable','off', ...
   'String','Close', ...
   'Callback','close(gcbf)');


set(EdgeDemoFig, 'Userdata', hdl, 'Visible', 'on');
drawnow
LoadNewImage(EdgeDemoFig);
drawnow
set(EdgeDemoFig, 'HandleVisibility', 'Callback');
set([hdl.Apply hdl.Help hdl.Close] , 'Enable', 'on');
return


%%%
%%%  Sub-Function - ComputeEdgeMap
%%%

function ComputeEdgeMap(DemoFig)

if nargin<1
   callb = 1;    % We're in a callback
   DemoFig = gcbf;
else
   callb = 0;    % We're in the initialization
end




  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
  • 68
  • 69
  • 70
  • 71
  • 72
  • 73
  • 74
  • 75
  • 76
  • 77
  • 78
  • 79
  • 80
  • 81
  • 82
  • 83
  • 84
  • 85
  • 86
  • 87
  • 88
  • 89
  • 90
  • 91
  • 92
  • 93
  • 94
  • 95
  • 96
  • 97
  • 98
  • 99
  • 100
  • 101
  • 102
  • 103
  • 104
  • 105
  • 106
  • 107
  • 108
  • 109
  • 110
  • 111
  • 112
  • 113
  • 114
  • 115
  • 116
  • 117
  • 118
  • 119
  • 120
  • 121
  • 122
  • 123
  • 124
  • 125
  • 126
  • 127
  • 128
  • 129
  • 130
  • 131
  • 132
  • 133
  • 134
  • 135
  • 136
  • 137
  • 138
  • 139
  • 140
  • 141
  • 142
  • 143
  • 144
  • 145
  • 146
  • 147
  • 148
  • 149
  • 150
  • 151
  • 152
  • 153
  • 154
  • 155
  • 156
  • 157
  • 158
  • 159
  • 160
  • 161
  • 162
  • 163
  • 164
  • 165
  • 166
  • 167
  • 168
  • 169
  • 170
  • 171
  • 172
  • 173
  • 174
  • 175
  • 176
  • 177
  • 178
  • 179
  • 180
  • 181
  • 182
  • 183
  • 184
  • 185
  • 186
  • 187
  • 188
  • 189
  • 190
  • 191
  • 192
  • 193
  • 194
  • 195
  • 196
  • 197
  • 198
  • 199
  • 200
  • 201
  • 202
  • 203
  • 204
  • 205
  • 206
  • 207
  • 208
  • 209
  • 210
  • 211
  • 212
  • 213
  • 214
  • 215
  • 216
  • 217
  • 218
  • 219
  • 220
  • 221
  • 222
  • 223
  • 224
  • 225
  • 226
  • 227
  • 228
  • 229
  • 230
  • 231
  • 232
  • 233
  • 234
  • 235
  • 236
  • 237
  • 238
  • 239
  • 240
  • 241
  • 242
  • 243
  • 244
  • 245
  • 246
  • 247
  • 248
  • 249
  • 250
  • 251
  • 252
  • 253
  • 254
  • 255
  • 256
  • 257
  • 258
  • 259
  • 260
  • 261
  • 262
  • 263
  • 264
  • 265
  • 266
  • 267
  • 268
  • 269
  • 270
  • 271
  • 272
  • 273
  • 274
  • 275
  • 276
  • 277
  • 278
  • 279
  • 280
  • 281
  • 282
  • 283
  • 284
  • 285
  • 286
  • 287
  • 288
  • 289
  • 290
  • 291
  • 292
  • 293
  • 294
  • 295
  • 296
  • 297
  • 298
  • 299
  • 300
  • 301
  • 302
  • 303
  • 304
  • 305
  • 306
  • 307
  • 308
  • 309
  • 310
  • 311
  • 312
  • 313
  • 314
  • 315
  • 316
  • 317
  • 318
  • 319
  • 320
  • 321
  • 322
  • 323
  • 324
  • 325
  • 326
  • 327
  • 328
  • 329
  • 330
  • 331
  • 332
  • 333
  • 334
  • 335
  • 336
  • 337
  • 338
  • 339
  • 340
  • 341
  • 342
  • 343
  • 344
  • 345
  • 346
  • 347
  • 348
  • 349
  • 350
  • 351
  • 352
  • 353
  • 354
  • 355
  • 356
  • 357
  • 358
  • 359
  • 360
  • 361
  • 362
  • 363
  • 364
  • 365
  • 366
  • 367
  • 368
  • 369
  • 370
  • 371
  • 372
  • 373
  • 374
  • 375
  • 376
  • 377
  • 378
  • 379
  • 380
  • 381
  • 382
  • 383
  • 384
  • 385
  • 386
  • 387
  • 388
  • 389
  • 390
  • 391
  • 392
  • 393
  • 394
  • 395
  • 396
  • 397
  • 398
  • 399
  • 400
  • 401
  • 402
  • 403
  • 404
  • 405
  • 406
  • 407
  • 408
  • 409
  • 410
  • 411
  • 412
  • 413
  • 414
  • 415
  • 416
  • 417
  • 418
  • 419
  • 420
  • 421
  • 422
  • 423
  • 424
  • 425
  • 426
  • 427
  • 428
  • 429
  • 430
  • 431
  • 432
  • 433
  • 434
  • 435
  • 436
  • 437
  • 438
  • 439
  • 440
  • 441
  • 442
  • 443
  • 444
  • 445
  • 446
  • 447
  • 448
  • 449
  • 450
  • 451
  • 452
  • 453
  • 454
  • 455
  • 456
  • 457
  • 458
  • 459
  • 460
  • 461
  • 462
  • 463
  • 464
  • 465
  • 466
  • 467
  • 468
  • 469
  • 470
  • 471
  • 472
  • 473
  • 474
  • 475
  • 476
  • 477
  • 478
  • 479
  • 480
  • 481
  • 482
  • 483
  • 484
  • 485
  • 486
  • 487
  • 488
  • 489
  • 490
  • 491
  • 492
  • 493
  • 494
  • 495
  • 496
  • 497
  • 498
  • 499
  • 500
  • 501
  • 502
  • 503
  • 504
  • 505
  • 506
  • 507
  • 508
  • 509
  • 510
  • 511
  • 512
  • 513
  • 514
  • 515
  • 516
  • 517
  • 518
  • 519
  • 520
  • 521
  • 522
  • 523
  • 524
  • 525
  • 526
  • 527
  • 528
  • 529
  • 530
  • 531
  • 532
  • 533
  • 534
  • 535
  • 536
  • 537
  • 538
  • 539
  • 540
  • 541
  • 542
  • 543
  • 544
  • 545
  • 546
  • 547
  • 548
  • 549
  • 550
  • 551
  • 552
  • 553
  • 554
  • 555
  • 556
  • 557
  • 558
  • 559
  • 560
  • 561
  • 562
  • 563
  • 564
  • 565
  • 566
  • 567
  • 568
  • 569
  • 570
  • 571
  • 572
  • 573
  • 574
  • 575
  • 576
  • 577
  • 578
  • 579
  • 580
  • 581
  • 582
  • 583
  • 584
  • 585
  • 586
  • 587
  • 588
  • 589
  • 590
  • 591
  • 592
  • 593
  • 594
  • 595
  • 596
  • 597
  • 598
  • 599
  • 600
  • 601
  • 602
  • 603

四、运行结果

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

五、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 蔡利梅.MATLAB图像处理——理论、算法与实例分析[M].清华大学出版社,2020.
[2]杨丹,赵海滨,龙哲.MATLAB图像处理实例详解[M].清华大学出版社,2013.
[3]周品.MATLAB图像处理与图形用户界面设计[M].清华大学出版社,2013.
[4]刘成龙.精通MATLAB图像处理[M].清华大学出版社,2015.

文章来源: qq912100926.blog.csdn.net,作者:海神之光,版权归原作者所有,如需转载,请联系作者。

原文链接:qq912100926.blog.csdn.net/article/details/114076449

【版权声明】本文为华为云社区用户转载文章,如果您发现本社区中有涉嫌抄袭的内容,欢迎发送邮件进行举报,并提供相关证据,一经查实,本社区将立刻删除涉嫌侵权内容,举报邮箱: cloudbbs@huaweicloud.com
  • 点赞
  • 收藏
  • 关注作者

评论(0

0/1000
抱歉,系统识别当前为高风险访问,暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称,即可参与社区互动!

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。
