【图像分割】基于matlab Snake模型图像分割【含Matlab源码 418期】

一、获取代码方式

获取代码方式1：
通过订阅紫极神光博客付费专栏，凭支付凭证，私信博主，可获得此代码。

获取代码方式2：
完整代码已上传我的资源：【图像分割】基于matlab Snake模型图像分割【含Matlab源码 418期】

备注：
订阅紫极神光博客付费专栏，可免费获得1份代码（有效期为订阅日起，三天内有效）；

二、图像分割简介

理论知识参考：【基础教程】基于matlab图像处理图像分割【含Matlab源码 191期】

三、部分源代码

clear all;
close all;
Img = imread('twocells.bmp');  % The same cell image in the paper is used here
Img=double(Img(:,:,1));
sigma=1.5;    % scale parameter in Gaussian kernel for smoothing.
G=fspecial('gaussian',15,sigma);
Img_smooth=conv2(Img,G,'same');  % smooth image by Gaussiin convolution
[Ix,Iy]=gradient(Img_smooth);
f=Ix.^2+Iy.^2;
g=1./(1+f);  % edge indicator function.

epsilon=1.5; % the papramater in the definition of smoothed Dirac function

timestep=5;  % time step
mu=0.2/timestep;  % coefficient of the internal (penalizing) energy term P(\phi)
          % Note: the product timestep*mu must be less than 0.25 for stability!

lambda=5; % coefficient of the weighted length term L(\phi)
alf=1.5;  % coefficient of the weighted area term A(\phi);
          % Note: Choose smaller value for weak object bounday, such as the cell image in this demo.


% define initial level set function (LSF) as -c, 0, c at points outside, on
% the boundary, and inside of a region R, respectively.
[nrow, ncol]=size(Img);
c0=4;
initialLSF=c0*ones(nrow,ncol);
w=8;
initialLSF(w+1:end-w, w+1:end-w)=0;  % zero level set is on the boundary of R.
                                     % Note: this can be commented out. The intial LSF does NOT necessarily need a zero level set.

initialLSF(w+2:end-w-1, w+2: end-w-1)=-c0; % negative constant -c inside of R, postive constant c outside of R.
u=initialLSF;
figure;imagesc(Img);colormap(gray);hold on;
[c,h] = contour(u,[0 0],'r');
title('Initial contour');

% start level set evolution
for n=1:300
    u=EVOLUTION(u, g ,lambda, mu, alf, epsilon, timestep, 1);
    pause(0.001);
    if mod(n,20)==0
        imagesc(Img);colormap(gray);hold on;
        [c,h] = contour(u,[0 0],'r');
        iterNum=[num2str(n), ' iterations'];
        title(iterNum);
        hold off;
    end
end
% define initial level set function (LSF) as -c, 0, c at points outside, on
% the boundary, and inside of a region R, respectively.
[nrow, ncol]=size(Img);
c=4;
initialLSF=c*ones(nrow,ncol);
w=10;
initialLSF(w+1:end-w, w+1:end-w)=0;  % zero level set is on the boundary of R.
                                     % Note: this can be commented out. The intial LSF does NOT necessarily need a zero level set.

initialLSF(w+2:end-w-1, w+2: end-w-1)=-c; % negative constant -c inside of R, postive constant c outside of R.
u=initialLSF;
figure;imagesc(Img, [0, 255]);colormap(gray);hold on;
[c,h] = contour(u,[0 0],'r');
title('Initial contour');


% start level set evolution
for n=1:500
    u=EVOLUTION(u, g ,lambda, mu, alf, epsilon, timestep, 1);
    pause(0.001);
    if mod(n,20)==0
        imagesc(Img, [0, 255]);colormap(gray);hold on;
        [c,h] = contour(u,[0 0],'r');
        iterNum=[num2str(n), ' iterations'];
        title(iterNum);
        hold off;
    end
end

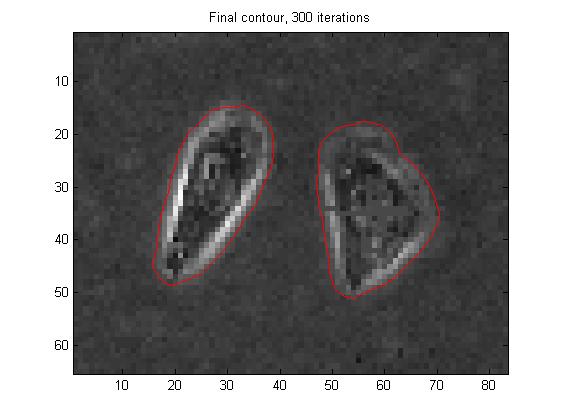

四、运行结果

五、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 蔡利梅.MATLAB图像处理——理论、算法与实例分析[M].清华大学出版社，2020.
[2]杨丹,赵海滨,龙哲.MATLAB图像处理实例详解[M].清华大学出版社，2013.
[3]周品.MATLAB图像处理与图形用户界面设计[M].清华大学出版社，2013.
[4]刘成龙.精通MATLAB图像处理[M].清华大学出版社，2015.
[5]赵勇,方宗德,庞辉,王侃伟.基于量子粒子群优化算法的最小交叉熵多阈值图像分割[J].计算机应用研究. 2008,(04)
