【图像压缩】基于matlab GUI哈达玛变换图像压缩【含Matlab源码 845期】

一、简介

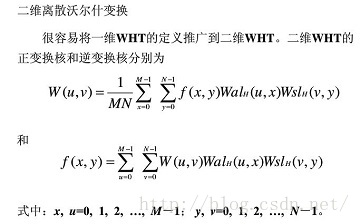

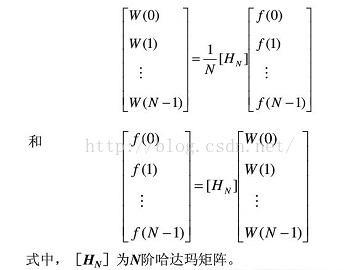

沃尔什-哈达玛变换（Walsh-Hadmard Transform,WHT），是一种典型的非正弦函数变换，采用正交直角函数作为基函数，具有与傅里叶函数类似的性质，图像数据越是均匀分布，经过沃尔什-哈达玛变换后的数据越是集中于矩阵的边角上，因此沃尔什变换具有能量集中的性质，可以用于压缩图像信息。

Matlab中的Hadamard函数：
格式：H=hadamard( n ) ，返回一个 n * n的hadamard矩阵。

二、源代码

function varargout = hadamard_encoding(varargin)
% HADAMARD_ENCODING M-file for hadamard_encoding.fig
%      HADAMARD_ENCODING, by itself, creates a new HADAMARD_ENCODING or raises the existing
%      singleton*.
%
%      H = HADAMARD_ENCODING returns the handle to a new HADAMARD_ENCODING or the handle to
%      the existing singleton*.
%
%      HADAMARD_ENCODING('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in HADAMARD_ENCODING.M with the given input arguments.
%
%      HADAMARD_ENCODING('Property','Value',...) creates a new HADAMARD_ENCODING or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before hadamard_encoding_OpeningFunction gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to hadamard_encoding_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help hadamard_encoding

% Last Modified by GUIDE v2.5 18-Jun-2009 20:25:20

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @hadamard_encoding_OpeningFcn, ...
                   'gui_OutputFcn',  @hadamard_encoding_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin & isstr(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before hadamard_encoding is made visible.
function hadamard_encoding_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to hadamard_encoding (see VARARGIN)
cr = 0.5;
I = imread('lena.bmp');
axes(handles.axes1);
imshow(I);
I = double(I)/255;
t = hadamard(8);
fftcoe = blkproc(I,[8 8],'P1*x*P2',t,t);
coevar = im2col(fftcoe,[8 8],'distinct');
coe = coevar;
[y,ind] = sort(coevar);
[m,n] = size(coevar);
snum = 64-64*cr;
for i = 1:n
    coe(ind(1:snum),i) = 0;
end
B2 = col2im(coe,[8 8],[512 512],'distinct');
I2 = blkproc(B2,[8,8],'P1*x*P2',t,t);
I2 = I2./(8*8);
axes(handles.axes2);
imshow(I2);
e = double(I) - double(I2);
[m,n]=size(e);
erms = sqrt(sum(e(:).^2)/(m*n));
set(handles.erms_edit,'string',erms);
set(handles.cr_edit,'string',0.5);
% Choose default command line output for hadamard_encoding
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes hadamard_encoding wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = hadamard_encoding_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes during object creation, after setting all properties.
function image_pop_menu_CreateFcn(hObject, eventdata, handles)
% hObject    handle to image_pop_menu (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: popupmenu controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end


% --- Executes on selection change in image_pop_menu.
function image_pop_menu_Callback(hObject, eventdata, handles)
% hObject    handle to image_pop_menu (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
val = get(hObject,'value');
str = get(hObject,'string');
cr = str2num(get(handles.cr_edit,'string'));
switch str{val}
    case 'Lena'
        I = imread('lena.bmp');
    case 'Cameraman'
        I = imread('cameraman.tif');
    case 'Peppers'
        I = imread('peppers.bmp');
    case 'Fingerprint'
        I = imread('fingerprint.jpg');
    case 'Licenceplate'
        I = imread('licenceplate.jpg');
    case 'Cloudy'
        I = imread('cloudy.tif');
end
axes(handles.axes1);
imshow(I);
I = double(I)/255;
t = hadamard(8);
fftcoe = blkproc(I,[8 8],'P1*x*P2',t,t);
coevar = im2col(fftcoe,[8 8],'distinct');
coe = coevar;
[y,ind] = sort(coevar);
[m,n] = size(coevar);
snum = 64-64*cr;
for i = 1:n
    coe(ind(1:snum),i) = 0;
end
B2 = col2im(coe,[8 8],size(I),'distinct');
I2 = blkproc(B2,[8,8],'P1*x*P2',t,t);
I2 = I2./(8*8);
axes(handles.axes2);
imshow(I2);
e = double(I) - double(I2);
[m,n]=size(e);
erms = sqrt(sum(e(:).^2)/(m*n));
set(handles.erms_edit,'string',erms);
set(handles.cr_edit,'string',0.5);
% Hints: contents = get(hObject,'String') returns image_pop_menu contents as cell array
%        contents{get(hObject,'Value')} returns selected item from image_pop_menu


% --- Executes during object creation, after setting all properties.
function cr_edit_CreateFcn(hObject, eventdata, handles)
% hObject    handle to cr_edit (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end



function cr_edit_Callback(hObject, eventdata, handles)
% hObject    handle to cr_edit (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of cr_edit as text
%        str2double(get(hObject,'String')) returns contents of cr_edit as a double


% --- Executes on button press in apply_button.
function apply_button_Callback(hObject, eventdata, handles)
% hObject    handle to apply_button (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
cr = str2num(get(handles.cr_edit,'string'));
I = getimage(handles.axes1);
I = double(I)/255;
t = hadamard(8);
fftcoe = blkproc(I,[8 8],'P1*x*P2',t,t);
coevar = im2col(fftcoe,[8 8],'distinct');
coe = coevar;
[y,ind] = sort(coevar);
[m,n] = size(coevar);
snum = 64-floor(64*cr);
for i = 1:n
    coe(ind(1:snum),i) = 0;
end






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

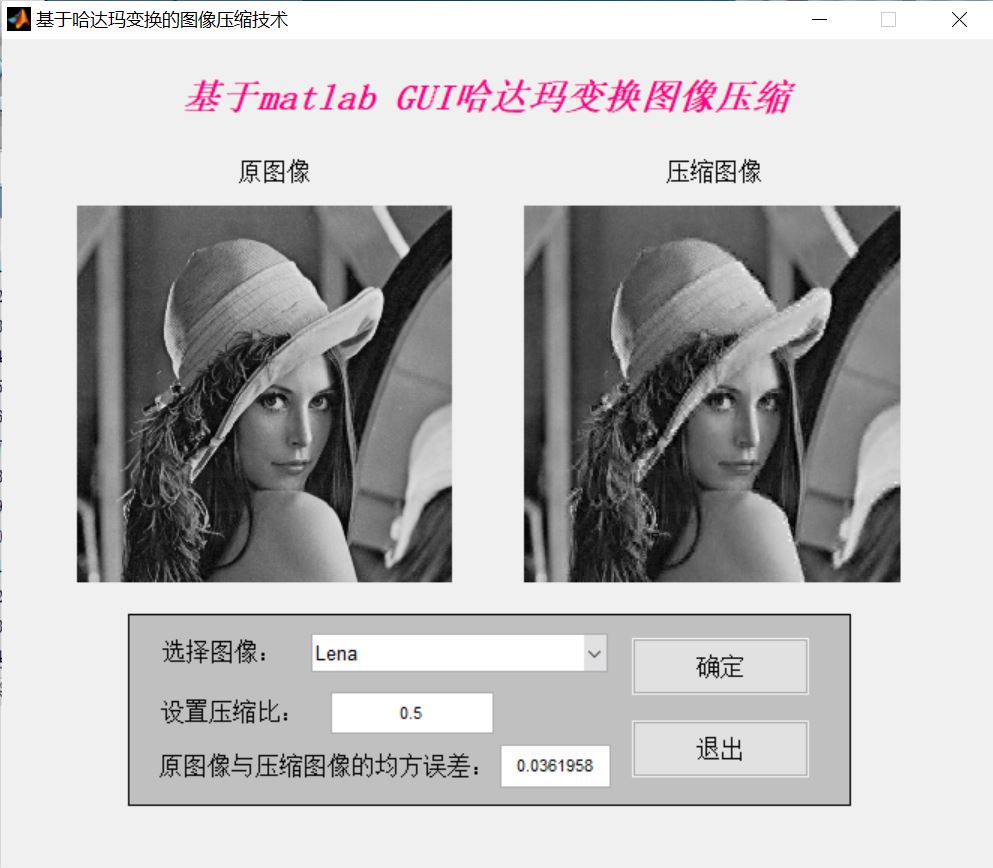

三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 蔡利梅.MATLAB图像处理——理论、算法与实例分析[M].清华大学出版社，2020.
[2]杨丹,赵海滨,龙哲.MATLAB图像处理实例详解[M].清华大学出版社，2013.
[3]周品.MATLAB图像处理与图形用户界面设计[M].清华大学出版社，2013.
[4]刘成龙.精通MATLAB图像处理[M].清华大学出版社，2015.
