【图像修复】基于matlab GUI约束最小二乘方滤波图像复原【含Matlab源码 852期】

一、获取代码方式

获取代码方式1：
通过订阅紫极神光博客付费专栏，凭支付凭证，私信博主，可获得此代码。

获取代码方式2：
完整代码已上传我的资源：【图像修复】基于matlab GUI约束最小二乘方滤波图像复原【含Matlab源码 852期】

备注：
订阅紫极神光博客付费专栏，可免费获得1份代码（有效期为订阅日起，三天内有效）；

二、约束最小二乘方滤波简介

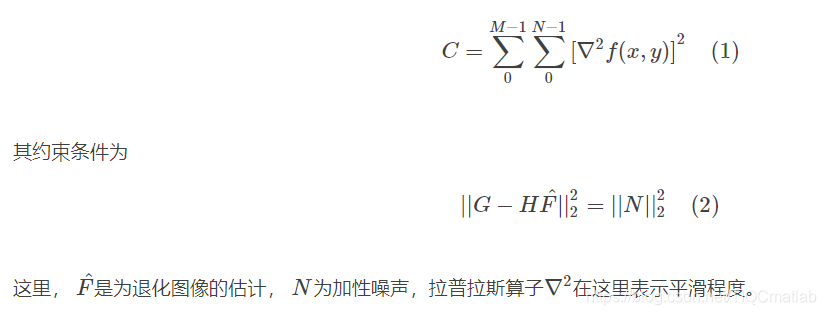

约束最小二乘方滤波（Constrained Least Squares Filtering，aka Tikhonov filtration,Tikhonov regularization）核心是H对噪声的敏感性问题。减少噪声敏感新问题的一种方法是以平滑度量的最佳复原为基础的，因此我们可以建立下列约束条件：

三、部分源代码

function varargout = zuixiaoercheng(varargin)
% ZUIXIAOERCHENG M-file for zuixiaoercheng.fig
%      ZUIXIAOERCHENG, by itself, creates a new ZUIXIAOERCHENG or raises the existing
%      singleton*.
%
%      H = ZUIXIAOERCHENG returns the handle to a new ZUIXIAOERCHENG or the handle to
%      the existing singleton*.
%
%      ZUIXIAOERCHENG('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in ZUIXIAOERCHENG.M with the given input arguments.
%
%      ZUIXIAOERCHENG('Property','Value',...) creates a new ZUIXIAOERCHENG or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before zuixiaoercheng_OpeningFunction gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to zuixiaoercheng_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help zuixiaoercheng

% Last Modified by GUIDE v2.5 20-May-2009 15:56:50

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @zuixiaoercheng_OpeningFcn, ...
                   'gui_OutputFcn',  @zuixiaoercheng_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin & isstr(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before zuixiaoercheng is made visible.
function zuixiaoercheng_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to zuixiaoercheng (see VARARGIN)
img = imread('squarebox.bmp');
axes(handles.axes1);
imshow(img);
PSF = fspecial('motion',20,45);
MF = imfilter(img,PSF,'circular');
noise = imnoise(zeros(size(img)),'gaussian',0,0.01);
MF = double(MF);
MFN = MF+noise;
axes(handles.axes2);
imshow(uint8(MFN));
fr = deconvreg(MFN,PSF,4,[1e-7,1e7]);
axes(handles.axes3);
imshow(uint8(fr));
set(handles.noisepower_edit,'string',4);
% Choose default command line output for zuixiaoercheng
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes zuixiaoercheng wait for user response (see UIRESUME)
% uiwait(handles.zuixiaoercheng);


% --- Outputs from this function are returned to the command line.
function varargout = zuixiaoercheng_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes during object creation, after setting all properties.
function image_pop_menu_CreateFcn(hObject, eventdata, handles)
% hObject    handle to image_pop_menu (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: popupmenu controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end


% --- Executes on selection change in image_pop_menu.
function image_pop_menu_Callback(hObject, eventdata, handles)
% hObject    handle to image_pop_menu (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
noisepower = str2num(get(handles.noisepower_edit,'string'));
val = get(hObject,'value');
str = get(hObject,'string');
switch str{val}
    case 'Squarebox'
        squarebox = [];
        squarebox = imread('squarebox.bmp');
        img = squarebox;
    case 'Lena'
        lena = [];
        lena = imread('lena.bmp');
        img = lena;
    case 'Saturn'
        saturn = [];
        load imdemos saturn
        img = saturn;
    case 'Quarter'
        quarter = [];
        load imdemos quarter
        img = quarter;
    case 'Circuit'
        circuit = [];
        load imdemos circuit
        img = circuit;
    case 'Fingerprint'
        fingerprint = [];
        fingerprint = imread('fingerprint.jpg');
        img = fingerprint;
    case 'Licenceplate'
        licenceplate = [];
        licenceplate = imread('licenceplate.jpg');
        img = licenceplate;

    case 'Cloudy'
        cloudy = [];
        cloudy = imread('cloudy.tif');
        img = cloudy;
end
axes(handles.axes1);
imshow(img);
PSF = fspecial('motion',20,45);
MF = imfilter(img,PSF,'circular');
noise = imnoise(zeros(size(img)),'gaussian',0,0.01);
MF = double(MF);
MFN = MF+noise;
axes(handles.axes2);
imshow(uint8(MFN));
fr = deconvreg(MFN,PSF,noisepower,[1e-7,1e7]);
axes(handles.axes3);
imshow(uint8(fr));
% Hints: contents = get(hObject,'String') returns image_pop_menu contents as cell array
%        contents{get(hObject,'Value')} returns selected item from image_pop_menu


% --- Executes during object creation, after setting all properties.
function noisepower_edit_CreateFcn(hObject, eventdata, handles)
% hObject    handle to noisepower_edit (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end











1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

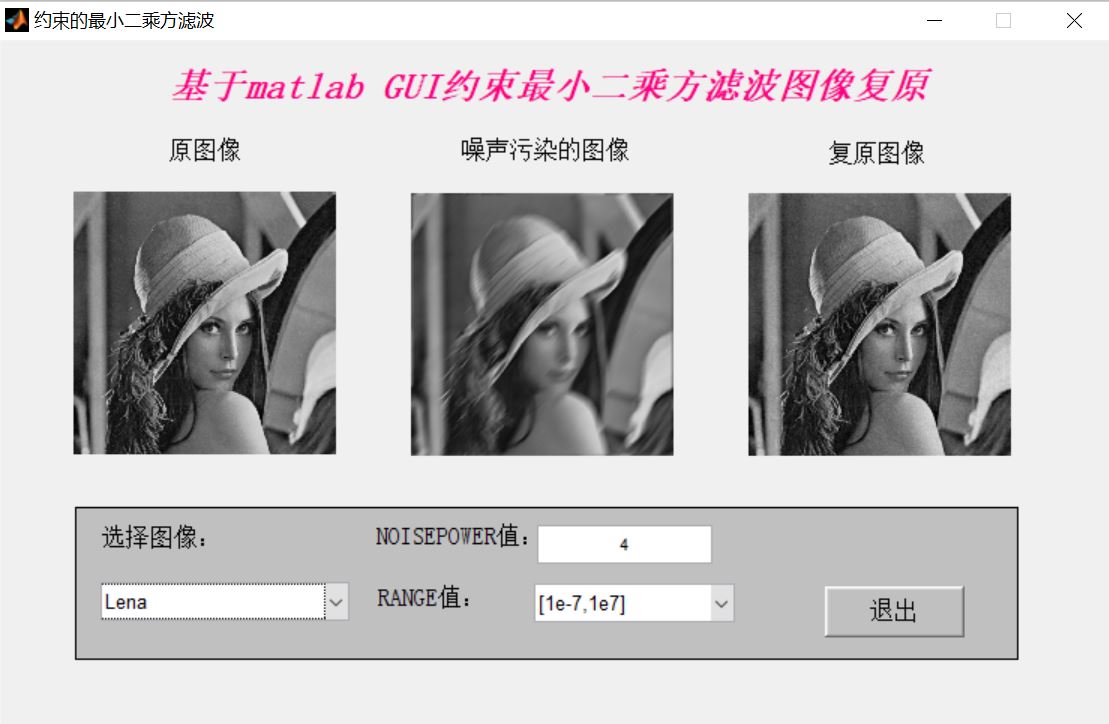

四、运行结果

五、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 蔡利梅.MATLAB图像处理——理论、算法与实例分析[M].清华大学出版社，2020.
[2]杨丹,赵海滨,龙哲.MATLAB图像处理实例详解[M].清华大学出版社，2013.
[3]周品.MATLAB图像处理与图形用户界面设计[M].清华大学出版社，2013.
[4]刘成龙.精通MATLAB图像处理[M].清华大学出版社，2015.
[5]陈浩,方勇,朱大洲,王成,陈子龙.基于蚁群算法的玉米植株热红外图像边缘检测[J].农机化研究. 2015,37(06)
