一、获取代码方式

获取代码方式1:
通过订阅紫极神光博客付费专栏,凭支付凭证,私信博主,可获得此代码。

获取代码方式2:
完整代码已上传我的资源:【图像修复】基于matlab GUI维纳滤波图像复原【含Matlab源码 851期】

备注:
订阅紫极神光博客付费专栏,可免费获得1份代码(有效期为订阅日起,三天内有效);

二、简介

维纳滤波的基本思路与传统的滤波器相似,不过在输入输出上有所不同,维纳滤波的输入为带噪语音信号,其输出为纯净语音信号的估计值。维纳滤波的数学表达如式所示。
在这里插入图片描述

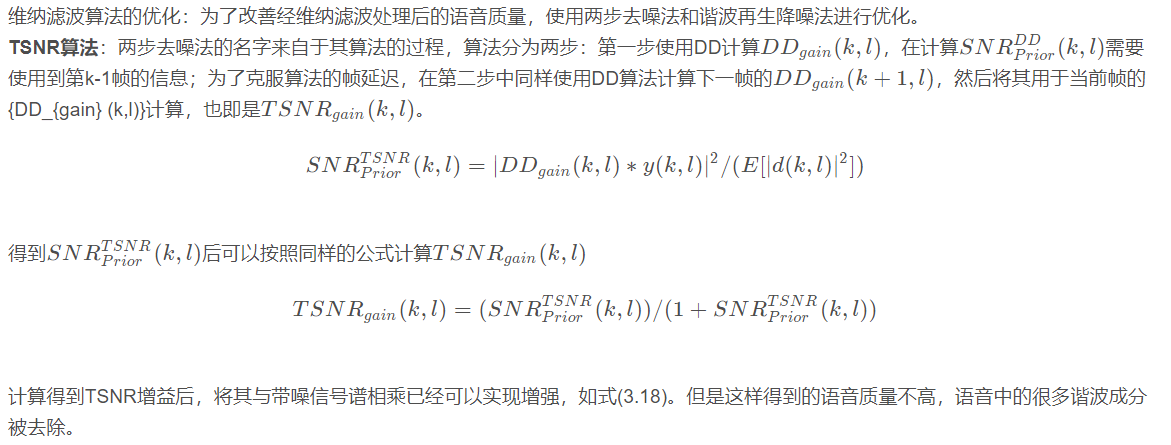

在这里插入图片描述
2 DD算法:当前帧的先验信噪比的估计:

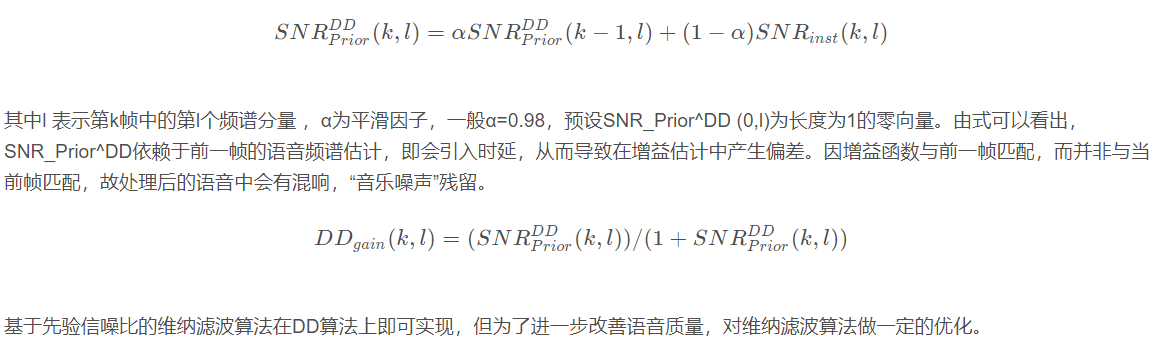

在这里插入图片描述
3 优化

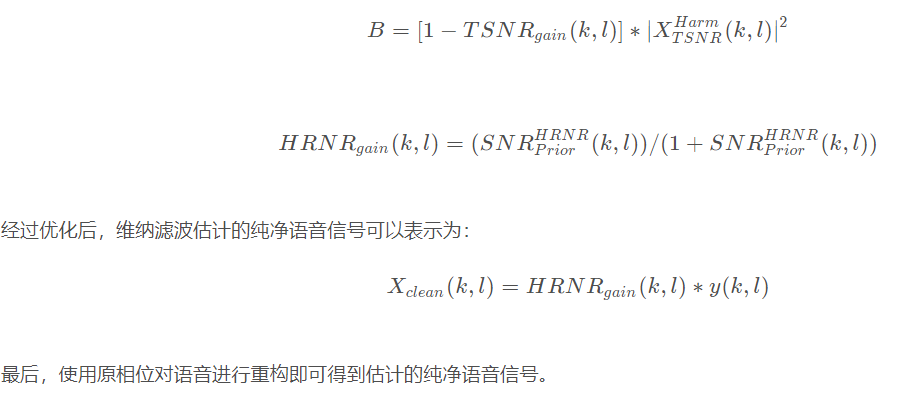

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

三、部分源代码

function varargout = wiener_filter(varargin)
% WIENER_FILTER M-file for wiener_filter.fig
%      WIENER_FILTER, by itself, creates a new WIENER_FILTER or raises the existing
%      singleton*.
%
%      H = WIENER_FILTER returns the handle to a new WIENER_FILTER or the handle to
%      the existing singleton*.
%
%      WIENER_FILTER('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in WIENER_FILTER.M with the given input arguments.
%
%      WIENER_FILTER('Property','Value',...) creates a new WIENER_FILTER or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before wiener_filter_OpeningFunction gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to wiener_filter_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help wiener_filter

% Last Modified by GUIDE v2.5 20-May-2009 10:04:40

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @wiener_filter_OpeningFcn, ...
                   'gui_OutputFcn',  @wiener_filter_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin & isstr(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before wiener_filter is made visible.
function wiener_filter_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to wiener_filter (see VARARGIN)
axes(handles.axes1);
img = checkerboard(8);
imshow(img,[]);
PSF = fspecial('motion',10,45);
MF = imfilter(img,PSF,'circular');
axes(handles.axes2);
imshow(MF,[]);
noise = imnoise(zeros(size(img)),'gaussian',0,0.01);
MFN = MF+noise;
axes(handles.axes3);
imshow(MFN,[]);
Sn = abs(fft2(MFN)).^2;
Sf = abs(fft2(img)).^2;
NCORR = fftshift(real(ifft2(Sn)));
ICORR = fftshift(real(ifft2(Sf)));
J = deconvwnr(MFN,PSF,NCORR,ICORR);
axes(handles.axes4);
imshow(J,[]);
set(handles.len_edit,'string',10);
set(handles.theta_edit,'string',45);
set(handles.variance_edit,'string',0.01);
% Choose default command line output for wiener_filter
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes wiener_filter wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = wiener_filter_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes during object creation, after setting all properties.
function image_pop_menu_CreateFcn(hObject, eventdata, handles)
% hObject    handle to image_pop_menu (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: popupmenu controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end


% --- Executes on selection change in image_pop_menu.
%function image_pop_menu_Callback(hObject, eventdata, handles)
% hObject    handle to image_pop_menu (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
%LEN = str2num(get(handles.len_edit,'string'));
%THETA = str2num(get(handles.theta_edit,'string'));
variance = str2num(get(handles.variance_edit,'string'));
val = get(hObject,'value');
str = get(hObject,'string');
switch str{val}
    case 'Lena'
        lena = [];
        lena = imread('lena.bmp');
        img = lena;
    case 'Saturn'
        saturn = [];
        load imdemos saturn
        img = saturn;
    case 'Quarter'
        quarter = [];
        load imdemos quarter
        img = quarter;
    case 'Flower'
        flower = [];
        load imdemos flower
        img = flower;
    case 'Circuit'
        circuit = [];
        load imdemos circuit
        img = circuit;
end
axes(handles.axes1);
imshow(img);
PSF = fspecial('motion',LEN,THETA);
MF = imfilter(img,PSF,'circular','conv');
axes(handles.axes2);
imshow(MF);
noise = imnoise(zeros(size(img)),'gaussian',0,variance);
MF1 = double(MF);
MFN = MF1+noise;
axes(handles.axes3);
imshow(uint8(MFN),[]);
Sn = abs(fft2(MFN)).^2;
Sf = abs(fft2(img)).^2;
NCORR = fftshift(real(ifft2(Sn)));
ICORR = fftshift(real(ifft2(Sf)));
J = deconvwnr(MFN,PSF,NCORR,ICORR);
axes(handles.axes4);
imshow(J,[]);
% Hints: contents = get(hObject,'String') returns image_pop_menu contents as cell array
%        contents{get(hObject,'Value')} returns selected item from image_pop_menu


% --- Executes during object creation, after setting all properties.
function len_edit_CreateFcn(hObject, eventdata, handles)
% hObject    handle to len_edit (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end



function len_edit_Callback(hObject, eventdata, handles)
% hObject    handle to len_edit (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)




  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
  • 68
  • 69
  • 70
  • 71
  • 72
  • 73
  • 74
  • 75
  • 76
  • 77
  • 78
  • 79
  • 80
  • 81
  • 82
  • 83
  • 84
  • 85
  • 86
  • 87
  • 88
  • 89
  • 90
  • 91
  • 92
  • 93
  • 94
  • 95
  • 96
  • 97
  • 98
  • 99
  • 100
  • 101
  • 102
  • 103
  • 104
  • 105
  • 106
  • 107
  • 108
  • 109
  • 110
  • 111
  • 112
  • 113
  • 114
  • 115
  • 116
  • 117
  • 118
  • 119
  • 120
  • 121
  • 122
  • 123
  • 124
  • 125
  • 126
  • 127
  • 128
  • 129
  • 130
  • 131
  • 132
  • 133
  • 134
  • 135
  • 136
  • 137
  • 138
  • 139
  • 140
  • 141
  • 142
  • 143
  • 144
  • 145
  • 146
  • 147
  • 148
  • 149
  • 150
  • 151
  • 152
  • 153
  • 154
  • 155
  • 156
  • 157
  • 158
  • 159
  • 160
  • 161
  • 162
  • 163
  • 164
  • 165
  • 166
  • 167
  • 168
  • 169
  • 170
  • 171
  • 172
  • 173
  • 174
  • 175
  • 176
  • 177
  • 178
  • 179
  • 180
  • 181
  • 182
  • 183
  • 184
  • 185

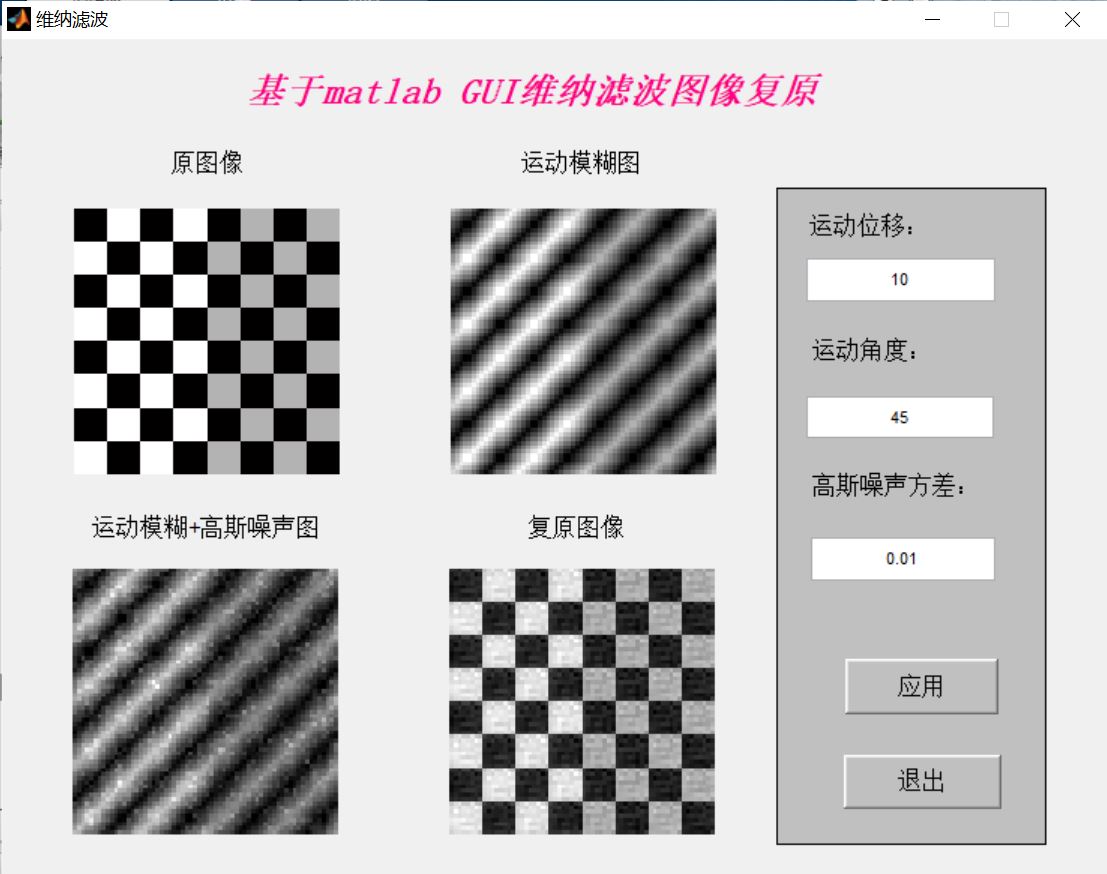

四、运行结果
