【图像配准】基于matlab GUI互相关图像配准【含Matlab源码 853期】

一、互相关简介

在这里我想探讨一下“互相关”中的一些概念。正如卷积有线性卷积（linear convolution）和循环卷积（circular convolution）之分；互相关也有线性互相关（linear cross-correlation）和循环互相关（circular cross-correlation）。线性互相关和循环互相关的基本公式是一致的，不同之处在于如何处理边界数据。其本质的不同在于它们对原始数据的看法不同。通过这篇文章，我想整理一下相关概念，并给出示例。

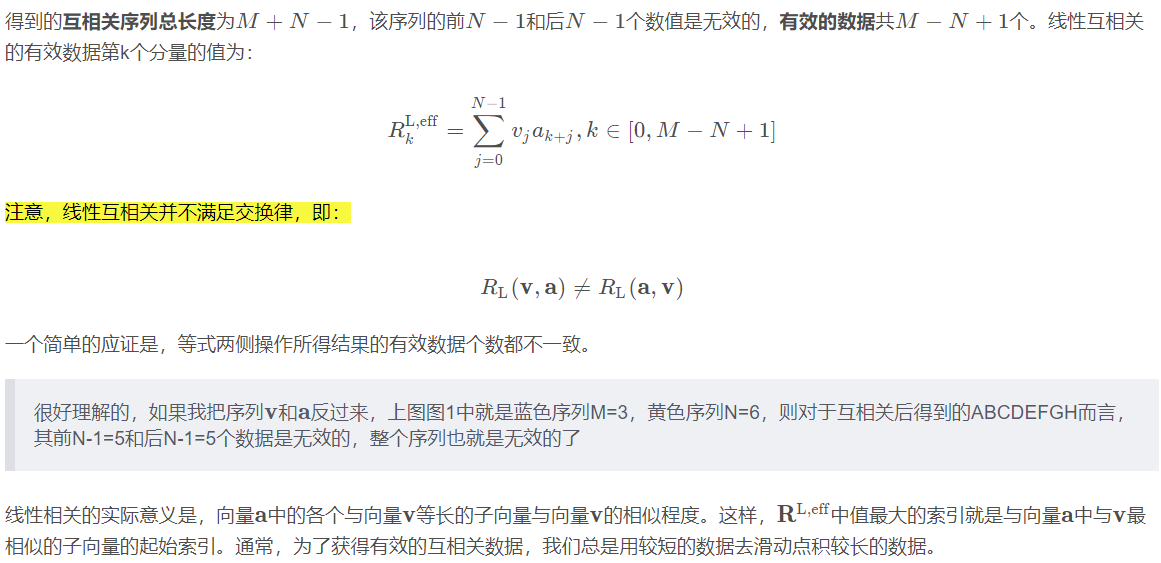

1 线性相关（Linear Cross-Correlation）的定义和计算

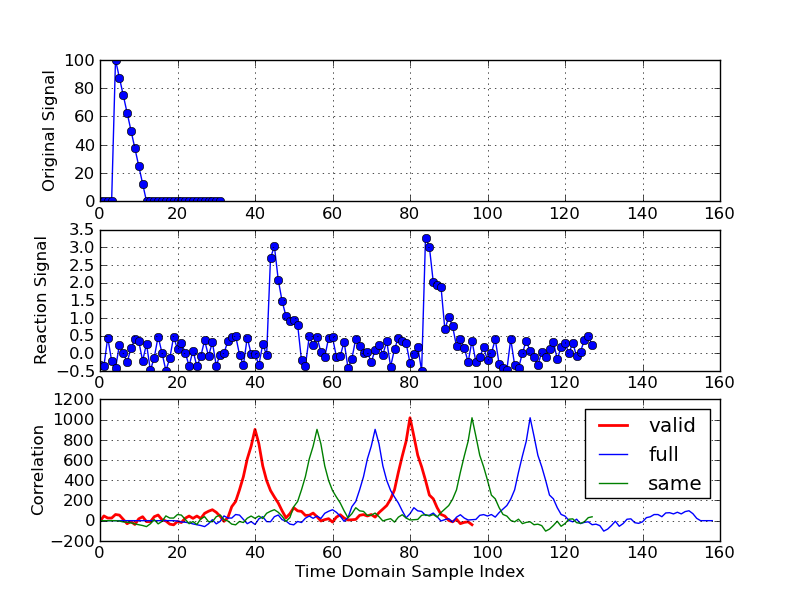

用一个实际的应用例子来验证一下吧。如图3的第一个子图表示雷达声纳发射了一个探测信号。经过一段时间之后，收到了如图3的第二个子图所示的回波（带有一定的噪声）。此时我们关注的是如何确定回波中从何时开始是对探测信号的响应，以便计算目标距雷达的距离，这就需要用到线性互相关。在第三个子图中的‘Valid’曲线即是有效互相关数据，其中清晰地呈现出两处与探测信号相似的回波的位置。

线性互相关中，还有一些概念值得注意：

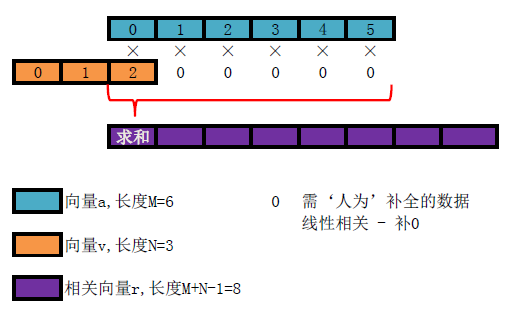

1 补零。由线性相关的计算式不难发现，为了计算出个完整的相关系数序列（包含那些“无效数据”在内的所有结果），需要用到一些“不存在”的点。这就需要人为地对这些值进行补充，在线性相关的计算中，对这些超出原始数据储存的区域取值为零。

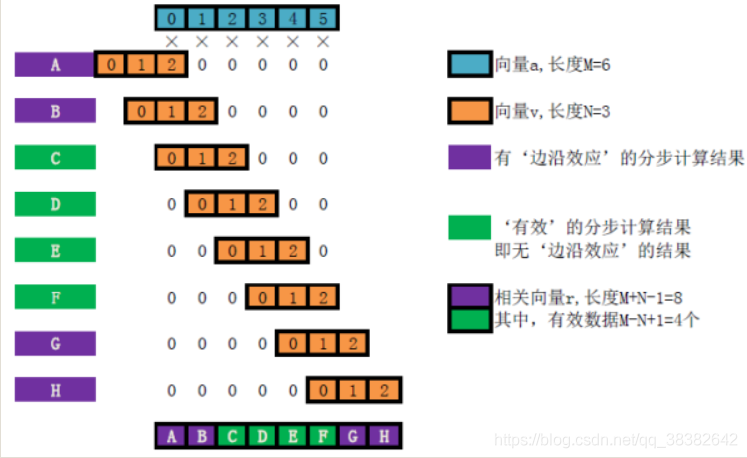

2 末端效应。由图1可以发现，一头一尾的个互相关数据并没有完全“嵌入”两个原始数组的全部信息，它们或多或少地受到了人为补零的影响。因此一般认为这些数据是不可用的。

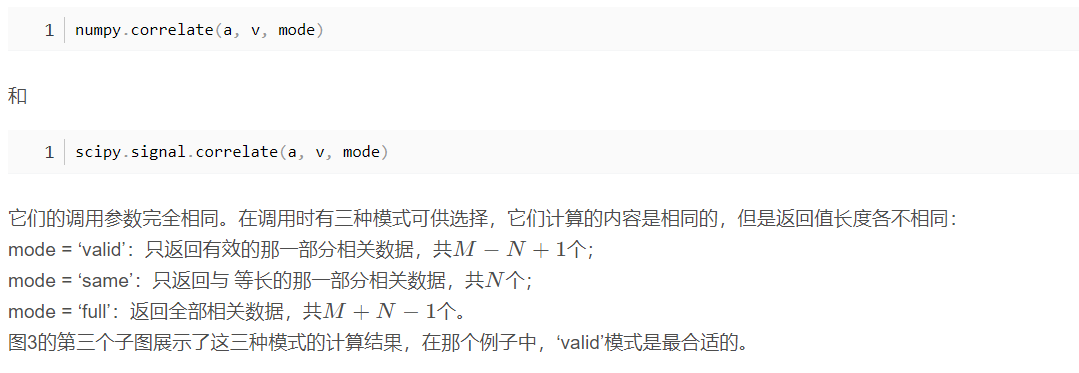

3 计算模式的选择。这个问题其实是由问题二衍生而来的，就Python语言中的函数而言，至少有两个可以直接计算线性相关：

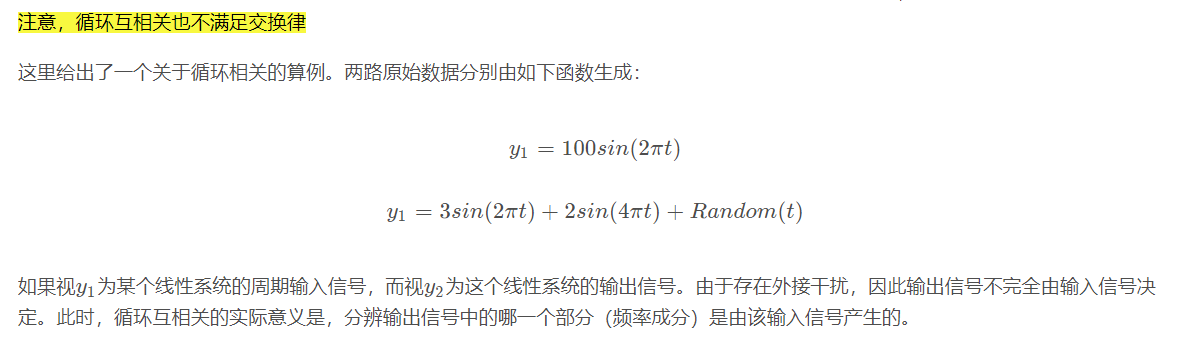

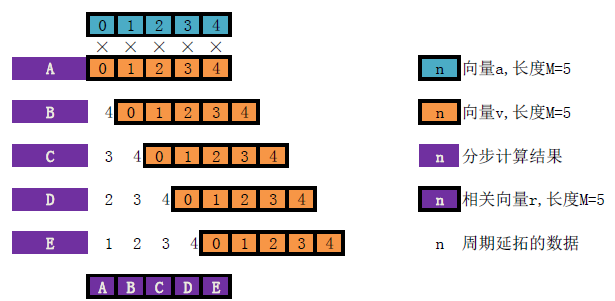

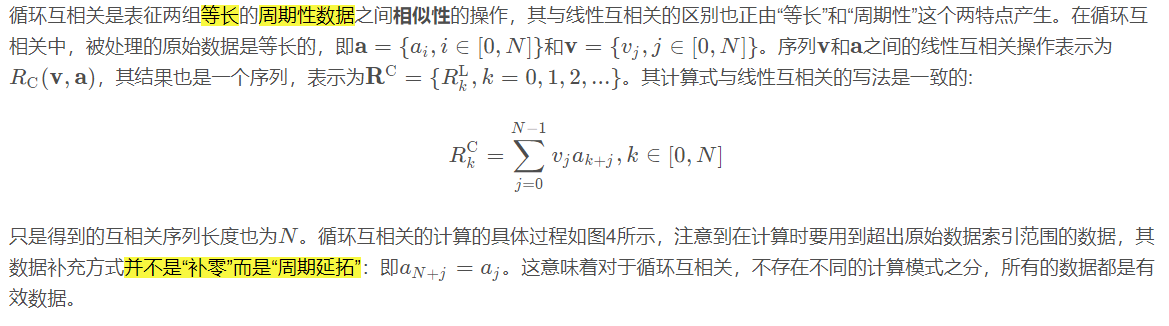

2 循环互相关（Circular Cross-Correlation）的定义和计算

二、部分源代码

function varargout = xiangguan(varargin)
% XIANGGUAN M-file for xiangguan.fig
%      XIANGGUAN, by itself, creates a new XIANGGUAN or raises the existing
%      singleton*.
%
%      H = XIANGGUAN returns the handle to a new XIANGGUAN or the handle to
%      the existing singleton*.
%
%      XIANGGUAN('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in XIANGGUAN.M with the given input arguments.
%
%      XIANGGUAN('Property','Value',...) creates a new XIANGGUAN or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before xiangguan_OpeningFunction gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to xiangguan_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help xiangguan

% Last Modified by GUIDE v2.5 20-Apr-2014 10:31:06

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @xiangguan_OpeningFcn, ...
                   'gui_OutputFcn',  @xiangguan_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before xiangguan is made visible.
function xiangguan_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to xiangguan (see VARARGIN)

% Choose default command line output for xiangguan
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes xiangguan wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = xiangguan_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes on button press in first_picture.
function first_picture_Callback(hObject, eventdata, handles)
% hObject    handle to first_picture (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
subplot(3,3,2)
[filename,pathname]=uigetfile({'*.jpg;*.tif;*.png;*.gif','All Image Files';...
    '*.*','All Files' },'open');    %打开路径下要检索的图像
if isequal([filename,pathname],[0,0])
    return
else
    %读取图片
    pic = fullfile(pathname,filename);
   global onion;
   onion = imread(pic);
     imshow(onion);
end

% --- Executes on button press in second_picture.
function second_picture_Callback(hObject, eventdata, handles)
% hObject    handle to second_picture (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

subplot(3,3,3)
[filename,pathname]=uigetfile({'*.jpg;*.tif;*.png;*.gif','All Image Files';...
    '*.*','All Files' },'open');    %打开路径下要检索的图像
if isequal([filename,pathname],[0,0])
    return
else
    %读取图片
    pict = fullfile(pathname,filename);
   global peppers;
   peppers = imread(pict);
     imshow(peppers);
end

% --- Executes on button press in correlation.
function correlation_Callback(hObject, eventdata, handles)
% hObject    handle to correlation (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
subplot(3,3,5)
global onion;
global peppers;
% non-interactively
rect_onion = [111 33 65 58];
rect_peppers = [163 47 143 151];
sub_onion = imcrop(onion,rect_onion);
sub_peppers = imcrop(peppers,rect_peppers);
c = normxcorr2(sub_onion(:,:,1),sub_peppers(:,:,1));
 surf(c), shading flat

% --- Executes on button press in overlay.
function overlay_Callback(hObject, eventdata, handles)
% hObject    handle to overlay (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
subplot(3,3,6)
global onion;
global peppers;
% non-interactively
rect_onion = [111 33 65 58];
rect_peppers = [163 47 143 151];
sub_onion = imcrop(onion,rect_onion);
sub_peppers = imcrop(peppers,rect_peppers);
c = normxcorr2(sub_onion(:,:,1),sub_peppers(:,:,1));

 % offset found by correlation
[max_c, imax] = max(abs(c(:)));
[ypeak, xpeak] = ind2sub(size(c),imax(1));
corr_offset = [(xpeak-size(sub_onion,2))
               (ypeak-size(sub_onion,1))];
% relative offset of position of subimages
rect_offset = [(rect_peppers(1)-rect_onion(1))
               (rect_peppers(2)-rect_onion(2))];
% total offset
offset = corr_offset + rect_offset;
xoffset = offset(1);
yoffset = offset(2);
xbegin = round(xoffset+1);
xend   = round(xoffset+ size(onion,2));
ybegin = round(yoffset+1);
yend   = round(yoffset+size(onion,1));
% extract region from peppers and compare to onion
extracted_onion = peppers(ybegin:yend,xbegin:xend,:);
if isequal(onion,extracted_onion)
   disp('onion.png was extracted from peppers.png')
end
recovered_onion = uint8(zeros(size(peppers)));
recovered_onion(ybegin:yend,xbegin:xend,:) = onion;
imshow(recovered_onion)


% --- Executes on button press in transparent.
function transparent_Callback(hObject, eventdata, handles)
% hObject    handle to transparent (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
subplot(3,3,8)
global onion;
global peppers;
% non-interactively
rect_onion = [111 33 65 58];
rect_peppers = [163 47 143 151];
sub_onion = imcrop(onion,rect_onion);
sub_peppers = imcrop(peppers,rect_peppers);
c = normxcorr2(sub_onion(:,:,1),sub_peppers(:,:,1));
 % offset found by correlation
[max_c, imax] = max(abs(c(:)));
[ypeak, xpeak] = ind2sub(size(c),imax(1));
corr_offset = [(xpeak-size(sub_onion,2))
               (ypeak-size(sub_onion,1))];
% relative offset of position of subimages
rect_offset = [(rect_peppers(1)-rect_onion(1))
               (rect_peppers(2)-rect_onion(2))];






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

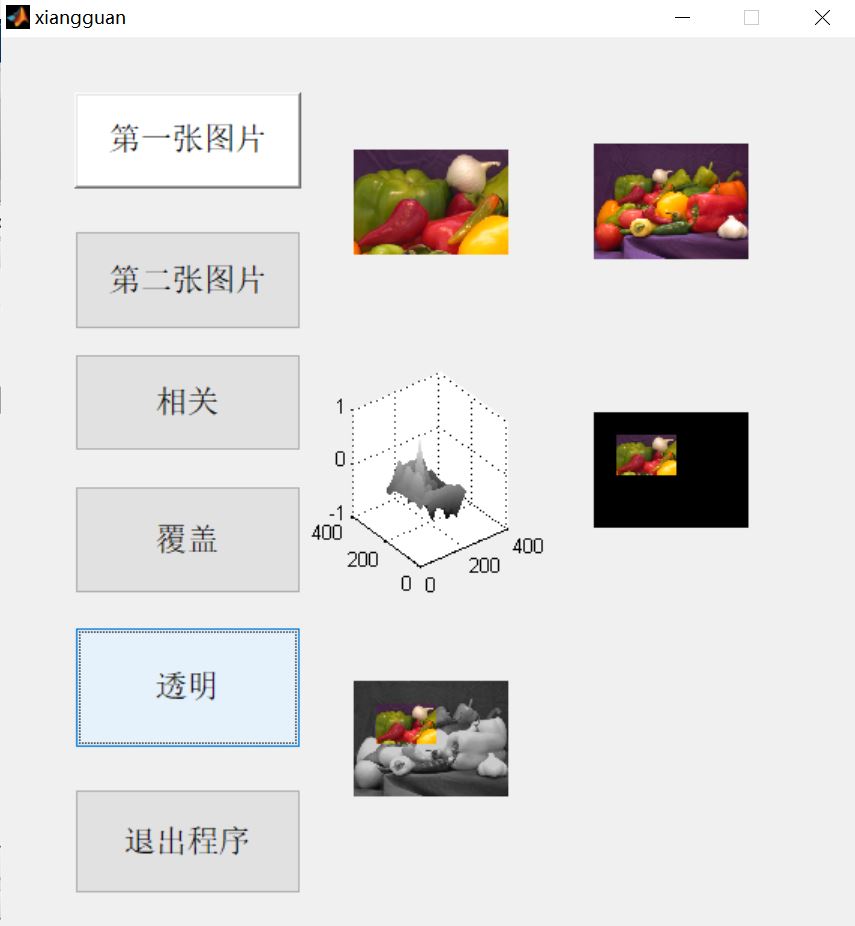

三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 蔡利梅.MATLAB图像处理——理论、算法与实例分析[M].清华大学出版社，2020.
[2]杨丹,赵海滨,龙哲.MATLAB图像处理实例详解[M].清华大学出版社，2013.
[3]周品.MATLAB图像处理与图形用户界面设计[M].清华大学出版社，2013.
[4]刘成龙.精通MATLAB图像处理[M].清华大学出版社，2015.
[5]谢凤英,姜志国.基于互相关的显微医学图像配准[J].中国体视学与图像分析. 2001,(03)
