【细胞分割】基于matlab分水岭算法细胞分割计数【含Matlab源码 639期】

一、图像分割简介

理论知识参考：【基础教程】基于matlab图像处理图像分割【含Matlab源码 191期】

二、部分源代码

function susanseg
clear all; close all; clc
image= imread('cell.jpg');
% 用SUSAN算法进行边缘检测
image = susan(image,4);
figure, imshow(image,[]);
%imwrite(image, './susanout/susanout.jpg');
% 将image转为二值图像保存后，用图像处理工具
% 把其背景的所有连通区域处理为黑色，即只有细
% 胞体是白色，便于细胞数目的搜索
BW = im2bw(image, graythresh(image));
bounder_area = length(find(BW==0));
%imwrite(BW, './susanout/bw.jpg');
figure, imshow(BW);


% 申明全局变量
global B Dir m n;
B = imread('./blackbackground.jpg');
B = im2bw(B, graythresh(B));
[m,n] = size(B);
figure, imshow(B);

% 细胞的总面积，即细胞所占的像素数目，包括细胞的边界
% 由于SUSAN提取出的边界已被增宽，所以将边界像素数除以2
% 来作为细胞的边界像素数目
total_area = length(find(B==1)) + bounder_area/2;
NUM = 5; % 细胞面积阈值
count = 0; % 细胞总数
% 搜索方向向量，4邻域搜索
Dir = [-1 0; 0 1; 1 0; 0 -1;];
% 搜索方向向量，8邻域搜索
%Dir = [-1 0; -1 1; 0 1; 1 1; 1 0; 1 -1; 0 -1; -1 -1;];
for i = 1:m
    for j = 1:n
        if B(i,j)==1 % 是细胞像素
            num = search(i,j,4) + 1; % 计算该细胞的像素数目
            if num>NUM
                count = count  + 1;
            else
                total_area = total_area - num; % 减掉不是细胞的面积
            end
        end
    end
end
%fid = fopen('./susanout/results.txt', 'wt');
fprintf('图像尺寸: %d * %d, SUSAN阈值: 4, 细胞面积阈值: %d\n', ...
    n, m, NUM);
fprintf('细胞总数: %d, 细胞总面积: %.2f, 平均细胞面积: %.2f\n', ...
    count, total_area, total_area/count);
%fprintf(fid,'图像尺寸: %d * %d, SUSAN阈值: 4, 细胞面积阈值: %d\n', ...
%    n, m, NUM);
%fprintf(fid,'细胞总数: %d, 细胞总面积: %.2f, 平均细胞面积: %.2f\n', ...
%    count, total_area, total_area/count);
%fclose(fid);
end
% -----------------------------------------------------------------------
%
% This function uses the SUSAN algorithm to find edges within an image
%
%
% >>image_out = susan(image_in,threshold)
%
%
% Input parameters ... The gray scale image, and the threshold
% image_out .. (class: double) image indicating found edges
% typical threshold values may be from 10 to 30
%
%
%The following steps are performed at each image pixel:
% ( from the SUSAN webpage, http://www.fmrib.ox.ac.uk/~steve/susan/susan/node4.html )
%
% Place a circular mask around the pixel in question.
% Calculate the number of pixels within the circular mask which have similar brightness to
% the nucleus. These define the USAN.
% Subtract USAN size from geometric threshold to produce edge strength image.
%
% Estimating moments to find the edge direction has not been implemented .
% Non-maximal suppresion to remove weak edges has not been implemented yet.
%
% example:
%
% >> image_in=imread('test_pattern.tif');
% >> image = susan(image_in,27);
% >> imshow(image,[])
%
%
% Abhishek Ivaturi
%
% -------------------------------------------------------------------------


function image_out = susan(im,threshold)

% check to see if the image is a color image...
%im= imread('test_pattern.tif')
%threshold=27;
d = length(size(im));
if d==3
    image=double(rgb2gray(im));
elseif d==2
    image=double(im);
end

% mask for selecting the pixels within the circular region (37 pixels, as
% used in the SUSAN algorithm

mask = ([ 0 0 1 1 1 0 0 ;0 1 1 1 1 1 0;1 1 1 1 1 1 1;1 1 1 1 1 1 1;1 1 1 1 1 1 1;0 1 1 1 1 1 0;0 0 1 1 1 0 0]);


% the output image indicating found edges
R=zeros(size(image));


% define the USAN area
nmax = 3*37/4;

% padding the image
[a b]=size(image);
new=zeros(a+7,b+7);
[c d]=size(new);
new(4:c-4,4:d-4)=image;

for i=4:c-4

    for j=4:d-4

        current_image = new(i-3:i+3,j-3:j+3);
        current_masked_image = mask.*current_image;


%   Uncomment here to implement binary thresholding

%         current_masked_image(find(abs(current_masked_image-current_masked_image(4,4))>threshold))=0;
%         current_masked_image(find(abs(current_masked_image-current_masked_image(4,4))<=threshold))=1;


%   This thresholding is more stable


        current_thresholded = susan_threshold(current_masked_image,threshold);
        g=sum(current_thresholded(:));

        if nmax<g
            R(i,j) = g-nmax;
        else
            R(i,j) = 0;
        end
    end
end






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

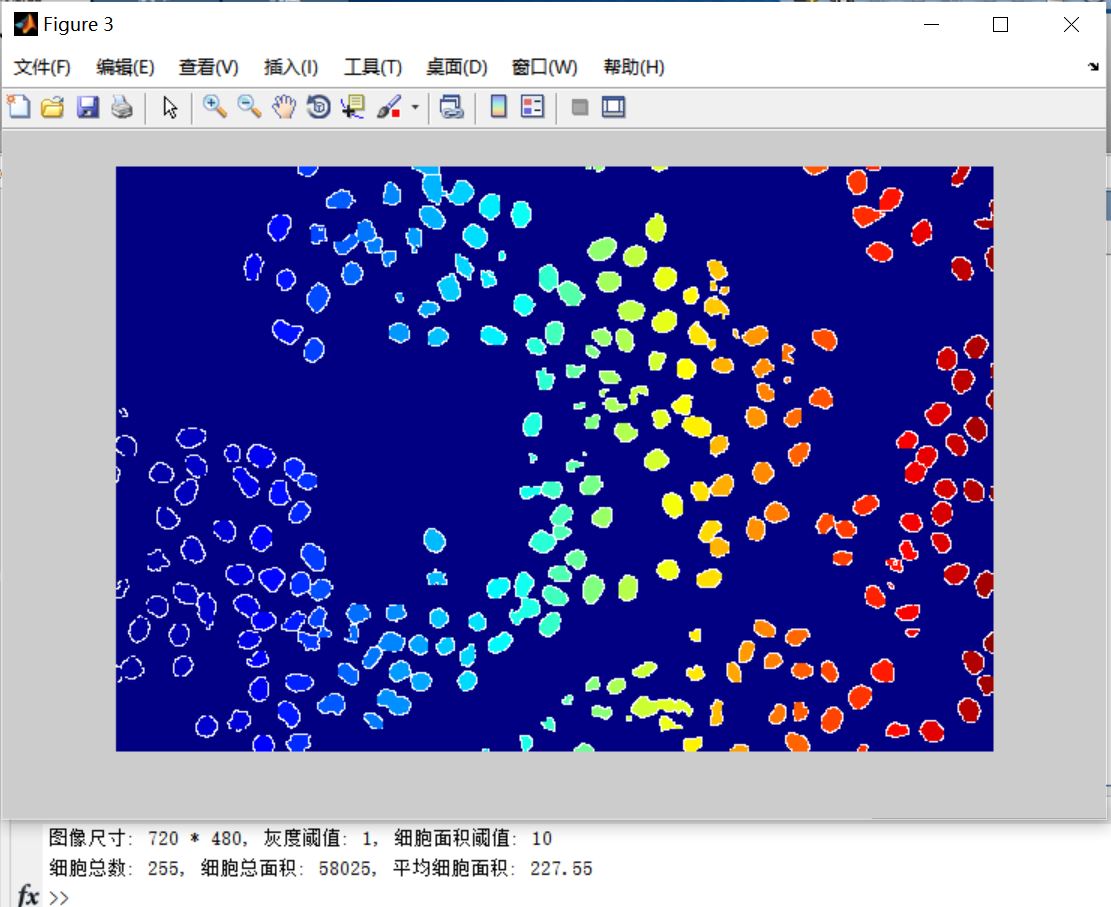

三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 蔡利梅.MATLAB图像处理——理论、算法与实例分析[M].清华大学出版社，2020.
[2]杨丹,赵海滨,龙哲.MATLAB图像处理实例详解[M].清华大学出版社，2013.
[3]周品.MATLAB图像处理与图形用户界面设计[M].清华大学出版社，2013.
[4]刘成龙.精通MATLAB图像处理[M].清华大学出版社，2015.
[5]赵勇,方宗德,庞辉,王侃伟.基于量子粒子群优化算法的最小交叉熵多阈值图像分割[J].计算机应用研究. 2008,(04)
