【协作通信】基于matlab协作通信仿真【含Matlab源码 1006期】

一、获取代码方式

获取代码方式1：
完整代码已上传我的资源：【协作通信】基于matlab协作通信仿真【含Matlab源码 1006期】

获取代码方式2：
通过订阅紫极神光博客付费专栏，凭支付凭证，私信博主，可获得此代码。

备注：
订阅紫极神光博客付费专栏，可免费获得1份代码（有效期为订阅日起，三天内有效）；

二、部分源代码

%multi-hop ,主程序
tic
% --------------
% Set Parameters
nr_of_iterations = 1000;
SNR = [-10:1:10];
use_direct_link = 1;
use_relay = 1;
global statistic;
statistic = generate_statistic_structure;
global signal;
signal = generate_signal_structure;
signal(1).nr_of_bits = 2^10;
signal.modulation_type = 'BPSK';% ’BPSK’, ’QPSK’
calculate_signal_parameter;
channel = generate_channel_structure;
channel(1).attenuation(1).pattern = 'Rayleigh';% ’no’,’Rayleigh’
channel(1).attenuation(1).block_length = 1;
channel(2) = channel(1);
channel(3) = channel(1);
channel(4) = channel(1);
channel(5) = channel(1);
channel(6) = channel(1);
channel(7) = channel(1);
channel(8) = channel(1);
channel(9) = channel(1);
channel(10) = channel(1);
channel(11) = channel(1);
channel(12) = channel(1);

rx = generate_rx_structure;
rx(1).combining_type = 'ERC'; %’ERC’,’FRC’,’SNRC’,’ESNRC’,’MRC’
rx(1).sd_weight = 3;  % used for 'FRC'
global relay;
relay = generate_relay_structure;
relay(1).mode = 'DAF'; %’AAF’, ’DAF’
relay.magic_genie = 0;
relay(1).rx(1) = rx(1); % same beahaviour

channel(1).attenuation.distance = 1;
channel(2).attenuation.distance = 0.5;
channel(3).attenuation.distance = 0.5;
% ----------------
% Start Simulation
BER = zeros(size(SNR));
for iSNR = 1:size(SNR,2)% returns the size of the dimension of SNR  specified by scalar 2

disp(['progress: ',int2str(iSNR),'/',int2str(size(SNR,2))])  %  Convert integer to string
%%%%%%%%%%%%%%%%%%%%%%

channel(1).noise(1).SNR = SNR(iSNR); % iSNR ??????
channel(2).noise(1).SNR = SNR(iSNR);
channel(3).noise(1).SNR = SNR(iSNR);
for it = 1:nr_of_iterations;
% --------------
% Reset receiver
rx = rx_reset(rx);
relay.rx = rx_reset(relay.rx);
% -----------
% Direct link
if (use_direct_link == 1)
[channel(1), rx] = add_channel_effect(channel(1), rx,...
signal.symbol_sequence);
rx = rx_correct_phaseshift(rx, channel(1).attenuation.phi);
end

% ------------中继传输　---------------
if (use_relay == 1)  % 采用中继协作
% ----------只有1个中继　---------
% Sender to relay
[channel(2), relay.rx] = add_channel_effect(channel(2),relay.rx, signal.symbol_sequence);
relay = prepare_relay2send(relay,channel(2));
% Relay to destination
[channel(3), rx] = add_channel_effect(channel(3), rx,relay.signal2send);
% [received_symbol,signal.received_bit_sequence]=rx_combine(rx,channel,use_relay);
switch relay.mode
% Correct phaseshift
case 'AAF'
rx = rx_correct_phaseshift(rx,...
channel(3).attenuation.phi + channel(2).attenuation.phi);
case 'DAF'
rx = rx_correct_phaseshift(rx,channel(3).attenuation.phi);
end
end
% Receiver
[received_symbol, signal.received_bit_sequence] = rx_combine(rx, channel(1),channel(3), use_relay);
BER(iSNR) = BER(iSNR) + sum(not(signal.received_bit_sequence == signal.bit_sequence));
if (BER(iSNR) > 10000)
% Stop iterate
break;
end
end % Iteration
if (BER(iSNR)<100)
warning(['Result might not be precise when SNR equal ',num2str(SNR(iSNR))])
end
BER(iSNR) = BER(iSNR) ./ it ./ signal.nr_of_bits;
end
% ---------------Present the result of the simulation---------------------
txt_distance = [' - distance: ',...
num2str(channel(1).attenuation.distance), ':',...
num2str(channel(2).attenuation.distance), ':',...
num2str(channel(3).attenuation.distance)];
%txt_distance='';
if (use_relay == 1)
if (relay.magic_genie == 1)
txt_genie = ' - Magic Genie';
else
txt_genie = '';
end
txt_combining = [' - combining: ', rx(1).combining_type];
switch rx(1).combining_type
case 'FRC'
txt_combining = [txt_combining, ' ',...
num2str(rx(1).sd_weight),':1'];% Convert number to string
end
add2statistic(SNR,BER,[signal.modulation_type, '-',relay.mode, txt_combining,',','two-hop'])
else
switch channel(1).attenuation.pattern
case 'no'
txt_fading = ' - no fading';
otherwise
txt_fading = ' - Rayleigh fading';
end
add2statistic(SNR,BER,[signal.modulation_type, '-',relay.mode, txt_combining,',','two-hop'])
end
%---------------多跳仿真-----------%
channel(1).attenuation.distance = 1;
channel(2).attenuation.distance = 1/3;
channel(3).attenuation.distance = 1/3;
channel(4).attenuation.distance = 1/3;
% ----------------
% Start Simulation
BER = zeros(size(SNR));
for iSNR = 1:size(SNR,2)% returns the size of the dimension of SNR  specified by scalar 2
disp(['progress: ',int2str(iSNR),'/',int2str(size(SNR,2))])  %  Convert integer to string
%%%%%%%%%%%%%%%%%%%%%%

channel(1).noise(1).SNR = SNR(iSNR); % iSNR ??????
channel(2).noise(1).SNR = SNR(iSNR);
channel(3).noise(1).SNR = SNR(iSNR);
channel(4).noise(1).SNR = SNR(iSNR);
for it = 1:nr_of_iterations;
% --------------
% Reset receiver
rx = rx_reset(rx);
relay.rx = rx_reset(relay.rx);
% -----------
% Direct link
if (use_direct_link == 1)
[channel(1), rx] = add_channel_effect(channel(1), rx,...
signal.symbol_sequence);
rx = rx_correct_phaseshift(rx, channel(1).attenuation.phi);
end

% ----中继传输-----%
if (use_relay == 1)
% Sender to relay
[channel(2), relay.rx] = add_channel_effect(channel(2),relay.rx, signal.symbol_sequence);
relay = prepare_relay2send(relay,channel(2));%  ??this function
 %relay1 to Relay2
[channel(3), relay.rx]=add_channel_effect(channel(3),relay.rx, relay.signal2send);
relay=prepare_relay2send(relay,channel(3));
 %relay2 to destination
[channel(4),rx]=add_channel_effect(channel(4),rx,relay.signal2send);
switch relay.mode
% Correct phaseshift
case 'AAF'
rx = rx_correct_phaseshift(rx,...
channel(2).attenuation.phi + channel(3).attenuation.phi+ channel(4).attenuation.phi);
case 'DAF'
rx = rx_correct_phaseshift(rx,channel(4).attenuation.phi);
end
end
% Receiver
[received_symbol, signal.received_bit_sequence] = rx_combine(rx, channel(1),channel(4), use_relay);
BER(iSNR) = BER(iSNR) + sum(not(signal.received_bit_sequence == signal.bit_sequence));
if (BER(iSNR) > 10000)
% Stop iterate
break;
end
end % Iteration
if (BER(iSNR)<100)
warning(['Result might not be precise when SNR equal ',...
num2str(SNR(iSNR))])
end
BER(iSNR) = BER(iSNR) ./ it ./ signal.nr_of_bits;
end

% ---------------Present the result of the simulation---------------------
txt_distance = [' - distance: ',...
num2str(channel(2).attenuation.distance), ':',...
num2str(channel(3).attenuation.distance), ':',...
num2str(channel(4).attenuation.distance)];
%txt_distance='';
if (use_relay == 1)
if (relay.magic_genie == 1)
txt_genie = ' - Magic Genie';
else
txt_genie = '';
end
txt_combining = [' - combining: ', rx(1).combining_type];








1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

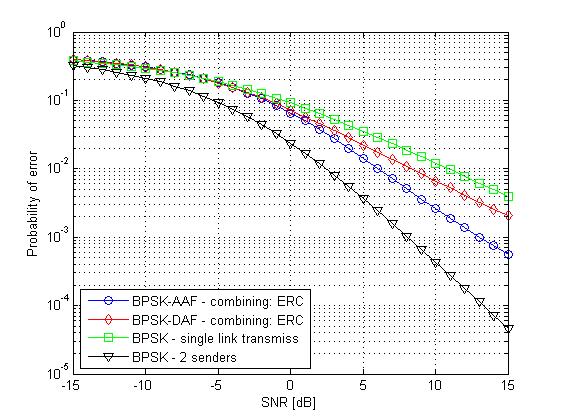

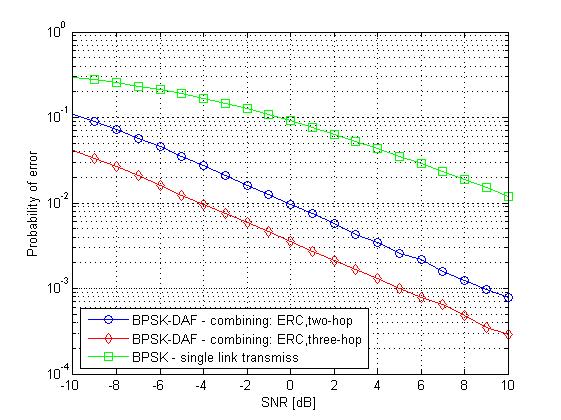

三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 沈再阳.精通MATLAB信号处理[M].清华大学出版社，2015.
[2]高宝建,彭进业,王琳,潘建寿.信号与系统——使用MATLAB分析与实现[M].清华大学出版社，2020.
[3]王文光,魏少明,任欣.信号处理与系统分析的MATLAB实现[M].电子工业出版社，2018.
