【图像分割】基于matlab GUI阙值+边缘检测+区域法图像分割【含Matlab源码 817期】

一、图像分割简介

理论知识参考：【基础教程】基于matlab图像处理图像分割【含Matlab源码 191期】

二、部分源代码

function varargout = Segimage(varargin)

gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @Segimage_OpeningFcn, ...
                   'gui_OutputFcn',  @Segimage_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before Segimage is made visible.
function Segimage_OpeningFcn(hObject, eventdata, handles, varargin)
handles.output = hObject;
guidata(hObject, handles);


% --- Outputs from this function are returned to the command line.
function varargout = Segimage_OutputFcn(hObject, eventdata, handles)
varargout{1} = handles.output;

% -----载入图像
function inputimage_Callback(hObject, eventdata, handles)
[filename, pathname] = uigetfile( ...
{'*.bmp;*.jpg;*.png;*.tif;*.jpeg', 'Image Files (*.bmp;*.jpg;*.png;*.tif;*.jpeg)'; ...
        '*.*',                   'All Files (*.*)'}, ...
        'Pick an Image');
 axes(handles.axes_src);
 fpath=[pathname filename];
img_src=imread(fpath);
global S
 S=img_src;
imshow(img_src);

% -----绘制灰度直方图
function imhist_Callback(hObject, eventdata, handles)
global S
figure,imhist(S)

% --------------------------------------------------------------------
function Thresholdmethod_Callback(hObject, eventdata, handles)
% hObject    handle to Thresholdmethod (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)


% --------------------------------------------------------------------
function Edgedet_Callback(hObject, eventdata, handles)
% hObject    handle to Edgedet (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)


% --------------------------------------------------------------------
function Areamethod_Callback(hObject, eventdata, handles)
% hObject    handle to Areamethod (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)




% ----迭代式阀值
function diedai_Callback(hObject, eventdata, handles)
axes(handles.axes_dst);
global S
tic  ;       %计时器
[x,y]=size(S);         % 求出图象大小
b=double(S);
zd=double(max(max(S)));        % 求出图象中最大的灰度
zx=double(min(min(S))) ;        % 最小的灰度
T=double((zd+zx))/2;       % T赋初值，为最大值和最小值的平均值
count=double(0);           % 记录几次循环
while 1                   % 迭代最佳阈值分割算法
    count=count+1;
    S0=0.0; n0=0.0;   %为计算灰度大于阈值的元素的灰度总值、个数赋值
    S1=0.0; n1=0.0;   %为计算灰度小于阈值的元素的灰度总值、个数赋值
    for i=1:x
        for j=1:y
            if double(S(i,j))>=T
                S1=S1+double(S(i,j));  %大于阈域值图像点灰度值累加
                n1=n1+1;             %大于阈域值图像点个数累加
            else
                S0=S0+double(S(i,j));  %小于阈域值图像点灰度值累加
                n0=n0+1;              %小于阀域值图像点个数累加
            end
        end
    end
    T0=S0/n0; %求小于阀域值均值
    T1=S1/n1; %求大于阀域值均值
  if abs(T-((T0+T1)/2))<0.1 %迭代至 前后两次阀域值相差几乎为0时停止
        break;
else
T=(T0+T1)/2;    %在阈值T下，迭代阈值的计算过程
   end
end
count ;           %显示运行次数
disp('迭代法最佳阀值：')
T                  %显示最佳阈值 算出T
toc ;               %显示运算时间
i1=im2bw(S,T/255);  % 图像在最佳阈值下二值化
imshow(i1);
title('迭代阀值分割结果');

% -------Otsu阀值法
function otsu_Callback(hObject, eventdata, handles)
axes(handles.axes_dst);
global S
T=graythresh(S);
g=im2bw(S,T);
imshow(g);
title('otsu阀值分割结果');

% ------分水岭法
function watershed_Callback(hObject, eventdata, handles)
global S
f=S;
%计算梯度图
f=double(f);
hv=fspecial('prewitt');
hh=hv.';
gv=abs(imfilter(f,hv,'replicate'));
gh=abs(imfilter(f,hh,'replicate'));
g=sqrt(gv.^2+gh.^2);

%计算距离函数
df=bwdist(f);

%计算外部约束
L=watershed(df);
em=L==0;

%计算内部约束
im=imextendedmax(f,20);

%重构梯度图
g2=imimposemin(g,im|em);

%watershed算法分割
L2=watershed(g2);


axes(handles.axes_dst);
imshow(uint8(f));
title('分水岭法分割结果');

% --------------------------------------------------------------------
function roberts_Callback(hObject, eventdata, handles)
% hObject    handle to roberts (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
axes(handles.axes_dst);
global S
[g,t]=edge(S,'roberts',[],'both');
imshow(g);
title('Roberts算子分割结果');
% --------------------------------------------------------------------
function sobel_Callback(hObject, eventdata, handles)
% hObject    handle to sobel (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
axes(handles.axes_dst);
global S
[g,t]=edge(S,'sobel',[],'both');
imshow(g);
title('Sobel算子分割结果');
% --------------------------------------------------------------------
function prewitt_Callback(hObject, eventdata, handles)
% hObject    handle to prewitt (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
axes(handles.axes_dst);
global S
[g,t]=edge(S,'prewitt',[],'both');
imshow(g);
title('Prewitt算子分割结果');
% --------------------------------------------------------------------
function log_Callback(hObject, eventdata, handles)
% hObject    handle to log (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
axes(handles.axes_dst);
global S
[g,t]=edge(S,'log');
imshow(g);
title('Log算子分割结果');

% --------------------------------------------------------------------
function canny_Callback(hObject, eventdata, handles)
% hObject    handle to canny (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

global S

imshow(g);
title('Canny算子分割结果');

% -------区域生长法
function grow_Callback(hObject, eventdata, handles)
global S
image=S;

else
    I=image;
end







1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

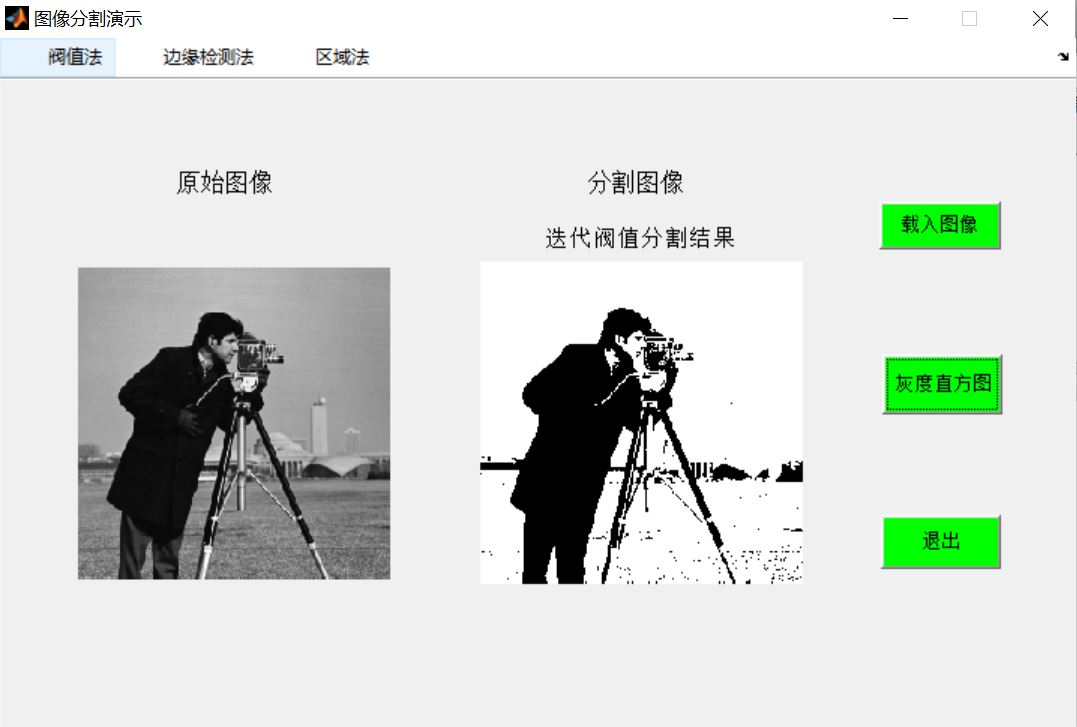

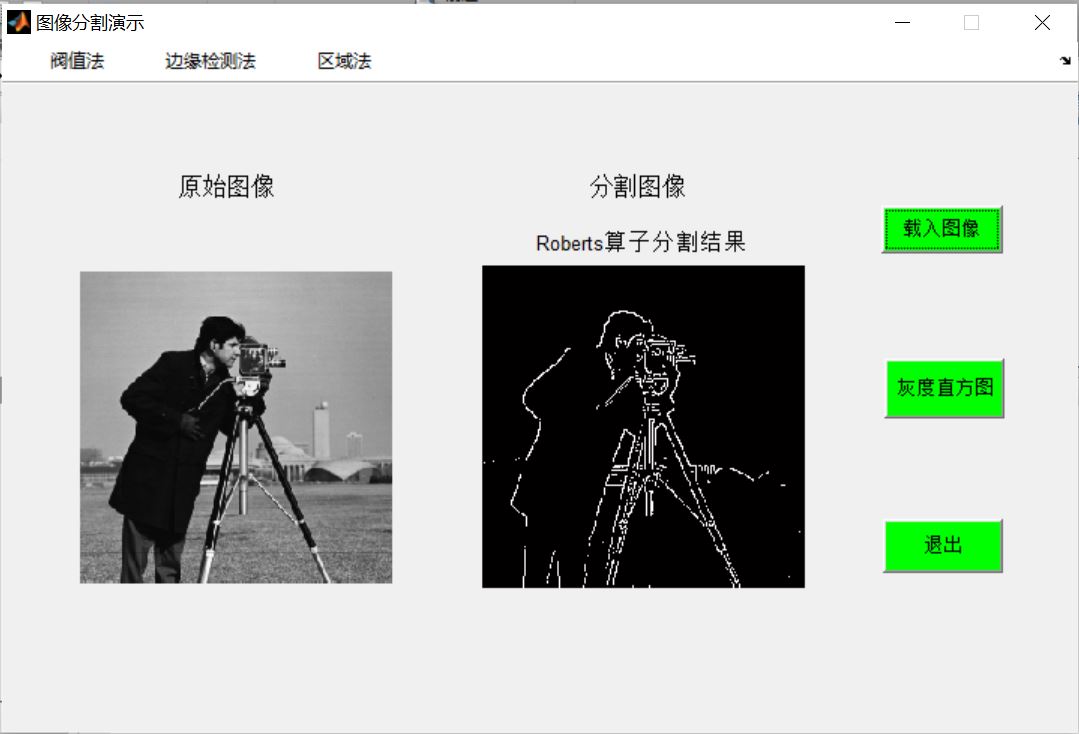

三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 蔡利梅.MATLAB图像处理——理论、算法与实例分析[M].清华大学出版社，2020.
[2]杨丹,赵海滨,龙哲.MATLAB图像处理实例详解[M].清华大学出版社，2013.
[3]周品.MATLAB图像处理与图形用户界面设计[M].清华大学出版社，2013.
[4]刘成龙.精通MATLAB图像处理[M].清华大学出版社，2015.
