【虹膜识别】基于matlab GUI滤波器虹膜识别【含Matlab源码 917期】

一、滤波器虹膜识别简介

理论知识参照文献链接：基于加权Gabor滤波器的虹膜识别

二、部分源代码

function varargout = frequencydem(varargin)
% Author : Yingzi Eliza Du
% Version: 1.0
% Date   : January, 27 2004




%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @frequencydem_OpeningFcn, ...
                   'gui_OutputFcn',  @frequencydem_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);

if nargin & isstr(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


%----------------------------------------------------------
% --- Executes just before frequencydem is made visible.
function frequencydem_OpeningFcn(hObject, eventdata, handles, varargin)

handles.output = hObject;
% Update handles structure
guidata(hObject, handles);
movegui(hObject,'onscreen')% To display application onscreen
movegui(hObject,'center')  % To display application in the center of screen
image_file = get(handles.nameEdit,'String');
im_original=image_read(char(image_file));
set(handles.Or_image,'HandleVisibility','OFF')
set(handles.filtered_image,'HandleVisibility','OFF');
set(handles.difference_image,'HandleVisibility','OFF');
set(handles.filt3D,'HandleVisibility','OFF');
set(handles.filt2D,'HandleVisibility','OFF');
set(handles.Or_image,'HandleVisibility','ON')
axes(handles.Or_image);
 imagesc(im_original);
 colormap(gray(256));
 axis equal;
axis tight;
axis off;
set(handles.Or_image,'HandleVisibility','OFF')
set(handles.Or_image,'XTickLabel',' ','YTickLabel',' ')


%----------------------------------------------------------
% --- Outputs from this function are returned to the command line.
function varargout = frequencydem_OutputFcn(hObject, eventdata, handles)
varargout{1} = handles.output;


%----------------------------------------------------------
% --- Executes during object creation, after setting all properties.
function image_selection_CreateFcn(hObject, eventdata, handles)
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end

%----------------------------------------------------------
% Executes on button press in apply_button.
function apply_button_Callback(hObject, eventdata, handles)

image_file = get(handles.nameEdit,'String');  % to read the image filename selected
im_original=image_read(char(image_file));  % filename
% set(handles.Or_image,'HandleVisibility','ON')  % to make plot 1 visible for original image plot
% image(im_original);
% colormap(gray(256));
% axis image;
% axis off;
% set(handles.filtered_image,'HandleVisibility','OFF') % to make plot 2 unvisible to the original image plot

set(handles.Or_image,'XTickLabel',' ','YTickLabel',' ') % to get rid of tick labels
method_number = get(handles.method_selection,'Value'); % selected method
t = get(handles.cutoffEdit,'String');
F_cut = str2num (t);
if F_cut <= 0
    msgbox ('Please input meaningful cut off frequency');
    return
end;
% For gaussian blur and USM-Filter method
switch method_number
    case { 1 } %Ideal Filter
        [im_filtered, H] = ideal_low(im_original, F_cut);
     case { 2 }
        [im_filtered, H] = ideal_high(im_original, F_cut);
     case { 3 }
        [im_filtered, H] = gaussian_low(im_original,F_cut);
     case { 4 }
        [im_filtered, H]= gaussian_high(im_original, F_cut);
     case { 5 }
         t = get(handles.butflyEdit,'String');
         n = str2num (t);
         if t <= 0
             msgbox('Invalid order number!');
             return;
         end;
         [im_filtered, H] = butterworth_low(im_original, F_cut,n);
     case { 6 }
         t = get(handles.butflyEdit,'String');
         n = str2num (t);
         if t <= 0
             msgbox('Invalid order number!');
             return;
         end;
         [im_filtered, H] = butterworth_high(im_original, F_cut,n);
 end;

set(handles.Or_image,'HandleVisibility','ON')
axes(handles.Or_image);
 imagesc(im_original);
 colormap(gray(256));
 axis equal;
axis tight;
axis off;
set(handles.Or_image,'HandleVisibility','OFF')
set(handles.filtered_image,'HandleVisibility','ON') ; % to make plot 2 visible to the filtered image plot
axes(handles.filtered_image);
imagesc(im_filtered) % to plot filtered image
 colormap(gray(256));
axis equal;
axis tight;
axis off;
set(handles.filtered_image,'HandleVisibility','OFF')
set(handles.difference_image,'HandleVisibility','ON');
axes(handles.difference_image);
dif_image = im_filtered- im_original;
imagesc(dif_image);
colormap(gray(256));
axis equal;
axis tight;
axis off;
set(handles.difference_image,'HandleVisibility','OFF')
set(handles.filt2D,'HandleVisibility','ON');
axes(handles.filt2D);
imagesc(H);
colormap(gray(256));
axis equal;
axis tight;
axis off;
set(handles.filt2D,'HandleVisibility','OFF');
set(handles.filt3D,'HandleVisibility','ON');
axes(handles.filt3D);
[co,ro]=size(H);

surfl(H);

set(handles.filt3D,'HandleVisibility','OFF');

%----------------------------------------------------------
% --- Executes on button press in close_button.
function close_button_Callback(hObject, eventdata, handles)
close all; % to close GUI


%----------------------------------------------------------
% --- Executes during object creation, after setting all properties.
function method_selection_CreateFcn(hObject, eventdata, handles)
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end


% --- Executes during object creation, after setting all properties.
function nameEdit_CreateFcn(hObject, eventdata, handles)
% hObject    handle to nameEdit
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end

%Read all kinds of image files
function im_original=image_read(image_file)
lg=length(image_file);
if strcmpi(image_file(lg-2:lg),'mat') | strcmpi(image_file(lg-2:lg),'dat')
    im_original=load(image_file);
else
im_original=imread(char(image_file));

end;
im_original = double(im_original);
t=size(im_original,3);
if t==3
    imt=floor((im(:,:,1)+im(:,:,2)+im(:,:,3))/3);
    clear im_original;
    im_original=imt;
    clear imt;
end;
t=size(im_original,3);
if t~=1
    display('Error in opening the image file!');
end;

% butterworth high pass filter
function [out, H] = butterworth_high (im,fc,n)
    [co,ro] = size(im);
    cx = round(co/2); % find the center of the image
    cy = round (ro/2);
    imf=fftshift(fft2(im));
    H=zeros(co,ro);
    for i = 1 : co
        for j =1 : ro
               d = (i-cx).^2 + (j-cy).^ 2;
               if d ~= 0
               H(i,j) = 1/(1+((fc*fc/d).^(2*n)));
           end;

        end;
    end;






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

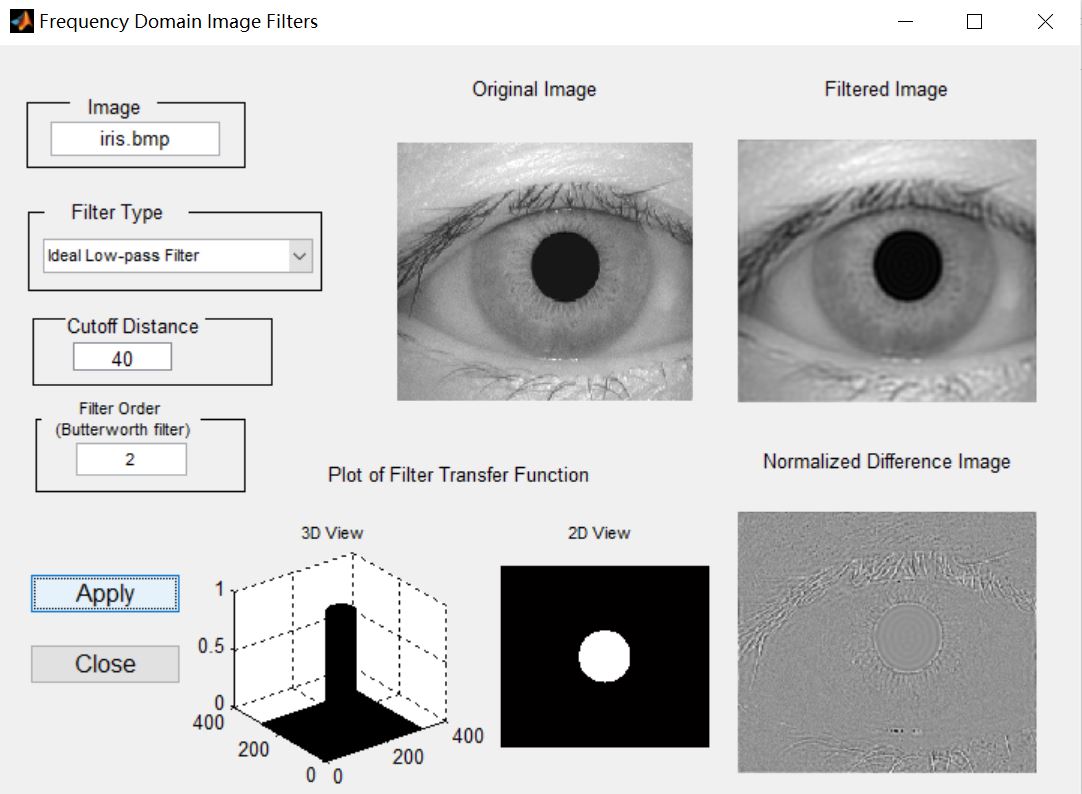

三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 蔡利梅.MATLAB图像处理——理论、算法与实例分析[M].清华大学出版社，2020.
[2]杨丹,赵海滨,龙哲.MATLAB图像处理实例详解[M].清华大学出版社，2013.
[3]周品.MATLAB图像处理与图形用户界面设计[M].清华大学出版社，2013.
[4]刘成龙.精通MATLAB图像处理[M].清华大学出版社，2015.
