【图像重建】基于matlab迭代步长自适应图像超分辨重建【含Matlab源码 048期】

举报
海神之光 发表于 2022/05/29 03:35:37 2022/05/29
【摘要】 一、获取代码方式 获取代码方式1: 通过订阅紫极神光博客付费专栏,凭支付凭证,私信博主,可获得此代码。 获取代码方式2: 完整代码已上传我的资源:【图像重建】基于matlab迭代步长自适应图像超分辨重...

一、获取代码方式

获取代码方式1:
通过订阅紫极神光博客付费专栏,凭支付凭证,私信博主,可获得此代码。

获取代码方式2:
完整代码已上传我的资源:【图像重建】基于matlab迭代步长自适应图像超分辨重建【含Matlab源码 048期】

备注:
订阅紫极神光博客付费专栏,可免费获得1份代码(有效期为订阅日起,三天内有效);

二、迭代步长自适应简介

传统的超分辨重建算法往往采用梯度下降法进行求解,迭代时步长往往通过经验确定。而且不同的图像的最优步长往往不相同。步长过大会导致发散,步长过小会导致收敛缓慢。本算法基于对正则化超分辨重建算法实现的基础上,对步长的选取进行了优化,推导出了每次迭代时的最优步长大小,并将其自适应化,改进了超分辨算法的收敛性,从而能够在更短的时间内取得更加精确的重建结果。相关具体内容请参考对应的论文:Yingqian Wang, Jungang Yang, Chao Xiao, and Wei An, “Fast convergence strategy for multi-image superresolution via adaptive line search,” IEEE Access, vol. 6, no. 1, pp. 9129-9139.

三、部分源代码


clear all
clc

filename = 'Set';
files = dir(fullfile( filename,'*.bmp'));
file_num = 2;       % different number corresponds to defferent test images in 'Set'
reg_term = 1;       %regularization term: 1-BTV, 2-Tikhonov

Image =imread([filename,'\',files(file_num).name]);
SZ = size(size(Image));

if (SZ(2)==2)       % turn grayscale image to RGB image
    for qw = 1:3
        IMAGE (:,:,qw) = Image;
    end
else
    IMAGE = Image;
end

%% Image Degradation
D = [1,1;-2,1;-1,-3;3,-2];                    % Shearing shift
Gau = fspecial( 'gaussian', [3 3], 1);   % Gaussian bluring kernel
spf = 2;                                              % sampling factor
sigma2 = 1;                                       % variation of noise
LR = ImDegrate(IMAGE,D,Gau,spf,sigma2); % image degradation function

%% Turn RGB to YCbCr, and only SR the Y component
[~, ~, ~, M] = size(LR);
for w = 1:M
    LR(:,:,:,w) = rgb2ycbcr(uint8( squeeze(LR(:,:,:,w))));
end

maxiter = 10;  % maximum number of iteration

y1(:,:,:) =  LR(:,:,1,:);
y2(:,:,:) =  LR(:,:,2,:);
y3(:,:,:) =  LR(:,:,3,:);

HRitp1 =  imresize(y1(:,:,1), spf, 'bicubic');  % bicubic interpolation
HRitp1 = ImWarp(HRitp1, -D(1,1), -D(1,2));  % shift recovering

I1 = Wang_SR(HRitp1, y1, D, Gau, spf, maxiter, reg_term);   %Our proposed SR method

HRitp2 =  imresize(y2(:,:,1), spf, 'bicubic');
HRitp2 = ImWarp(HRitp2, -D(1,1), -D(1,2));
I2 = HRitp2;

HRitp3 =  imresize(y3(:,:,1), spf, 'bicubic');
HRitp3 = ImWarp(HRitp3, -D(1,1), -D(1,2));
I3 = HRitp3;

ImZ(:, :, 1) =  I1;
ImZ(:, :, 2) =  I2;
ImZ(:, :, 3) =  I3;

ImZ = ycbcr2rgb(uint8( ImZ)); % Turn YCbCr to RGB

figure; imshow( uint8( ImZ ) ); title('Wang et al.');
figure; imshow( uint8( IMAGE ) ); title('groundtruth');

%%  Evaluation

If = double(ImZ);   %output image
Is = double(IMAGE); %reference image
[row,col,~]=size(If);

%RMSE
rmse=0;
for color = 1:3
    Ifc = If(:,:,color);  Isc = Is(:,:,color);
    SSE=sum(sum((Ifc-Isc).^2));
    rmsec=sqrt(SSE/(row*col));
    rmse = rmse+rmsec/3;
end
rmse

%PSNR
psnr=0;
for color = 1:3
    Ifc = If(:,:,color);  Isc = Is(:,:,color);
    maxIs = max(max(Isc));
    minIs = min(min(Isc));
    PSNRc = 10*log10((row*col*(maxIs-minIs)^2)/sum(sum((Ifc-Isc).^2)));
    psnr = psnr+PSNRc/3;
end
psnr

%SSIM
ssim=0;
for color = 1:3
    Ifc = uint8(If(:,:,color));  Isc = uint8(Is(:,:,color));
    ssimc = cal_ssim(Ifc, Isc, 0, 0);
    ssim = ssim + ssimc/3;
end
ssim
function ssim = cal_ssim( im1, im2, b_row, b_col)

[h, w, ch] = size( im1 );
ssim = 0;
if (ch == 1)
    ssim = ssim_index ( im1(b_row+1:h-b_row, b_col+1:w-b_col), im2(b_row+1:h-b_row,b_col+1:w-b_col));
else
    for i = 1:ch
        ssim = ssim + ssim_index ( im1(b_row+1:h-b_row, b_col+1:w-b_col, i), im2(b_row+1:h-b_row,b_col+1:w-b_col, i));
    end
    ssim = ssim/3;
end
return

function [mssim, ssim_map] = ssim_index(img1, img2, K, window, L)



if (nargin < 2 || nargin > 5)
   mssim = -Inf;
   ssim_map = -Inf;
   return;
end

if (size(img1) ~= size(img2))
   mssim = -Inf;
   ssim_map = -Inf;
   return;
end

[M N] = size(img1);

if (nargin == 2)
   if ((M < 11) || (N < 11))
	   mssim = -Inf;
	   ssim_map = -Inf;
      return
   end
   window = fspecial('gaussian', 11, 1.5);	%
   K(1) = 0.01;					% default settings
   K(2) = 0.03;					%
   L = 255;                                     %
end

if (nargin == 3)
   if ((M < 11) || (N < 11))
	   mssim = -Inf;
	   ssim_map = -Inf;
      return
   end
   window = fspecial('gaussian', 11, 1.5);
   L = 255;
   if (length(K) == 2)
      if (K(1) < 0 || K(2) < 0)
		   mssim = -Inf;
   		ssim_map = -Inf;
	   	return;
      end
   else
	   mssim = -Inf;
   	ssim_map = -Inf;
	   return;
   end
end

if (nargin == 4)
   [H W] = size(window);
   if ((H*W) < 4 || (H > M) || (W > N))
	   mssim = -Inf;
	   ssim_map = -Inf;
      return
   end
   L = 255;
   if (length(K) == 2)
      if (K(1) < 0 || K(2) < 0)
		   mssim = -Inf;
   		ssim_map = -Inf;
	   	return;
      end
   else
	   mssim = -Inf;
   	ssim_map = -Inf;
	   return;
   end
end

if (nargin == 5)
   [H W] = size(window);
   if ((H*W) < 4 || (H > M) || (W > N))
	   mssim = -Inf;
	   ssim_map = -Inf;
      return
   end
   if (length(K) == 2)
      if (K(1) < 0 || K(2) < 0)
		   mssim = -Inf;
   		ssim_map = -Inf;
	   	return;
      end
   else
	   mssim = -Inf;
   	ssim_map = -Inf;
	   return;
   end
end


img1 = double(img1);
img2 = double(img2);

% automatic downsampling
f = max(1,round(min(M,N)/256));
%downsampling by f
%use a simple low-pass filter
if(f>1)
    lpf = ones(f,f);
    lpf = lpf/sum(lpf(:));
    img1 = imfilter(img1,lpf,'symmetric','same');
    img2 = imfilter(img2,lpf,'symmetric','same');

    img1 = img1(1:f:end,1:f:end);
    img2 = img2(1:f:end,1:f:end);
end

C1 = (K(1)*L)^2;
C2 = (K(2)*L)^2;
window = window/sum(sum(window));

mu1   = filter2(window, img1, 'valid');
mu2   = filter2(window, img2, 'valid');
mu1_sq = mu1.*mu1;
mu2_sq = mu2.*mu2;
mu1_mu2 = mu1.*mu2;
sigma1_sq = filter2(window, img1.*img1, 'valid') - mu1_sq;
sigma2_sq = filter2(window, img2.*img2, 'valid') - mu2_sq;
sigma12 = filter2(window, img1.*img2, 'valid') - mu1_mu2;

if (C1 > 0 && C2 > 0)
   ssim_map = ((2*mu1_mu2 + C1).*(2*sigma12 + C2))./((mu1_sq + mu2_sq + C1).*(sigma1_sq + sigma2_sq + C2));
else
   numerator1 = 2*mu1_mu2 + C1;
   numerator2 = 2*sigma12 + C2;
	denominator1 = mu1_sq + mu2_sq + C1;
   denominator2 = sigma1_sq + sigma2_sq + C2;
   ssim_map = ones(size(mu1));
   index = (denominator1.*denominator2 > 0);
   ssim_map(index) = (numerator1(index).*numerator2(index))./(denominator1(index).*denominator2(index));
   index = (denominator1 ~= 0) & (denominator2 == 0);
   ssim_map(index) = numerator1(index)./denominator1(index);
end

mssim = mean2(ssim_map);

return





  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
  • 68
  • 69
  • 70
  • 71
  • 72
  • 73
  • 74
  • 75
  • 76
  • 77
  • 78
  • 79
  • 80
  • 81
  • 82
  • 83
  • 84
  • 85
  • 86
  • 87
  • 88
  • 89
  • 90
  • 91
  • 92
  • 93
  • 94
  • 95
  • 96
  • 97
  • 98
  • 99
  • 100
  • 101
  • 102
  • 103
  • 104
  • 105
  • 106
  • 107
  • 108
  • 109
  • 110
  • 111
  • 112
  • 113
  • 114
  • 115
  • 116
  • 117
  • 118
  • 119
  • 120
  • 121
  • 122
  • 123
  • 124
  • 125
  • 126
  • 127
  • 128
  • 129
  • 130
  • 131
  • 132
  • 133
  • 134
  • 135
  • 136
  • 137
  • 138
  • 139
  • 140
  • 141
  • 142
  • 143
  • 144
  • 145
  • 146
  • 147
  • 148
  • 149
  • 150
  • 151
  • 152
  • 153
  • 154
  • 155
  • 156
  • 157
  • 158
  • 159
  • 160
  • 161
  • 162
  • 163
  • 164
  • 165
  • 166
  • 167
  • 168
  • 169
  • 170
  • 171
  • 172
  • 173
  • 174
  • 175
  • 176
  • 177
  • 178
  • 179
  • 180
  • 181
  • 182
  • 183
  • 184
  • 185
  • 186
  • 187
  • 188
  • 189
  • 190
  • 191
  • 192
  • 193
  • 194
  • 195
  • 196
  • 197
  • 198
  • 199
  • 200
  • 201
  • 202
  • 203
  • 204
  • 205
  • 206
  • 207
  • 208
  • 209
  • 210
  • 211
  • 212
  • 213
  • 214
  • 215
  • 216
  • 217
  • 218
  • 219
  • 220
  • 221
  • 222
  • 223
  • 224
  • 225
  • 226
  • 227
  • 228
  • 229
  • 230
  • 231
  • 232
  • 233
  • 234
  • 235
  • 236
  • 237
  • 238
  • 239
  • 240
  • 241
  • 242
  • 243
  • 244
  • 245
  • 246
  • 247
  • 248
  • 249
  • 250
  • 251
  • 252

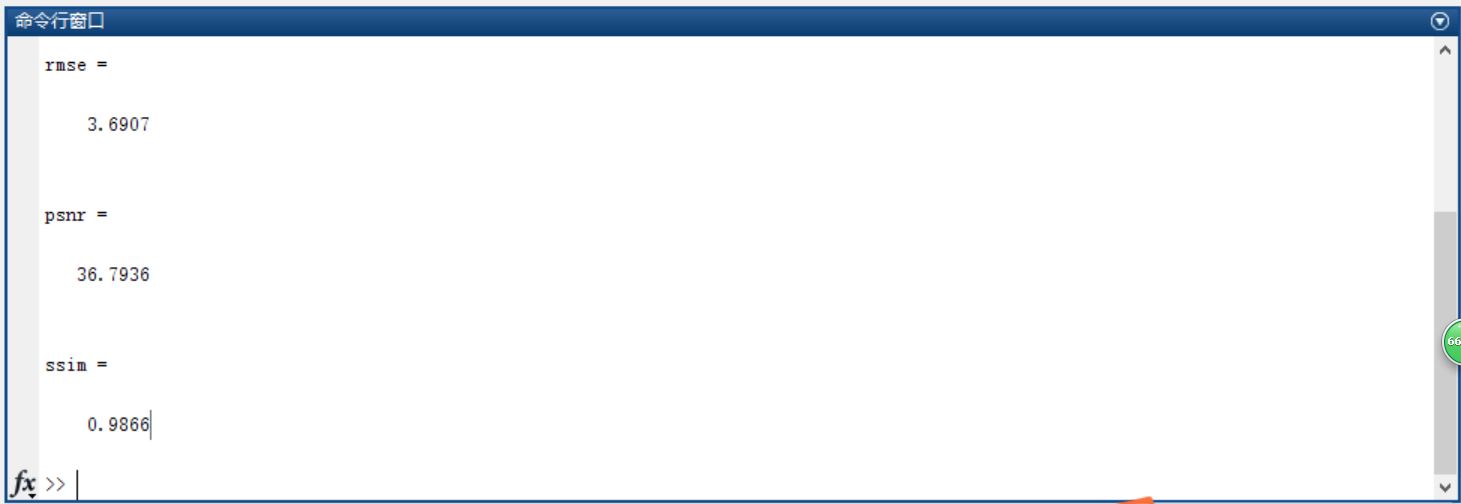

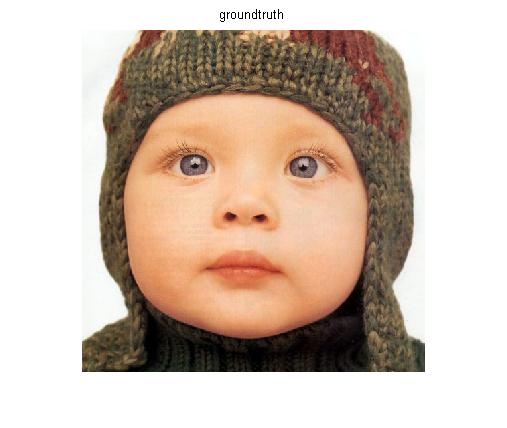

四、运行结果

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

五、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 蔡利梅.MATLAB图像处理——理论、算法与实例分析[M].清华大学出版社,2020.
[2]杨丹,赵海滨,龙哲.MATLAB图像处理实例详解[M].清华大学出版社,2013.
[3]周品.MATLAB图像处理与图形用户界面设计[M].清华大学出版社,2013.
[4]刘成龙.精通MATLAB图像处理[M].清华大学出版社,2015.
