一、获取代码方式

获取代码方式1:
完整代码已上传我的资源:【优化算法】头脑风暴优化算法(BSO)【含Matlab源码 497期】

获取代码方式2:
通过订阅紫极神光博客付费专栏,凭支付凭证,私信博主,可获得此代码。

备注:
订阅紫极神光博客付费专栏,可免费获得1份代码(有效期为订阅日起,三天内有效);

二、头脑风暴优化算法(BSO)简介

受人类创造性解决问题过程——头脑风暴会议的启发, 2011年史玉回老师在第二次群体智能国际会议 (The Second International Conference on Swarm Intelligence(ICSI11)) 中提出一种新的群智能优化算法——头脑风暴优化算法,算法采用聚 类思想搜索局部最优,通过局部最优的比较得到全局最优;采用变异思想增加了算法的多 样性,避免算法陷入局部最优,在这聚与散相辅相承的过程中搜索最优解,思想新颖,适合于解决多峰高维函数问题。

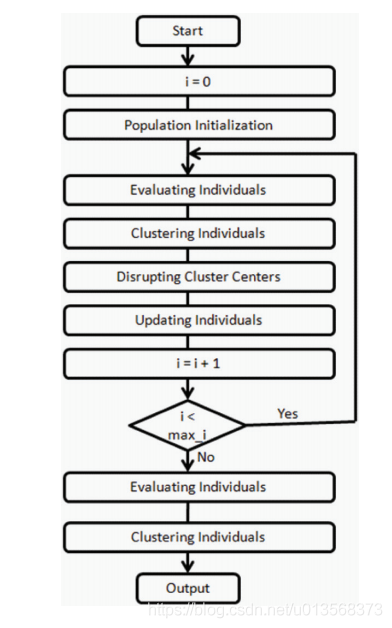

算法流程建模如下
在这里插入图片描述

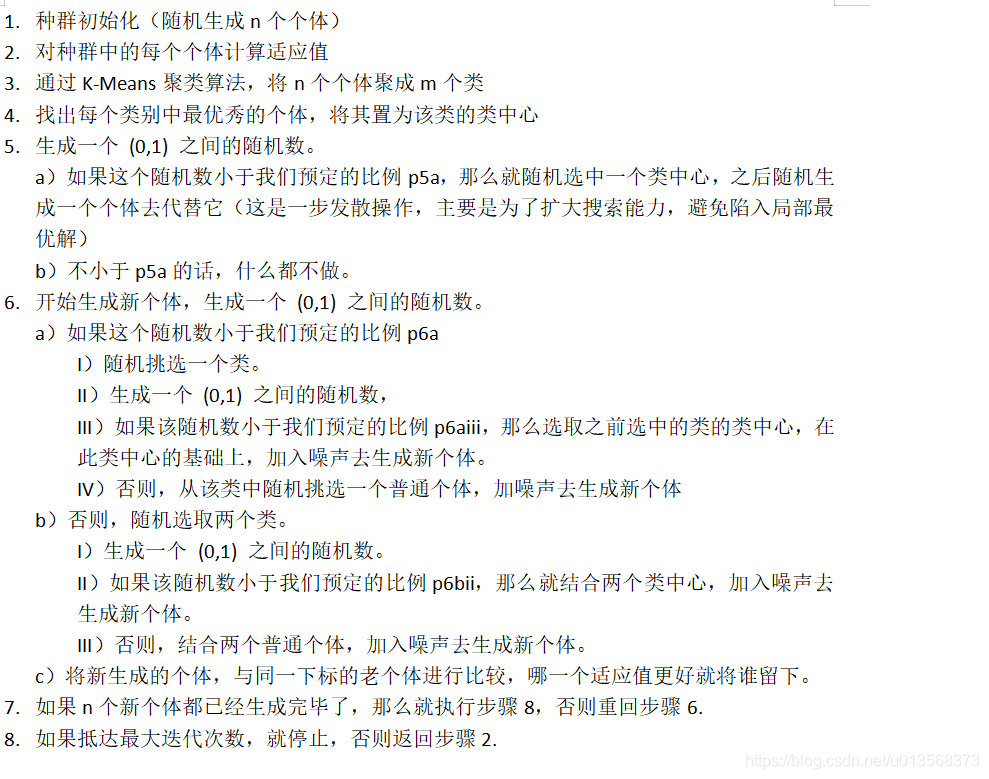

算法步骤描述
在这里插入图片描述

三、部分源代码

function best_fitness = bso2(fun,n_p,n_d,n_c,rang_l,rang_r,max_iteration)
% fun = fitness_function
% n_p; population size
% n_d; number of dimension
% n_c: number of clusters
% rang_l; left boundary of the dynamic range
% rang_r; right boundary of the dynamic range
prob_one_cluster = 0.8; % probability for select one cluster to form new individual;
stepSize = ones(1,n_d); % effecting the step size of generating new individuals by adding random values
popu = rang_l + (rang_r - rang_l) * rand(n_p,n_d); % initialize the population of individuals
popu_sorted  = rang_l + (rang_r - rang_l) * rand(n_p,n_d); % initialize the  population of individuals sorted according to clusters
n_iteration = 0; % current iteration number
% initialize cluster probability to be zeros
prob = zeros(n_c,1);
best = zeros(n_c,1);  % index of best individual in each cluster
centers = rang_l + (rang_r - rang_l) * rand(n_c,n_d);  % initialize best individual in each cluster
centers_copy = rang_l + (rang_r - rang_l) * rand(n_c,n_d);  % initialize best individual-COPY in each cluster FOR the purpose of introduce random best
best_fitness = 1000000*ones(max_iteration,1);
fitness_popu = 1000000*ones(n_p,1);  % store fitness value for each individual
fitness_popu_sorted = 1000000*ones(n_p,1);  % store  fitness value for each sorted individual
indi_temp = zeros(1,n_d);  % store temperary individual
%**************************************************************************
%**************************************************************************
% calculate fitness for each individual in the initialized population
for idx = 1:n_p
    fitness_popu(idx,1) = fun(popu(idx,:));
end
while n_iteration < max_iteration
    cluster = kmeans(popu, n_c,'Distance','cityblock','Start',centers,'EmptyAction','singleton') % k-mean cluster
    % clustering
    fit_values = 100000000000000000000000000.0*ones(n_c,1);  % assign a initial big fitness value  as best fitness for each cluster in minimization problems
    number_in_cluster = zeros(n_c,1);  % initialize 0 individual in each cluster
    for idx = 1:n_p
        number_in_cluster(cluster(idx,1),1)= number_in_cluster(cluster(idx,1),1) + 1;
        % find the best individual in each cluster
        if fit_values(cluster(idx,1),1) > fitness_popu(idx,1)  % minimization
            fit_values(cluster(idx,1),1) = fitness_popu(idx,1);
            best(cluster(idx,1),1) = idx;
        end
    end
    best
    % form population sorted according to clusters
    counter_cluster = zeros(n_c,1);  % initialize cluster counter to be 0
    acculate_num_cluster = zeros(n_c,1);  % initialize accumulated number of individuals in previous clusters
    for idx =2:n_c
        acculate_num_cluster(idx,1) = acculate_num_cluster((idx-1),1) + number_in_cluster((idx-1),1);
    end
    %start form sorted population
    for idx = 1:n_p
        counter_cluster(cluster(idx,1),1) = counter_cluster(cluster(idx,1),1) + 1 ;
        temIdx = acculate_num_cluster(cluster(idx,1),1) +  counter_cluster(cluster(idx,1),1);
        popu_sorted(temIdx,:) = popu(idx,:);
        fitness_popu_sorted(temIdx,1) = fitness_popu(idx,1);
    end
    % record the best individual in each cluster
    for idx = 1:n_c
        centers(idx,:) = popu(best(idx,1),:);
    end
    centers_copy = centers  % make a copy

    if (rand() < 0.2) %  select one cluster center to be replaced by a randomly generated center
        cenIdx = ceil(rand()*n_c);
        centers(cenIdx,:) = rang_l + (rang_r - rang_l) * rand(1,n_d);
    end
    % calculate cluster probabilities based on number of individuals in
    % each cluster
    for idx = 1:n_c
        prob(idx,1) = number_in_cluster(idx,1)/n_p;
        if idx > 1
            prob(idx,1) = prob(idx,1) + prob(idx-1,1);
        end
    end
    % generate n_p new individuals by adding Gaussian random values
    for idx = 1:n_p
        r_1 = rand();  % probability for select one cluster to form new individual
        if r_1 < prob_one_cluster % select one cluster
            r = rand();
            for idj = 1:n_c
                if r < prob(idj,1)
                    if rand() < 0.4  % use the center
                       indi_temp(1,:) = centers(idj,:);
                    else % use one randomly selected  cluster
                        indi_1 = acculate_num_cluster(idj,1) + ceil(rand() * number_in_cluster(idj,1));
                        indi_temp(1,:) = popu_sorted(indi_1,:);
                    end
                    break
                end
            end
        else % select two clusters
            % pick two clusters
            cluster_1 = ceil(rand() * n_c);
            indi_1 = acculate_num_cluster(cluster_1,1) + ceil(rand() * number_in_cluster(cluster_1,1));
            cluster_2 = ceil(rand() * n_c);
            indi_2 = acculate_num_cluster(cluster_2,1) + ceil(rand() * number_in_cluster(cluster_2,1));
            tem = rand();
            if rand() < 0.5 %use center
                indi_temp(1,:) = tem * centers(cluster_1,:) + (1-tem) * centers(cluster_2,:);
            else   % use randomly selected individuals from each cluster
                indi_temp(1,:) = tem * popu_sorted(indi_1,:) + (1-tem) * popu_sorted(indi_2,:);
            end
        end
        %Griewank
function z = griewank(x)
% unimodal optimum 0
[m,n]=size(x);
for j=1:m
    for e=1:n
        f1(e)=x(j,e)^2;
        f2(e)=cos(x(j,e)/sqrt(e));
    end




四、运行结果

在这里插入图片描述

五、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 包子阳,余继周,杨杉.智能优化算法及其MATLAB实例(第2版)[M].电子工业出版社,2016.
[2]张岩,吴水根.MATLAB优化算法源代码[M].清华大学出版社,2017.
