【图像修复】基于matlab GUI三维图像复原【含Matlab源码 963期】

一、获取代码方式

获取代码方式1：
完整代码已上传我的资源：【图像修复】基于matlab GUI三维图像复原【含Matlab源码 963期】

获取代码方式2：
通过订阅紫极神光博客付费专栏，凭支付凭证，私信博主，可获得此代码。

备注：
订阅紫极神光博客付费专栏，可免费获得1份代码（有效期为订阅日起，三天内有效）；

二、三维图像复原简介

三维图像的复原的流程如下所示：

根据以上流程，三维图像的复原可以分为以下几个部分：三维图像的获得，制作三维PSF，反卷积实现复原。下面分别说明。
1 三维图像的获得
将一幅图片进行微小角度的旋转，再叠加，以获得三维的图片。利用语句B=imrotate(A,angle,method,bbox)函数可以实现，其中，B表示旋转后的图片，A表示需要旋转的图片；angle表示旋转的角度；method参数可以改变插值算法，如’nearest’最邻近线性插值，’bilinear’双线性插值等；bbox参数用于指定输出图像属性：‘crop’： 通过对旋转后的图像B进行裁剪， 保持旋转后输出图像B的尺寸和输入图像A的尺寸一样；{‘loose’}：使输出图像足够大，以保证源图像旋转后超出图像尺寸范围的像素值没有丢失。
2 制作三维PSF
在已知显微镜的放大倍数M、数值孔径NA、照射光波长λ和光学管腔di的情况下，利用以下公式：



可以制作出三维的OTF，再利用otf2psf函数，即可得PSF。
3 反卷积实现复原
反卷积，即对模糊的图像进行去模糊，从而实现图像的复原。作业中采用的是最大似然法来处理，即

其中，h表示点扩散函数，g表示需要复原的模糊图像，表示对原始图像的估计。

三、部分源代码

function varargout = text(varargin)
% TEXT M-file for text.fig
%      TEXT, by itself, creates a new TEXT or raises the existing
%      singleton*.
%
%      H = TEXT returns the handle to a new TEXT or the handle to
%      the existing singleton*.
%
%      TEXT('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in TEXT.M with the given input arguments.
%
%      TEXT('Property','Value',...) creates a new TEXT or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before text_OpeningFcn gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to text_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help text

% Last Modified by GUIDE v2.5 09-May-2021 15:29:24

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @text_OpeningFcn, ...
                   'gui_OutputFcn',  @text_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before text is made visible.
function text_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to text (see VARARGIN)

% Choose default command line output for text
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes text wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = text_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes on button press in pushbutton1.
function pushbutton1_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)


% --- Executes on button press in pushbutton2.
function pushbutton2_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)


% --- Executes on button press in pushbutton3.
function pushbutton3_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton3 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)


% --- Executes on button press in pushbutton4.
function pushbutton4_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton4 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)



function edit1_Callback(hObject, eventdata, handles)
% hObject    handle to edit1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of edit1 as text
%        str2double(get(hObject,'String')) returns contents of edit1 as a double


% --- Executes during object creation, after setting all properties.
function edit1_CreateFcn(hObject, eventdata, handles)
% hObject    handle to edit1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
    set(hObject,'BackgroundColor','white');
end



function edit2_Callback(hObject, eventdata, handles)
% hObject    handle to edit2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of edit2 as text
%        str2double(get(hObject,'String')) returns contents of edit2 as a double


% --- Executes during object creation, after setting all properties.
function edit2_CreateFcn(hObject, eventdata, handles)
% hObject    handle to edit2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
    set(hObject,'BackgroundColor','white');
end


% --- Executes on button press in pushbutton9.
function pushbutton9_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton9 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% 按2D最大似然法公式，在空域中，通过卷积做图像复原：
W = str2num(get(handles.edit5,'String'));

global h;
load f.mat f1;
load g.mat g1;
fi=g1;
t1=clock;   % 循环起始时间
for i=1:W;
    a=imfilter (fi, h, 'conv', 'replicate' );       %  公式中分母的卷积。
    b=g1./a;                     %  a,g大小应相同,才能作点除。
    c=imfilter (b, h, 'conv', 'replicate' );       %  公式中的相关。
    fi=fi.*c;                    %  最大似然法公式。点乘时，f,c应大小相同。
end
t2=clock;   % 循环结束时间
K = str2num(get(handles.edit3,'String'));
axes(handles.axes5)
imshow(fi(:,:,K),[]);%显示3D复原图中的一幅；
N = str2num(get(handles.edit4,'String'));
f=double(f1);
for i=1:150
for j=1:150
  for k=1:N
mse_m(i,j,k)=(f(i,j,k)-fi(i,j,k))^2;
end
end
end
hh=sum(mse_m(:));
  mse=hh/(150*150*N)
%hh=sum(mse_m(:));
%aa=sum(a(:));
 % mse=b/(a);
set(handles.edit6,'string',num2str(mse));


function edit5_Callback(hObject, eventdata, handles)
% hObject    handle to edit5 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
input = get(handles.edit5,'String'); %get teh input from the edit text field
input = str2num(input); %change from string to number
if input<=0
hm=msgbox('请输入范围内的值', 'error')
end
% Hints: get(hObject,'String') returns contents of edit5 as text
%        str2double(get(hObject,'String')) returns contents of edit5 as a double


% --- Executes during object creation, after setting all properties.
function edit5_CreateFcn(hObject, eventdata, handles)
% hObject    handle to edit5 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
    set(hObject,'BackgroundColor','white');
end






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

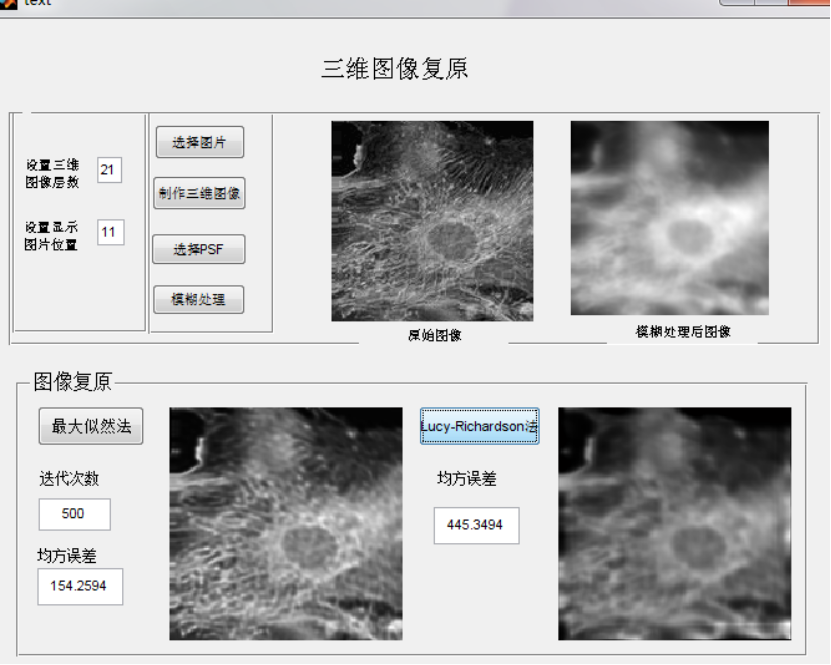

四、运行结果
