【土壤分类】基于matlab GUI多类SVM土壤分类【含Matlab源码 1398期】

一、SVM简介

支持向量机(Support Vector Machine)是Cortes和Vapnik于1995年首先提出的，它在解决小样本、非线性及高维模式识别中表现出许多特有的优势，并能够推广应用到函数拟合等其他机器学习问题中。
1 数学部分
1.1 二维空间









2 算法部分

二、部分源代码

% Project Title: Soil Detection & Classification


function varargout = SoilDetect_GUI(varargin)
% SOILDETECT_GUI MATLAB code for SoilDetect_GUI.fig
%      SOILDETECT_GUI, by itself, creates a new SOILDETECT_GUI or raises the existing
%      singleton*.
%
%      H = SOILDETECT_GUI returns the handle to a new SOILDETECT_GUI or the handle to
%      the existing singleton*.
%
%      SOILDETECT_GUI('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in SOILDETECT_GUI.M with the given input arguments.
%
%      SOILDETECT_GUI('Property','Value',...) creates a new SOILDETECT_GUI or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before SoilDetect_GUI_OpeningFcn gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to SoilDetect_GUI_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help SoilDetect_GUI

% Last Modified by GUIDE v2.5 28-Aug-2021 14:31:16

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @SoilDetect_GUI_OpeningFcn, ...
                   'gui_OutputFcn',  @SoilDetect_GUI_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before SoilDetect_GUI is made visible.
function SoilDetect_GUI_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to SoilDetect_GUI (see VARARGIN)

% Choose default command line output for SoilDetect_GUI
handles.output = hObject;
handles.output = hObject;
ss = ones(300,400);
axes(handles.axes1);
imshow(ss);
axes(handles.axes2);
imshow(ss);
% Update handles structure
guidata(hObject, handles);

% UIWAIT makes SoilDetect_GUI wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = SoilDetect_GUI_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes on button press in pushbutton1.
function pushbutton1_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
clc
[filename, pathname] = uigetfile({'*.*';'*.bmp';'*.jpg';'*.gif'}, 'Pick a Soil Image');
I = imread([pathname,filename]);
I = imresize(I,[256,256]);
I2 = imresize(I,[300,400]);
axes(handles.axes1);
imshow(I2);title('Query Image');
ss = ones(300,400);
axes(handles.axes2);
imshow(ss);
handles.ImgData1 = I;
guidata(hObject,handles);


% --- Executes on button press in pushbutton2.
function pushbutton2_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
I3 = handles.ImgData1;
I4 = imadjust(I3,stretchlim(I3));
I5 = imresize(I4,[300,400]);
axes(handles.axes2);
imshow(I5);title(' Contrast Enhanced ');
handles.ImgData2 = I4;
%% Feature Extraction Part
   % queryimage = I4;
    %queryImage = imresize(queryImage, [256 256]);
    hsvHist = hsvHistogram(I4);
    autoCorrelogram = colorAutoCorrelogram(I4);
    color_moments = colorMoments(I4);
    % for gabor filters we need gary scale image
    img = double(rgb2gray(I4))/255;
    [meanAmplitude, msEnergy] = gaborWavelet(img, 4, 6); % 4 = number of scales, 6 = number of orientations
    wavelet_moments = waveletTransform(I4);
    % construct the queryImage feature vector
    Feature_Vector = [hsvHist autoCorrelogram color_moments meanAmplitude msEnergy wavelet_moments];
    whos Feature_Vector
    F1 = mean2(hsvHist(:));
    F2 = mean2(autoCorrelogram(:));
    F3 = mean2(color_moments(:));
    F4 = mean2(meanAmplitude(:));
    F5 = mean2(msEnergy(:));
    F6 = mean2(wavelet_moments(:));

    set(handles.edit3,'string',F1);
    set(handles.edit4,'string',F2);
    set(handles.edit5,'string',F3);
    set(handles.edit6,'string',F4);
    set(handles.edit7,'string',F5);
    set(handles.edit8,'string',F6);

    handles.ImgData3 = Feature_Vector;
guidata(hObject,handles);
%%
% --- Executes on button press in pushbutton3.
function pushbutton3_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton3 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
load('TrainFeat_Soil.mat')

test = handles.ImgData3;
result = multisvm(TrainFeat,Train_Label,test);
disp(result);

if result == 1
    A1 = 'Clay';
    set(handles.edit1,'string',A1);
    helpdlg(' Clay ');
    disp(' Clay ');
elseif result == 2
    A2 = 'Clayey Peat';
    set(handles.edit1,'string',A2);
    helpdlg(' Clayey Peat ');
    disp('Clayey Peat');
elseif result == 3
    A3 = 'Clayey Sand';
    set(handles.edit1,'string',A3);
    helpdlg(' Clayey Sand ');
    disp(' Clayey Sand ');
elseif result == 4
    A4 = 'Humus Clay';
    set(handles.edit1,'string',A4);
    helpdlg(' Humus Clay ');
    disp(' Humus Clay ');
elseif result == 5
    A5 = 'Peat';
    set(handles.edit1,'string',A5);
    helpdlg(' Peat ');
    disp(' Peat ');
elseif result == 6
    A6 = 'Sandy Clay';
    set(handles.edit1,'string',A6);
    helpdlg(' Sandy Clay ');
    disp('Sandy Clay');
elseif result == 7
    A7 = 'Silty Sand';
    set(handles.edit1,'string',A7);
    helpdlg(' Silty Sand ');
    disp(' Silty Sand ');
end
guidata(hObject,handles);
% --- Executes on button press in pushbutton4.
function pushbutton4_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton4 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
load('Accuracy_Data.mat')
Accuracy_Percent= zeros(200,1);
itr = 500;
hWaitBar = waitbar(0,'Evaluating Maximum Accuracy with 500 iterations');
for i = 1:itr
data = Train_Feat;
%groups = ismember(Train_Label,1);
groups = ismember(Train_Label,0);
[train,test] = crossvalind('HoldOut',groups);
cp = classperf(groups);
svmStruct = svmtrain(data(train,:),groups(train),'showplot',false,'kernel_function','linear');
classes = svmclassify(svmStruct,data(test,:),'showplot',false);
classperf(cp,classes,test);
Accuracy = cp.CorrectRate;
Accuracy_Percent(i) = Accuracy.*100;
sprintf('Accuracy of Linear Kernel is: %g%%',Accuracy_Percent(i))
waitbar(i/itr);
end






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

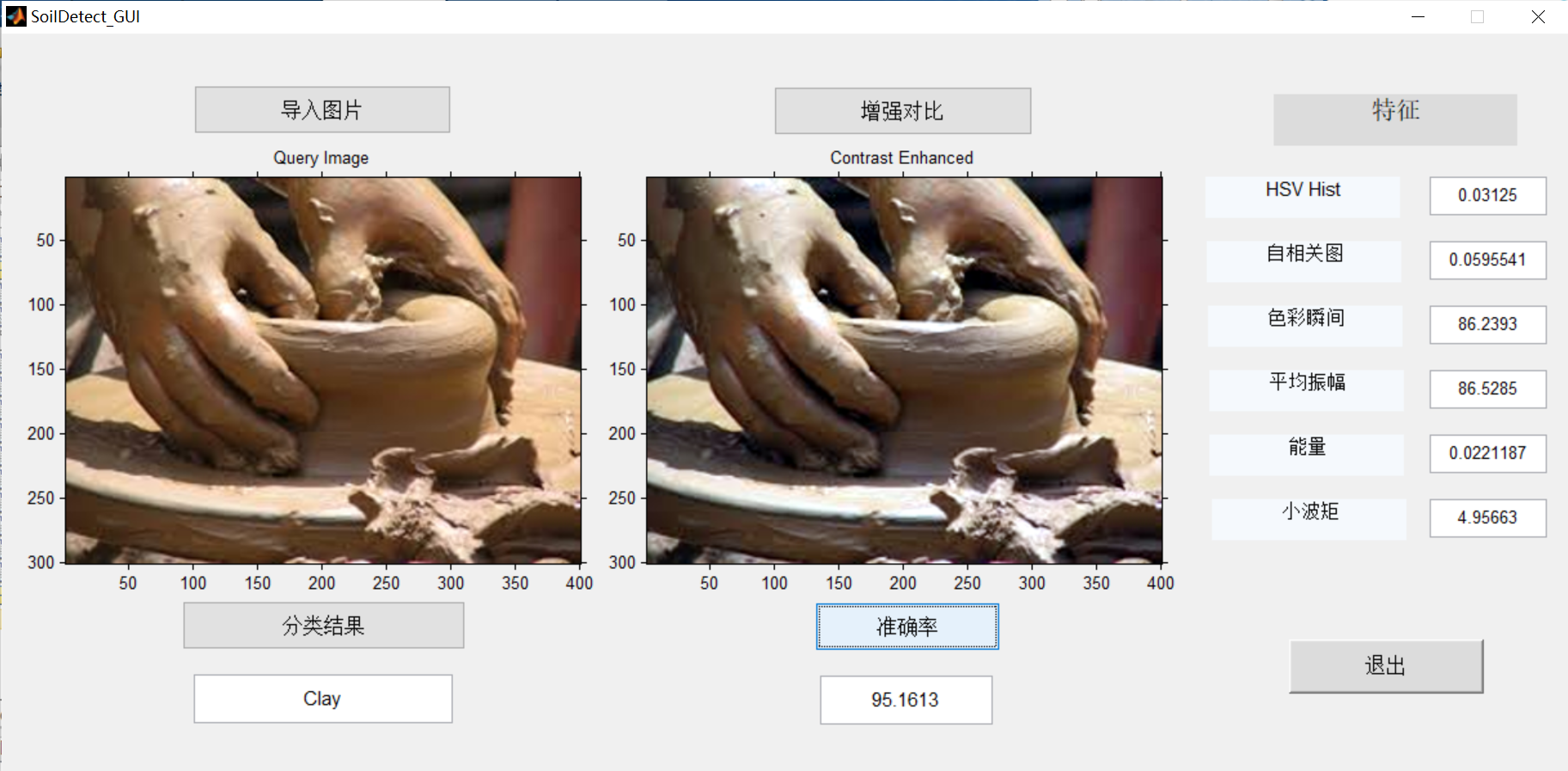

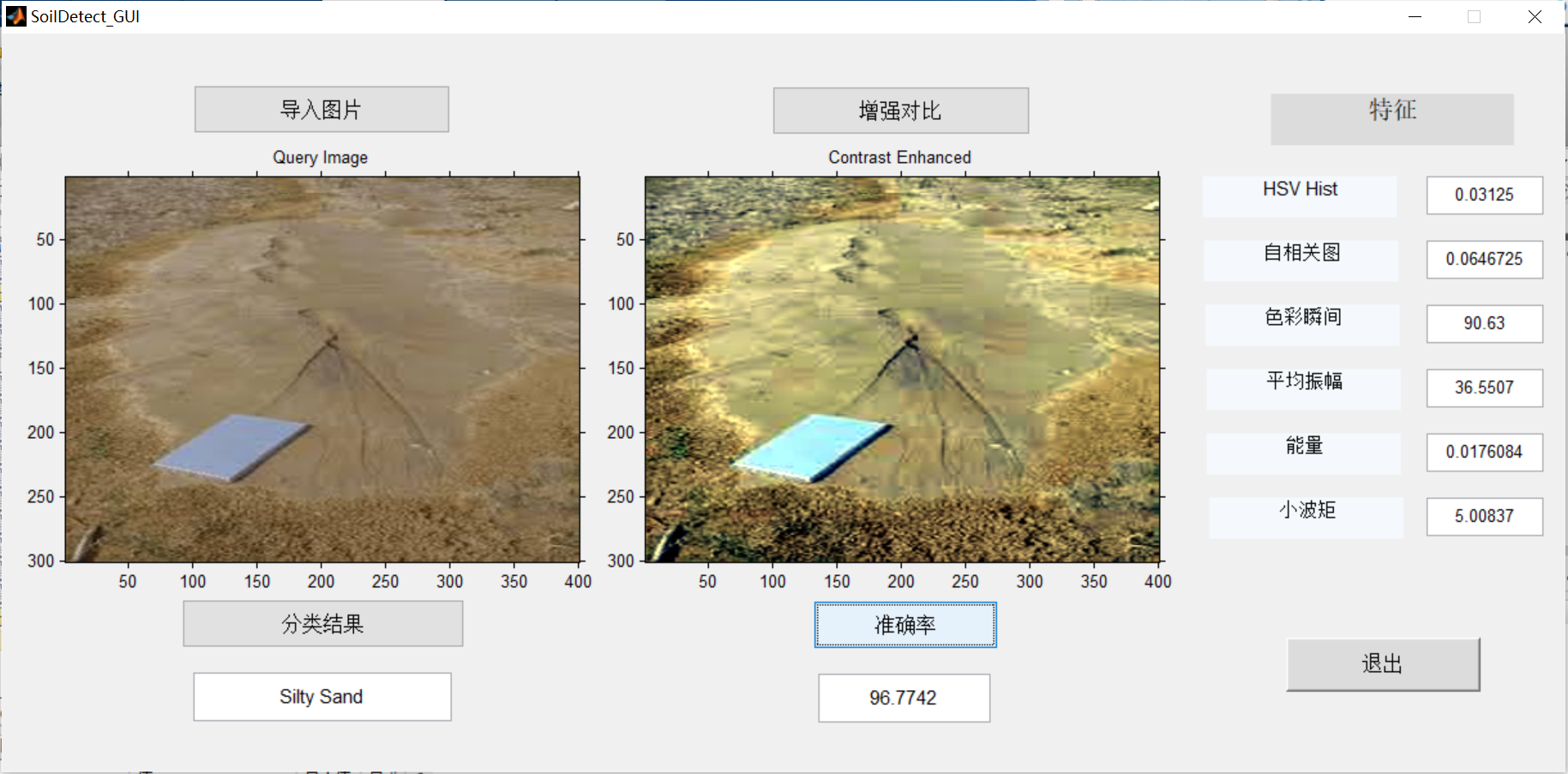

三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 蔡利梅.MATLAB图像处理——理论、算法与实例分析[M].清华大学出版社，2020.
[2]杨丹,赵海滨,龙哲.MATLAB图像处理实例详解[M].清华大学出版社，2013.
[3]周品.MATLAB图像处理与图形用户界面设计[M].清华大学出版社，2013.
[4]刘成龙.精通MATLAB图像处理[M].清华大学出版社，2015.
