【多目标优化求解】基于matlab自适应风驱动算法求解多目标优化问题【含Matlab源码 1414期】

一、获取代码方式

获取代码方式1：
通过订阅紫极神光博客付费专栏，凭支付凭证，私信博主，可获得此代码。

获取代码方式2：
完整代码已上传我的资源：【多目标求解】基于matlab自适应风驱动算法求解多目标优化问题【含Matlab源码 1414期】

备注：
订阅紫极神光博客付费专栏，可免费获得1份代码（有效期为订阅日起，三天内有效）；

二、部分源代码

function MO_AWDO_v01()
%-------------------------------------------------------------------------



tic; clear; close all; clc;
format long g;
%--------------------------------------------------------------

ArchiveParetoFronts = [];

% User defined parameters:
param.popsize = 100;	% population size.
param.npar = 10;         % Dimension of the problem.
param.maxit = 100;		% Maximum number of iterations.
maximumV = 0.5;             % maximum allowed speed.
%--------------------------------------------------------------

% AWDO will select the coefficient values; alpha, RT, g, c, and Vmax:
rec.arx = rand(5,param.popsize);   %consistent with the CMAES indexing
%---------------------------------------------------------------

% Initialize WDO population, position and velocity:
% Randomize population position in the range of [-1, 1]:
pos = 2*(rand(param.popsize,param.npar)-0.5);
% Randomize velocity in the range of [-Vmax, Vmax]:
vel = maximumV * 2 * (rand(param.popsize,param.npar)-0.5);
%---------------------------------------------------------------

% Evaluate initial population via multi-objective function:
for K=1:param.popsize,
%     [f1,f2] = kursawe(pos(K,:));
%     [f1,f2] = kita(pos(K,:));
%     [f1,f2] = schaffer(pos(K,:));
%     [f1,f2] = ZDT1(pos(K,:));
    [f1,f2] = ZDT4(pos(K,:));
    pres(K,:) = [f1,f2];
end
%----------------------------------------------------------------
%
% Call non-dominated sorting to identify the Pareto-front that each particle belongs:
posF=[pos, pres];
f = non_domination_sort_mod(posF, 2,param.npar);  % f = [pos, f1, f2, rank]

% extract the rank index, i.e. which Pareto-front the particle belongs:
rank_ind = f(:,param.npar+3);

% Select the Pareto-front == 1 particles as Global Best Position:
globalposPOP = f( (f(:,param.npar+3) ==1) , 1:param.npar);
% Archieve the rank 1 particles:
ArchiveParetoFronts = [ArchiveParetoFronts; f( (f(:,param.npar+3) ==1) , 1:(param.npar+2) )];

%-----------------------------------------------------------------
% Start iterations :
iter = 1;   % iteration counter
for ij = 2:param.maxit,
        ij
    	% Update the velocity:
    	for i=1:param.popsize
		% choose random dimensions:
		a = randperm(param.npar);
		% choose velocity based on random dimension:
    		velot(i,:) = vel(i,a);
            % randomly select a globalpos from the 1st Pareto-front members
            [aa, bb] = size(globalposPOP);
            globalpos = globalposPOP(round(((aa-1) * rand(1,1)) + 1),:);
        	vel(i,:) = (1-rec.arx(1,i))*vel(i,:)-(rec.arx(2,i)*pos(i,:))+ ...
				    abs(1-1/rank_ind(i))*((globalpos-pos(i,:)).*rec.arx(3,i))+ ...
				    (rec.arx(4,i)*velot(i,:)/rank_ind(i));
        end

        % maxV is optimized by CMAES. Limit it maximumV defined by user
        maxV = rec.arx(5,:);
        maxV = min(maxV, repmat(maximumV, size(rec.arx(5,:),1),  size(rec.arx(5,:),2)) );
        maxV = max(maxV, repmat(-maximumV, size(rec.arx(5,:),1),  size(rec.arx(5,:),2)) );
        % Check velocity limits:
        vel = min(vel, repmat(maxV',1,param.npar));
        vel = max(vel, -repmat(maxV',1,param.npar));
        % Update air parcel positions:
    	pos = pos + vel;
        pos = min(pos, 1.0);
        pos = max(pos, -1.0);
		% Evaluate population: (Pressure)
		for K=1:param.popsize,
%             [f1,f2] = kursawe(pos(K,:));
%             [f1,f2] = kita(pos(K,:));
%             [f1,f2] = schaffer(pos(K,:));
%             [f1,f2] = ZDT1(pos(K,:));
            [f1,f2] = ZDT4(pos(K,:));
            pres(K,:) = [f1,f2];
        end

        % Call non-dominated sorting to identify the Pareto-front that each particle belongs:
        posF=[pos, pres];
        f = non_domination_sort_mod(posF, 2,param.npar);  % f = [pos, f1, f2, rank]

        % extract the rank index, i.e. which Pareto-front the particle belongs:
        rank_ind = f(:,param.npar+3);

        % Select the Pareto-front == 1 particles and add them to the archieve along previous Pareto-fronts:
        ArchiveParetoFronts = [ArchiveParetoFronts; f( (f(:,param.npar+3) ==1) , 1:(param.npar+2) )];
        % Run the non-dominated sort among the Archieve members:
        f = non_domination_sort_mod(ArchiveParetoFronts, 2,param.npar);
        % Replace the archieve with only the rank=1 members:
        ArchiveParetoFronts = f( (f(:,param.npar+3) ==1) , 1:(param.npar+2) );
        % Use rank=1 members as global position:
        globalposPOP = f( (f(:,param.npar+3) ==1) , 1:param.npar);

        %--------------------------------
        % call CMAES
        [rec] = purecmaes_wdo(ij,rec,param.popsize,pres(:, mod(ij,2)+1));
        %%% PRES has two values, pass one of the pres values at each iter
        %%% alternating between two.
    	%----------------------------------------------------

end

        %%% PLOT RESULTS:
        % Call non-dominant sorting:
        f = non_domination_sort_mod(ArchiveParetoFronts, 2,param.npar);

        % Plot the MO-results -- debugging purposes
        pres2plot = f( (f(:,param.npar+3) ==1) , param.npar+1 : param.npar+2);
        plot(pres2plot(:,1), pres2plot(:,2),'ko')
        xlabel('F1'); ylabel('F2')
        grid on
%         save('Results.mat','pres2plot')

        hold on
        % load the known-Pareto-front data for plotting:
        z = load('paretoZDT4.dat');
        [a,b]=sort(z(:,2));
        z = z(b,:);
        plot(z(:,1),z(:,2),'-k')

end
% end-of-WDO.

%----------------------------------------------------------------------
%----------------------------------------------------------------------
%----------------------------------------------------------------------







1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

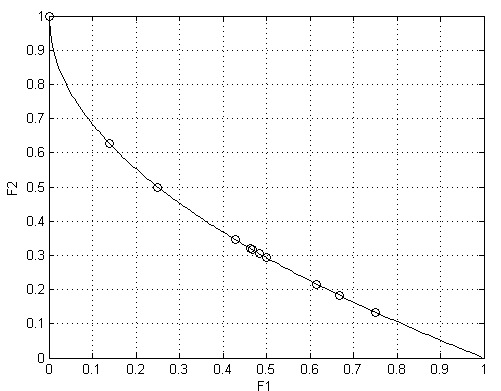

三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
《智能优化算法及其MATLAB实例（第2版）》包子阳 余继周 杨杉著 电子工业出版社
