【光学】基于matlab GUI菲涅尔系数计算【含Matlab源码 1165期】

一、获取代码方式

获取代码方式1：
完整代码已上传我的资源：【光学】基于matlab GUI菲涅尔系数计算【含Matlab源码 1165期】

获取代码方式2：
通过订阅紫极神光博客付费专栏，凭支付凭证，私信博主，可获得此代码。

备注：
订阅紫极神光博客付费专栏，可免费获得1份代码（有效期为订阅日起，三天内有效）；

二、菲涅尔系数计算简介

基于matlab GUI菲涅尔系数计算：通过平面波反射系数演示，解释不儒斯特角，展示垂直极化系数与水平极化系数的幅度和相位关系。

三、部分源代码

function varargout = Fresnel(varargin)
% FRESNEL MATLAB code for Fresnel.fig
%      FRESNEL, by itself, creates a new FRESNEL or raises the existing
%      singleton*.
%
%      H = FRESNEL returns the handle to a new FRESNEL or the handle to
%      the existing singleton*.
%
%      FRESNEL('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in FRESNEL.M with the given input arguments.
%
%      FRESNEL('Property','Value',...) creates a new FRESNEL or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before Fresnel_OpeningFcn gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to Fresnel_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help Fresnel

% Last Modified by GUIDE v2.5 28-May-2021 12:02:27

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @Fresnel_OpeningFcn, ...
                   'gui_OutputFcn',  @Fresnel_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before Fresnel is made visible.
function Fresnel_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to Fresnel (see VARARGIN)

% Choose default command line output for Fresnel
set(handles.uipanel11,'Visible','off');
set(handles.uipanel7,'Visible','on');
set(handles.uipanel8,'Visible','on');
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes Fresnel wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = Fresnel_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes on button press in radiobutton_Rs.
function radiobutton_Rs_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton_Rs (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton_Rs


% --- Executes on button press in radiobutton2.
function radiobutton2_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton2 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton2


% --- Executes on button press in radiobutton3.
function radiobutton3_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton3 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton3


% --- Executes on button press in radiobutton4.
function radiobutton4_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton4 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton4


% --- Executes on button press in radiobutton5.
function radiobutton5_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton5 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton5


% --- Executes on button press in radiobutton6.
function radiobutton6_Callback(hObject, eventdata, handles)
% hObject    handle to radiobutton6 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hint: get(hObject,'Value') returns toggle state of radiobutton6


% --- Executes on button press in pushbutton1.
function pushbutton1_Callback(hObject, eventdata, handles)
% hObject    handle to pushbutton1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
n1 = str2double(get(handles.edit_n1,'String'));
n2 = str2double(get(handles.edit_n2,'String'));

if isnan(n1)
    errordlg('Input must be a number','Error');
end
if isnan(n2)
    errordlg('Input must be a number','Error');
end
Incidence = pi/2;%入射角范围

d = 0.1*pi/180;
xx = 0:d:Incidence;%入射角

%画图的横坐标
X = xx.*180/pi;

Transmission = asin((n1*sin(xx))./n2);%透射角
[ver,hor] = find((n1*sin(xx))./n2 > 1);%大于全反射角置零
Transmission(ver,hor) = 0;

%选择输出参数
line_rs = get(handles.radiobutton_rrs,'Value');
line_rp = get(handles.radiobutton_rp,'Value');
line_ts = get(handles.radiobutton_ts,'Value');
line_tp = get(handles.radiobutton_tp,'Value');
line_ps = get(handles.radiobutton_ps,'Value');
line_Ts = get(handles.radiobutton_Ts,'Value');
line_Tp = get(handles.radiobutton_Tp,'Value');
line_pp = get(handles.radiobutton_pp,'Value');
line_Tn = get(handles.radiobutton_Tn,'Value');
line_pn = get(handles.radiobutton_pn,'Value');

%计算透反射系数
rs = -sin(xx - Transmission)./sin(xx + Transmission);
ts = 2*sin(Transmission).*cos(xx)./sin(xx + Transmission);
rp = tan(xx - Transmission)./tan(xx + Transmission);
tp = 2*sin(Transmission).*cos(xx)./(sin(xx + Transmission).*cos(xx - Transmission));

%计算透反射比
ps = rs.*rs;
Ts = n2.*cosd(Transmission)./(n1.*cosd(xx)).*ts.*ts;
pp = rp.*rp;
Tp = n2.*cosd(Transmission)./(n1.*cosd(xx)).*tp.*tp;

%选择光波类型
Model = get(handles.popupmenu_model,'Value');%1为线偏光，2为自然光
if Model == 1 %线偏光
    %绘图

    %透、反射系数部分
    axes(handles.axes1);

    if line_rs == 1
        plot(X,rs,'color','r');
        hold on
    end
    if line_ts == 1
        plot(X,ts,'color','m');
        hold on
    end
    if line_rp == 1
        plot(X,rp,'color','g');
        hold on
    end
    if line_tp == 1
        plot(X,tp,'color','c');
    end

    hold off

    %透、反射比部分
    axes(handles.axes2);

    if line_ps == 1
        plot(X,ps,'b');
        hold on
    end
    if line_Ts == 1
        plot(X,Ts,'y');
        hold on
    end
    if line_pp == 1
        plot(X,pp,'r');
    end
    if line_Tp == 1
        plot(X,Tp,'g');
    end
    hold off
else%自然光
    axes(handles.axes1);
    cla reset
    %set(handles.axes1,'Visible','off')
    pn = (ps + pp)./2;
    Tn = 1 - pn;






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

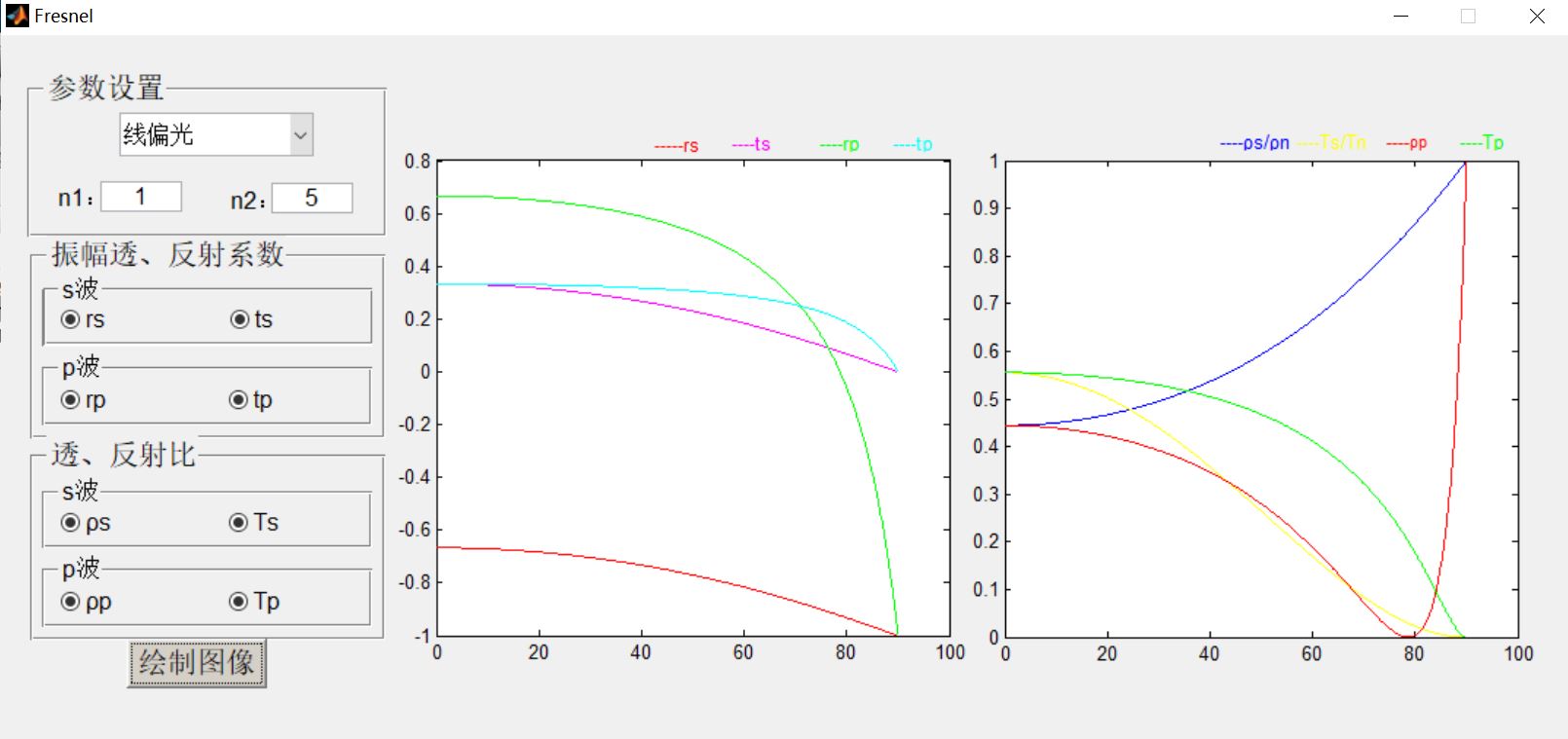

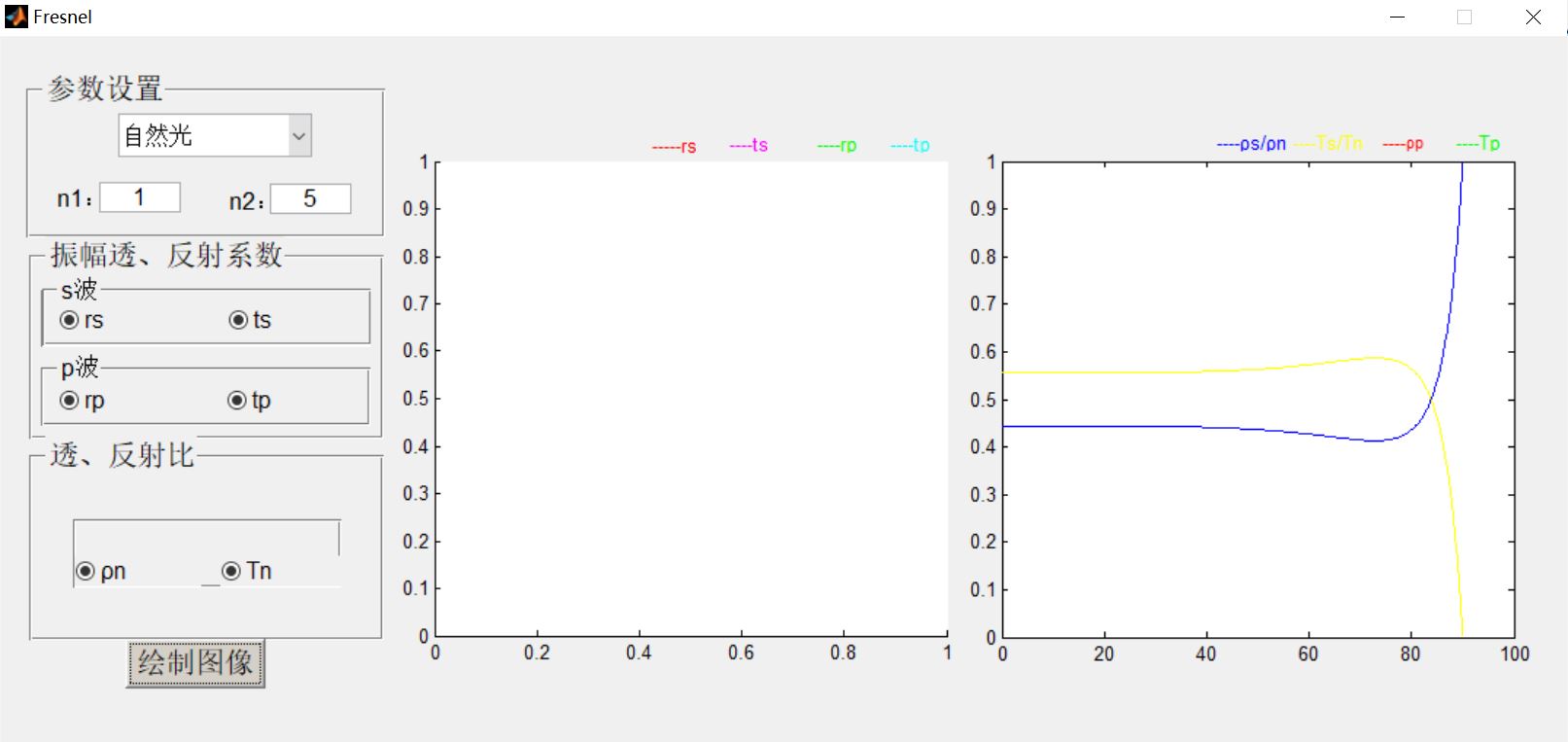

四、运行结果
