【路径规划】基于matlab GUI改进的DWA算法机器人动态避障路径规划【含Matlab源码 1271期】

举报
海神之光 发表于 2022/05/29 02:20:49 2022/05/29
【摘要】 一、DWA算法简介 DWA算法全称为dynamic window approach,其原理主要是在速度空间(v,w)中采样多组速度,并模拟这些速度在一定时间内的运动轨迹,再通过一个评价函数对这些轨迹打分...

一、DWA算法简介

DWA算法全称为dynamic window approach,其原理主要是在速度空间(v,w)中采样多组速度,并模拟这些速度在一定时间内的运动轨迹,再通过一个评价函数对这些轨迹打分,最优的速度被选择出来发送给下位机。
1 原理分析

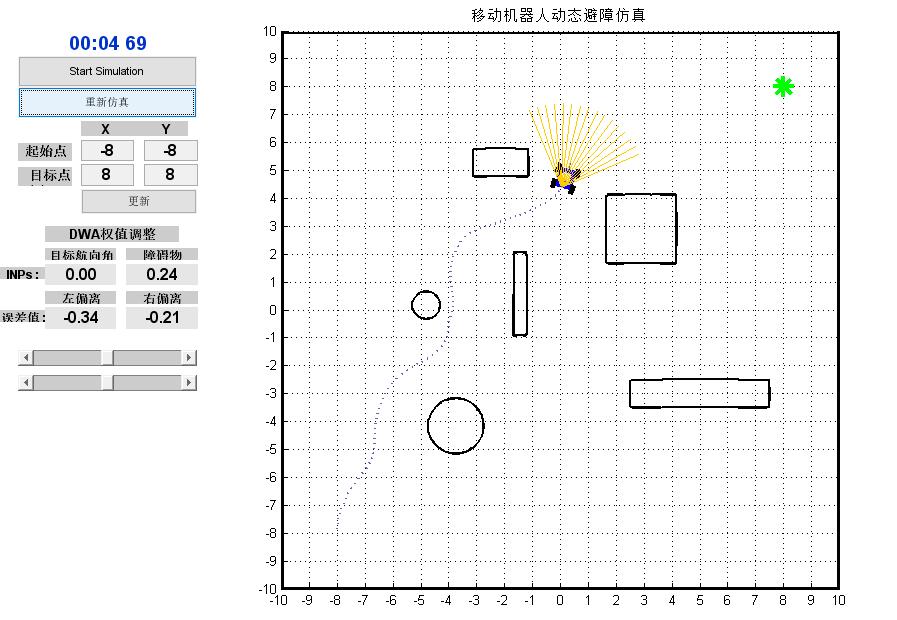

在这里插入图片描述

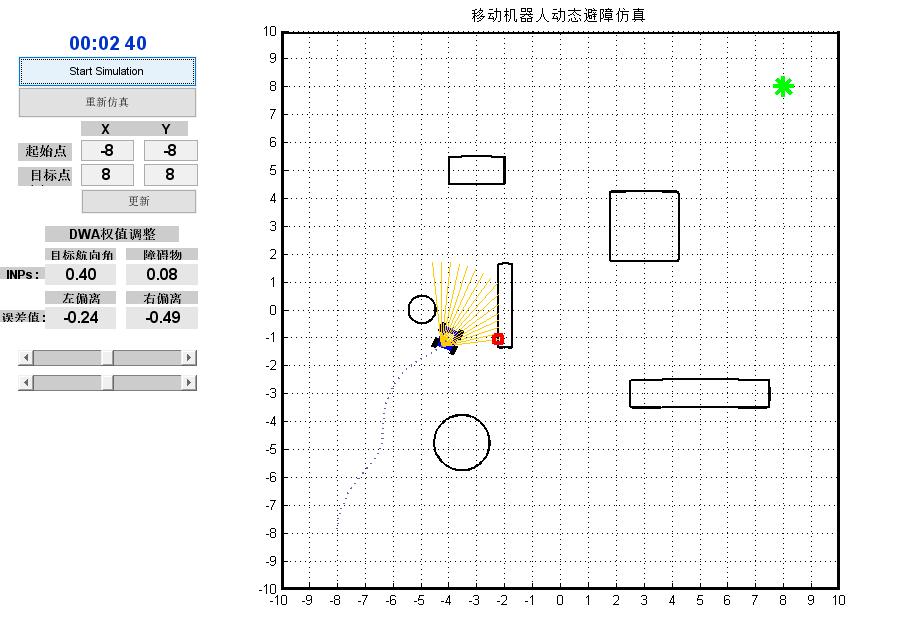

在这里插入图片描述
在这里插入图片描述
2 速度采样

机器人的轨迹运动模型有了,根据速度就可以推算出轨迹。
因此只需采样很多速度,推算轨迹,然后评价这些轨迹好不好就行了。
(一)移动机器人受自身最大速度最小速度的限制
(二) 移动机器人受电机性能的影响:由于电机力矩有限,存在最大的加減速限制,因此移动机器人軌迹前向模拟的周期sim_period内,存在一个动态窗口,在该窗口内的速度是机器人能够实际达到的速度:
(三) 基于移动机器人安全的考虑:为了能够在碰到障碍物前停下来, 因此在最大减速度条件下, 速度有一个范围。

二、部分源代码

function varargout = Simulate(varargin)
clc
SamplingPeriod = 0.1;
time = 0;
timer1 = [];
txt_timer = [];
FuzzyLoaded = 0;
Z1 = [];
Z2 = [];
W_Zone = 20;
H_Zone = 20;


data = importdata ('fuzzytabledata.mat');
OUT1 = data.OUT1;
OUT2 = data.OUT2;
Z1 = reshape(OUT1(102:end,1)',101,[]);
Z2 = reshape(OUT2(102:end,1)',101,[]);
FuzzyLoaded = 1;

scrsz = get(0,'ScreenSize');

% Create a figure that will have a uitable, axes and checkboxes
figure('Position',[15*scrsz(3)/100 70 scrsz(3)-2*(15*scrsz(3)/100) scrsz(4)-100],...
       'WindowStyle', 'normal',...
       'CloseRequestFcn',{@CloseFcn},...
       'Name', '具有动态障碍物的DWA仿真',...  % Title figure
       'NumberTitle', 'off') % Do not show figure number


% figure('Position',[15*scrsz(3)/100 70 scrsz(3)-2*(15*scrsz(3)/100) scrsz(4)-100],...
%        'WindowStyle', 'normal',...
%        'CloseRequestFcn',{@CloseFcn},...
%        'Name', '具有动态障碍物的DWA仿真',...  % Title figure
%        'NumberTitle', 'off',... % Do not show figure number
%        'MenuBar', 'none');      % Hide standard menu bar menus


% Create an axes set x and y limits to the value extremes, and format labels
W_Zone = ceil(W_Zone/10)*10;
H_Zone = ceil(H_Zone/10)*10;
haxes = axes('Units', 'normalized',...
             'Position', [.25 .05 0.75 0.9],...
             'XLim', [-W_Zone/2 W_Zone/2],...
             'YLim', [-H_Zone/2 H_Zone/2],...
             'XLimMode', 'manual',...
             'YLimMode', 'manual',...
             'XTick',-W_Zone/2:1:W_Zone/2,...
             'YTick',-H_Zone/2:1:H_Zone/2);%,...
%              'XTickLabel',...
%              {'-10 m','-5 m','0','5 m','10 m'},...
%              'YTickLabel',...
%              {'-10 m','-5 m','0','5 m','10 m'});
set(haxes,'DataAspectRatio',[1 1 1]);
title(haxes, '移动机器人动态避障仿真')   % Describe data set
% Prevent axes from clearing when new lines or markers are plotted
hold(haxes, 'all')
grid on;

uicontrol('Style', 'pushbutton',...
          'Units', 'normalized',...
          'Position', [.02 .86 .2 .05],...
          'String', '开始仿真',...
          'Value', 0,...
          'Callback', {@StartSimulation});

uicontrol('Style', 'pushbutton',...
          'Units', 'normalized',...
          'Position', [.02 .81 .2 .05],...
          'String', '重新仿真',...
          'Value', 0,...
          'Callback', {@ResetSimulation});

% % Create a text to show timer;
txt_timer = uicontrol('Style', 'text',...
            'Units', 'normalized',...
            'Position', [.02 .915 .2 .035],...
            'FontWeight', 'bold',...
            'ForegroundColor', [0 .2 .8],...
            'fontname', 'Helvetica',...
            'fontsize', 14,...
            'BackgroundColor', 'w', 'String','00:00 00');

% % Create some texts to monitor variables;
txt_inp1 = uicontrol('Style', 'text', 'Units', 'normalized', 'Position', [.05 .54 .08 .035],...
            'FontWeight', 'bold', 'ForegroundColor', [0 0 0], 'fontname', 'Helvetica', 'fontsize', 12, 'BackgroundColor', [0.9 0.9 0.9]);
txt_inp2 = uicontrol('Style', 'text', 'Units', 'normalized', 'Position', [.14 .54 .08 .035],...
            'FontWeight', 'bold', 'ForegroundColor', [0 0 0], 'fontname', 'Helvetica', 'fontsize', 12, 'BackgroundColor', [0.9 0.9 0.9]);
txt_out1 = uicontrol('Style', 'text', 'Units', 'normalized', 'Position', [.05 .47 .08 .035],...
            'FontWeight', 'bold', 'ForegroundColor', [0 0 0], 'fontname', 'Helvetica', 'fontsize', 12, 'BackgroundColor', [0.9 0.9 0.9]);
txt_out2 = uicontrol('Style', 'text', 'Units', 'normalized', 'Position', [.14 .47 .08 .035],...
            'FontWeight', 'bold', 'ForegroundColor', [0 0 0], 'fontname', 'Helvetica', 'fontsize', 12, 'BackgroundColor', [0.9 0.9 0.9]);



uicontrol('Style', 'text','Units', 'normalized', 'Position', [.05 .61 .15 .025],...
            'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 10,...
            'BackgroundColor', [0.8 0.8 0.8], 'String', 'DWA权值调整');

uicontrol('Style', 'text','Units', 'normalized', 'Position', [.00 .55 .05 .02],...
            'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 9,...
            'BackgroundColor', [0.8 0.8 0.8], 'String', 'INPs :');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.00 .48 .05 .02],...
            'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 9,...
            'BackgroundColor', [0.8 0.8 0.8], 'String', '误差值 :');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.05 .58 .08 .02],...
            'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 9,...
            'BackgroundColor', [0.8 0.8 0.8], 'String', '目标航向角');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.14 .58 .08 .02],...
            'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 9,...
            'BackgroundColor', [0.8 0.8 0.8], 'String', '障碍物');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.05 .51 .08 .02],...
            'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 9,...
            'BackgroundColor', [0.8 0.8 0.8], 'String', '左偏离');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.14 .51 .08 .02],...
            'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 9,...
            'BackgroundColor', [0.8 0.8 0.8], 'String', '右偏离');


uicontrol('Style', 'text','Units', 'normalized', 'Position', [.09 .78 .12 .025],...
            'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 10,...
            'BackgroundColor', [0.8 0.8 0.8], 'String', 'X             Y');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.02 .74 .06 .03],...
            'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 10,...
            'BackgroundColor', [0.8 0.8 0.8], 'String', '起始点坐标:');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.02 .7 .06 .03],...
            'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 10,...
            'BackgroundColor', [0.8 0.8 0.8], 'String', '  目标点坐标:');

% % Create a text get Robot X0 Pos;
edit_robot_x0 = uicontrol('Style', 'edit',...
            'Units', 'normalized',...
            'Position', [.09 .74 .06 .035],... %'String',... %'Use Plot check boxes to graph columns',...
            'FontWeight', 'bold',...
            'fontname', 'Helvetica',...
            'fontsize', 12);
% % Create a text get Robot Y0 Pos;
edit_robot_y0 = uicontrol('Style', 'edit',...
            'Units', 'normalized',...
            'Position', [.16 .74 .06 .035],... %'String',... %'Use Plot check boxes to graph columns',...
            'FontWeight', 'bold',...
            'fontname', 'Helvetica',...
            'fontsize', 12);

% % Create a text get Goal X Pos;
edit_goal_x = uicontrol('Style', 'edit',...
            'Units', 'normalized',...
            'Position', [.09 .7 .06 .035],... %'String',... %'Use Plot check boxes to graph columns',...
            'FontWeight', 'bold',...
            'fontname', 'Helvetica',...
            'fontsize', 12);
% % Create a text get Goal Y Pos;
edit_goal_y = uicontrol('Style', 'edit',...
            'Units', 'normalized',...
            'Position', [.16 .7 .06 .035],... %'String',... %'Use Plot check boxes to graph columns',...
            'FontWeight', 'bold',...
            'fontname', 'Helvetica',...
            'fontsize', 12);

uicontrol('Style', 'pushbutton',...
          'Units', 'normalized',...
          'Position', [.09 .655 .13 .04],... %'TooltipString', 'Update Values Independently',...
          'String', '更新',...
          'Value', 0,...
          'Callback', {@UpdateParams});

slider_x = uicontrol('Style', 'slider','Units', 'normalized', 'Position', [.02 .41 .2 .025],...
            'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 10,...
            'BackgroundColor', [0.8 0.8 0.8],'Min',0,'Value',1,'Max',2,'SliderStep',[0.01 0.1]);

slider_y = uicontrol('Style', 'slider','Units', 'normalized', 'Position', [.02 .37 .2 .025],...
            'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 10,...
            'BackgroundColor', [0.8 0.8 0.8],'Min',0,'Value',1,'Max',2,'SliderStep',[0.01 0.1]);

% uicontrol('Style', 'pushbutton',...
%           'Units', 'normalized',...
%           'Position', [0.35 .95 .25 .05],... %'TooltipString', 'Update Values Independently',...
%           'String', 'Save Data',...
%           'Value', 0,...
%           'Callback', {@SaveData});


% % Create an invisible marker plot of the data and save handles
% % to the lineseries objects; use this to simulate data brushing.
% % hmkrs = plot([1:10],[1:10].^2, 'LineStyle', 'none',...
% %                     'Marker', 'o',...
% %                     'MarkerFaceColor', 'y',...
% %                     'HandleVisibility', 'off',...
% %                     'Visible', 'on');


% Create three check boxes to toggle plots for columns
% uicontrol('Style', 'checkbox',...
%           'Units', 'normalized',...
%           'Position', [.10 .96 .09 .035],...
%           'TooltipString', 'Check to plot column 1',...
%           'String', 'Col 1',...
%           'Value', 0,...
%           'Callback', {@plot_callback,1});
%
% % Create a text label to say what the checkboxes do
% uicontrol('Style', 'text',...
%           'Units', 'normalized',...
%           'Position', [.025 .955 .06 .035],...
%           'String', 'Plot',...
%           'FontWeight', 'bold');

% Subfuntions implementing the two callbacks
% ------------------------------------------

%     function plot_callback(hObject, eventdata, column)
%     % hObject     Handle to Plot menu
%     % eventdata   Not used
%     % column      Number of column to plot or clear
%
%     colors = {'b','m','r'}; % Use consistent color for lines
%     colnames = get(htable, 'ColumnName');
%     colname = colnames{column};
%     if get(hObject, 'Value')
%         % Turn off the advisory text; it never comes back
%         set(hprompt, 'Visible', 'off')
%         % Obtain the data for that column
%         ydata = get(htable, 'Data');
%         set(haxes, 'NextPlot', 'Add')
%         % Draw the line plot for column
%         plot(haxes, ydata(:,column),...
%             'DisplayName', colname,...
%             'Color', colors{column});
%     else % Adding a line to the plot
%         % Find the lineseries object and delete it
%         delete(findobj(haxes, 'DisplayName', colname))
%     end
%     end

    w = 0.5;
    l = 0.6;
    D = 0.4;

    x0 = -8;
    y0 = -8;
    teta0 = 0;
    Vr0 = 0;
    Vl0 = 0;
    x = x0;
    y = y0;
    teta = teta0;
    Vr = Vr0;
    Vl = Vl0;
    V_MAX = 5;

    x_Goal = 8.;
    y_Goal = 8;

    n_of_obs = 6;

    x_obs0(1) = 3;
    y_obs0(1) = 3;
    x_obs(1) = x_obs0(1);
    y_obs(1) = y_obs0(1);
    w_obs(1) = 2.5;
    h_obs(1) = 2.5;
    n_obs(1) = 50;
    %teta_obs(1) = pi/4;

    x_obs0(2) = -1;
    y_obs0(2) = 0.5;
    x_obs(2) = x_obs0(2);
    y_obs(2) = y_obs0(2);
    w_obs(2) = 0.5;
    h_obs(2) = 3;
    n_obs(2) = 50;
    %teta_obs(2) = pi/4;

    x_obs0(3) = 5;
    y_obs0(3) = -3;
    x_obs(3) = x_obs0(3);
    y_obs(3) = y_obs0(3);
    w_obs(3) = 5;
    h_obs(3) = 1;
    n_obs(3) = 50;
    %teta_obs(3) = pi/4;

    x_obs0(4) = -3;
    y_obs0(4) = 5;
    x_obs(4) = x_obs0(4);
    y_obs(4) = y_obs0(4);
    w_obs(4) = 2;
    h_obs(4) = 1;
    n_obs(4) = 50;
    %teta_obs(4) = pi/4;

    x_obs0(5) = -3;
    y_obs0(5) = -5;
    x_obs(5) = x_obs0(5);
    y_obs(5) = y_obs0(5);
    w_obs(5) = 2;
    h_obs(5) = 2;
    n_obs(5) = 2;
    %teta_obs(5) = pi/4;

    x_obs0(6) = -5;
    y_obs0(6) = 1;
    x_obs(6) = x_obs0(6);
    y_obs(6) = y_obs0(6);
    w_obs(6) = 1;
    h_obs(6) = 1;
    n_obs(6) = 2;
    %teta_obs(6) = pi/4;


    counter = 0;
    trace_x = [];
    trace_y = [];


        if(abs(y_obs(jj)-y_obs0(jj)) < get(slider_y,'Value'))
            y_obs(jj) = y_obs(jj) + (cos(time*4+rand(1)*3)*rand(1)*3)*SamplingPeriod;
        else
            y_obs(jj) = y_obs(jj) + (y_obs0(jj)-y_obs(jj))*0.2*SamplingPeriod;
        end

        ss(jj)= max(ss);

        [ss_min,jj] = min(ss);
        if(abs(x_obs(jj)-x_obs0(jj)) < get(slider_x,'Value'))
            x_obs(jj) = x_obs(jj) + ((sin(time*3+rand(1)*2)+0.2*(x-x_obs(jj)))*rand(1)*3)*SamplingPeriod;
        else
            x_obs(jj) = x_obs(jj) + (x_obs0(jj)-x_obs(jj))*0.2*SamplingPeriod;
        end

        if(abs(y_obs(jj)-y_obs0(jj)) < get(slider_y,'Value'))
            y_obs(jj) = y_obs(jj) + (cos(time*4+rand(1)*3)*rand(1)*3)*SamplingPeriod;
        else
            y_obs(jj) = y_obs(jj) + (y_obs0(jj)-y_obs(jj))*0.2*SamplingPeriod;
        end


        %Check Obstacles
        ray_i = 1;
        ray_x = []; ray_y = []; ray_s = []; ray_teta = [];
        rayplot_x = []; rayplot_y = []; rayplot_i = 1;
        for dir = linspace(-pi/4,pi/4,16)
            Obstacle_Found = 0;
            s = 0;
            while(Obstacle_Found==0)
                s = s + 0.02;
                ray_pos = [x + s*sin(teta+dir), y + s*cos(teta+dir)];
                for i = 1:n_of_obs
                    if( (2*(ray_pos(1)-x_obs(i))/w_obs(i))^n_obs(i)+(2*(ray_pos(2)-y_obs(i))/h_obs(i))^n_obs(i) < 1 )
                        Obstacle_Found = 1;
                    end
                end
                if( (2*ray_pos(1)/W_Zone)^100+(2*ray_pos(2)/H_Zone)^100>1 || s>3)
                    Obstacle_Found = 1;
                end
                if(Obstacle_Found==1)
                    ray_x(ray_i) = ray_pos(1);
                    ray_y(ray_i) = ray_pos(2);
                    ray_s(ray_i) = s;
                    ray_teta(ray_i) = dir;
                    rayplot_x(rayplot_i:rayplot_i+2) = [x ray_pos(1) x];
                    rayplot_y(rayplot_i:rayplot_i+2) = [y ray_pos(2) y];
                end
            end
            ray_i = ray_i + 1;
            rayplot_i = rayplot_i + 3;
        end

        j=0;
        if(mod(counter,1)==0)
            cla(haxes);
            robot_extents = [cos(teta) sin(teta) x; -sin(teta) cos(teta) y] * [-w/2,-l/2,1; w/2,-l/2,1; w/2,l/2,1; -w/2,l/2,1; -w/2,-l/2,1; w/2,-l/2,1]';
            plot(haxes,robot_extents(1,:),robot_extents(2,:), 'LineWidth' ,3,'Color',[0 0 1]);
            robot_tyre = [cos(teta) sin(teta) x; -sin(teta) cos(teta) y] * [-w/2-0.1,-l/2-l/4,1; -w/2-0.1,-l/2+l/4,1; w/2+0.1,-l/2-l/4,1; w/2+0.1,-l/2+l/4,1; -w/2-0.1,l/2-l/4,1; -w/2-0.1,l/2+l/4,1; w/2+0.1,l/2-l/4,1; w/2+0.1,l/2+l/4,1; 0,l/2,1; 0,l/2+l/2,1]';
            plot(haxes,robot_tyre(1,1:2),robot_tyre(2,1:2), 'LineWidth' ,4,'Color',[0 0 0]); plot(haxes,robot_tyre(1,3:4),robot_tyre(2,3:4), 'LineWidth' ,4,'Color',[0 0 0]);
            plot(haxes,robot_tyre(1,5:6),robot_tyre(2,5:6), 'LineWidth' ,4,'Color',[0 0 0]); plot(haxes,robot_tyre(1,7:8),robot_tyre(2,7:8), 'LineWidth' ,4,'Color',[0 0 0]);
            plot(haxes,robot_tyre(1,9:10),robot_tyre(2,9:10), 'LineWidth' ,1,'Color',[0.4 0.4 0.4]);

            s = linspace(0,2*pi,360);
            for i = 1:n_of_obs
                x_o = (1./((sin(s)/(h_obs(i)/2)).^n_obs(i) + (cos(s)/(w_obs(i)/2)).^n_obs(i)).^(1/n_obs(i))).*cos(s) + x_obs(i);
                y_o = (1./((sin(s)/(h_obs(i)/2)).^n_obs(i) + (cos(s)/(w_obs(i)/2)).^n_obs(i)).^(1/n_obs(i))).*sin(s) + y_obs(i);
                plot(haxes,x_o,y_o, 'LineWidth' ,2,'Color',[0 0 0]);
                %if(gca == haxes), fill(x_o,y_o,[0.5 0.5 0.5],'LineWidth' ,2); end
            end
            plot(haxes,[-W_Zone/2 W_Zone/2 W_Zone/2 -W_Zone/2 -W_Zone/2],[-H_Zone/2 -H_Zone/2 H_Zone/2 H_Zone/2 -H_Zone/2], 'LineWidth' ,4,'Color',[0 0 0]);
            plot(haxes, rayplot_x, rayplot_y, 'LineWidth' ,1,'Color',[1 0.8 0]);
            plot(haxes, trace_x, trace_y, ':', 'LineWidth' ,2,'Color',[0.4 0.4 0.7]);
            plot(haxes, x_Goal, y_Goal,'*','MarkerSize',15,'MarkerEdgeColor','g','LineWidth',3);
            if(j>0)
                plot(haxes, ray_x(j), ray_y(j),'s','MarkerSize',8,'MarkerEdgeColor','r','LineWidth',3);
            end
            %plot(haxes, [x x_Goal], [y y_Goal],'-.', 'LineWidth' ,1,'Color',[0.8 0.95 0.2]);
        end
    end
    %% create and start timer1 to execute the function Command sequentially.
    timer1 = timer('TimerFcn', @Command, 'Period', SamplingPeriod, 'ExecutionMode', 'fixedRate');





  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
  • 68
  • 69
  • 70
  • 71
  • 72
  • 73
  • 74
  • 75
  • 76
  • 77
  • 78
  • 79
  • 80
  • 81
  • 82
  • 83
  • 84
  • 85
  • 86
  • 87
  • 88
  • 89
  • 90
  • 91
  • 92
  • 93
  • 94
  • 95
  • 96
  • 97
  • 98
  • 99
  • 100
  • 101
  • 102
  • 103
  • 104
  • 105
  • 106
  • 107
  • 108
  • 109
  • 110
  • 111
  • 112
  • 113
  • 114
  • 115
  • 116
  • 117
  • 118
  • 119
  • 120
  • 121
  • 122
  • 123
  • 124
  • 125
  • 126
  • 127
  • 128
  • 129
  • 130
  • 131
  • 132
  • 133
  • 134
  • 135
  • 136
  • 137
  • 138
  • 139
  • 140
  • 141
  • 142
  • 143
  • 144
  • 145
  • 146
  • 147
  • 148
  • 149
  • 150
  • 151
  • 152
  • 153
  • 154
  • 155
  • 156
  • 157
  • 158
  • 159
  • 160
  • 161
  • 162
  • 163
  • 164
  • 165
  • 166
  • 167
  • 168
  • 169
  • 170
  • 171
  • 172
  • 173
  • 174
  • 175
  • 176
  • 177
  • 178
  • 179
  • 180
  • 181
  • 182
  • 183
  • 184
  • 185
  • 186
  • 187
  • 188
  • 189
  • 190
  • 191
  • 192
  • 193
  • 194
  • 195
  • 196
  • 197
  • 198
  • 199
  • 200
  • 201
  • 202
  • 203
  • 204
  • 205
  • 206
  • 207
  • 208
  • 209
  • 210
  • 211
  • 212
  • 213
  • 214
  • 215
  • 216
  • 217
  • 218
  • 219
  • 220
  • 221
  • 222
  • 223
  • 224
  • 225
  • 226
  • 227
  • 228
  • 229
  • 230
  • 231
  • 232
  • 233
  • 234
  • 235
  • 236
  • 237
  • 238
  • 239
  • 240
  • 241
  • 242
  • 243
  • 244
  • 245
  • 246
  • 247
  • 248
  • 249
  • 250
  • 251
  • 252
  • 253
  • 254
  • 255
  • 256
  • 257
  • 258
  • 259
  • 260
  • 261
  • 262
  • 263
  • 264
  • 265
  • 266
  • 267
  • 268
  • 269
  • 270
  • 271
  • 272
  • 273
  • 274
  • 275
  • 276
  • 277
  • 278
  • 279
  • 280
  • 281
  • 282
  • 283
  • 284
  • 285
  • 286
  • 287
  • 288
  • 289
  • 290
  • 291
  • 292
  • 293
  • 294
  • 295
  • 296
  • 297
  • 298
  • 299
  • 300
  • 301
  • 302
  • 303
  • 304
  • 305
  • 306
  • 307
  • 308
  • 309
  • 310
  • 311
  • 312
  • 313
  • 314
  • 315
  • 316
  • 317
  • 318
  • 319
  • 320
  • 321
  • 322
  • 323
  • 324
  • 325
  • 326
  • 327
  • 328
  • 329
  • 330
  • 331
  • 332
  • 333
  • 334
  • 335
  • 336
  • 337
  • 338
  • 339
  • 340
  • 341
  • 342
  • 343
  • 344
  • 345
  • 346
  • 347
  • 348
  • 349
  • 350
  • 351
  • 352
  • 353
  • 354
  • 355
  • 356
  • 357
  • 358
  • 359
  • 360
  • 361
  • 362
  • 363
  • 364
  • 365
  • 366
  • 367
  • 368
  • 369
  • 370
  • 371
  • 372
  • 373
  • 374
  • 375
  • 376
  • 377
  • 378
  • 379
  • 380
  • 381
  • 382
  • 383
  • 384
  • 385
  • 386
  • 387
  • 388
  • 389
  • 390
  • 391
  • 392
  • 393
  • 394
  • 395
  • 396
  • 397
  • 398
  • 399

三、运行结果

在这里插入图片描述
在这里插入图片描述

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 包子阳,余继周,杨杉.智能优化算法及其MATLAB实例(第2版)[M].电子工业出版社,2016.
[2]张岩,吴水根.MATLAB优化算法源代码[M].清华大学出版社,2017.

文章来源: qq912100926.blog.csdn.net,作者:海神之光,版权归原作者所有,如需转载,请联系作者。

原文链接:qq912100926.blog.csdn.net/article/details/119952916

【版权声明】本文为华为云社区用户转载文章,如果您发现本社区中有涉嫌抄袭的内容,欢迎发送邮件进行举报,并提供相关证据,一经查实,本社区将立刻删除涉嫌侵权内容,举报邮箱: cloudbbs@huaweicloud.com
  • 点赞
  • 收藏
  • 关注作者

评论(0

0/1000
抱歉,系统识别当前为高风险访问,暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称,即可参与社区互动!

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。
