【语音识别】基于matlab GUI HMM 1~9数字语音识别（带面板）【含Matlab源码 1393期】

一、隐马尔可夫模型简介

隐马尔可夫模型(Hidden Markov model, HMM)是一种结构最简单的动态贝叶斯网的生成模型，它也是一种著名的有向图模型。它是典型的自然语言中处理标注问题的统计机器学模型，本文将重点介绍这种经典的机器学习模型。
1 引言
假设有三个不同的骰子(6面、4面、8面)，每次先从三个骰子里面选择一个，每个骰子选中的概率为1/3，如下图所示，重复上述过程，得到一串数值[1,6,3,5,2,7]。这些可观测变量组成可观测状态链。同时，在隐马尔可夫模型中还有一条由隐变量组成的隐含状态链，在本例中即骰子的序列。比如得到这串数字骰子的序列可能为[D6, D8, D8, D6, D4, D8]。

隐马尔可夫型示意图如下所示：

图中，箭头表示变量之间的依赖关系。图中各箭头的说明如下：

在任意时刻，观测变量(骰子)仅依赖于状态变量(哪类骰子)，同时t时刻的状态qt仅依赖于t-1时刻的状态qt-1。这就是马尔科夫链，即系统的下一时刻仅由当前状态（无记忆），即“齐次马尔可夫性假设”

2 隐马尔可夫模型的定义
根据上面的例子，这里给出隐马尔可夫的定义。隐马尔科夫模型是关于时序的概率模型，描述由一个隐藏的马尔可夫链随机生成不可观测的状态随机序列，再由各个状态生成一个可观测的随机序列的过程，隐藏的马尔可夫链随机生成的状态序列，称为状态序列(也就上面例子中的D6，D8等)；每个状态生成一个观测，而由此产生的观测随机序列，称为观测序列(也就上面例子中的1，6等)。序列的每个位置又可以看作是一个时刻。
隐马尔可夫模型由初始的概率分布、状态转移概率分布以及观测概率分布确定。具体的形式如下，这里设Q是所有可能的状态的集合，V是所有可能的观测的集合，即有：



3 前向算法


对于步骤一的初始，是初始时刻的状态i1 = q1和观测o1的联合概率。步骤(2) 是前向概率的递推公式，计算到时刻t+1部分观测序列为o1,o2,…,ot,ot+1 且在时刻t+1处于状态qi的前向概率。如上图所示，既然at(j)是得到时刻t观测到o1,o2,…,ot并在时刻t处于状态的qj前向概率，那么at(j)aji就是到时刻t观测到o1,o2,…,ot并在是时刻t处于qj状态而在时刻t+1到达qi状态的联合概率。对于这个乘积在时刻t的所有可能的N个状态求和，其结果就是到时刻t观测为o1,o2,…,ot，并在时刻t+1处于状态qi的联合概率。最后第三步，计算出P(O|lamda)的结果。

当然这里只是介绍了诸多算法中的一种，类似的还有后向算法(大家可以看相关的书籍进行了解)。对于动态规划的解决隐马尔科夫模型预测问题，应用最多的是维特比算法。

二、部分源代码

function varargout = HMM_VoiceRecognation(varargin)
% HMM_VOICERECOGNATION MATLAB code for HMM_VoiceRecognation.fig
%      HMM_VOICERECOGNATION, by itself, creates a new HMM_VOICERECOGNATION or raises the existing
%      singleton*.
%
%      H = HMM_VOICERECOGNATION returns the handle to a new HMM_VOICERECOGNATION or the handle to
%      the existing singleton*.
%
%      HMM_VOICERECOGNATION('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in HMM_VOICERECOGNATION.M with the given input arguments.
%
%      HMM_VOICERECOGNATION('Property','Value',...) creates a new HMM_VOICERECOGNATION or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before HMM_VoiceRecognation_OpeningFcn gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to HMM_VoiceRecognation_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help HMM_VoiceRecognation

% Last Modified by GUIDE v2.5 07-Jan-2022 20:30:18

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @HMM_VoiceRecognation_OpeningFcn, ...
                   'gui_OutputFcn',  @HMM_VoiceRecognation_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before HMM_VoiceRecognation is made visible.
function HMM_VoiceRecognation_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to HMM_VoiceRecognation (see VARARGIN)

% Choose default command line output for HMM_VoiceRecognation
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes HMM_VoiceRecognation wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = HMM_VoiceRecognation_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes on button press in button_choose.
function button_choose_Callback(hObject, eventdata, handles)
% hObject    handle to button_choose (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% fname: 返回文件名
% panme: 返回文件路径名
% index: 选择的文件类型
global fname
global pname
[fname, pname, index] = uigetfile( { '*.wav', '选择语音文件'} ) ;
set( handles.button_reco, 'Enable', 'on' )


% --- Executes on button press in button_reco.
function button_reco_Callback(hObject, eventdata, handles)
% hObject    handle to button_reco (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
global fname
global pname
global str

filename = strcat( pname, '\\', fname ) ;
load('hmm.mat')
% 发音
[ y, fs ] = audioread(filename) ;
sound(y, fs) ;
% 识别
x = wavread(filename);
[x1 x2] = vad(x);
m = mfcc(x);
m = m(x1-2:x2-2,:);
for j=1:10
	pout(j) = viterbi(hmm{j}, m);
end
[d,result_index] = max(pout);
%在static text里显示结果
if result_index == 10



% --- Executes on button press in button_exit.
function button_exit_Callback(hObject, eventdata, handles)
% hObject    handle to button_exit (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
clear all
close

% --- Executes on selection change in listbox1.
function listbox1_Callback(hObject, eventdata, handles)
% hObject    handle to listbox1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: contents = cellstr(get(hObject,'String')) returns listbox1 contents as cell array
%        contents{get(hObject,'Value')} returns selected item from listbox1


% --- Executes during object creation, after setting all properties.
function listbox1_CreateFcn(hObject, eventdata, handles)
% hObject    handle to listbox1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called




function edit1_Callback(hObject, eventdata, handles)
% hObject    handle to edit1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: get(hObject,'String') returns contents of edit1 as text
%        str2double(get(hObject,'String')) returns contents of edit1 as a double


% --- Executes during object creation, after setting all properties.
function edit1_CreateFcn(hObject, eventdata, handles)
% hObject    handle to edit1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: edit controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
    set(hObject,'BackgroundColor','white');
end


% --- Executes on button press in button_clear.
function button_clear_Callback(hObject, eventdata, handles)
% hObject    handle to button_clear (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
function f=enframe(x,win,inc)
%ENFRAME split signal up into (overlapping) frames: one per row. F=(X,WIN,INC)
%
%	F = ENFRAME(X,LEN) splits the vector X up into
%	frames. Each frame is of length LEN and occupies
%	one row of the output matrix. The last few frames of X
%	will be ignored if its length is not divisible by LEN.
%	It is an error if X is shorter than LEN.
%
%	F = ENFRAME(X,LEN,INC) has frames beginning at increments of INC
%	The centre of frame I is X((I-1)*INC+(LEN+1)/2) for I=1,2,...
%	The number of frames is fix((length(X)-LEN+INC)/INC)
%
%	F = ENFRAME(X,WINDOW) or ENFRAME(X,WINDOW,INC) multiplies
%	each frame by WINDOW(:)

%
%

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

nx=length(x);
nwin=length(win);
if (nwin == 1)
   len = win;
else
   len = nwin;
end
if (nargin < 3)
   inc = len;
end
nf = fix((nx-len+inc)/inc);
f=zeros(nf,len);
indf= inc*(0:(nf-1)).';
inds = (1:len);
f(:) = x(indf(:,ones(1,len))+inds(ones(nf,1),:));
if (nwin > 1)
    w = win(:)';
    f = f .* w(ones(nf,1),:);
end









1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

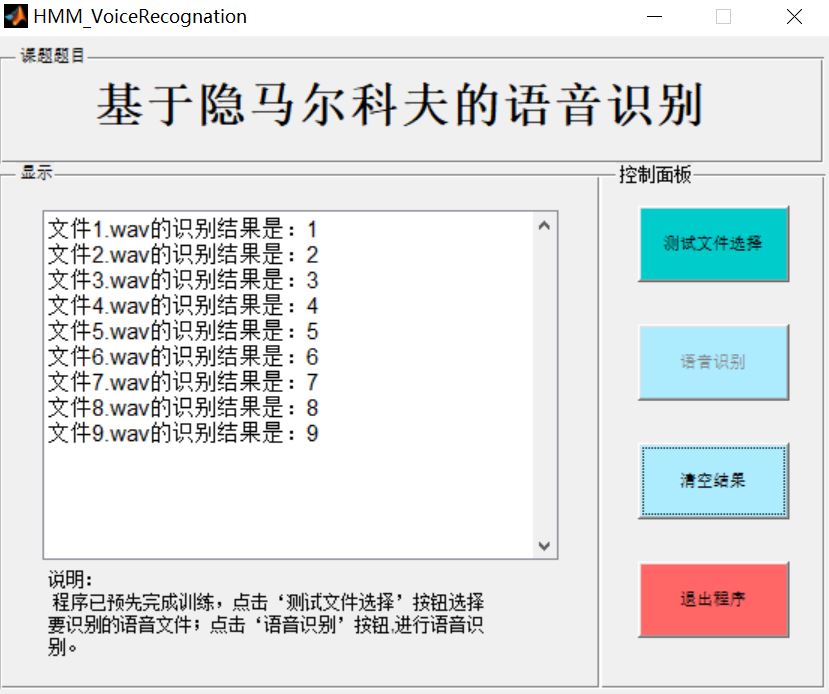

三、运行结果
