【LMS时间序列预测】基于matlab LMS麦基玻璃时间序列预测【含Matlab源码 1443期】

一、获取代码方式

获取代码方式1：
通过订阅紫极神光博客付费专栏，凭支付凭证，私信博主，可获得此代码。

获取代码方式2：
完整代码已上传我的资源：【时间序列预测】基于matlab LMS麦基玻璃时间序列预测【含Matlab源码 1443期】

备注：
订阅紫极神光博客付费专栏，可免费获得1份代码（有效期为订阅日起，三天内有效）；

二、部分源代码

%% Mackey Glass Time Series Prediction Using Least Mean Square (LMS)
%
clc
clear all
close all

%% Loading Time series data
% I generated a series y(t) for t = 0,1, . . . ,3000, using
% mackey glass series equation with the following configurations:
% b = 0.1, a = 0.2, Tau = 20, and the initial conditions y(t - Tau) = 0.
load Dataset\Data.mat

teacher_forcing=1; % recurrent ARMA modelling with forced desired input after defined time steps
%% Training and Testing datasets
% For training
Tr=Data(100:2500,1);    % Selecting a Interval of series data t = 100~2500

Ts=Data(2500:3000,1);   % Selecting a Interval of series data t = 2500~3000
Ys(Ts)=Data(Ts,2);      % Selecting a chuck of series data y(t)

%% LMS Parameters


U=zeros(M+1,1); % Initial values of taps
W=zeros(M+1,1); % Initial weight of LMS

MSE=[];         % Initial mean squared error (MSE)

%% Learning weights of LMS (Training)
tic % start
for t=Tr(1):Tr(end)-time_steps
    U(1:end-1)=U(2:end);    % Shifting of tap window

    if (teacher_forcing==1)
        if rem(t,time_steps)==0 || (t==Tr(1))
            U(end)=Yr(t);           % Input (past/current samples)
        else
            U(end)=Yp(t-1);          % Input (past/current samples)
        end
    else

    end

    Yp(t)=W'*U;                         % Predicted output
    e(t)=Yr(t+time_steps)-Yp(t);        % Error in predicted output

    W=W+eta*e(t)*U;     % Weight update rule of LMS


end
training_time=toc; % total time including training and calculation of MSE

%% Prediction of a next outcome of series using previous samples (Testing)
tic % start
U=U*0;  % Reinitialization of taps (optional)
for t=Ts(1):Ts(end)-time_steps+1


    if (teacher_forcing==1)
        if rem(t,time_steps)==0 || (t==Ts(1))
            U(end)=Ys(t);           % Input (past/current samples)
        else
            U(end)=Yp(t-1);          % Input (past/current samples)
        end
    else
        U(end)=Ys(t);           % Input (past/current samples)
    end


    Yp(t)=W'*U;             % Calculating output (future value)
    e(t)=Ys(t+time_steps-1)-Yp(t);        % Error in predicted output

    E(t)=e(t).^2;   % Current mean squared error (MSE)
end
testing_time=toc; % total time including testing and calculation of MSE

%% Results
figure(1)
plot(Tr,10*log10(E(Tr)));   % MSE curve
hold on
plot(Ts(1:end-time_steps+1),10*log10(E(Ts(1:end-time_steps+1))),'r');   % MSE curve
grid minor

title('Cost Function');
xlabel('Iterations (samples)');
ylabel('Mean Squared Error (MSE)');
legend('Training Phase','Test Phase');

figure(2)

hold on
plot(Tr(2*M:end),Yp(Tr(2*M:end))','r')   % Predicted values during training
plot(Ts,Ys(Ts),'--b');        % Actual unseen data
plot(Ts(1:end-time_steps+1),Yp(Ts(1:end-time_steps+1))','--r');  % Predicted values of mackey glass series (testing)
xlabel('Time: t');
ylabel('Output: Y(t)');
title('Mackey Glass Time Series Prediction Using Least Mean Square (LMS)')
ylim([min(Ys)-0.5, max(Ys)+0.5])
legend('Training Phase (desired)','Training Phase (predicted)','Test Phase (desired)','Test Phase (predicted)');

mitr=10*log10(mean(E(Tr)));  % Minimum MSE of training
mits=10*log10(mean(E(Ts(1:end-time_steps+1))));  % Minimum MSE of testing

display(sprintf('Total training time is %.5f, \nTotal testing time is %.5f \nMSE value during training %.3f (dB),\nMSE value during testing %.3f (dB)', ...
training_time,testing_time,mitr,mits));







1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

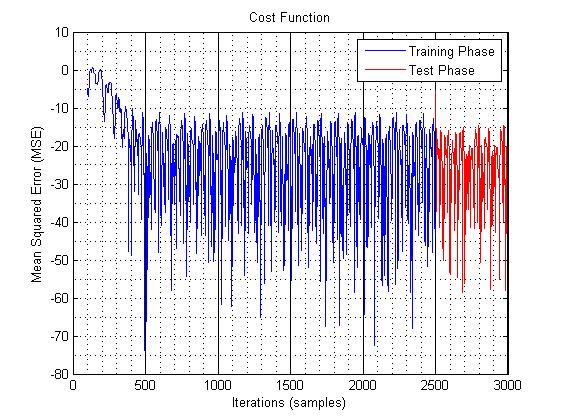

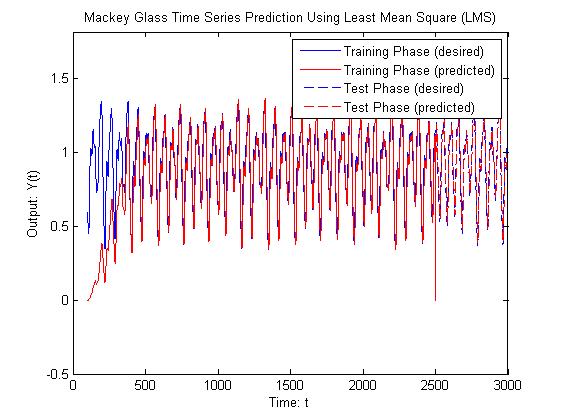

三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 包子阳,余继周,杨杉.智能优化算法及其MATLAB实例（第2版）[M].电子工业出版社，2016.
[2]张岩,吴水根.MATLAB优化算法源代码[M].清华大学出版社，2017.
[3]周品.MATLAB 神经网络设计与应用[M].清华大学出版社，2013.
[4]陈明.MATLAB神经网络原理与实例精解[M].清华大学出版社，2013.
[5]方清城.MATLAB R2016a神经网络设计与应用28个案例分析[M].清华大学出版社，2018.
