【优化算法】多目标粘菌算法（MOSMA）【含Matlab源码 1597期】

一、获取代码方式

获取代码方式1：
通过订阅紫极神光博客付费专栏，凭支付凭证，私信博主，可获得此代码。

获取代码方式2：
完整代码已上传我的资源：【优化算法】多目标粘菌算法（MOSMA）【含Matlab源码 1597期】

备注：订阅紫极神光博客付费专栏，可免费获得1份代码（有效期为订阅日起，三天内有效）；

二、部分源代码

%% Multiple Objective Slime Mould Algorithm (MOSMA)

%% Objective Function
% The objective function description contains information about the
% objective function. M is the dimension of the objective space, D is the
% dimension of decision variable space, LB and UB are the
% range for the variables in the decision variable space. User has to
% define the objective functions using the decision variables. Make sure to
% edit the function 'evaluate_objective' to suit your needs.
clc
clear all
D = 30; % Number of decision variables
M = 2; % Number of objective functions
K=M+D;
LB = ones(1, D).*0; %  LB - A vector of decimal values which indicate the minimum value for each decision variable.
UB = ones(1, D).*1; % UB - Vector of maximum possible values for decision variables.
GEN = 200;  % Set the maximum number of generation (GEN)
ecosize = 200;      % Set the population size (NP)
ishow = 10;
%% Start the evolution process
Pareto = MOSMA(D,M,LB,UB,ecosize,GEN,ishow);
Obtained_Pareto= Pareto(:,D+1:D+M); % extract data to plot
Obtained_Pareto=sortrows(Obtained_Pareto,2);
True_Pareto=load('ZDT3.txt');
%% Plot data
if M == 2
    plot(Obtained_Pareto(:,1),Obtained_Pareto(:,2),'o','LineWidth',2,...
        'MarkerEdgeColor','r','MarkerSize',2);
    hold on
    plot(True_Pareto(:,1),True_Pareto(:,2),'k');
    title('Optimal Solution Pareto Set using MOSMA');
    legend('MOSMA');
    xlabel('F_1');
    ylabel('F_2');
elseif M == 3
    plot3(Obtained_Pareto(:,1),Obtained_Pareto(:,2),Obtained_Pareto(:,3),'o','LineWidth',2,...
        'MarkerEdgeColor','r','MarkerSize',2);
    hold on
    plot3(Obtained_Pareto(:,1),Obtained_Pareto(:,2),Obtained_Pareto(:,3),'.','LineWidth',2,...
        'MarkerEdgeColor','k','MarkerSize',6);
    title('Optimal Solution Pareto Set using MOSMA');
    legend('MOSMA');
    xlabel('F_1');
    ylabel('F_2');
    zlabel('F_3');
end
%%  Metric Value
M_IGD=IGD(Obtained_Pareto,True_Pareto);
M_GD=GD(Obtained_Pareto,True_Pareto);
M_HV=HV(Obtained_Pareto,True_Pareto);
M_Spacing=Spacing(Obtained_Pareto,True_Pareto);
M_Spread=Spread(Obtained_Pareto,True_Pareto);
M_DeltaP=DeltaP(Obtained_Pareto,True_Pareto);
display(['The IGD Metric obtained by MOSMA is     : ', num2str(M_IGD)]);
display(['The GD Metric obtained by MOSMA is      : ', num2str(M_GD)]);
display(['The HV Metric obtained by MOSMA is      : ', num2str(M_HV)]);
display(['The Spacing Metric obtained by MOSMA is : ', num2str(M_Spacing)]);
display(['The Spread Metric obtained by MOSMA is  : ', num2str(M_Spread)]);
display(['The DeltaP Metric obtained by MOSMA is  : ', num2str(M_DeltaP)]);
function [Score,PopObj] = HV(PopObj,PF)
% <metric> <max>
% Hypervolume

%

    % Normalize the population according to the reference point set
    [N,M]  = size(PopObj);
    fmin   = min(min(PopObj,[],1),zeros(1,M));
    fmax   = max(PF,[],1);
    PopObj = (PopObj-repmat(fmin,N,1))./repmat((fmax-fmin)*1.1,N,1);
    PopObj(any(PopObj>1,2),:) = [];
    % The reference point is set to (1,1,...)
    RefPoint = ones(1,M);
    if isempty(PopObj)
        Score = 0;
    elseif M < 4
        % Calculate the exact HV value
        pl = sortrows(PopObj);
        S  = {1,pl};
        for k = 1 : M-1
            S_ = {};
            for i = 1 : size(S,1)
                Stemp = Slice(cell2mat(S(i,2)),k,RefPoint);
                for j = 1 : size(Stemp,1)
                    temp(1) = {cell2mat(Stemp(j,1))*cell2mat(S(i,1))};
                    temp(2) = Stemp(j,2);
                    S_      = Add(temp,S_);
                end
            end
            S = S_;
        end
        Score = 0;
        for i = 1 : size(S,1)
            p     = Head(cell2mat(S(i,2)));
            Score = Score + cell2mat(S(i,1))*abs(p(M)-RefPoint(M));
        end
    else
        % Estimate the HV value by Monte Carlo estimation
        SampleNum = 1000000;
        MaxValue  = RefPoint;
        MinValue  = min(PopObj,[],1);
        Samples   = unifrnd(repmat(MinValue,SampleNum,1),repmat(MaxValue,SampleNum,1));
        if gpuDeviceCount > 0
            % GPU acceleration
            Samples = gpuArray(single(Samples));
            PopObj  = gpuArray(single(PopObj));
        end
        for i = 1 : size(PopObj,1)
            drawnow();
            domi = true(size(Samples,1),1);
            m    = 1;
            while m <= M && any(domi)
                domi = domi & PopObj(i,m) <= Samples(:,m);
                m    = m + 1;
            end
            Samples(domi,:) = [];
        end
        Score = prod(MaxValue-MinValue)*(1-size(Samples,1)/SampleNum);
    end
end






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

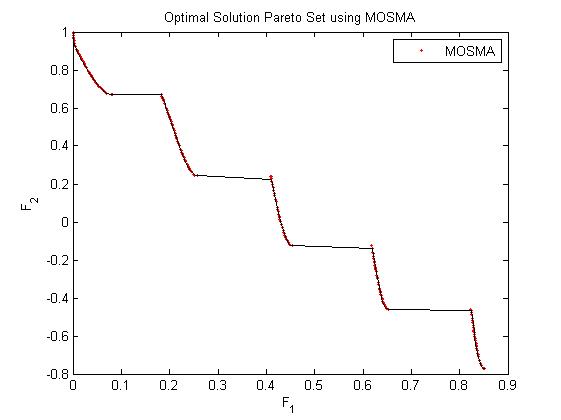

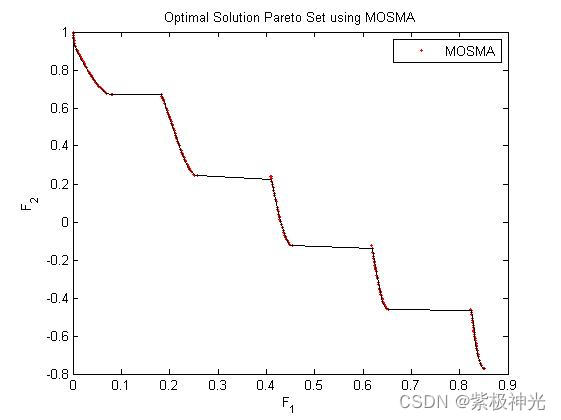

三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 包子阳,余继周,杨杉.智能优化算法及其MATLAB实例（第2版）[M].电子工业出版社，2016.
[2]张岩,吴水根.MATLAB优化算法源代码[M].清华大学出版社，2017.
