【数据融合】基于matlab拓展卡尔曼滤波IMU和GPS数据融合【含Matlab源码 1600期】

一、获取代码方式

获取代码方式1：
完整代码已上传我的资源：【数据融合】基于matlab拓展卡尔曼滤波IMU和GPS数据融合【含Matlab源码 1600期】

获取代码方式2：
通过订阅紫极神光博客付费专栏，凭支付凭证，私信博主，可获得此代码。

备注：订阅紫极神光博客付费专栏，可免费获得1份代码（有效期为订阅日起，三天内有效）；

二、部分源代码

%for testing
clc
clear
close all

pauseLen = 0;

%%Initializations
%TODO: load data here
data = load('lib/IMU_GPS_GT_data.mat');
IMUData = data.imu;
GPSData = data.gpsAGL;
gt = data.gt;

addpath([cd, filesep, 'lib'])
initialStateMean = eye(5);
initialStateCov = eye(9);
deltaT = 1 / 30; %hope this doesn't cause floating point problems

numSteps = 500000;%TODO largest timestamp in GPS file, divided by deltaT, cast to int

results = zeros(7, numSteps);
% time x y z Rx Ry Rz

% sys = system_initialization(deltaT);
Q = blkdiag(eye(3)*(0.35)^2, eye(3)*(0.015)^2, zeros(3));
%IMU noise characteristics
%Using default values from pixhawk px4 controller
%https://dev.px4.io/v1.9.0/en/advanced/parameter_reference.html
%accel: first three values, (m/s^2)^2
%gyro: next three values, (rad/s)^2

filter = filter_initialization(initialStateMean, initialStateCov, Q);

%IMU noise? do in filter initialization

IMUIdx = 1;
GPSIdx = 1;
nextIMU = IMUData(IMUIdx, :); %first IMU measurement
nextGPS = GPSData(GPSIdx, :); %first GPS measurement

%plot ground truth, raw GPS data

% plot ground truth positions
plot3(gt(:,2), gt(:,3), gt(:,4), '.g')
grid on
hold on
% plot gps positions
% plot3(GPSData(:,2), GPSData(:,3), GPSData(:,4), '.b')
axis equal
axis vis3d

counter = 0;
MAXIGPS = 2708;
MAXIIMU = 27050;
isStart = false;

for t = 1:numSteps
    currT = t * deltaT;
    if(currT >= nextIMU(1)) %if the next IMU measurement has happened
%         disp('prediction')
        filter.prediction(nextIMU(2:7));
        isStart = true;
        IMUIdx = IMUIdx + 1;
        nextIMU = IMUData(IMUIdx, :);
%         plot3(filter.mu(1, 5), filter.mu(2, 5), filter.mu(3, 5), 'or');
    end
    if(currT >= nextGPS(1) & isStart) %if the next GPS measurement has happened
%         disp('correction')
        counter = counter + 1;
        filter.correction(nextGPS(2:4));
        GPSIdx = GPSIdx + 1;
        nextGPS = GPSData(GPSIdx, :);
        plot3(nextGPS(2), nextGPS(3), nextGPS(4), '.r');
%         plot3(filter.mu(1, 5), filter.mu(2, 5), filter.mu(3, 5), 'ok');
%         plotPose(filter.mu(1:3, 1:3), filter.mu(1:3, 5), filter.mu(1:3,4));

    end
    results(1, t) = currT;
    results(2:4, t) = filter.mu(1:3, 5); %just position so far
%     plot3(results(2, t), results(3, t), results(4, t), 'or');
%     disp(filter.mu(1:3, 1:3));
    if pauseLen == inf
        pause;
    elseif pauseLen > 0
        pause(pauseLen);
    end
    if IMUIdx >= MAXIIMU || GPSIdx >= MAXIGPS
        break
    end
end
plot3(results(2,:), results(3,:), results(4,:), '.b');
% xlim([-10 10]);
% ylim([-10 10]);
xlabel('x, m');
ylabel('y, m');
zlabel('z, m');

%% Evaluation
gps_score = evaluation(gt, GPSData)

results_eval = results.';
score = 0;
estimation_idx = 1;
count = 0;
for i = 2:length(gt)
    score = score + norm(gt(i, 2:4) - results_eval(30 * (i-1), 2:4)) ^ 2;
    count = count + 1;
end
count
score = sqrt(score / count)



%% Function








1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

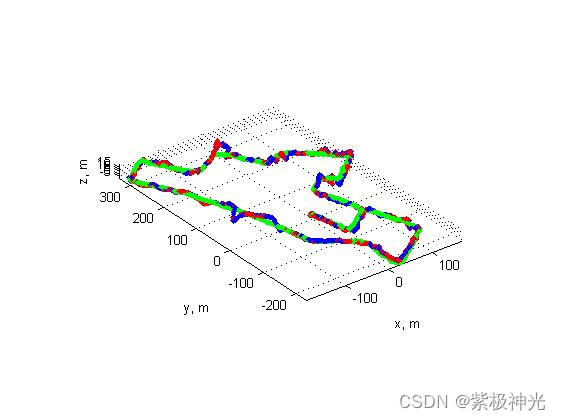

三、运行结果
