【优化算法】水基湍流优化算法（TFWO）【含Matlab源码 1467期】

一、获取代码方式

获取代码方式1：
通过订阅紫极神光博客付费专栏，凭支付凭证，私信博主，可获得此代码。

获取代码方式2：
完整代码已上传我的资源：【优化算法】水基湍流优化算法（TFWO）【含Matlab源码 1467期】

备注：
订阅紫极神光博客付费专栏，可免费获得1份代码（有效期为订阅日起，三天内有效）；

二、部分源代码

% Developed in MATLAB R2010b
% Source code of Turbulent Flow of Water-based Optimization (TFWO)  demo version 1.0
% _____________________________________________________

%
% _____________________________________________________
%% %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

clear all %#ok<CLALL>
close all
clc

Function_name='F5'; % Name of the test function

MaxDecades=3000; % Maximum number of iterations

% Load details of the selected benchmark function
[VarMin,VarMax,nVar,CostFunction]=Get_Functions_details(Function_name);

[BestSol,BestCost] = TFWO (nVar,VarMin,VarMax,CostFunction,MaxDecades);


%Draw objective space
figure(1),
hold on
semilogy(BestCost,'Color','b','LineWidth',4);
title('Convergence curve')
xlabel('Iteration');
ylabel('Best fitness obtained so far');
axis tight
grid off
box on
legend('TFWO')

display(['The best location of TFWO is: ', num2str(BestSol.Position)]);
display(['The best fitness of TFWO is: ', num2str(BestSol.Cost)]);
%  Please refer to the main paper:
% A novel and effective optimization algorithm for global optimization and its engineering applications:
% Turbulent Flow of Water-based Optimization (TFWO)
% Mojtaba Ghasemi, Iraj Faraji Davoudkhani, Ebrahim Akbari, Abolfazl Rahimnejad,Sahand Ghavidel, Li Li
% Future Generation Computer Systems, DOI: https://doi.org/10.1016/j.engappai.2020.103666


function Whirlpool=Effectsofwhirlpools(Whirlpool, Decade)

    global ProblemSettings;
    global TFWOSettings;

    CostFunction=ProblemSettings.CostFunction;
    VarMin=ProblemSettings.VarMin;
    VarMax=ProblemSettings.VarMax;
    nVar=ProblemSettings.nVar;


    for i=1:numel(Whirlpool)
        for j=1:Whirlpool(i).nObW

            if numel(Whirlpool)~=1

                J=[];
                S=[];
                E=[];
                D=[];
        AA = 1:numel(Whirlpool);
        AA(i)=[];
             for t=1:AA

J(t)=(abs(Whirlpool(t).Cost)^1)*((abs(sum(Whirlpool(t).Position))-(sum(Whirlpool(i).Objects(j).Position)))^0.5);

             end
              %%%%%%%%%%%%% min
             S=min(J);
             [ E D]=find(S==J);

             d=rand(1, nVar).*(Whirlpool(D(1)).Position-Whirlpool(i).Objects(j).Position);

             %%%%%%%%%%%%% max
             S2=max(J);
             [ E2 D2]=find(S2==J);
         d2=rand(1, nVar).*(Whirlpool(D2(1)).Position-Whirlpool(i).Objects(j).Position);


                       end

             if numel(Whirlpool)==1

                 d=rand(1, nVar).*(Whirlpool(i).Position-Whirlpool(i).Objects(j).Position);
               d2=0;
               D(1)=i;
             end



Whirlpool(i).Objects(j).delta=Whirlpool(i).Objects(j).delta+ (rand)*rand*pi;

  eee= Whirlpool(i).Objects(j).delta;
  fr0=(cos(eee));
  fr10=(-sin(eee));

x=((fr0.*(d))+(fr10.*(d2)))*(1+abs(fr0*fr10*1));
RR=(Whirlpool(i).Position-x);
   RR =min(max(RR,VarMin),VarMax);
         Cost=CostFunction(RR ) ;
         if  Cost<= Whirlpool(i).Objects(j).Cost
          Whirlpool(i).Objects(j).Cost=Cost;
           Whirlpool(i).Objects(j).Position=RR;
         end
%%%%%%%%%%Pseudo-code 3:
FE_i=(abs(cos(Whirlpool(i).Objects(j).delta)^2*sin(Whirlpool(i).Objects(j).delta)^2))^2;

%              Q=Q^(2);


    if rand<(FE_i)
          k=randi([1 nVar]);


Whirlpool(i).Objects(j).Position(k)=unifrnd(VarMin(k),VarMax(k));
Whirlpool(i).Objects(j).Cost=CostFunction(Whirlpool(i).Objects(j).Position);
    end


        end
    end
%%%%%%%%%% Pseudo-code 4:
    J2=[];
                      for t=1:numel(Whirlpool)
            J2(t)=(Whirlpool(t).Cost);

             end
            S2=min(J2);
             [ E2 D2]=find(S2==J2);
             d2=Whirlpool(D2(1)).Position;
    for i=1:numel(Whirlpool)

               J=[];
            E=[];
            D=[];

 for t=1:numel(Whirlpool)
 J(t)=Whirlpool(t).Cost*(abs((sum(Whirlpool(t).Position))-(sum(Whirlpool(i).Position))));

if t==i
    J(t)=inf;
end
             end
             S=min(J);
             [ E D]=find(S==J);
%%%%%%%%%%
Whirlpool(i).delta=Whirlpool(i).delta+ (rand)*rand*pi;
             d=Whirlpool(D(1)).Position-Whirlpool(i).Position;
             fr=abs(cos(Whirlpool(i).delta)+sin(Whirlpool(i).delta));
              x= fr*rand(1, nVar).*(d);


            Whirlpool1(i).Position=Whirlpool(D(1)).Position-x;

           Whirlpool1(i).Position=min(max(Whirlpool1(i).Position,VarMin),VarMax);

            Whirlpool1(i).Cost=CostFunction(Whirlpool1(i).Position);
            %%%%%%Pseudo-code 5:%%selection Whirlpool
            if Whirlpool1(i).Cost<=Whirlpool(i).Cost
                 Whirlpool(i).Position= Whirlpool1(i).Position;
              Whirlpool(i).Cost= Whirlpool1(i).Cost;
            end

    end

                if S2<Whirlpool(D2(1)).Cost
                 Whirlpool(i).Position=  d2;
              Whirlpool(i).Cost= S2;
            end
end








1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

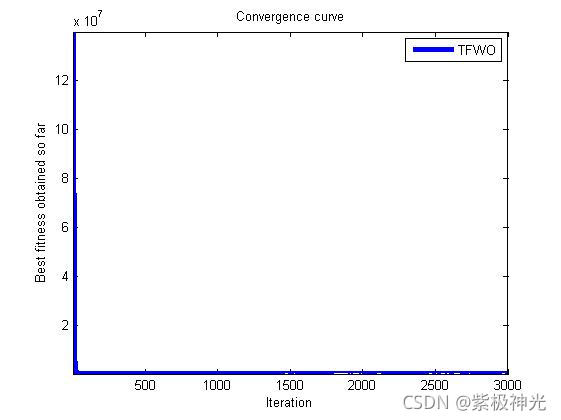

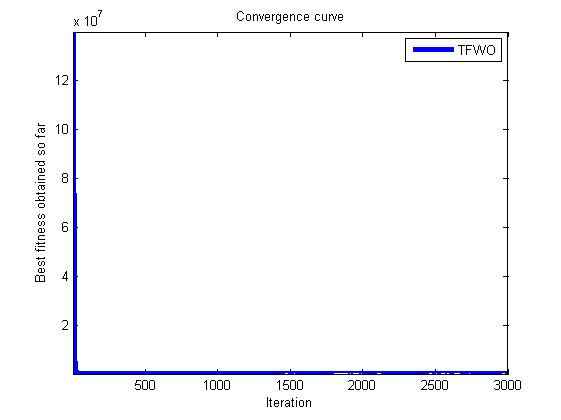

三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 包子阳,余继周,杨杉.智能优化算法及其MATLAB实例（第2版）[M].电子工业出版社，2016.
[2]张岩,吴水根.MATLAB优化算法源代码[M].清华大学出版社，2017.
[3]施媛波.基于改进的群居蜘蛛优化云计算任务调度算法[J].电脑编程技巧与维护. 2021,(04)
