一、案例简介

1 问题模型介绍
弱肉强食问题—Volterra 模型
处于同一自然环境中两个种群之间的关系除了相互竞争和相互依存之外，还有一种更为有趣的生存方式：种群甲靠丰富的天然资源生长，而种群乙则靠掠食甲为生．地中海里的食用鱼与鲨鱼，加拿大森林中的美洲兔与山猫，阿尔卑斯山中的落叶松与芽虫等都是这种生存方式的典型．生态学上种群甲称为食饵 (Prey)，种群乙称为捕食者(Predator)，二者共处组成食饵一捕食者系统(简称P—P 系统)．

2 试题建模过程

2.1 题目理解
根据高中生物所学以及平时日常知识的积累，很容易理解题目的要求。即建立一个存在捕食者与被捕食者（食饵）的系统，以时间为线，查看不同参数下，捕食者和食饵的数量关系的变化情况。步骤应该如下，首先根据自己建立的模型求解出一组能使系统稳定的系数， 即捕食者与被捕食者的数量是呈现周期变化的。再用 MATLAB 工具的一系列画图函数以及动画效果，实际模拟其数量的变化情况，在考虑实际情况的因素下，看仿真结果是否与实际情况相符，若相符则模型建立基本正确，若不成功就需要再改进模型。
我将这个问题具体化，即考虑一片草原上的狼和羊问题，狼群即为题目中的捕食者，且假设狼群离开羊群是不能够生存的；羊群为食饵，羊群有充足的食物资源（草）来生存。
除此之外，通过查阅资料，我发现不仅两种群有着模型，三种群也有这类似的情况，三种群的情况在我的系统仿真模型中也有一定的体现；还有就是我也考虑了种群的自身阻滞作用。

2.2 做题目前的准备工作
在上课的时候，王老师已经讲过了一些实际模型的建立方法以及求解过程。王老师也花了一部分时间，给我们讲解了 MATLAB 的基本用法以及 MATLAB 的GUI 工具。自己在上课的时候课下也基本都一一试过这些操作。再加上原先已经对于MATLAB 有过一定的了解， 所以对于此题目入门还是很快的。

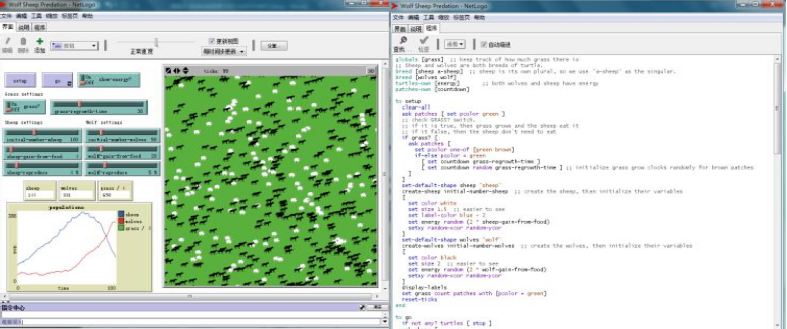

说到自己为什么选择这道题目，自己在大二的暑假自己帮读研究生的表姐做过一个项目，简单来说就是“初期城市建设用地的规划”问题。使用的是 NetLogo 软件。当时在了解这个软件的时候，从 NetLogo 它自带的模型库中找到了一个“狼羊草”问题的模型，自己也是因为这个模型，才将Netlogo 入了门，并且帮助表姐做了一些东西。这个软件的“狼羊草”模型库的界面如下：

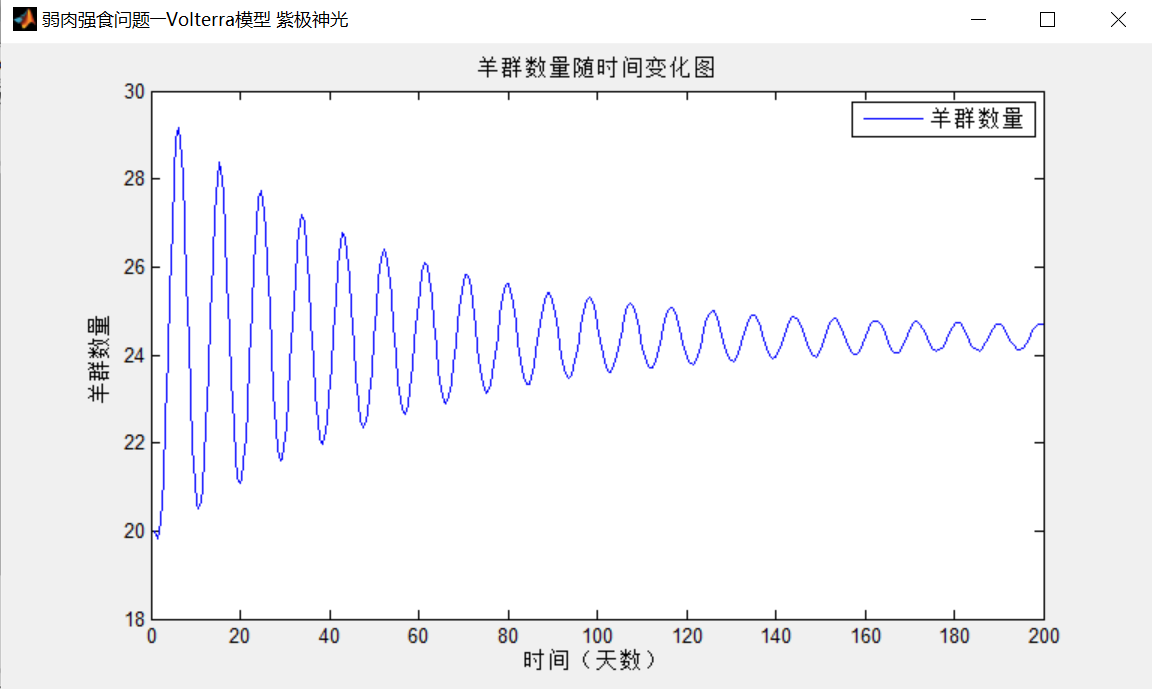

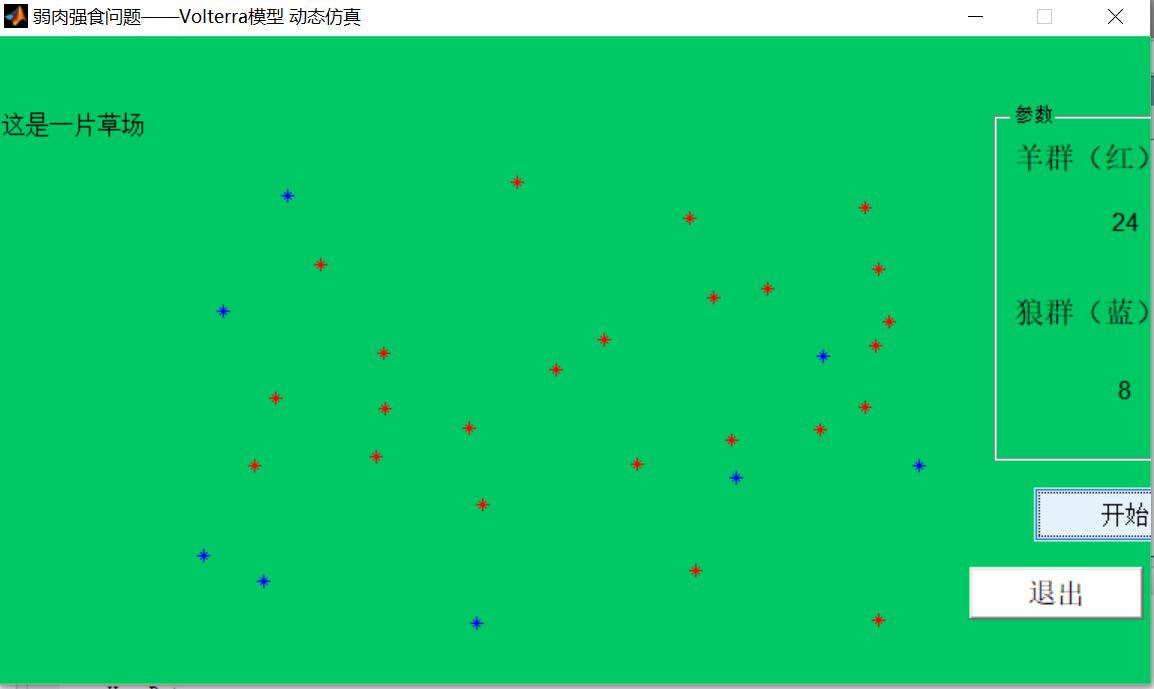

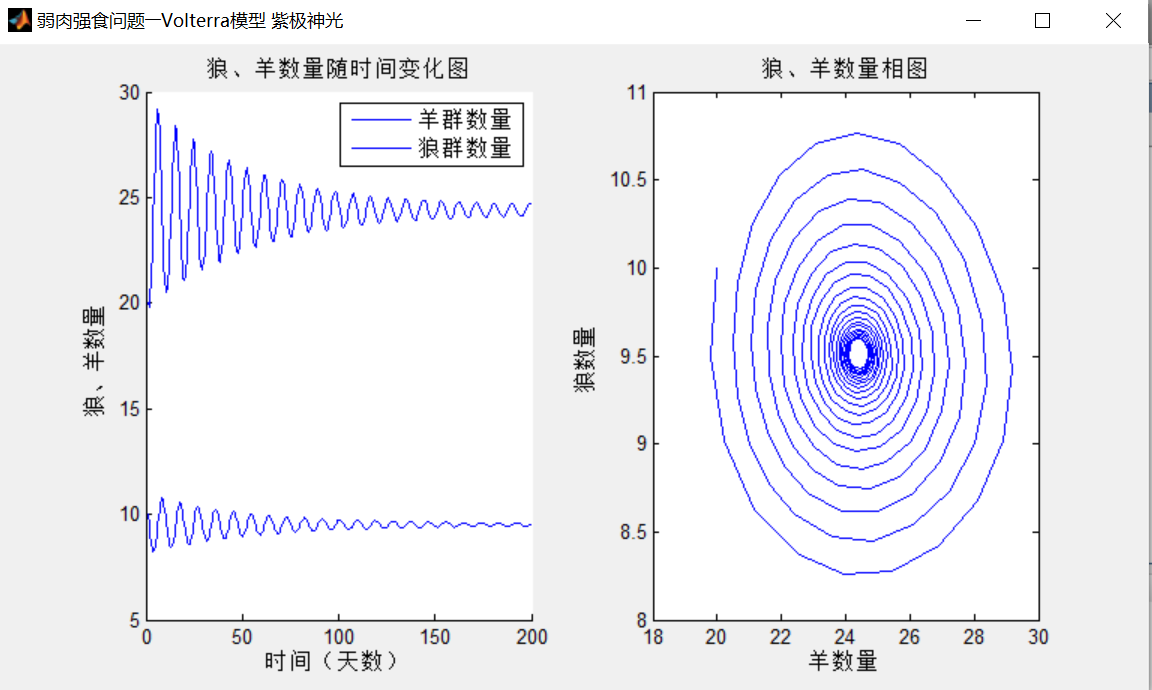

二、部分源代码
