【故障诊断分析】基于matlab GUI小波包能量可视化设计【含Matlab源码 1788期】

一、案例简介

1 借用小波包分解和小波能量熵函数；
2 西储大学轴承故障数据；
3 提取小波能量方便快捷；

二、部分源代码

function varargout = wavlet_package_energy_GUI(varargin)
% WAVLET_PACKAGE_ENERGY_GUI MATLAB code for wavlet_package_energy_GUI.fig
%      WAVLET_PACKAGE_ENERGY_GUI, by itself, creates a new WAVLET_PACKAGE_ENERGY_GUI or raises the existing
%      singleton*.
%
%      H = WAVLET_PACKAGE_ENERGY_GUI returns the handle to a new WAVLET_PACKAGE_ENERGY_GUI or the handle to
%      the existing singleton*.
%
%      WAVLET_PACKAGE_ENERGY_GUI('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in WAVLET_PACKAGE_ENERGY_GUI.M with the given input arguments.
%
%      WAVLET_PACKAGE_ENERGY_GUI('Property','Value',...) creates a new WAVLET_PACKAGE_ENERGY_GUI or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before wavlet_package_energy_GUI_OpeningFcn gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to wavlet_package_energy_GUI_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help wavlet_package_energy_GUI

% Last Modified by GUIDE v2.5 10-Mar-2022 12:18:06

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @wavlet_package_energy_GUI_OpeningFcn, ...
                   'gui_OutputFcn',  @wavlet_package_energy_GUI_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin && ischar(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before wavlet_package_energy_GUI is made visible.
function wavlet_package_energy_GUI_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to wavlet_package_energy_GUI (see VARARGIN)

% Choose default command line output for wavlet_package_energy_GUI
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes wavlet_package_energy_GUI wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = wavlet_package_energy_GUI_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes on selection change in listbox1.
function listbox1_Callback(hObject, eventdata, handles)
% hObject    handle to listbox1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: contents = cellstr(get(hObject,'String')) returns listbox1 contents as cell array
%        contents{get(hObject,'Value')} returns selected item from listbox1


% --- Executes during object creation, after setting all properties.
function listbox1_CreateFcn(hObject, eventdata, handles)
% hObject    handle to listbox1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: listbox controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc && isequal(get(hObject,'BackgroundColor'), get(0,'defaultUicontrolBackgroundColor'))
    set(hObject,'BackgroundColor','white');
end


% --- Executes on selection change in popupmenu1.
function popupmenu1_Callback(hObject, eventdata, handles)
% hObject    handle to popupmenu1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
position1=get(handles.popupmenu1,'value')
if position1==1
load('99.mat');
x=X099_DE_time;
title_1='0号hp=2';
end
if position1==2
position_sub=2;
load('3003.mat');
x=X058_DE_time;
title_1='4号故障hp=2';
end
if position1==3
position_sub=3;
load('248.mat');
x=X248_DE_time;
title_1='7号hp=2： 负载3点位置：';
end
if position1==4
position_sub=4;
load('187.mat');
x=X187_DE_time;
title_1='10号hp=2：';
end
position_sub=2;
figure(1)
plot(x)
grid on
figure(2)
wpt=wpdec(x,4,'db1');
plot(wpt);
for i=0:15
    figure(3);
    rfs=wprcoef(wpt,[4,i]);
    subplot(4,4,i+1);
    plot(rfs);
    grid on;
    title(['[4',num2str(i),']']);
    axis([0 12000 min(rfs) max(rfs)]);
end
for i=0:3
    figure(4);
    rfs=wprcoef(wpt,[4,i]);
    subplot(4,1,i+1);
    plot(rfs);
    grid on;
    title(['[4',num2str(i),']']);
    axis([0 12000 min(rfs) max(rfs)]);
end
for i=1:4
    wpt=wpdec(x,i,'db1');
    e=wenergy(wpt);
    E=zeros(1,length(e));
    for j=1:2^i
        E(j)=sum(abs(wprcoef(wpt,[i,j-1])).^2);
    end
    figure(5)
    subplot(4,1,i);
    bar(e);
    axis([0 length(e) 0 130]);
    title(['第',num2str(i),'层']);
    for j=1:length(e)
        text(j-0.2,e(j)+20,num2str(e(j),'%2.2f'));
    end
   if i==4
       figure(100)
    subplot(4,1,position1);
    bar(e);
    axis([0 length(e) 0 130]);
    title([title_1,'第',num2str(i),'层能量']);
    for j=1:length(e)
        text(j-0.2,e(j)+20,num2str(e(j),'%2.2f'));
    end
   end


end






1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

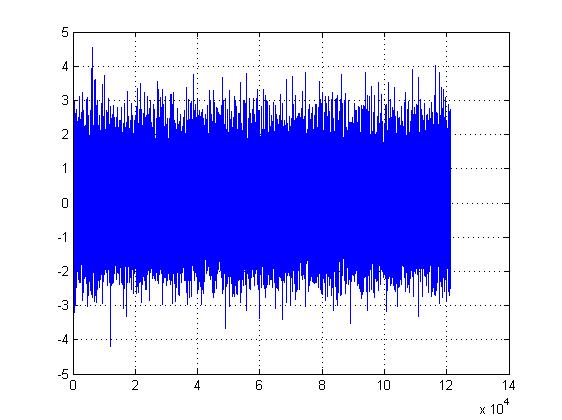

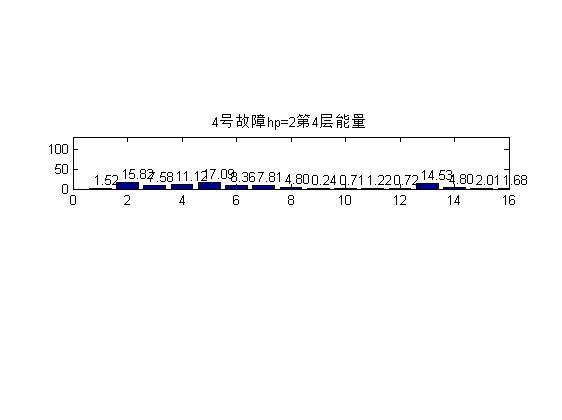

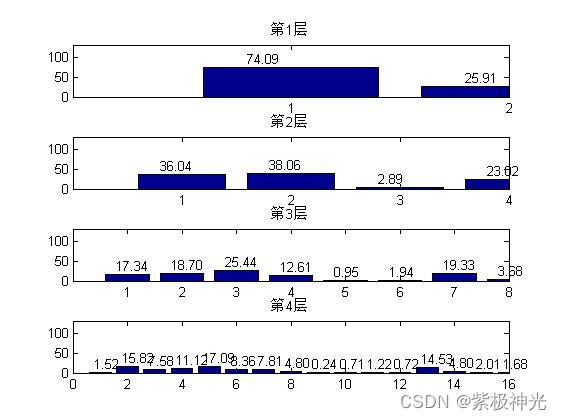

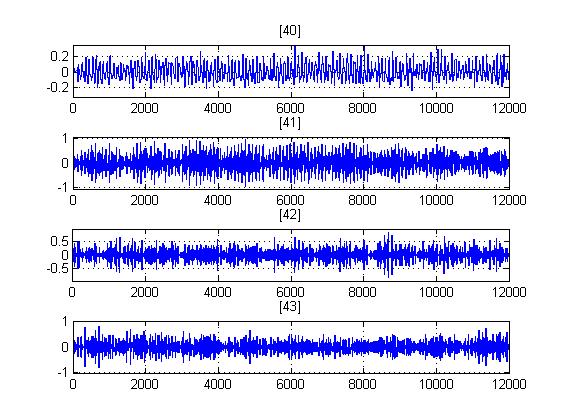

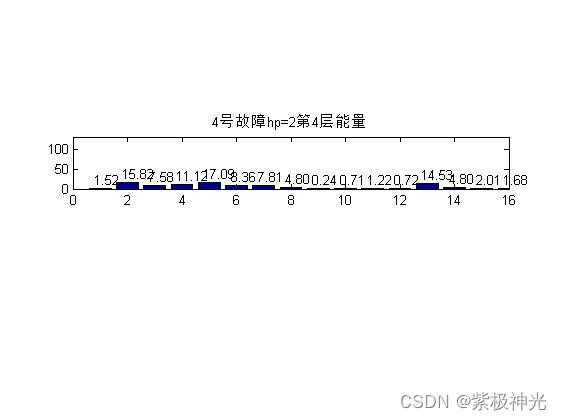

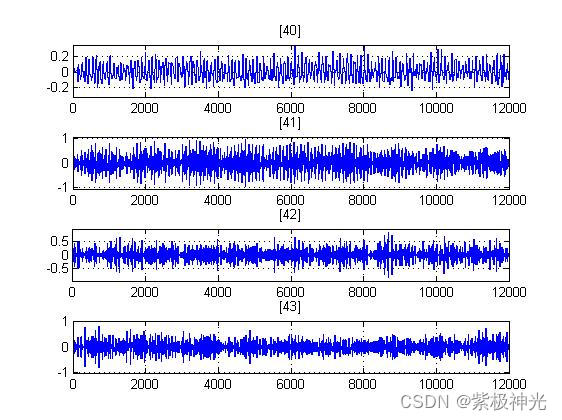

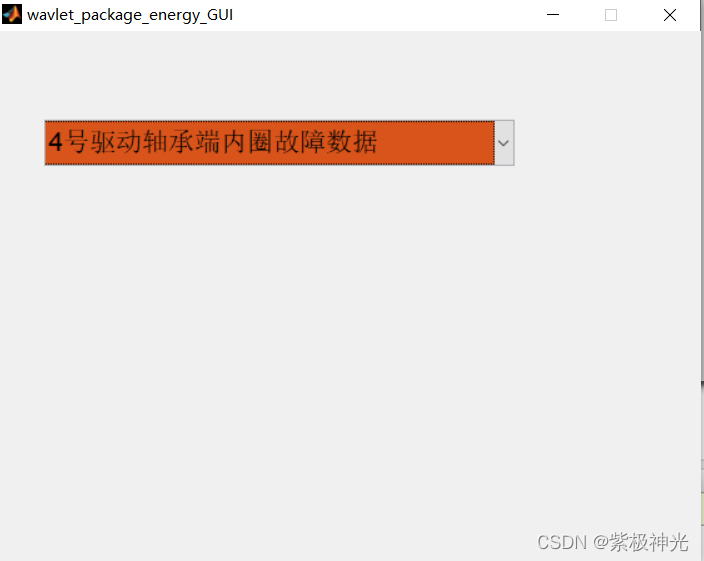

三、运行结果

四、matlab版本及参考文献

1 matlab版本
2014a

2 参考文献
[1] 沈再阳.精通MATLAB信号处理[M].清华大学出版社，2015.
[2]高宝建,彭进业,王琳,潘建寿.信号与系统——使用MATLAB分析与实现[M].清华大学出版社，2020.
[3]王文光,魏少明,任欣.信号处理与系统分析的MATLAB实现[M].电子工业出版社，2018.
