FPGA学习笔记3.3——用Verilog实现七段管可调计时器
【摘要】
设计思路
在3.2的基础上,将时分秒计时器,变成可调的计时器。可以分别对小时、分、秒设定初始值。设定的方法可以采用,从外部输入一个值,比如小时可以从5开始;也可以通过按键把小时当前的值增加或者减少来实现值的调整。
原理图
功能模块代码:
module Ktcllo(clk50,key,clk...
设计思路
在3.2的基础上,将时分秒计时器,变成可调的计时器。可以分别对小时、分、秒设定初始值。
设定的方法可以采用,从外部输入一个值,比如小时可以从5开始;也可以通过按键把小时当前的值增加或者减少来实现值的调整。

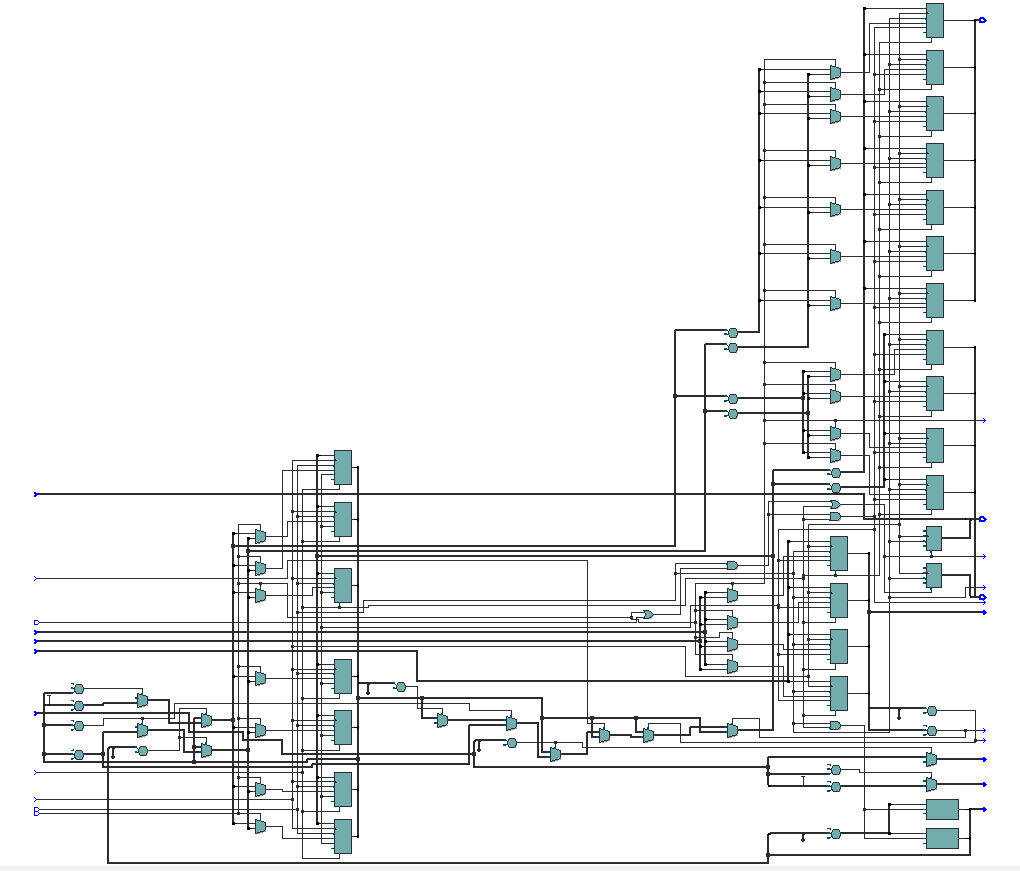

原理图
功能模块代码:
-
module Ktcllo(clk50,key,clk1,out5,out4,out3,out2,out1,out0,flagclk,up,down);
-
input clk50,key,flagclk,up,down; // clk50:输入50MHz信号;key:异步复位信号
-
output clk1; // clk1:新产生的1Hz信号
-
output reg [6:0] out5; // 输出,时_十位
-
output reg [6:0] out4; // 输出,时_个位
-
output reg [6:0] out3; // 输出,分_十位
-
output reg [6:0] out2; // 输出,分_个位
-
output reg [6:0] out1; // 输出,秒_十位
-
output reg [6:0] out0; // 输出,秒_个位
-
reg [6:0] hour=0; // 计数器_时(0-23)
-
reg [6:0] minutes=0; // 计数器_分(0-59)
-
reg [6:0] seconds=0; // 计数器_秒(0-59)
-
reg [3:0] flag=0;
-
-
div_clk dc(clk50,clk1); // 模块调用,50MHz -> 1Hz
-
-
// clk1,上升沿触发;key,异步信号,高电平有效
-
always@(posedge clk1,posedge key,posedge flagclk,posedge up,posedge down)
-
begin
-
// 异步复位
-
if(key)
-
begin
-
hour=0;
-
minutes=0;
-
seconds=0;
-
// 直接输出,方便观察检验结果
-
// 若连接7段管,输出信号用任务 dec_out 转换即可
-
// dec_out(输入:十进制数 , 输出:7位二进制数值,对应7段管显示)
-
// 例:dec_out(hour/10,out5);
-
out5=hour/10;
-
out4=hour%10;
-
out3=minutes/10;
-
out2=minutes%10;
-
out1=seconds/10;
-
out0=seconds%10;
-
end
-
else if(flagclk)//设置
-
begin
-
flag=(flag+1)%4;
-
end
-
else if(up)
-
begin
-
if(flag==1)
-
begin
-
if(hour<23) hour=hour+1;
-
else hour=0;
-
end
-
if(flag==2)
-
begin
-
if(minutes<59) minutes=minutes+1;
-
else minutes=0;
-
end
-
if(flag==3)
-
begin
-
if(seconds<59) seconds=seconds+1;
-
else seconds=0;
-
end
-
out5=hour/10;
-
out4=hour%10;
-
out3=minutes/10;
-
out2=minutes%10;
-
out1=seconds/10;
-
out0=seconds%10;
-
end
-
else if(down)
-
begin
-
if(flag==1)
-
begin
-
if(hour>0) hour=hour-1;
-
else hour=23;
-
end
-
if(flag==2)
-
begin
-
if(minutes>0) minutes=minutes-1;
-
else minutes=59;
-
end
-
if(flag==3)
-
begin
-
if(seconds>0) seconds=seconds-1;
-
else seconds=59;
-
end
-
out5=hour/10;
-
out4=hour%10;
-
out3=minutes/10;
-
out2=minutes%10;
-
out1=seconds/10;
-
out0=seconds%10;
-
end
-
-
// 计数
-
else
-
begin
-
if(seconds<59) seconds=seconds+1;
-
else
-
begin
-
if(seconds==59)
-
begin
-
seconds=0;
-
if(minutes<59) minutes=minutes+1;
-
else
-
begin
-
if(minutes==59)
-
begin
-
minutes=0;
-
if(hour<23) hour=hour+1;
-
else
-
begin
-
if(hour==23) hour=0;
-
end
-
end
-
end
-
end
-
end
-
// 直接输出,方便观察检验结果
-
// 若连接7段管,输出信号用任务 dec_out 转换即可
-
// dec_out(输入:十进制数 , 输出:7位二进制数值,对应7段管显示)
-
// 例:dec_out(hour/10,out5);
-
out5=hour/10;
-
out4=hour%10;
-
out3=minutes/10;
-
out2=minutes%10;
-
out1=seconds/10;
-
out0=seconds%10;
-
end
-
end
-
-
-
-
-
-
-
-
-
-
-
-
// 七段管十进制数显示:将十进制数转换为七段管显示所对应的电平信号
-
task dec_out;
-
input integer decc; // 输入,十进制数
-
output reg[6:0] outt; // 输出,7位二进制数值
-
if(decc==0) outt=7'b1000000; // 七段管显示0
-
else if(decc==1) outt=7'b1111001; // 七段管显示1
-
else if(decc==2) outt=7'b0100100; // 七段管显示2
-
else if(decc==3) outt=7'b0110000; // 七段管显示3
-
else if(decc==4) outt=7'b0011001; // 七段管显示4
-
else if(decc==5) outt=7'b0010010; // 七段管显示5
-
else if(decc==6) outt=7'b0000010; // 七段管显示6
-
else if(decc==7) outt=7'b1111000; // 七段管显示7
-
else if(decc==8) outt=7'b0000000; // 七段管显示8
-
else if(decc==9) outt=7'b0011000; // 七段管显示9
-
else outt=7'b1111111; // 七段管不显示
-
endtask
-
-
endmodule
-
-
// **分频电路模块 50MHz -> 1Hz**
-
// 50MHz = 2*10^-8 s = 20ns
-
// 1Hz = 1s
-
// 1s/20ns = 5*10^7,即1Hz信号的一个周期包含50MHz信号的5*10^7个周期
-
// (5*10^7)/2 = 25000000,产生1Hz信号时,每过25000000个周期翻转一次
-
module div_clk(clk50,clk1);
-
input clk50; // clk50:输入的50MHz信号
-
output reg clk1=1; // clk1: 产生的1Hz信号,赋初始值为1
-
integer i=0; // 50MHz频率下,周期计数器
-
always@(posedge clk50) // clk50上升沿触发
-
begin
-
if(i==250) // 每过25000000个周期
-
begin
-
i=0;
-
clk1=~clk1; // clk1翻转
-
end
-
else i=i+1;
-
end
-
endmodule
测试模块代码:
-
// Copyright (C) 2017 Intel Corporation. All rights reserved.
-
// Your use of Intel Corporation's design tools, logic functions
-
// and other software and tools, and its AMPP partner logic
-
// functions, and any output files from any of the foregoing
-
// (including device programming or simulation files), and any
-
// associated documentation or information are expressly subject
-
// to the terms and conditions of the Intel Program License
-
// Subscription Agreement, the Intel Quartus Prime License Agreement,
-
// the Intel FPGA IP License Agreement, or other applicable license
-
// agreement, including, without limitation, that your use is for
-
// the sole purpose of programming logic devices manufactured by
-
// Intel and sold by Intel or its authorized distributors. Please
-
// refer to the applicable agreement for further details.
-
-
// *****************************************************************************
-
// This file contains a Verilog test bench template that is freely editable to
-
// suit user's needs .Comments are provided in each section to help the user
-
// fill out necessary details.
-
// *****************************************************************************
-
// Generated on "04/07/2022 11:09:36"
-
-
// Verilog Test Bench template for design : Ktcllo
-
//
-
// Simulation tool : ModelSim-Altera (Verilog)
-
//
-
-
`timescale 1 ps/ 1 ps
-
module Ktcllo_vlg_tst();
-
// constants
-
// general purpose registers
-
reg eachvec;
-
// test vector input registers
-
reg clk50;
-
reg down;
-
reg flagclk;
-
reg key;
-
reg up;
-
// wires
-
wire clk1;
-
wire [6:0] out0;
-
wire [6:0] out1;
-
wire [6:0] out2;
-
wire [6:0] out3;
-
wire [6:0] out4;
-
wire [6:0] out5;
-
-
// assign statements (if any)
-
Ktcllo i1 (
-
// port map - connection between master ports and signals/registers
-
.clk1(clk1),
-
.clk50(clk50),
-
.down(down),
-
.flagclk(flagclk),
-
.key(key),
-
.out0(out0),
-
.out1(out1),
-
.out2(out2),
-
.out3(out3),
-
.out4(out4),
-
.out5(out5),
-
.up(up)
-
);
-
parameter DELAY=20;
-
// 半个周期翻转一次
-
always #(DELAY/2) clk50=~clk50;
-
initial
-
begin
-
// code that executes only once
-
// insert code here --> begin
-
-
// --> end
-
up=0;down=0;
-
key=0;
-
clk50=0;
-
flagclk=0;
-
-
$display("Running testbench");
-
end
-
always
-
// optional sensitivity list
-
// @(event1 or event2 or .... eventn)
-
begin
-
// code executes for every event on sensitivity list
-
// insert code here --> begin
-
$monitor($realtime,,,"%d %d : %d %d : %d %d",out5,out4,out3,out2,out1,out0);
-
@eachvec;
-
// --> end
-
end
-
endmodule
-

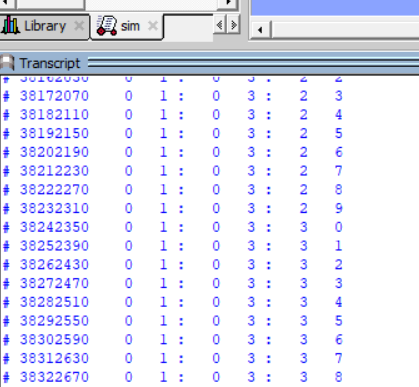

运行图:
下午改进数值显示图
文章来源: blog.csdn.net,作者:渣渣ye,版权归原作者所有,如需转载,请联系作者。
原文链接:blog.csdn.net/yyfloveqcw/article/details/124009141
