Google Earth Engine（GEE）——矢量柱状图和组图

ui.Chart.feature.histogram

ui.Chart.feature.histogram(features, property, maxBuckets, minBucketWidth, maxRaw)

Generates a Chart from a set of features. Computes and plots a histogram of the given property.

- X-axis = Histogram buckets (of property value).

- Y-axis = Frequency (i.e. the number of features whose value of property lands within the x-axis bucket bounds).

Returns a chart.

Arguments:

features (Feature|FeatureCollection|List<Feature>):

The features to include in the chart.

property (String):

The name of the property to generate the histogram for.

maxBuckets (Number, optional):

The maximum number of buckets to use when building a histogram; will be rounded up to a power of 2. Not used when the value of property is non-numeric.

minBucketWidth (Number, optional):

The minimum histogram bucket width, or null to allow any power of 2. Not used when property is non-numeric.

maxRaw (Number, optional):

The number of values to accumulate before building the initial histogram. Not used when property is non-numeric.

Returns: ui.Chart

x 轴由选定属性值范围的值箱定义；y 轴是给定 bin 中的元素数。














       // 加载 PRISM 气候法线图像集合；将图像转换为波段。













       var normClim = ee.ImageCollection('OREGONSTATE/PRISM/Norm81m').toBands();


























       // 为美国西部的一个地区制作气候变量的点样本。













       var region = ee.Geometry.Rectangle(-123.41, 40.43, -116.38, 45.14);













       var climSamp = normClim.sample(region, 5000);


























       // 定义图表并将其打印到控制台。













       var chart =













           ui.Chart.feature//这里柱状图的函数是直接应用的













               .histogram({features: climSamp, property: '07_ppt', maxBuckets: 30})













               .setOptions({

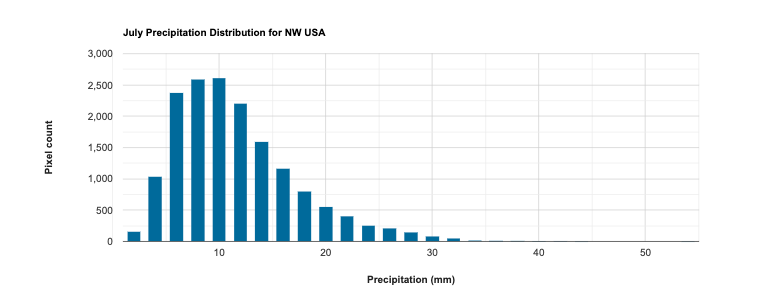

          title: 'July Precipitation Distribution for NW USA',












          hAxis: {












            title: 'Precipitation (mm)',












            titleTextStyle: {italic: false, bold: true}













                 },












          vAxis: {












            title: 'Pixel count',












            titleTextStyle: {italic: false, bold: true}













                 },












          colors: ['1d6b99'],












          legend: {position: 'none'}













               });













       print(chart);





ui.Chart.feature.groups(features, xProperty, yProperty, seriesProperty)

从一组特征生成图表。绘制跨要素组的给定属性的值。具有相同 groupProperty 值的要素将被分组并绘制为单个系列。


Generates a Chart from a set of features. Plots the value of a given property across groups of features. Features with the same value of groupProperty will be grouped and plotted as a single series.

- X-axis = xProperty values.

- Y-axis = yProperty values.

- Series = Feature groups, by seriesProperty.

Returns a chart.

Arguments:

features (Feature|FeatureCollection|List<Feature>):

The features to include in the chart.

xProperty (String):

Property to be used as the label for each feature on the x-axis.

yProperty (String):

Property to be plotted on the y-axis.

seriesProperty (String):

Property used to determine feature groups. Features with the same value of groupProperty will be plotted as a single series on the chart.

Returns: ui.Chart

 特征沿 x 轴绘制，由选定属性的值标记。系列由给定属性的唯一值集定义的列表示。Y 轴位置由给定属性的值定义。通过将图表类型设置为'ScatterChart'( .setChartType('ScatterChart'))，可以将此图更改为散点图 。或者，如果时间为x轴的变量，你可能更愿意使用一个折线图： .setChartType('LineChart')。














      // 导入案例数据资料













      var ecoregions = ee.FeatureCollection('projects/google/charts_feature_example');


























      // 设置图标













      var chart =













          ui.Chart.feature













              .groups({设置组内的信息，












          features: ecoregions,












          xProperty: 'label',












          yProperty: '01_tmean',












          seriesProperty: 'warm'













              })













              .setSeriesNames(['Warm', 'Cold'])













              .setChartType('ColumnChart')













              .setOptions({

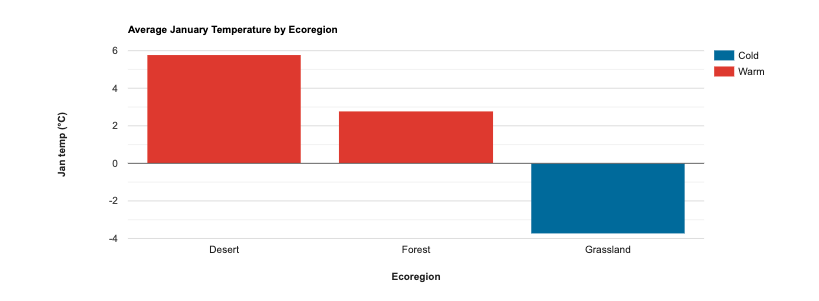

          title: 'Average January Temperature by Ecoregion',












          hAxis:













                    {title: 'Ecoregion', titleTextStyle: {italic: false, bold: true}},












          vAxis: {












            title: 'Jan temp (°C)',












            titleTextStyle: {italic: false, bold: true}













                },












          bar: {groupWidth: '80%'},












          colors: ['cf513e', '1d6b99'],












          isStacked: true













              });













      print(chart);
