Flowable中的任务回退

1.串行的回退

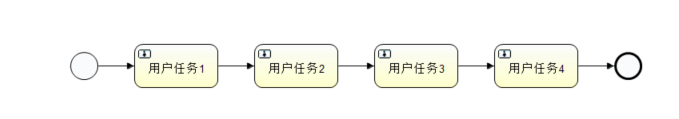

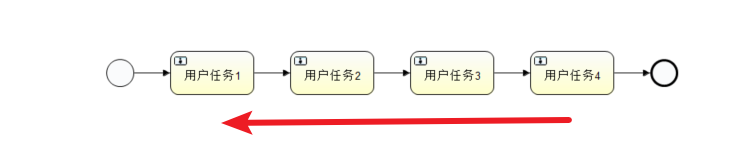

  我们先从最简单的串行流程来分析,案例如下

在这里插入图片描述

完整的xml文件内容:

<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:activiti="http://activiti.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.activiti.org/test">
  <process id="myProcess" name="My process" isExecutable="true">
    <startEvent id="startevent1" name="Start"></startEvent>
    <userTask id="usertask1" name="用户任务1" activiti:assignee="user1"></userTask>
    <sequenceFlow id="flow1" sourceRef="startevent1" targetRef="usertask1"></sequenceFlow>
    <userTask id="usertask2" name="用户任务2" activiti:assignee="user2"></userTask>
    <sequenceFlow id="flow2" sourceRef="usertask1" targetRef="usertask2"></sequenceFlow>
    <userTask id="usertask3" name="用户任务3" activiti:assignee="user3"></userTask>
    <sequenceFlow id="flow3" sourceRef="usertask2" targetRef="usertask3"></sequenceFlow>
    <userTask id="usertask4" name="用户任务4" activiti:assignee="user4"></userTask>
    <sequenceFlow id="flow4" sourceRef="usertask3" targetRef="usertask4"></sequenceFlow>
    <endEvent id="endevent1" name="End"></endEvent>
    <sequenceFlow id="flow5" sourceRef="usertask4" targetRef="endevent1"></sequenceFlow>
  </process>
  <bpmndi:BPMNDiagram id="BPMNDiagram_myProcess">
    <bpmndi:BPMNPlane bpmnElement="myProcess" id="BPMNPlane_myProcess">
      <bpmndi:BPMNShape bpmnElement="startevent1" id="BPMNShape_startevent1">
        <omgdc:Bounds height="35.0" width="35.0" x="390.0" y="260.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="usertask1" id="BPMNShape_usertask1">
        <omgdc:Bounds height="55.0" width="105.0" x="470.0" y="250.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="usertask2" id="BPMNShape_usertask2">
        <omgdc:Bounds height="55.0" width="105.0" x="620.0" y="250.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="usertask3" id="BPMNShape_usertask3">
        <omgdc:Bounds height="55.0" width="105.0" x="770.0" y="250.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="usertask4" id="BPMNShape_usertask4">
        <omgdc:Bounds height="55.0" width="105.0" x="920.0" y="250.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="endevent1" id="BPMNShape_endevent1">
        <omgdc:Bounds height="35.0" width="35.0" x="1070.0" y="260.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNEdge bpmnElement="flow1" id="BPMNEdge_flow1">
        <omgdi:waypoint x="425.0" y="277.0"></omgdi:waypoint>
        <omgdi:waypoint x="470.0" y="277.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow2" id="BPMNEdge_flow2">
        <omgdi:waypoint x="575.0" y="277.0"></omgdi:waypoint>
        <omgdi:waypoint x="620.0" y="277.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow3" id="BPMNEdge_flow3">
        <omgdi:waypoint x="725.0" y="277.0"></omgdi:waypoint>
        <omgdi:waypoint x="770.0" y="277.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow4" id="BPMNEdge_flow4">
        <omgdi:waypoint x="875.0" y="277.0"></omgdi:waypoint>
        <omgdi:waypoint x="920.0" y="277.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow5" id="BPMNEdge_flow5">
        <omgdi:waypoint x="1025.0" y="277.0"></omgdi:waypoint>
        <omgdi:waypoint x="1070.0" y="277.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
</definitions>



  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58

  上面的流程就是一个非常简单的串行任务,定义了4个用户任务,指派的处理人分别是user1,user2,user3,user4.在流程的执行过程中我们可以通过回退来演示具体的效果。首先来部署流程

    /**
     * 部署流程
     */
    @Test
    void testDeploy() throws Exception {
        Deployment deploy = repositoryService.createDeployment()
                .addClasspathResource("任务回退01.bpmn20.xml")
                .name("任务回退01")
                .deploy();
        System.out.println("deploy.getId() = " + deploy.getId());
        System.out.println("deploy.getName() = " + deploy.getName());
        System.out.println("部署开始的时间:" + new Date());
        //TimeUnit.MINUTES.sleep(3);
    }



  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14

然后我们启动一个流程实例。

    /**
     * 启动流程实例
     */
    @Test
    void startProcess(){
        ProcessInstance processInstance = runtimeService
                .startProcessInstanceById("myProcess:1:4");
        System.out.println("processInstance.getId() = " + processInstance.getId());
    }



  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9

在这里插入图片描述

然后我们通过user1完成任务,直到user3完成任务,到user4来处理任务。

    /**
     * 完成任务
     */
    @Test
    void completeTask(){
        Task task = taskService.createTaskQuery()
                .processDefinitionId("myProcess:1:4")
                .taskAssignee("user1")
                .singleResult();
        taskService.complete(task.getId());
    }




  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12

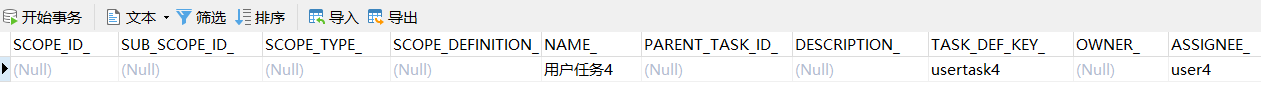

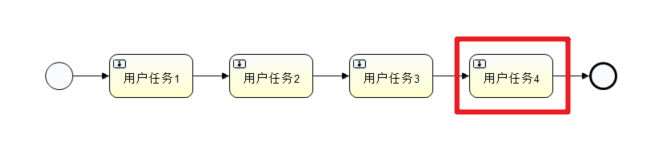

通过上面的多个Task完成操作,现在已经到了user4来处理的节点了

在这里插入图片描述

在这里插入图片描述

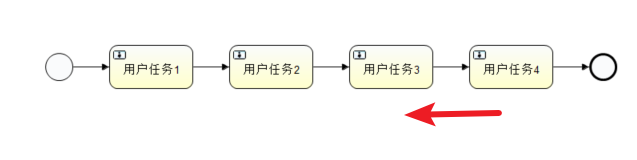

我们先看下从用户任务4回退到用户任务3的操作。

/**
 * 回退操作
 */
@Test
void rollbackTask(){
    // 当前的Task对应的用户任务的Id
    List<String> currentActivityIds = new ArrayList<>();
    currentActivityIds.add("usertask4");
    // 需要回退的目标节点的用户任务Id
    String newActivityId = "usertask3";
    // 回退操作
    runtimeService.createChangeActivityStateBuilder()
            .processInstanceId("2501")
            .moveActivityIdsToSingleActivityId(currentActivityIds,newActivityId)
            .changeState();

}



  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17

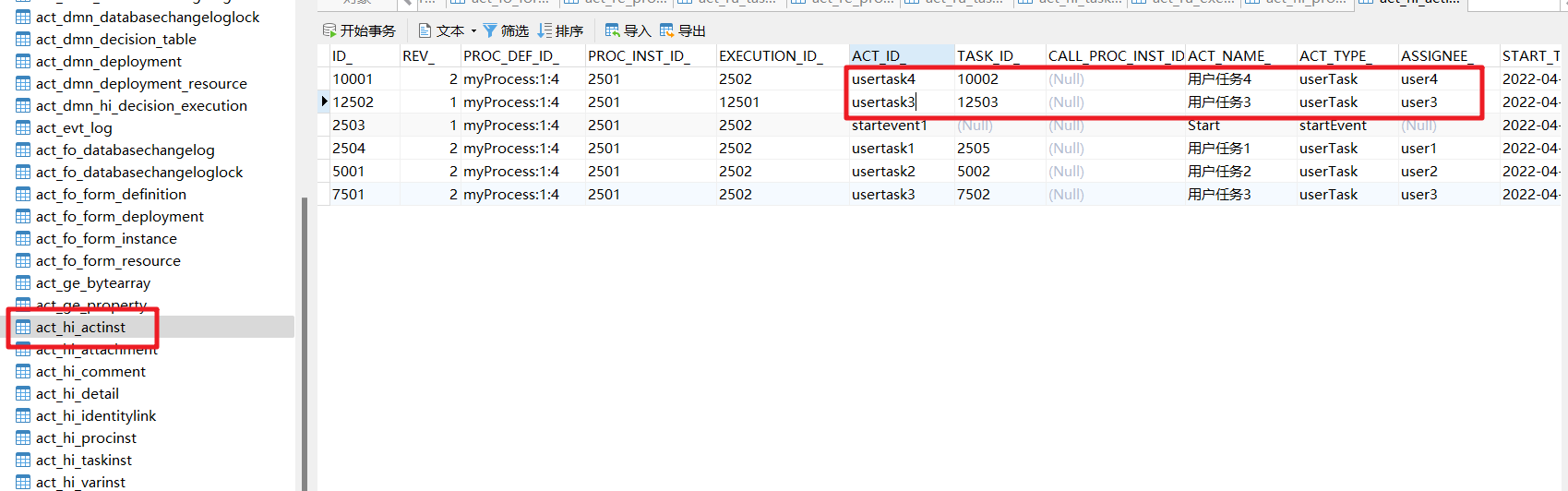

操作后我们可以在对应的历史表中看到相关的信息

在这里插入图片描述

在这里插入图片描述

然后我们通过user3来完成任务继续到user4处理,然后我们可以测试回退到user1处。

在这里插入图片描述

/**
 * 回退操作
 */
@Test
void rollbackTask(){
    // 当前的Task对应的用户任务的Id
    List<String> currentActivityIds = new ArrayList<>();
    currentActivityIds.add("usertask4");
    // 需要回退的目标节点的用户任务Id
    String newActivityId = "usertask1";
    // 回退操作
    runtimeService.createChangeActivityStateBuilder()
            .processInstanceId("2501")
            .moveActivityIdsToSingleActivityId(currentActivityIds,newActivityId)
            .changeState();
}



  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16

在这里插入图片描述

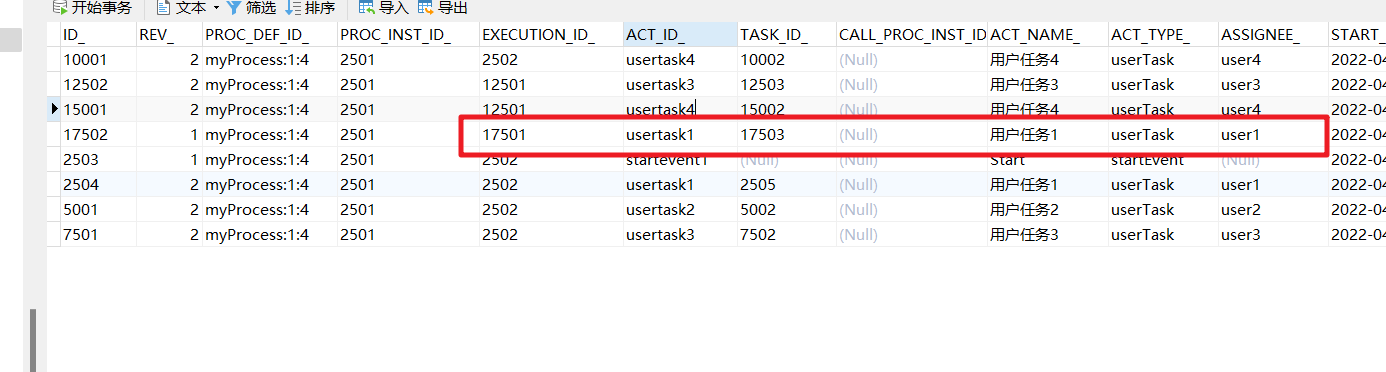

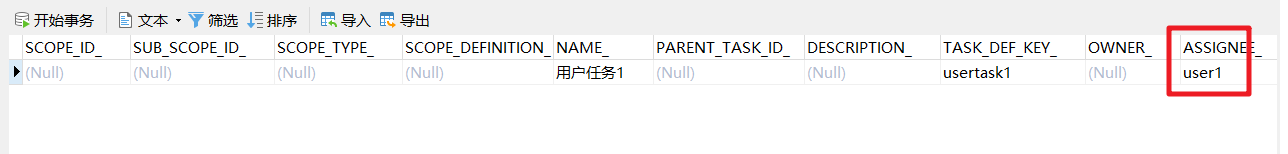

  可以看到任务又回到了user1处。也就是在串行的流程中,我们可以回退到任意的用户节点,当然这个串行也包括多人会签和排他网关节点。当然在回退的时候我们还可以使用moveActivityIdTo(String currentActivityId,String newActivityId)这个方法来处理。

2.并行的回退

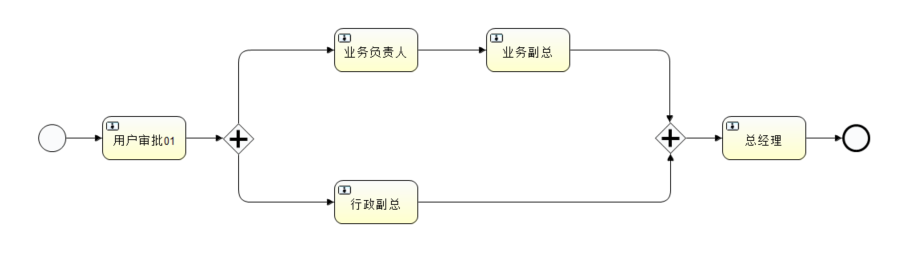

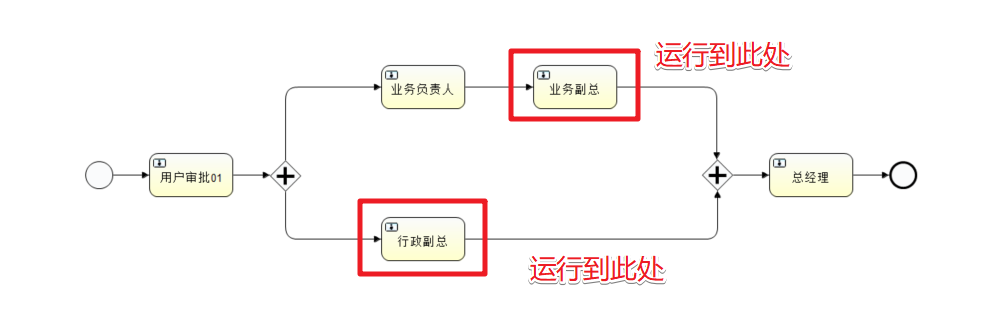

  接下来我们在并行的场景中来看看各种回退的场景。具体案例流程如下:

在这里插入图片描述

详细的xml文件内容:

<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:activiti="http://activiti.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.activiti.org/test">
    <process id="myProcess" name="My process" isExecutable="true">
        <startEvent id="startevent1" name="Start"></startEvent>
        <userTask id="usertask1" name="用户审批01" activiti:assignee="user1"></userTask>
        <sequenceFlow id="flow1" sourceRef="startevent1" targetRef="usertask1"></sequenceFlow>
        <sequenceFlow id="flow2" sourceRef="usertask1" targetRef="parallelgateway1"></sequenceFlow>
        <parallelGateway id="parallelgateway1" name="Exclusive Gateway"></parallelGateway>
        <userTask id="usertask2" name="业务负责人" activiti:assignee="user2"></userTask>
        <sequenceFlow id="flow3" sourceRef="parallelgateway1" targetRef="usertask2"></sequenceFlow>
        <userTask id="usertask3" name="行政副总" activiti:assignee="user4"></userTask>
        <sequenceFlow id="flow4" sourceRef="parallelgateway1" targetRef="usertask3"></sequenceFlow>
        <userTask id="usertask4" name="业务副总" activiti:assignee="user3"></userTask>
        <sequenceFlow id="flow5" sourceRef="usertask2" targetRef="usertask4"></sequenceFlow>
        <sequenceFlow id="flow6" sourceRef="usertask4" targetRef="parallelgateway2"></sequenceFlow>
        <parallelGateway id="parallelgateway2" name="Exclusive Gateway"></parallelGateway>
        <sequenceFlow id="flow7" sourceRef="usertask3" targetRef="parallelgateway2"></sequenceFlow>
        <userTask id="usertask5" name="总经理" activiti:assignee="user5"></userTask>
        <sequenceFlow id="flow8" sourceRef="parallelgateway2" targetRef="usertask5"></sequenceFlow>
        <endEvent id="endevent1" name="End"></endEvent>
        <sequenceFlow id="flow9" sourceRef="usertask5" targetRef="endevent1"></sequenceFlow>
    </process>
    <bpmndi:BPMNDiagram id="BPMNDiagram_myProcess">
        <bpmndi:BPMNPlane bpmnElement="myProcess" id="BPMNPlane_myProcess">
            <bpmndi:BPMNShape bpmnElement="startevent1" id="BPMNShape_startevent1">
                <omgdc:Bounds height="35.0" width="35.0" x="370.0" y="300.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNShape bpmnElement="usertask1" id="BPMNShape_usertask1">
                <omgdc:Bounds height="55.0" width="105.0" x="450.0" y="290.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNShape bpmnElement="parallelgateway1" id="BPMNShape_parallelgateway1">
                <omgdc:Bounds height="40.0" width="40.0" x="600.0" y="298.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNShape bpmnElement="usertask2" id="BPMNShape_usertask2">
                <omgdc:Bounds height="55.0" width="105.0" x="740.0" y="180.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNShape bpmnElement="usertask3" id="BPMNShape_usertask3">
                <omgdc:Bounds height="55.0" width="105.0" x="740.0" y="370.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNShape bpmnElement="usertask4" id="BPMNShape_usertask4">
                <omgdc:Bounds height="55.0" width="105.0" x="930.0" y="180.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNShape bpmnElement="parallelgateway2" id="BPMNShape_parallelgateway2">
                <omgdc:Bounds height="40.0" width="40.0" x="1140.0" y="297.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNShape bpmnElement="usertask5" id="BPMNShape_usertask5">
                <omgdc:Bounds height="55.0" width="105.0" x="1225.0" y="290.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNShape bpmnElement="endevent1" id="BPMNShape_endevent1">
                <omgdc:Bounds height="35.0" width="35.0" x="1375.0" y="300.0"></omgdc:Bounds>
            </bpmndi:BPMNShape>
            <bpmndi:BPMNEdge bpmnElement="flow1" id="BPMNEdge_flow1">
                <omgdi:waypoint x="405.0" y="317.0"></omgdi:waypoint>
                <omgdi:waypoint x="450.0" y="317.0"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="flow2" id="BPMNEdge_flow2">
                <omgdi:waypoint x="555.0" y="317.0"></omgdi:waypoint>
                <omgdi:waypoint x="600.0" y="318.0"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="flow3" id="BPMNEdge_flow3">
                <omgdi:waypoint x="620.0" y="298.0"></omgdi:waypoint>
                <omgdi:waypoint x="620.0" y="207.0"></omgdi:waypoint>
                <omgdi:waypoint x="740.0" y="207.0"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="flow4" id="BPMNEdge_flow4">
                <omgdi:waypoint x="620.0" y="338.0"></omgdi:waypoint>
                <omgdi:waypoint x="620.0" y="397.0"></omgdi:waypoint>
                <omgdi:waypoint x="740.0" y="397.0"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="flow5" id="BPMNEdge_flow5">
                <omgdi:waypoint x="845.0" y="207.0"></omgdi:waypoint>
                <omgdi:waypoint x="930.0" y="207.0"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="flow6" id="BPMNEdge_flow6">
                <omgdi:waypoint x="1035.0" y="207.0"></omgdi:waypoint>
                <omgdi:waypoint x="1159.0" y="207.0"></omgdi:waypoint>
                <omgdi:waypoint x="1160.0" y="297.0"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="flow7" id="BPMNEdge_flow7">
                <omgdi:waypoint x="845.0" y="397.0"></omgdi:waypoint>
                <omgdi:waypoint x="1160.0" y="397.0"></omgdi:waypoint>
                <omgdi:waypoint x="1160.0" y="337.0"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="flow8" id="BPMNEdge_flow8">
                <omgdi:waypoint x="1180.0" y="317.0"></omgdi:waypoint>
                <omgdi:waypoint x="1225.0" y="317.0"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
            <bpmndi:BPMNEdge bpmnElement="flow9" id="BPMNEdge_flow9">
                <omgdi:waypoint x="1330.0" y="317.0"></omgdi:waypoint>
                <omgdi:waypoint x="1375.0" y="317.0"></omgdi:waypoint>
            </bpmndi:BPMNEdge>
        </bpmndi:BPMNPlane>
    </bpmndi:BPMNDiagram>
</definitions>



  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
  • 68
  • 69
  • 70
  • 71
  • 72
  • 73
  • 74
  • 75
  • 76
  • 77
  • 78
  • 79
  • 80
  • 81
  • 82
  • 83
  • 84
  • 85
  • 86
  • 87
  • 88
  • 89
  • 90
  • 91
  • 92
  • 93
  • 94

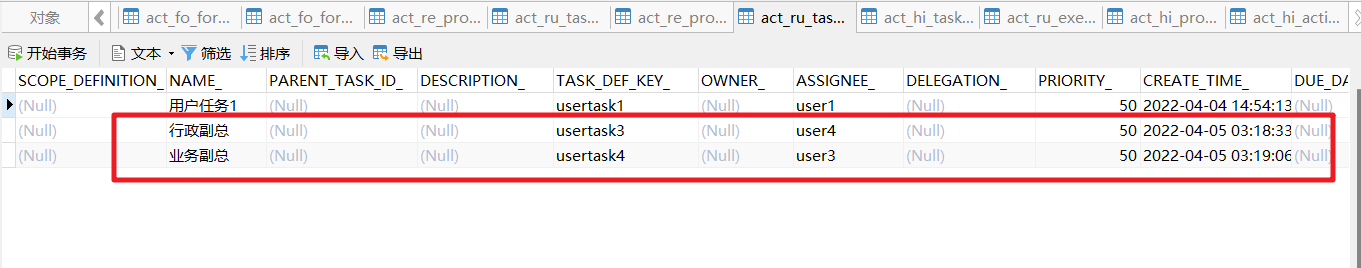

  先部署流程,然后启动并运行到并行流程的节点如下的位置
在这里插入图片描述

  然后我们可以尝试从业务副总处回退到用户审批01处,看看该处理应该要如何实现。

在这里插入图片描述

回退逻辑代码的实现

    /**
     * 回退操作
     *   业务副总驳回到到用户审批处  那么行政审批的也应该要返回
     */
    @Test
    void rollbackTask(){
        // 当前的Task对应的用户任务的Id
        List<String> currentActivityIds = new ArrayList<>();
        currentActivityIds.add("usertask4"); // 行政副总
        currentActivityIds.add("usertask3"); // 业务副总
        // 需要回退的目标节点的用户任务Id
        String newActivityId = "usertask1"; // 用户审批01
        // 回退操作
        runtimeService.createChangeActivityStateBuilder()
                .processInstanceId("22501")
                .moveActivityIdsToSingleActivityId(currentActivityIds,newActivityId)
                .changeState();
    }



  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18

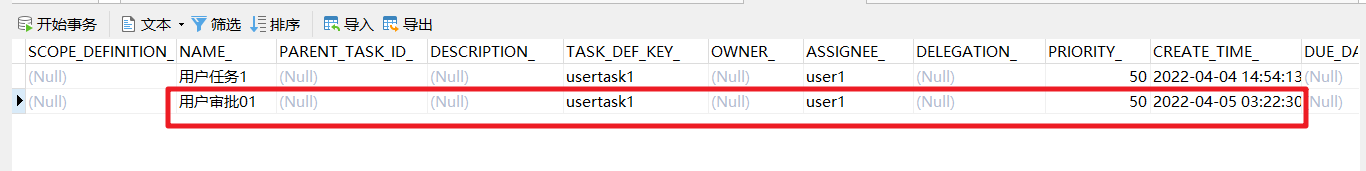

查看ACT_RU_TASK可以看到回到了用户审批01

在这里插入图片描述

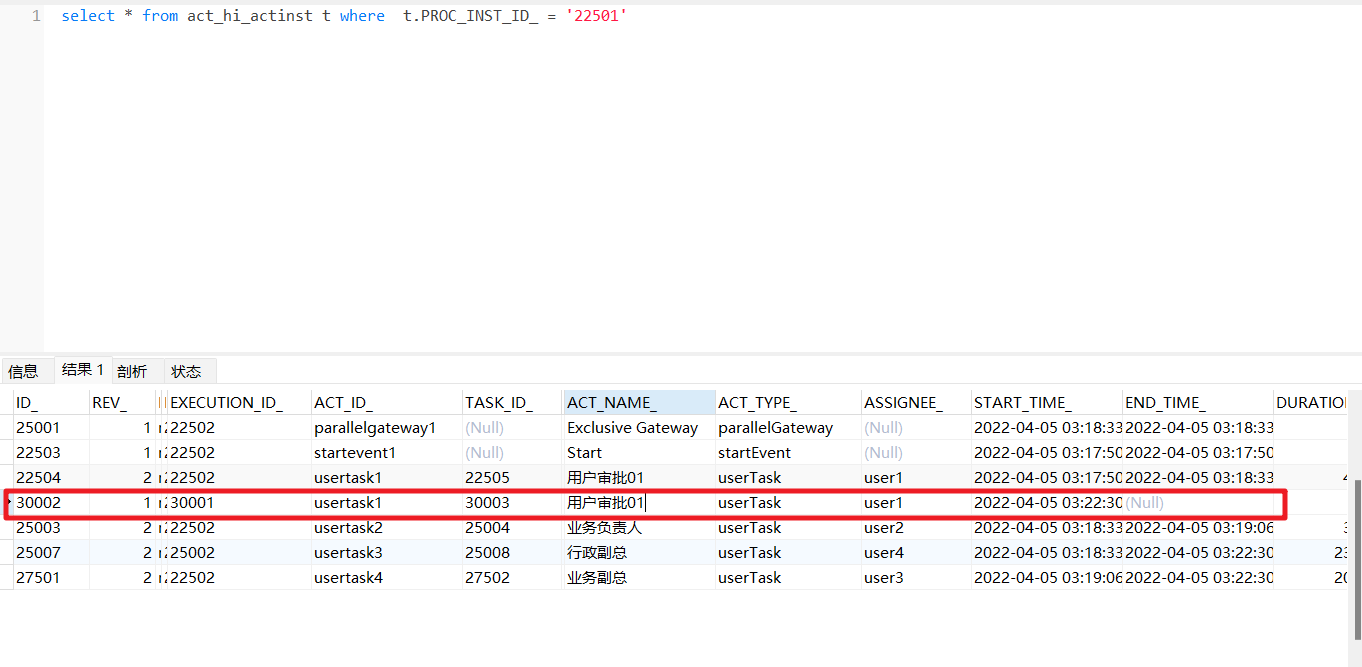

同时在ACT_HI_ACTINS中也可以看到回退的历史操作
在这里插入图片描述

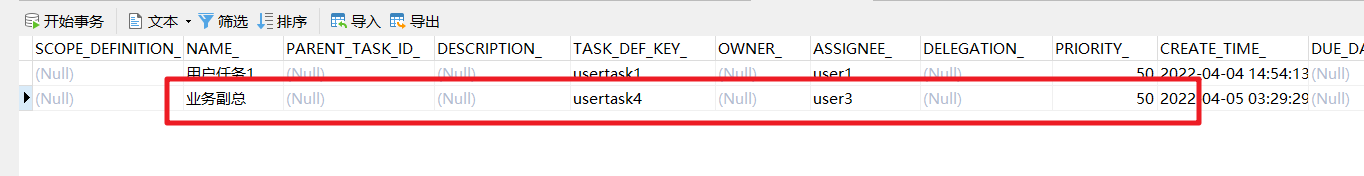

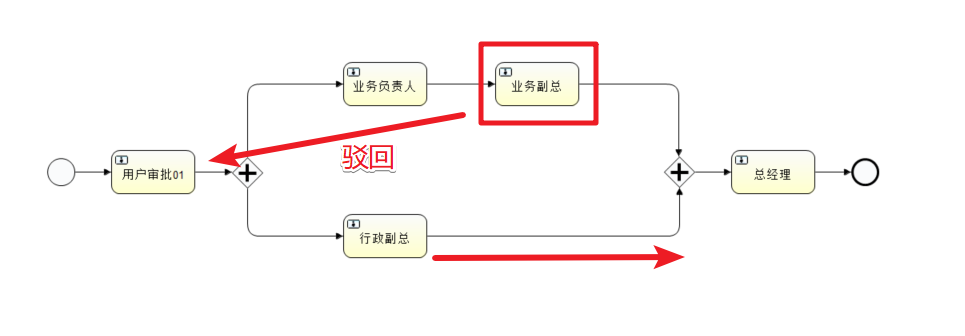

然后再来看看 行政副总的 并行分支执行完成了,然后在 业务副总处审批要驳回的处理

在这里插入图片描述

在这里插入图片描述

    @Test
    void rollbackTask(){
        // 当前的Task对应的用户任务的Id
        List<String> currentActivityIds = new ArrayList<>();
        currentActivityIds.add("usertask4"); // 行政副总
        //currentActivityIds.add("usertask3"); // 业务副总
        // 需要回退的目标节点的用户任务Id
        String newActivityId = "usertask1"; // 用户审批01
        // 回退操作
        runtimeService.createChangeActivityStateBuilder()
                .processInstanceId("22501")
                .moveActivityIdsToSingleActivityId(currentActivityIds,newActivityId)
                .changeState();
    }



  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14

一样的效果

3.子流程回退

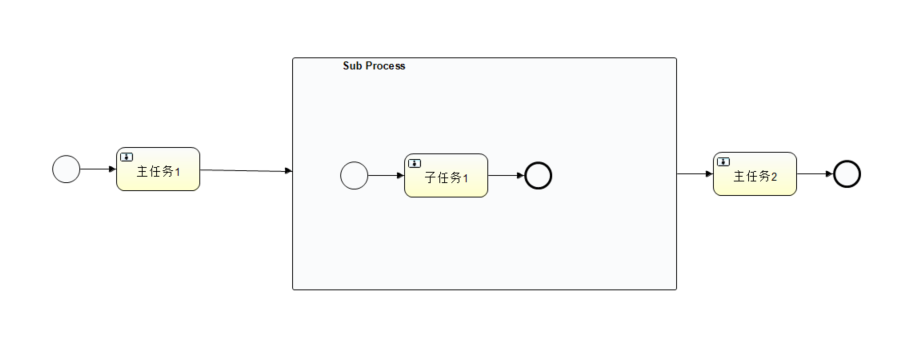

  最后我们来看看带有子流程的场景下如果有回退的情况应该要如何来处理,案例如下:

在这里插入图片描述

完整的xml内容为:

<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:activiti="http://activiti.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.activiti.org/test">
  <process id="myProcess" name="My process" isExecutable="true">
    <startEvent id="startevent1" name="Start"></startEvent>
    <userTask id="usertask1" name="主任务1" activiti:assignee="user1"></userTask>
    <sequenceFlow id="flow1" sourceRef="startevent1" targetRef="usertask1"></sequenceFlow>
    <subProcess id="subprocess1" name="Sub Process">
      <startEvent id="startevent2" name="Start"></startEvent>
      <userTask id="usertask2" name="子任务1" activiti:assignee="user2"></userTask>
      <sequenceFlow id="flow3" sourceRef="startevent2" targetRef="usertask2"></sequenceFlow>
      <endEvent id="endevent1" name="End"></endEvent>
      <sequenceFlow id="flow4" sourceRef="usertask2" targetRef="endevent1"></sequenceFlow>
    </subProcess>
    <sequenceFlow id="flow2" sourceRef="usertask1" targetRef="subprocess1"></sequenceFlow>
    <userTask id="usertask3" name="主任务2" activiti:assignee="user3"></userTask>
    <sequenceFlow id="flow5" sourceRef="subprocess1" targetRef="usertask3"></sequenceFlow>
    <endEvent id="endevent2" name="End"></endEvent>
    <sequenceFlow id="flow6" sourceRef="usertask3" targetRef="endevent2"></sequenceFlow>
  </process>
  <bpmndi:BPMNDiagram id="BPMNDiagram_myProcess">
    <bpmndi:BPMNPlane bpmnElement="myProcess" id="BPMNPlane_myProcess">
      <bpmndi:BPMNShape bpmnElement="startevent1" id="BPMNShape_startevent1">
        <omgdc:Bounds height="35.0" width="35.0" x="320.0" y="290.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="usertask1" id="BPMNShape_usertask1">
        <omgdc:Bounds height="55.0" width="105.0" x="400.0" y="280.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="subprocess1" id="BPMNShape_subprocess1">
        <omgdc:Bounds height="291.0" width="481.0" x="620.0" y="168.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="startevent2" id="BPMNShape_startevent2">
        <omgdc:Bounds height="35.0" width="35.0" x="680.0" y="298.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="usertask2" id="BPMNShape_usertask2">
        <omgdc:Bounds height="55.0" width="105.0" x="760.0" y="288.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="endevent1" id="BPMNShape_endevent1">
        <omgdc:Bounds height="35.0" width="35.0" x="910.0" y="298.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="usertask3" id="BPMNShape_usertask3">
        <omgdc:Bounds height="55.0" width="105.0" x="1146.0" y="286.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="endevent2" id="BPMNShape_endevent2">
        <omgdc:Bounds height="35.0" width="35.0" x="1296.0" y="296.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNEdge bpmnElement="flow1" id="BPMNEdge_flow1">
        <omgdi:waypoint x="355.0" y="307.0"></omgdi:waypoint>
        <omgdi:waypoint x="400.0" y="307.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow3" id="BPMNEdge_flow3">
        <omgdi:waypoint x="715.0" y="315.0"></omgdi:waypoint>
        <omgdi:waypoint x="760.0" y="315.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow4" id="BPMNEdge_flow4">
        <omgdi:waypoint x="865.0" y="315.0"></omgdi:waypoint>
        <omgdi:waypoint x="910.0" y="315.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow2" id="BPMNEdge_flow2">
        <omgdi:waypoint x="505.0" y="307.0"></omgdi:waypoint>
        <omgdi:waypoint x="620.0" y="313.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow5" id="BPMNEdge_flow5">
        <omgdi:waypoint x="1101.0" y="313.0"></omgdi:waypoint>
        <omgdi:waypoint x="1146.0" y="313.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow6" id="BPMNEdge_flow6">
        <omgdi:waypoint x="1251.0" y="313.0"></omgdi:waypoint>
        <omgdi:waypoint x="1296.0" y="313.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
</definitions>



  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
  • 68
  • 69
  • 70
  • 71
  • 72

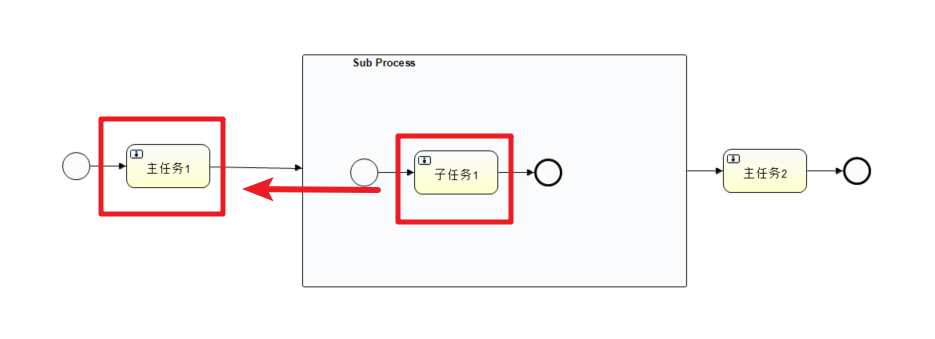

部署流程后并启动流程,我们先来看第一个场景,从子流程回退到主流程,也就是如下图:

在这里插入图片描述

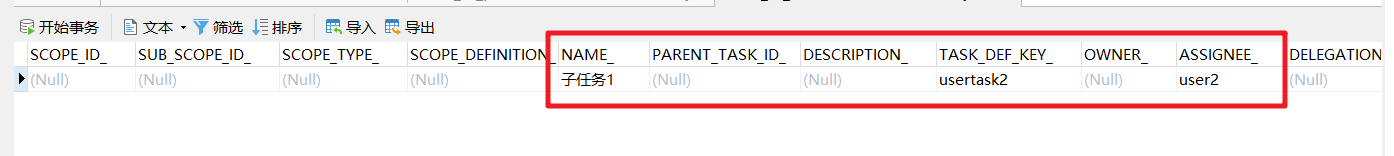

Task进入到了子流程的Task处

在这里插入图片描述

然后我们来处理回退到主流程:直接跳转即可

    /**
     * 回退操作
     *   从子流程回退到主流程操作
     */
    @Test
    void rollbackMainTask(){

        // 回退操作
        runtimeService.createChangeActivityStateBuilder()
                .processInstanceId("2501")
                .moveActivityIdTo("usertask2","usertask1")
                .changeState();
    }

}

    /**
     * 回退操作
     *   从子流程回退到主流程操作:moveExecutionToActivityId不关心当前的节点
     */
    @Test
    void rollbackMainTask(){

        // 回退操作
        runtimeService.createChangeActivityStateBuilder()
                .processInstanceId("2501")
                .moveExecutionToActivityId("5003","usertask1")
                .changeState();
    }



  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29

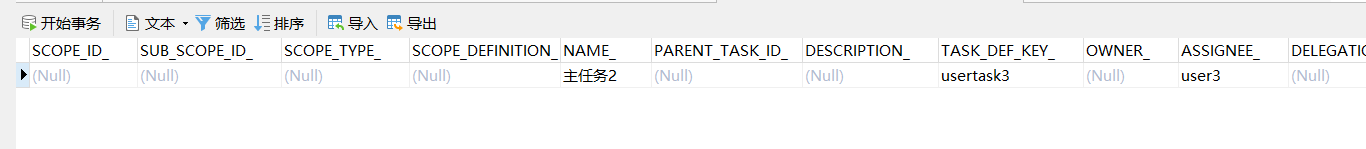

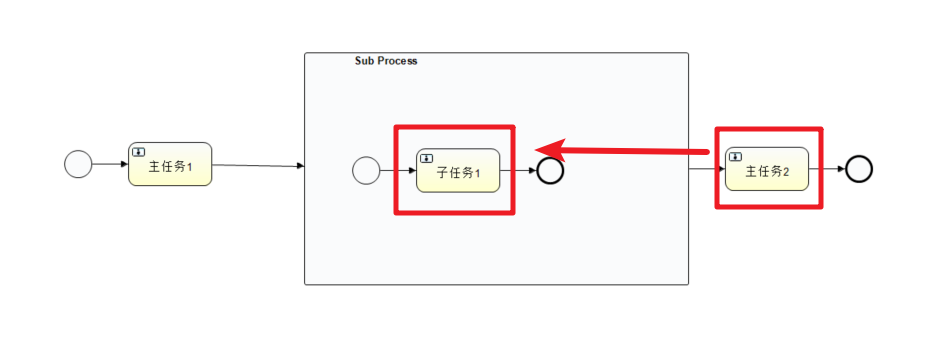

然后从主流程回退到子流程操作

在这里插入图片描述

在这里插入图片描述

同样的直接跳转即可

/**
 * 回退操作
 */
@Test
void rollbackSubTask(){

    // 回退操作
    runtimeService.createChangeActivityStateBuilder()
            .processInstanceId("2501")
            .moveActivityIdTo("usertask3","usertask2")
            .changeState();
}



  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12

文章来源: dpb-bobokaoya-sm.blog.csdn.net,作者:波波烤鸭,版权归原作者所有,如需转载,请联系作者。

原文链接:dpb-bobokaoya-sm.blog.csdn.net/article/details/124164129

【版权声明】本文为华为云社区用户转载文章,如果您发现本社区中有涉嫌抄袭的内容,欢迎发送邮件进行举报,并提供相关证据,一经查实,本社区将立刻删除涉嫌侵权内容,举报邮箱: cloudbbs@huaweicloud.com
  • 点赞
  • 收藏
  • 关注作者

评论(0

0/1000
抱歉,系统识别当前为高风险访问,暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称,即可参与社区互动!

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。
