Qt&Vtk-Cube

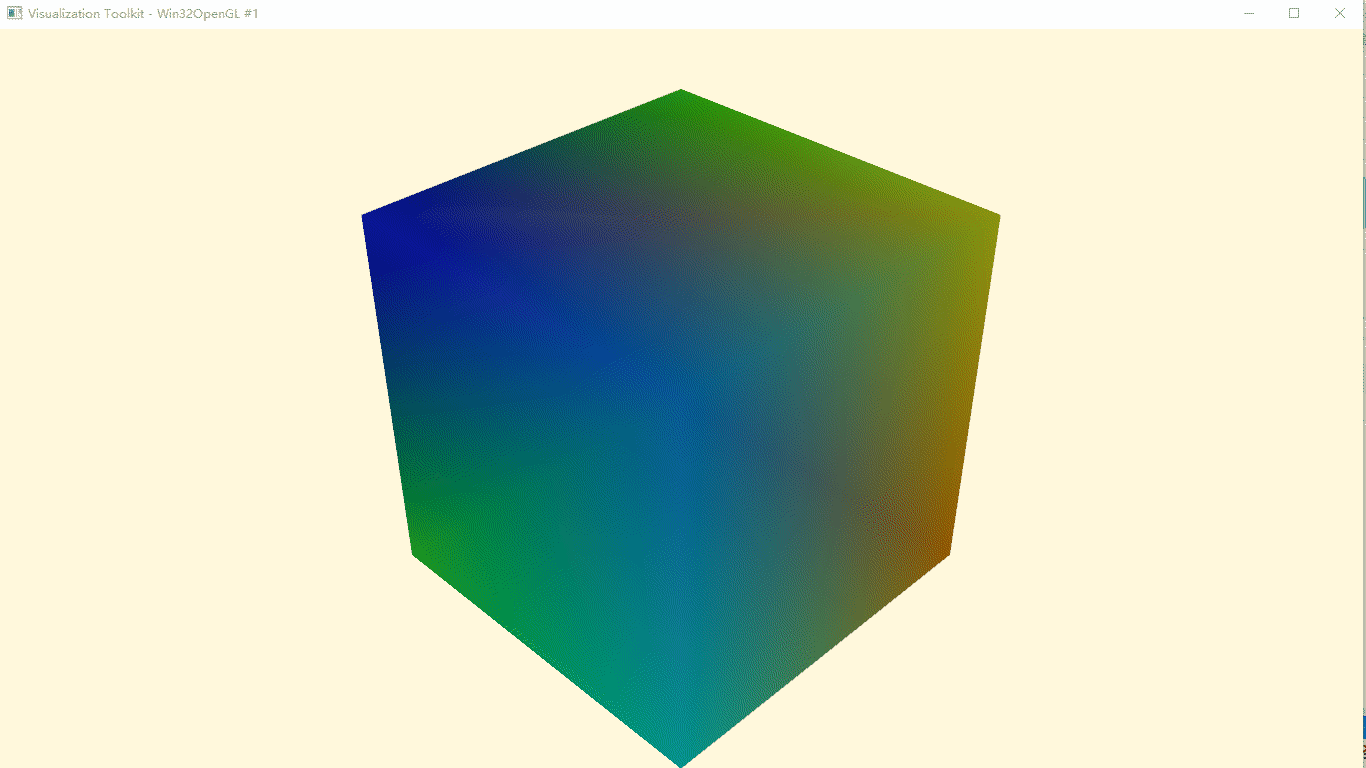

今天搬运的代码前面已经搞过了，为了整体性，在做一次搬运，官方示例演示如下。开搞

1 代码搬运

1.1 cube.h

#ifndef CUBE_H
#define CUBE_H

#include <QWidget>
#include "QVTKOpenGLWidget.h"               //新版本，旧版QVTKWidget
#include "vtkAutoInit.h"

#include "vtkActor.h"
#include "vtkCamera.h"
#include "vtkCellArray.h"
#include "vtkFloatArray.h"
#include "vtkNamedColors.h"
#include "vtkNew.h"
#include "vtkPointData.h"
#include "vtkPolyData.h"
#include "vtkPolyDataMapper.h"
#include "vtkRenderer.h"
#include "vtkRenderWindow.h"
#include "vtkRenderWindowInteractor.h"
#include "array"
namespace Ui {
class Cube;
}

class Cube : public QWidget
{
    Q_OBJECT

public:
    explicit Cube(QWidget *parent = 0);
    ~Cube();

private:
    Ui::Cube *ui;

    std::array<std::array<double,3>,8> pts;

    std::array<std::array<vtkIdType,4>,6> ordering;

    vtkPolyData *cube = nullptr;

    vtkPoints *points = nullptr;

    vtkCellArray *polys = nullptr;

    vtkFloatArray *scalars = nullptr;

    vtkNamedColors *colors = nullptr;

    vtkPolyDataMapper *mapper = nullptr;

    vtkActor *actor = nullptr;

    vtkRenderer *render = nullptr;

};

#endif // CUBE_H







1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59


1.2 cube.cpp

#include "cube.h"
#include "ui_cube.h"

Cube::Cube(QWidget *parent) :
    QWidget(parent),
    ui(new Ui::Cube)
{
    ui->setupUi(this);
    pts = {{{{0, 0, 0}},
            {{1, 0, 0}},
            {{1, 1, 0}},
            {{0, 1, 0}},
            {{0, 0, 1}},
            {{1, 0, 1}},
            {{1, 1, 1}},
            {{0, 1, 1}}}};
    ordering = {{{{0, 1, 2, 3}},
                 {{4, 5, 6, 7}},
                 {{0, 1, 5, 4}},
                 {{1, 2, 6, 5}},
                 {{2, 3, 7, 6}},
                 {{3, 0, 4, 7}}}};
    cube = vtkPolyData::New();
    points = vtkPoints::New();
    polys = vtkCellArray::New();
    scalars = vtkFloatArray::New();
    for(auto i =0;i<pts.size();++i)
    {
        points->InsertPoint(i,pts[i].data());
        scalars->InsertTuple1(i,i);
    }
    for(auto && i : ordering)
        polys->InsertNextCell(vtkIdType(i.size()),i.data());
    cube->SetPoints(points);
    cube->SetPolys(polys);
    cube->GetPointData()->SetScalars(scalars);
    mapper = vtkPolyDataMapper::New();
    mapper->SetInputData(cube);
    mapper->SetScalarRange(cube->GetScalarRange());
    actor = vtkActor::New();
    actor->SetMapper(mapper);
    render = vtkRenderer::New();
    render->AddActor(actor);
    colors = vtkNamedColors::New();
    render->SetBackground(colors->GetColor3d("black").GetData());
    ui->widget->GetRenderWindow()->AddRenderer(render);
}

Cube::~Cube()
{
    delete ui;
}








1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

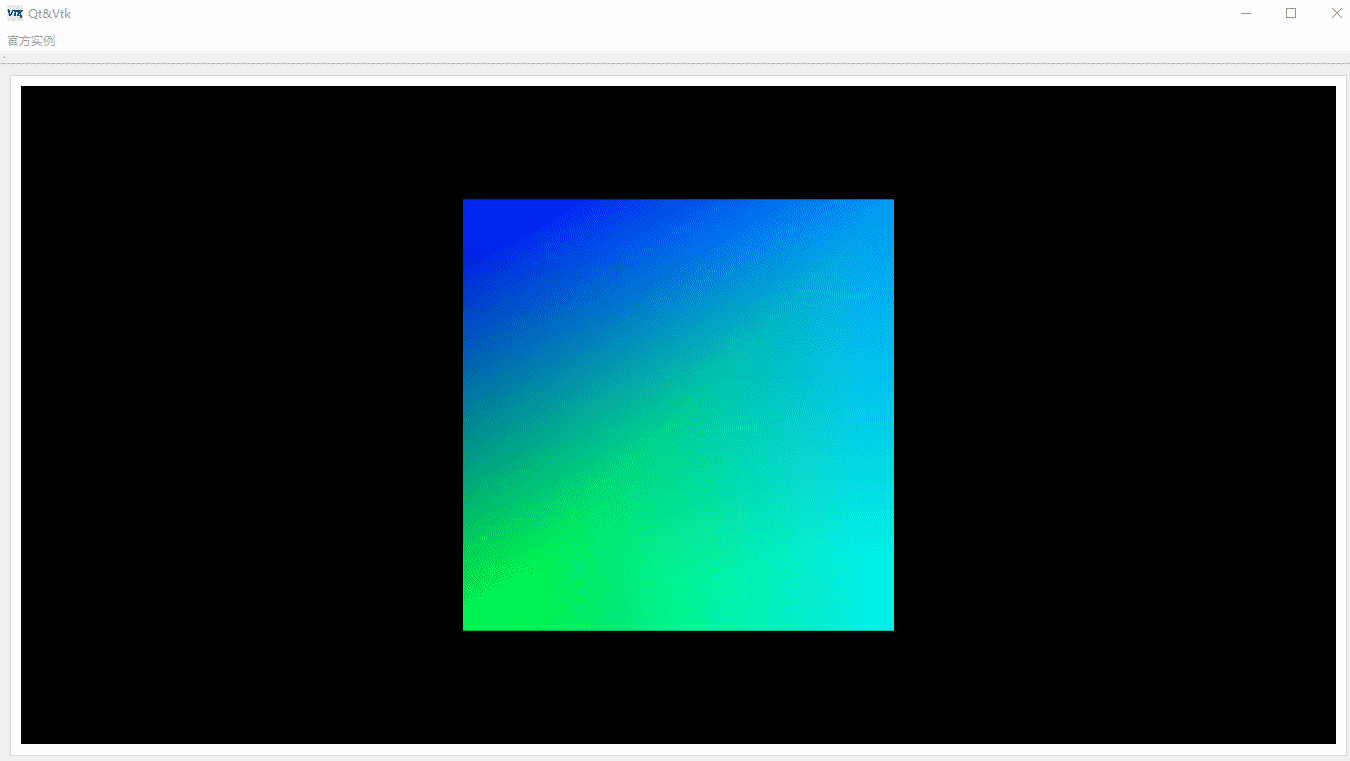

2 运行效果
