​ 实在抱歉，今天这个我也还是不知道干啥的，目前还没有用到相关内容，只能先暂停，后续用到，继续更新。

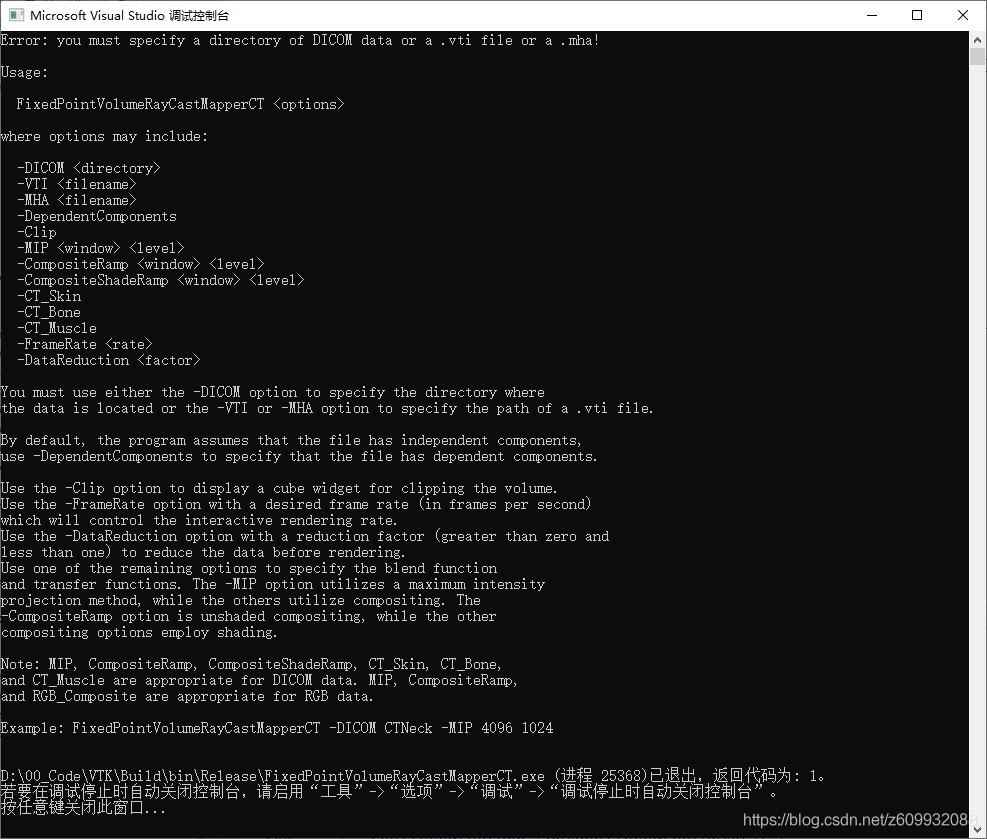

1 官方示例展示

​ 这个官方示例运行起来好像没有达到预定的效果。报错了。

2 官方源码

// VTK includes
#include "vtkBoxWidget.h"
#include "vtkCamera.h"
#include "vtkCommand.h"
#include "vtkColorTransferFunction.h"
#include "vtkDICOMImageReader.h"
#include "vtkImageData.h"
#include "vtkImageResample.h"
#include "vtkMetaImageReader.h"
#include "vtkPiecewiseFunction.h"
#include "vtkPlanes.h"
#include "vtkProperty.h"
#include "vtkRenderer.h"
#include "vtkRenderWindow.h"
#include "vtkRenderWindowInteractor.h"
#include "vtkVolume.h"
#include "vtkVolumeProperty.h"
#include "vtkXMLImageDataReader.h"
#include "vtkFixedPointVolumeRayCastMapper.h"

#define VTI_FILETYPE 1
#define MHA_FILETYPE 2

void PrintUsage()
{
  cout << "Usage: " << endl;
  cout << endl;
  cout << "  FixedPointVolumeRayCastMapperCT <options>" << endl;
  cout << endl;
  cout << "where options may include: " << endl;
  cout << endl;
  cout << "  -DICOM <directory>" << endl;
  cout << "  -VTI <filename>" << endl;
  cout << "  -MHA <filename>" << endl;
  cout << "  -DependentComponents" << endl;
  cout << "  -Clip" << endl;
  cout << "  -MIP <window> <level>" << endl;
  cout << "  -CompositeRamp <window> <level>" << endl;
  cout << "  -CompositeShadeRamp <window> <level>" << endl;
  cout << "  -CT_Skin" << endl;
  cout << "  -CT_Bone" << endl;
  cout << "  -CT_Muscle" << endl;
  cout << "  -FrameRate <rate>" << endl;
  cout << "  -DataReduction <factor>" << endl;
  cout << endl;
  cout << "You must use either the -DICOM option to specify the directory where" << endl;
  cout << "the data is located or the -VTI or -MHA option to specify the path of a .vti file." << endl;
  cout << endl;
  cout << "By default, the program assumes that the file has independent components," << endl;
  cout << "use -DependentComponents to specify that the file has dependent components." << endl;
  cout << endl;
  cout << "Use the -Clip option to display a cube widget for clipping the volume." << endl;
  cout << "Use the -FrameRate option with a desired frame rate (in frames per second)" << endl;
  cout << "which will control the interactive rendering rate." << endl;
  cout << "Use the -DataReduction option with a reduction factor (greater than zero and" << endl;
  cout << "less than one) to reduce the data before rendering." << endl;
  cout << "Use one of the remaining options to specify the blend function" << endl;
  cout << "and transfer functions. The -MIP option utilizes a maximum intensity" << endl;
  cout << "projection method, while the others utilize compositing. The" << endl;
  cout << "-CompositeRamp option is unshaded compositing, while the other" << endl;
  cout << "compositing options employ shading." << endl;
  cout << endl;
  cout << "Note: MIP, CompositeRamp, CompositeShadeRamp, CT_Skin, CT_Bone," << endl;
  cout << "and CT_Muscle are appropriate for DICOM data. MIP, CompositeRamp," << endl;
  cout << "and RGB_Composite are appropriate for RGB data." << endl;
  cout << endl;
  cout << "Example: FixedPointVolumeRayCastMapperCT -DICOM CTNeck -MIP 4096 1024" << endl;
  cout << endl;
}

int main(int argc, char *argv[])
{
  // Parse the parameters

  int count = 1;
  char *dirname = nullptr;
  double opacityWindow = 4096;
  double opacityLevel = 2048;
  int blendType = 0;
  int clip = 0;
  double reductionFactor = 1.0;
  double frameRate = 10.0;
  char *fileName=nullptr;
  int fileType=0;

  bool independentComponents=true;

  while ( count < argc )
  {
    if ( !strcmp( argv[count], "?" ) )
    {
      PrintUsage();
      exit(EXIT_SUCCESS);
    }
    else if ( !strcmp( argv[count], "-DICOM" ) )
    {
      size_t size = strlen(argv[count+1])+1;
      dirname = new char[size];
      snprintf( dirname, size, "%s", argv[count+1] );
      count += 2;
    }
    else if ( !strcmp( argv[count], "-VTI" ) )
    {
      size_t size = strlen(argv[count+1])+1;
      fileName = new char[size];
      fileType = VTI_FILETYPE;
      snprintf( fileName, size, "%s", argv[count+1] );
      count += 2;
    }
    else if ( !strcmp( argv[count], "-MHA" ) )
    {
      size_t size = strlen(argv[count+1])+1;
      fileName = new char[size];
      fileType = MHA_FILETYPE;
      snprintf( fileName, size, "%s", argv[count+1] );
      count += 2;
    }
    else if ( !strcmp( argv[count], "-Clip") )
    {
      clip = 1;
      count++;
    }
    else if ( !strcmp( argv[count], "-MIP" ) )
    {
      opacityWindow = atof( argv[count+1] );
      opacityLevel  = atof( argv[count+2] );
      blendType = 0;
      count += 3;
    }
    else if ( !strcmp( argv[count], "-CompositeRamp" ) )
    {
      opacityWindow = atof( argv[count+1] );
      opacityLevel  = atof( argv[count+2] );
      blendType = 1;
      count += 3;
    }
    else if ( !strcmp( argv[count], "-CompositeShadeRamp" ) )
    {
      opacityWindow = atof( argv[count+1] );
      opacityLevel  = atof( argv[count+2] );
      blendType = 2;
      count += 3;
    }
    else if ( !strcmp( argv[count], "-CT_Skin" ) )
    {
      blendType = 3;
      count += 1;
    }
    else if ( !strcmp( argv[count], "-CT_Bone" ) )
    {
      blendType = 4;
      count += 1;
    }
    else if ( !strcmp( argv[count], "-CT_Muscle" ) )
    {
      blendType = 5;
      count += 1;
    }
    else if ( !strcmp( argv[count], "-RGB_Composite" ) )
    {
      blendType = 6;
      count += 1;
    }
    else if ( !strcmp( argv[count], "-FrameRate") )
    {
      frameRate = atof( argv[count+1] );
      if ( frameRate < 0.01 || frameRate > 60.0 )
      {
        cout << "Invalid frame rate - use a number between 0.01 and 60.0" << endl;
        cout << "Using default frame rate of 10 frames per second." << endl;
        frameRate = 10.0;
      }
      count += 2;
    }
    else if ( !strcmp( argv[count], "-ReductionFactor") )
    {
      reductionFactor = atof( argv[count+1] );
      if ( reductionFactor <= 0.0 || reductionFactor >= 1.0 )
      {
        cout << "Invalid reduction factor - use a number between 0 and 1 (exclusive)" << endl;
        cout << "Using the default of no reduction." << endl;
        reductionFactor = 1.0;
      }
      count += 2;
    }
     else if ( !strcmp( argv[count], "-DependentComponents") )
     {
      independentComponents=false;
      count += 1;
     }
    else
    {
      cout << "Unrecognized option: " << argv[count] << endl;
      cout << endl;
      PrintUsage();
      exit(EXIT_FAILURE);
    }
  }

  if ( !dirname && !fileName)
  {
    cout << "Error: you must specify a directory of DICOM data or a .vti file or a .mha!" << endl;
    cout << endl;
    PrintUsage();
    exit(EXIT_FAILURE);
  }

  // Create the renderer, render window and interactor
  vtkRenderer *renderer = vtkRenderer::New();
  vtkRenderWindow *renWin = vtkRenderWindow::New();
  renWin->AddRenderer(renderer);

  // Connect it all. Note that funny arithematic on the
  // SetDesiredUpdateRate - the vtkRenderWindow divides it
  // allocated time across all renderers, and the renderer
  // divides it time across all props. If clip is
  // true then there are two props
  vtkRenderWindowInteractor *iren = vtkRenderWindowInteractor::New();
  iren->SetRenderWindow(renWin);
  iren->SetDesiredUpdateRate(frameRate / (1+clip) );

  iren->GetInteractorStyle()->SetDefaultRenderer(renderer);

  // Read the data
  vtkAlgorithm *reader=nullptr;
  vtkImageData *input=nullptr;
  if(dirname)
  {
    vtkDICOMImageReader *dicomReader = vtkDICOMImageReader::New();
    dicomReader->SetDirectoryName(dirname);
    dicomReader->Update();
    input=dicomReader->GetOutput();
    reader=dicomReader;
  }
  else if ( fileType == VTI_FILETYPE )
  {
    vtkXMLImageDataReader *xmlReader = vtkXMLImageDataReader::New();
    xmlReader->SetFileName(fileName);
    xmlReader->Update();
    input=xmlReader->GetOutput();
    reader=xmlReader;
  }
  else if ( fileType == MHA_FILETYPE )
  {
    vtkMetaImageReader *metaReader = vtkMetaImageReader::New();
    metaReader->SetFileName(fileName);
    metaReader->Update();
    input=metaReader->GetOutput();
    reader=metaReader;
  }
  else
  {
    cout << "Error! Not VTI or MHA!" << endl;
    exit(EXIT_FAILURE);
  }

  // Verify that we actually have a volume
  int dim[3];
  input->GetDimensions(dim);
  if ( dim[0] < 2 ||
       dim[1] < 2 ||
       dim[2] < 2 )
  {
    cout << "Error loading data!" << endl;
    exit(EXIT_FAILURE);
  }

  vtkImageResample *resample = vtkImageResample::New();
  if ( reductionFactor < 1.0 )
  {
    resample->SetInputConnection( reader->GetOutputPort() );
    resample->SetAxisMagnificationFactor(0, reductionFactor);
    resample->SetAxisMagnificationFactor(1, reductionFactor);
    resample->SetAxisMagnificationFactor(2, reductionFactor);
  }

  // Create our volume and mapper
  vtkVolume *volume = vtkVolume::New();
  vtkFixedPointVolumeRayCastMapper *mapper = vtkFixedPointVolumeRayCastMapper::New();

  if ( reductionFactor < 1.0 )
  {
    mapper->SetInputConnection( resample->GetOutputPort() );
  }
  else
  {
    mapper->SetInputConnection( reader->GetOutputPort() );
  }


  // Set the sample distance on the ray to be 1/2 the average spacing
  double spacing[3];
  if ( reductionFactor < 1.0 )
  {
    resample->GetOutput()->GetSpacing(spacing);
  }
  else
  {
    input->GetSpacing(spacing);
  }

//  mapper->SetSampleDistance( (spacing[0]+spacing[1]+spacing[2])/6.0 );
//  mapper->SetMaximumImageSampleDistance(10.0);


  // Create our transfer function
  vtkColorTransferFunction *colorFun = vtkColorTransferFunction::New();
  vtkPiecewiseFunction *opacityFun = vtkPiecewiseFunction::New();

  // Create the property and attach the transfer functions
  vtkVolumeProperty *property = vtkVolumeProperty::New();
  property->SetIndependentComponents(independentComponents);
  property->SetColor( colorFun );
  property->SetScalarOpacity( opacityFun );
  property->SetInterpolationTypeToLinear();

  // connect up the volume to the property and the mapper
  volume->SetProperty( property );
  volume->SetMapper( mapper );

  // Depending on the blend type selected as a command line option,
  // adjust the transfer function
  switch ( blendType )
  {
    // MIP
    // Create an opacity ramp from the window and level values.
    // Color is white. Blending is MIP.
    case 0:
      colorFun->AddRGBSegment(0.0, 1.0, 1.0, 1.0, 255.0, 1.0, 1.0, 1.0 );
      opacityFun->AddSegment( opacityLevel - 0.5*opacityWindow, 0.0,
                              opacityLevel + 0.5*opacityWindow, 1.0 );
      mapper->SetBlendModeToMaximumIntensity();
      break;

    // CompositeRamp
    // Create a ramp from the window and level values. Use compositing
    // without shading. Color is a ramp from black to white.
    case 1:
      colorFun->AddRGBSegment(opacityLevel - 0.5*opacityWindow, 0.0, 0.0, 0.0,
                              opacityLevel + 0.5*opacityWindow, 1.0, 1.0, 1.0 );
      opacityFun->AddSegment( opacityLevel - 0.5*opacityWindow, 0.0,
                              opacityLevel + 0.5*opacityWindow, 1.0 );
      mapper->SetBlendModeToComposite();
      property->ShadeOff();
      break;

    // CompositeShadeRamp
    // Create a ramp from the window and level values. Use compositing
    // with shading. Color is white.
    case 2:
      colorFun->AddRGBSegment(0.0, 1.0, 1.0, 1.0, 255.0, 1.0, 1.0, 1.0 );
      opacityFun->AddSegment( opacityLevel - 0.5*opacityWindow, 0.0,
                              opacityLevel + 0.5*opacityWindow, 1.0 );
      mapper->SetBlendModeToComposite();
      property->ShadeOn();
      break;

    // CT_Skin
    // Use compositing and functions set to highlight skin in CT data
    // Not for use on RGB data
    case 3:
      colorFun->AddRGBPoint( -3024, 0, 0, 0, 0.5, 0.0 );
      colorFun->AddRGBPoint( -1000, .62, .36, .18, 0.5, 0.0 );
      colorFun->AddRGBPoint( -500, .88, .60, .29, 0.33, 0.45 );
      colorFun->AddRGBPoint( 3071, .83, .66, 1, 0.5, 0.0 );

      opacityFun->AddPoint(-3024, 0, 0.5, 0.0 );
      opacityFun->AddPoint(-1000, 0, 0.5, 0.0 );
      opacityFun->AddPoint(-500, 1.0, 0.33, 0.45 );
      opacityFun->AddPoint(3071, 1.0, 0.5, 0.0);

      mapper->SetBlendModeToComposite();
      property->ShadeOn();
      property->SetAmbient(0.1);
      property->SetDiffuse(0.9);
      property->SetSpecular(0.2);
      property->SetSpecularPower(10.0);
      property->SetScalarOpacityUnitDistance(0.8919);
      break;

    // CT_Bone
    // Use compositing and functions set to highlight bone in CT data
    // Not for use on RGB data
    case 4:
      colorFun->AddRGBPoint( -3024, 0, 0, 0, 0.5, 0.0 );
      colorFun->AddRGBPoint( -16, 0.73, 0.25, 0.30, 0.49, .61 );
      colorFun->AddRGBPoint( 641, .90, .82, .56, .5, 0.0 );
      colorFun->AddRGBPoint( 3071, 1, 1, 1, .5, 0.0 );

      opacityFun->AddPoint(-3024, 0, 0.5, 0.0 );
      opacityFun->AddPoint(-16, 0, .49, .61 );
      opacityFun->AddPoint(641, .72, .5, 0.0 );
      opacityFun->AddPoint(3071, .71, 0.5, 0.0);

      mapper->SetBlendModeToComposite();
      property->ShadeOn();
      property->SetAmbient(0.1);
      property->SetDiffuse(0.9);
      property->SetSpecular(0.2);
      property->SetSpecularPower(10.0);
      property->SetScalarOpacityUnitDistance(0.8919);
      break;

    // CT_Muscle
    // Use compositing and functions set to highlight muscle in CT data
    // Not for use on RGB data
    case 5:
      colorFun->AddRGBPoint( -3024, 0, 0, 0, 0.5, 0.0 );
      colorFun->AddRGBPoint( -155, .55, .25, .15, 0.5, .92 );
      colorFun->AddRGBPoint( 217, .88, .60, .29, 0.33, 0.45 );
      colorFun->AddRGBPoint( 420, 1, .94, .95, 0.5, 0.0 );
      colorFun->AddRGBPoint( 3071, .83, .66, 1, 0.5, 0.0 );

      opacityFun->AddPoint(-3024, 0, 0.5, 0.0 );
      opacityFun->AddPoint(-155, 0, 0.5, 0.92 );
      opacityFun->AddPoint(217, .68, 0.33, 0.45 );
      opacityFun->AddPoint(420,.83, 0.5, 0.0);
      opacityFun->AddPoint(3071, .80, 0.5, 0.0);

      mapper->SetBlendModeToComposite();
      property->ShadeOn();
      property->SetAmbient(0.1);
      property->SetDiffuse(0.9);
      property->SetSpecular(0.2);
      property->SetSpecularPower(10.0);
      property->SetScalarOpacityUnitDistance(0.8919);
      break;

    // RGB_Composite
    // Use compositing and functions set to highlight red/green/blue regions
    // in RGB data. Not for use on single component data
    case 6:
      opacityFun->AddPoint(0, 0.0);
      opacityFun->AddPoint(5.0, 0.0);
      opacityFun->AddPoint(30.0, 0.05);
      opacityFun->AddPoint(31.0, 0.0);
      opacityFun->AddPoint(90.0, 0.0);
      opacityFun->AddPoint(100.0, 0.3);
      opacityFun->AddPoint(110.0, 0.0);
      opacityFun->AddPoint(190.0, 0.0);
      opacityFun->AddPoint(200.0, 0.4);
      opacityFun->AddPoint(210.0, 0.0);
      opacityFun->AddPoint(245.0, 0.0);
      opacityFun->AddPoint(255.0, 0.5);

      mapper->SetBlendModeToComposite();
      property->ShadeOff();
      property->SetScalarOpacityUnitDistance(1.0);
      break;
    default:
       vtkGenericWarningMacro("Unknown blend type.");
       break;
  }

  // Set the default window size
  renWin->SetSize(600,600);
  renWin->Render();

  // Add the volume to the scene
  renderer->AddVolume( volume );

  renderer->ResetCamera();

  // interact with data
  renWin->Render();

  iren->Start();

  opacityFun->Delete();
  colorFun->Delete();
  property->Delete();

  volume->Delete();
  mapper->Delete();
  reader->Delete();
  resample->Delete();
  renderer->Delete();
  renWin->Delete();
  iren->Delete();

  return 0;
}







1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483


★ 源码 ★

​ 源码分享一时爽，一直分享一直爽， 链接如下：

自取：https://github.com/DreamLife-Jianwei/Qt-Vtk

文章来源: dreamlife.blog.csdn.net，作者：DreamLife.，版权归原作者所有，如需转载，请联系作者。

原文链接：dreamlife.blog.csdn.net/article/details/119632883
