医学四视图-007-增加按钮，增加文档提示
【摘要】
本文将记录实现给每个视图增加按钮和文字提示。
文章目录
1 增加按钮、增打开文档提示2 自定义模块"VTKRenderWidget"2.1 vtkrenderwidget.h2.2 vt...
本文将记录实现给每个视图增加按钮和文字提示。
1 增加按钮、增打开文档提示

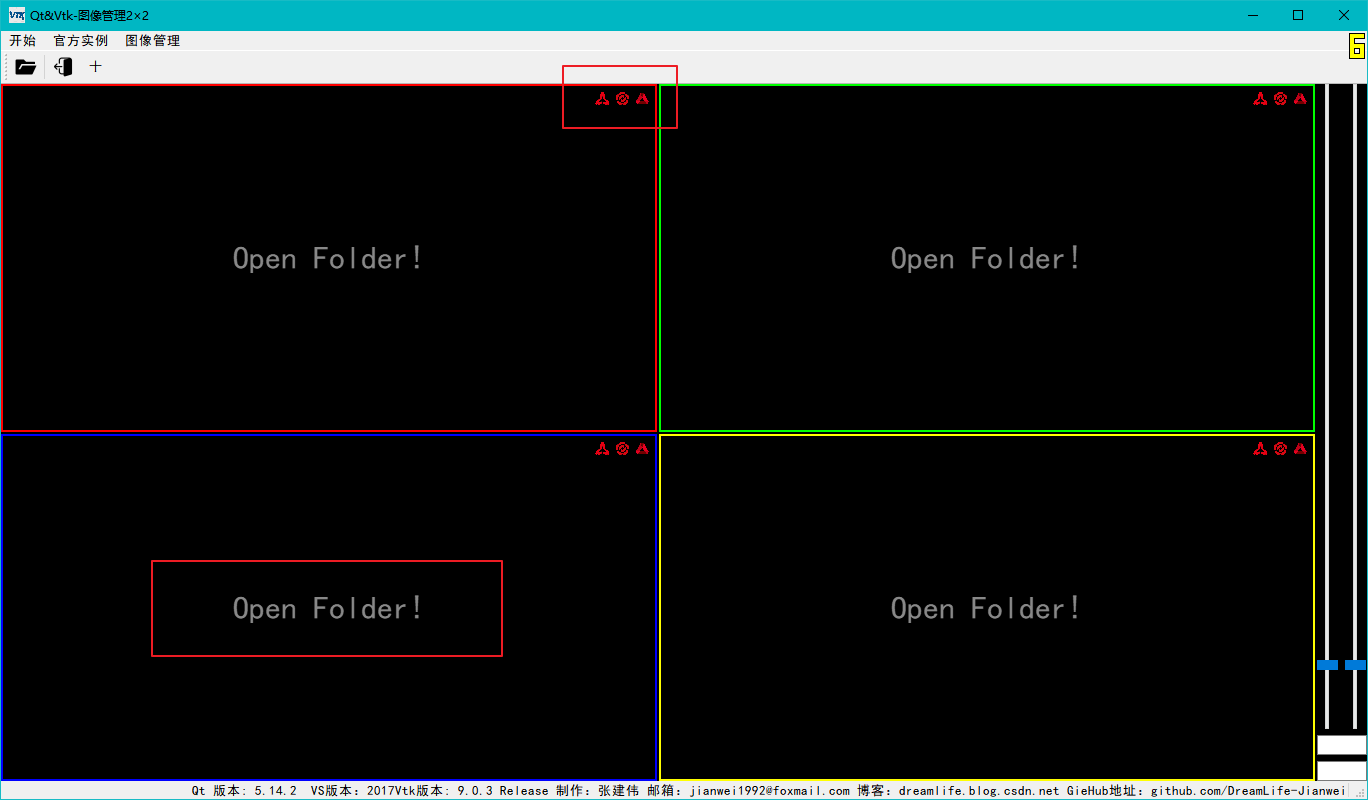

今天又来更新文档了，今天这个四视图中又增加了点东西，今天这篇是添上上篇的坑的。三个按钮终于实现了。在实现三个按钮的情况下，还给他增加了一个打开文件夹的提示，不过这英文用的好像是不咋对，凑乎看吧，如下图：
还记得在上上片文中中增加按钮失败那，哪里使用了QVTKOpenGLWidget，死活都没法实现，我个人感觉应该是因为布局的问题。这次再升级VTK9.0.3后，使用了QVTKOpenGLNativeWidget 实现了这个功能。
2 自定义模块"VTKRenderWidget"

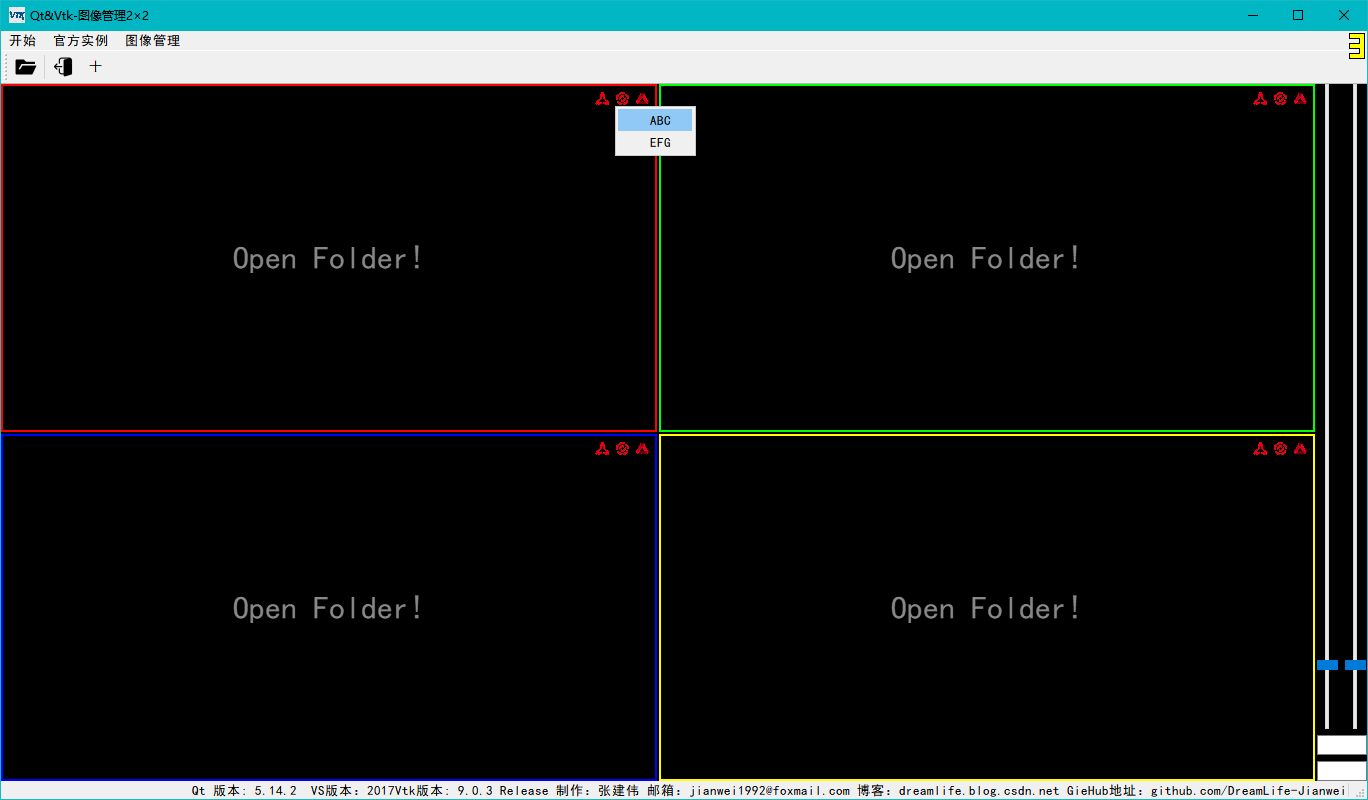

这里我自己定义了模块VTKRenderWidget，包含一个QVTKOpenGLNativeWidget 和三个QPushbutton ，如下图所示
2.1 vtkrenderwidget.h
#ifndef VTKRENDERWIDGET_H
#define VTKRENDERWIDGET_H
/***********Qt*******************/
#include <QWidget>
#include <QMouseEvent>
#include <QPainter>
#include <QPaintEvent>
#include <QPen>
#include <QColor>
#include <QMenu>
#include <QAction>
#include <QLabel>
#include <QResizeEvent>
/***********VTK*******************/
#include "vtkRenderWindow.h"
#include "QVTKInteractor.h"
#include "myqvtkopenglnativewidget.h"
namespace Ui {
class VTKRenderWidget;
}
class VTKRenderWidget : public QWidget
{
Q_OBJECT
public:
explicit VTKRenderWidget(QWidget *parent = nullptr);
~VTKRenderWidget();
/**
* @brief set_BackGroundColor
* 设置背景颜色 RGBA
* @param r
* @param g
* @param b
* @param a
*/
void set_BackGroundColor(int r=0,int g=0,int b = 0,int a = 255);
void set_OpenFolderEnable(bool enable = false);
//------------------------------------------------------------------------------------
vtkRenderWindow* renderWindow() const;
QVTKInteractor* interactor() const;
void setRenderWindow(vtkGenericOpenGLRenderWindow* win);
void setRenderWindow(vtkRenderWindow* win);
signals:
void signal_mouseDoubleClicked();
private:
void paintEvent(QPaintEvent *event);
void resizeEvent(QResizeEvent *event);
private:
Ui::VTKRenderWidget *ui;
QColor m_BackGroundColor = QColor(255,255,0,255); //背景颜色
QLabel *m_OpenFolderText = nullptr; //打开文件夹提示
QMenu *m_Menu_1 = nullptr;
QAction *test = nullptr;
QAction *test1 = nullptr;
};
#endif // VTKRENDERWIDGET_H
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
2.2 vtkrenderwidget.cpp
#include "vtkrenderwidget.h"
#include "ui_vtkrenderwidget.h"
VTKRenderWidget::VTKRenderWidget(QWidget *parent) :
QWidget(parent),
ui(new Ui::VTKRenderWidget)
{
ui->setupUi(this);
connect(ui->openGLWidget,&MyQVTKOpenGLNativeWidget::signal_mouseDoubleClicked,this,[=](){emit signal_mouseDoubleClicked();});
m_OpenFolderText = new QLabel(this);
m_OpenFolderText->setText("Open Folder!");
m_OpenFolderText->setStyleSheet("QLabel{color: rgb(136, 136, 136);}QLabel{font: 24pt '黑体';}");
m_OpenFolderText->raise();
m_Menu_1 = new QMenu(this);
test = new QAction(m_Menu_1);
test->setText("ABC");
test->setCheckable(true);
test1 = new QAction(m_Menu_1);
test1->setText("EFG");
test1->setCheckable(true);
m_Menu_1->addAction(test);
m_Menu_1->addAction(test1);
ui->pushButton_1->setMenu(m_Menu_1);
ui->pushButton_2->setMenu(m_Menu_1);
ui->pushButton_3->setMenu(m_Menu_1);
ui->pushButton_1->setStyleSheet("QPushButton::menu-indicator{image:none;}" //不显示下拉图标
"QPushButton{border-image:url(:/ImageManage/Images/ImageManage/btn_n_1.png);}"
"QPushButton:hover{border-image:url(:/ImageManage/Images/ImageManage/btn_p_1.png);}"
"QPushButton:pressed{border-image:url(:/ImageManage/Images/ImageManage/btn_n_1.png);}");
ui->pushButton_2->setStyleSheet("QPushButton::menu-indicator{image:none;}" //不显示下拉图标
"QPushButton{border-image:url(:/ImageManage/Images/ImageManage/btn_n_2.png);}"
"QPushButton:hover{border-image:url(:/ImageManage/Images/ImageManage/btn_p_2.png);}"
"QPushButton:pressed{border-image:url(:/ImageManage/Images/ImageManage/btn_n_2.png);}");
ui->pushButton_3->setStyleSheet("QPushButton::menu-indicator{image:none;}" //不显示下拉图标
"QPushButton{border-image:url(:/ImageManage/Images/ImageManage/btn_n_3.png);}"
"QPushButton:hover{border-image:url(:/ImageManage/Images/ImageManage/btn_p_3.png);}"
"QPushButton:pressed{border-image:url(:/ImageManage/Images/ImageManage/btn_n_3.png);}");
}
VTKRenderWidget::~VTKRenderWidget()
{
delete ui;
}
void VTKRenderWidget::set_BackGroundColor(int r, int g, int b, int a)
{
m_BackGroundColor.setRgb(r,g,b,a);
this->update();
}
void VTKRenderWidget::set_OpenFolderEnable(bool enable)
{
if(enable)
m_OpenFolderText->show();
else
m_OpenFolderText->hide();
}
vtkRenderWindow *VTKRenderWidget::renderWindow() const
{
if(ui->openGLWidget)
return ui->openGLWidget->renderWindow();
return nullptr;
}
QVTKInteractor *VTKRenderWidget::interactor() const
{
if(ui->openGLWidget)
return ui->openGLWidget->interactor();
else
return nullptr;
}
void VTKRenderWidget::setRenderWindow(vtkGenericOpenGLRenderWindow *win)
{
if(ui->openGLWidget)
ui->openGLWidget->setRenderWindow(win);
}
void VTKRenderWidget::setRenderWindow(vtkRenderWindow *win)
{
if(ui->openGLWidget)
ui->openGLWidget->setRenderWindow(win);
}
void VTKRenderWidget::paintEvent(QPaintEvent *event)
{
Q_UNUSED(event);
QPainter p(this);
p.setPen(Qt::NoPen);
p.setBrush(m_BackGroundColor);
p.drawRect(rect());
}
void VTKRenderWidget::resizeEvent(QResizeEvent *event)
{
Q_UNUSED(event)
ui->openGLWidget->move(2,2);
ui->openGLWidget->resize(this->width()-4,this->height()-4);
ui->pushButton_1->move(this->width()-ui->pushButton_1->width()-7,7);
ui->pushButton_2->move(this->width()-ui->pushButton_1->width()*2-12,7);
ui->pushButton_3->move(this->width()-ui->pushButton_1->width()*3-17,7);
m_OpenFolderText->move((this->width()-m_OpenFolderText->width())/2,(this->height()-m_OpenFolderText->height())/2);
m_OpenFolderText->raise();
}
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
在我的这自定义模块中，还使用了自己定义的QVTKOpenGLNativeWidget名字为MyQVTKOpenGLNativeWidget.
3 重写模块“QVTKOpenGLNativeWidget”
其实目前来看，这个类和原生基础的QVTKOpenGLNativeWidget没有太多区别。目前只是增加了鼠标双击事件。
3.1 myqvtkopenglnativewidget.h
#ifndef MYQVTKOPENGLNATIVEWIDGET_H
#define MYQVTKOPENGLNATIVEWIDGET_H
#include <QObject>
#include <QOpenGLWidget>
#include <QScopedPointer> // for QScopedPointer.
#include <QMouseEvent>
#include "QVTKInteractor.h" // needed for QVTKInteractor
#include "vtkGUISupportQtModule.h" // for export macro
#include "vtkNew.h" // needed for vtkNew
#include "vtkSmartPointer.h" // needed for vtkSmartPointer
class QVTKInteractor;
class QVTKInteractorAdapter;
class QVTKRenderWindowAdapter;
class vtkGenericOpenGLRenderWindow;
class MyQVTKOpenGLNativeWidget : public QOpenGLWidget
{
Q_OBJECT
typedef QOpenGLWidget Superclass;
public:
MyQVTKOpenGLNativeWidget(QWidget* parent = nullptr, Qt::WindowFlags f = Qt::WindowFlags());
MyQVTKOpenGLNativeWidget(vtkGenericOpenGLRenderWindow* window, QWidget* parent = nullptr,
Qt::WindowFlags f = Qt::WindowFlags());
~MyQVTKOpenGLNativeWidget() override;
void setRenderWindow(vtkGenericOpenGLRenderWindow* win);
void setRenderWindow(vtkRenderWindow* win);
vtkRenderWindow* renderWindow() const;
QVTKInteractor* interactor() const;
static QSurfaceFormat defaultFormat(bool stereo_capable = false);
void setEnableHiDPI(bool enable);
bool enableHiDPI() const { return this->EnableHiDPI; }
void setUnscaledDPI(int dpi);
int unscaledDPI() const { return this->UnscaledDPI; }
void setDefaultCursor(const QCursor& cursor);
const QCursor& defaultCursor() const { return this->DefaultCursor; }
VTK_LEGACY(void SetRenderWindow(vtkGenericOpenGLRenderWindow* win));
VTK_LEGACY(void SetRenderWindow(vtkRenderWindow* win));
VTK_LEGACY(vtkRenderWindow* GetRenderWindow());
VTK_LEGACY(QVTKInteractor* GetInteractor());
VTK_LEGACY(QVTKInteractorAdapter* GetInteractorAdapter());
VTK_LEGACY(void setQVTKCursor(const QCursor& cursor));
VTK_LEGACY(void setDefaultQVTKCursor(const QCursor& cursor));
signals:
void signal_mouseDoubleClicked();
protected slots:
virtual void cleanupContext();
void updateSize();
protected:
bool event(QEvent* evt) override;
void initializeGL() override;
void paintGL() override;
void mouseDoubleClickEvent(QMouseEvent *event)override;
protected:
vtkSmartPointer<vtkGenericOpenGLRenderWindow> RenderWindow;
QScopedPointer<QVTKRenderWindowAdapter> RenderWindowAdapter;
private:
Q_DISABLE_COPY(MyQVTKOpenGLNativeWidget);
bool EnableHiDPI;
int UnscaledDPI;
QCursor DefaultCursor;
};
#endif // MYQVTKOPENGLNATIVEWIDGET_H
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
3.2 myqvtkopenglnativewidget.cpp
#include "myqvtkopenglnativewidget.h"
#include <QApplication>
#include <QDesktopWidget>
#include <QOpenGLContext>
#include <QOpenGLFramebufferObject>
#include <QOpenGLFunctions>
#include <QOpenGLFunctions_3_2_Core>
#include <QOpenGLTexture>
#include <QPointer>
#include <QScopedValueRollback>
#include <QSize>
#include <QtDebug>
#include "QVTKInteractor.h"
#include "QVTKInteractorAdapter.h"
#include "QVTKRenderWindowAdapter.h"
#include "vtkCommand.h"
#include "vtkGenericOpenGLRenderWindow.h"
#include "vtkInteractorStyleTrackballCamera.h"
#include "vtkNew.h"
#include "vtkObjectFactory.h"
#include "vtkOpenGLState.h"
MyQVTKOpenGLNativeWidget::MyQVTKOpenGLNativeWidget(QWidget* parentWdg, Qt::WindowFlags f) : MyQVTKOpenGLNativeWidget(vtkSmartPointer<vtkGenericOpenGLRenderWindow>::New().GetPointer(), parentWdg, f)
{
}
MyQVTKOpenGLNativeWidget::MyQVTKOpenGLNativeWidget(vtkGenericOpenGLRenderWindow* renderWin, QWidget* parentWdg, Qt::WindowFlags f): Superclass(parentWdg, f)
, RenderWindow(nullptr)
, RenderWindowAdapter(nullptr)
, EnableHiDPI(true)
, UnscaledDPI(72)
, DefaultCursor(QCursor(Qt::ArrowCursor))
{
this->setFocusPolicy(Qt::StrongFocus);
this->setUpdateBehavior(QOpenGLWidget::NoPartialUpdate);
this->setMouseTracking(true);
this->connect(this, SIGNAL(resized()), SLOT(updateSize()));
this->setRenderWindow(renderWin);
this->grabGesture(Qt::PinchGesture);
this->grabGesture(Qt::PanGesture);
this->grabGesture(Qt::TapGesture);
this->grabGesture(Qt::TapAndHoldGesture);
this->grabGesture(Qt::SwipeGesture);
}
MyQVTKOpenGLNativeWidget::~MyQVTKOpenGLNativeWidget()
{
this->makeCurrent();
this->cleanupContext();
}
void MyQVTKOpenGLNativeWidget::setRenderWindow(vtkGenericOpenGLRenderWindow *win)
{
if (this->RenderWindow == win)
{
return;
}
if (this->RenderWindowAdapter)
{
this->makeCurrent();
this->RenderWindowAdapter.reset(nullptr);
}
this->RenderWindow = win;
if (this->RenderWindow)
{
this->RenderWindow->SetReadyForRendering(false);
if (!this->RenderWindow->GetInteractor())
{
vtkNew<QVTKInteractor> iren;
this->RenderWindow->SetInteractor(iren);
iren->Initialize();
vtkNew<vtkInteractorStyleTrackballCamera> style;
iren->SetInteractorStyle(style);
}
if (this->isValid())
{
this->makeCurrent();
this->initializeGL();
this->updateSize();
}
}
}
void MyQVTKOpenGLNativeWidget::setRenderWindow(vtkRenderWindow *win)
{
auto gwin = vtkGenericOpenGLRenderWindow::SafeDownCast(win);
if (win != nullptr && gwin == nullptr)
{
qDebug() << "QVTKOpenGLNativeWidget requires a `vtkGenericOpenGLRenderWindow`. `"
<< win->GetClassName() << "` is not supported.";
}
this->setRenderWindow(gwin);
}
vtkRenderWindow *MyQVTKOpenGLNativeWidget::renderWindow() const
{
return this->RenderWindow;
}
QVTKInteractor *MyQVTKOpenGLNativeWidget::interactor() const
{
return this->RenderWindow ? QVTKInteractor::SafeDownCast(this->RenderWindow->GetInteractor()) : nullptr;
}
QSurfaceFormat MyQVTKOpenGLNativeWidget::defaultFormat(bool stereo_capable)
{
return QVTKRenderWindowAdapter::defaultFormat(stereo_capable);
}
void MyQVTKOpenGLNativeWidget::setEnableHiDPI(bool enable)
{
this->EnableHiDPI = enable;
if (this->RenderWindowAdapter)
{
this->RenderWindowAdapter->setEnableHiDPI(enable);
}
}
void MyQVTKOpenGLNativeWidget::setUnscaledDPI(int dpi)
{
this->UnscaledDPI = dpi;
if (this->RenderWindowAdapter)
{
this->RenderWindowAdapter->setUnscaledDPI(dpi);
}
}
void MyQVTKOpenGLNativeWidget::setDefaultCursor(const QCursor &cursor)
{
this->DefaultCursor = cursor;
if (this->RenderWindowAdapter)
{
this->RenderWindowAdapter->setDefaultCursor(cursor);
}
}
void MyQVTKOpenGLNativeWidget::cleanupContext()
{
this->RenderWindowAdapter.reset(nullptr);
}
void MyQVTKOpenGLNativeWidget::updateSize()
{
if (this->RenderWindowAdapter)
{
this->RenderWindowAdapter->resize(this->width(), this->height());
}
}
bool MyQVTKOpenGLNativeWidget::event(QEvent *evt)
{
if (this->RenderWindowAdapter)
{
this->RenderWindowAdapter->handleEvent(evt);
}
return this->Superclass::event(evt);
}
void MyQVTKOpenGLNativeWidget::initializeGL()
{
this->Superclass::initializeGL();
if (this->RenderWindow)
{
Q_ASSERT(this->RenderWindowAdapter.data() == nullptr);
this->RenderWindowAdapter.reset(new QVTKRenderWindowAdapter(this->context(), this->RenderWindow, this));
this->RenderWindowAdapter->setDefaultCursor(this->defaultCursor());
this->RenderWindowAdapter->setEnableHiDPI(this->EnableHiDPI);
this->RenderWindowAdapter->setUnscaledDPI(this->UnscaledDPI);
}
this->connect(this->context(), SIGNAL(aboutToBeDestroyed()), SLOT(cleanupContext()),static_cast<Qt::ConnectionType>(Qt::UniqueConnection | Qt::DirectConnection));
}
void MyQVTKOpenGLNativeWidget::paintGL()
{
this->Superclass::paintGL();
if (this->RenderWindow)
{
Q_ASSERT(this->RenderWindowAdapter);
this->RenderWindowAdapter->paint();
this->makeCurrent();
QOpenGLFunctions_3_2_Core* f = QOpenGLContext::currentContext()->versionFunctions<QOpenGLFunctions_3_2_Core>();
if (f)
{
const QSize deviceSize = this->size() * this->devicePixelRatioF();
this->RenderWindowAdapter->blit(this->defaultFramebufferObject(), GL_COLOR_ATTACHMENT0, QRect(QPoint(0, 0), deviceSize));
}
}
else
{
QOpenGLFunctions* f = QOpenGLContext::currentContext()->functions();
f->glClearColor(1.0f, 1.0f, 1.0f, 1.0f);
f->glClear(GL_COLOR_BUFFER_BIT);
}
}
void MyQVTKOpenGLNativeWidget::mouseDoubleClickEvent(QMouseEvent *event)
{
Q_UNUSED(event);
emit signal_mouseDoubleClicked();
}
//-----------------------------------------------------------------------------
#if !defined(VTK_LEGACY_REMOVE)
void MyQVTKOpenGLNativeWidget::SetRenderWindow(vtkRenderWindow* win)
{
VTK_LEGACY_REPLACED_BODY(
QVTKOpenGLNativeWidget::SetRenderWindow, "VTK 9.0", QVTKOpenGLNativeWidget::setRenderWindow);
vtkGenericOpenGLRenderWindow* gwin = vtkGenericOpenGLRenderWindow::SafeDownCast(win);
if (gwin == nullptr && win != nullptr)
{
qDebug() << "QVTKOpenGLNativeWidget requires a `vtkGenericOpenGLRenderWindow`. `"
<< win->GetClassName() << "` is not supported.";
}
this->setRenderWindow(gwin);
}
#endif
//-----------------------------------------------------------------------------
#if !defined(VTK_LEGACY_REMOVE)
void MyQVTKOpenGLNativeWidget::SetRenderWindow(vtkGenericOpenGLRenderWindow* win)
{
VTK_LEGACY_REPLACED_BODY(
QVTKOpenGLNativeWidget::SetRenderWindow, "VTK 9.0", QVTKOpenGLNativeWidget::setRenderWindow);
this->setRenderWindow(win);
}
#endif
//-----------------------------------------------------------------------------
#if !defined(VTK_LEGACY_REMOVE)
vtkRenderWindow* MyQVTKOpenGLNativeWidget::GetRenderWindow()
{
VTK_LEGACY_REPLACED_BODY(
QVTKOpenGLNativeWidget::GetRenderWindow, "VTK 9.0", QVTKOpenGLNativeWidget::renderWindow);
return this->renderWindow();
}
#endif
//-----------------------------------------------------------------------------
#if !defined(VTK_LEGACY_REMOVE)
QVTKInteractorAdapter* MyQVTKOpenGLNativeWidget::GetInteractorAdapter()
{
VTK_LEGACY_BODY(QVTKOpenGLNativeWidget::GetInteractorAdapter, "VTK 9.0");
return nullptr;
}
#endif
//-----------------------------------------------------------------------------
#if !defined(VTK_LEGACY_REMOVE)
QVTKInteractor* MyQVTKOpenGLNativeWidget::GetInteractor()
{
VTK_LEGACY_REPLACED_BODY(
QVTKOpenGLNativeWidget::GetInteractor, "VTK 9.0", QVTKOpenGLNativeWidget::interactor);
return this->interactor();
}
#endif
//-----------------------------------------------------------------------------
#if !defined(VTK_LEGACY_REMOVE)
void MyQVTKOpenGLNativeWidget::setQVTKCursor(const QCursor& cursor)
{
VTK_LEGACY_REPLACED_BODY(
QVTKOpenGLNativeWidget::setQVTKCursor, "VTK 9.0", QVTKOpenGLNativeWidget::setCursor);
this->setCursor(cursor);
}
#endif
//-----------------------------------------------------------------------------
#if !defined(VTK_LEGACY_REMOVE)
void MyQVTKOpenGLNativeWidget::setDefaultQVTKCursor(const QCursor& cursor)
{
VTK_LEGACY_REPLACED_BODY(QVTKOpenGLNativeWidget::setDefaultQVTKCursor, "VTK 9.0",
QVTKOpenGLNativeWidget::setDefaultCursor);
this->setDefaultCursor(cursor);
}
#endif
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
- 127
- 128
- 129
- 130
- 131
- 132
- 133
- 134
- 135
- 136
- 137
- 138
- 139
- 140
- 141
- 142
- 143
- 144
- 145
- 146
- 147
- 148
- 149
- 150
- 151
- 152
- 153
- 154
- 155
- 156
- 157
- 158
- 159
- 160
- 161
- 162
- 163
- 164
- 165
- 166
- 167
- 168
- 169
- 170
- 171
- 172
- 173
- 174
- 175
- 176
- 177
- 178
- 179
- 180
- 181
- 182
- 183
- 184
- 185
- 186
- 187
- 188
- 189
- 190
- 191
- 192
- 193
- 194
- 195
- 196
- 197
- 198
- 199
- 200
- 201
- 202
- 203
- 204
- 205
- 206
- 207
- 208
- 209
- 210
- 211
- 212
- 213
- 214
- 215
- 216
- 217
- 218
- 219
- 220
- 221
- 222
- 223
- 224
- 225
- 226
- 227
- 228
- 229
- 230
- 231
- 232
- 233
- 234
- 235
- 236
- 237
- 238
- 239
- 240
- 241
- 242
- 243
- 244
- 245
- 246
- 247
- 248
- 249
- 250
- 251
- 252
- 253
- 254
- 255
- 256
- 257
- 258
- 259
- 260
- 261
- 262
- 263
- 264
- 265
- 266
- 267
- 268
- 269
- 270
- 271
- 272
- 273
- 274
- 275
- 276
- 277
- 278
- 279
☞ 源码
源码链接：https://github.com/DreamLife-Jianwei/Qt-Vtk
使用方法：☟☟☟
文章来源: dreamlife.blog.csdn.net，作者：DreamLife.，版权归原作者所有，如需转载，请联系作者。
原文链接：dreamlife.blog.csdn.net/article/details/120218537
【版权声明】本文为华为云社区用户转载文章，如果您发现本社区中有涉嫌抄袭的内容，欢迎发送邮件进行举报，并提供相关证据，一经查实，本社区将立刻删除涉嫌侵权内容，举报邮箱：
cloudbbs@huaweicloud.com
- 点赞
- 收藏
- 关注作者
评论（0）
