​ 今天又来搬运代码了，这周是入职的第三周了，领导给安排的任务，后面要开始搞任务了。今天搬运的代码为官方实例MuliView。

1 官方示例展示

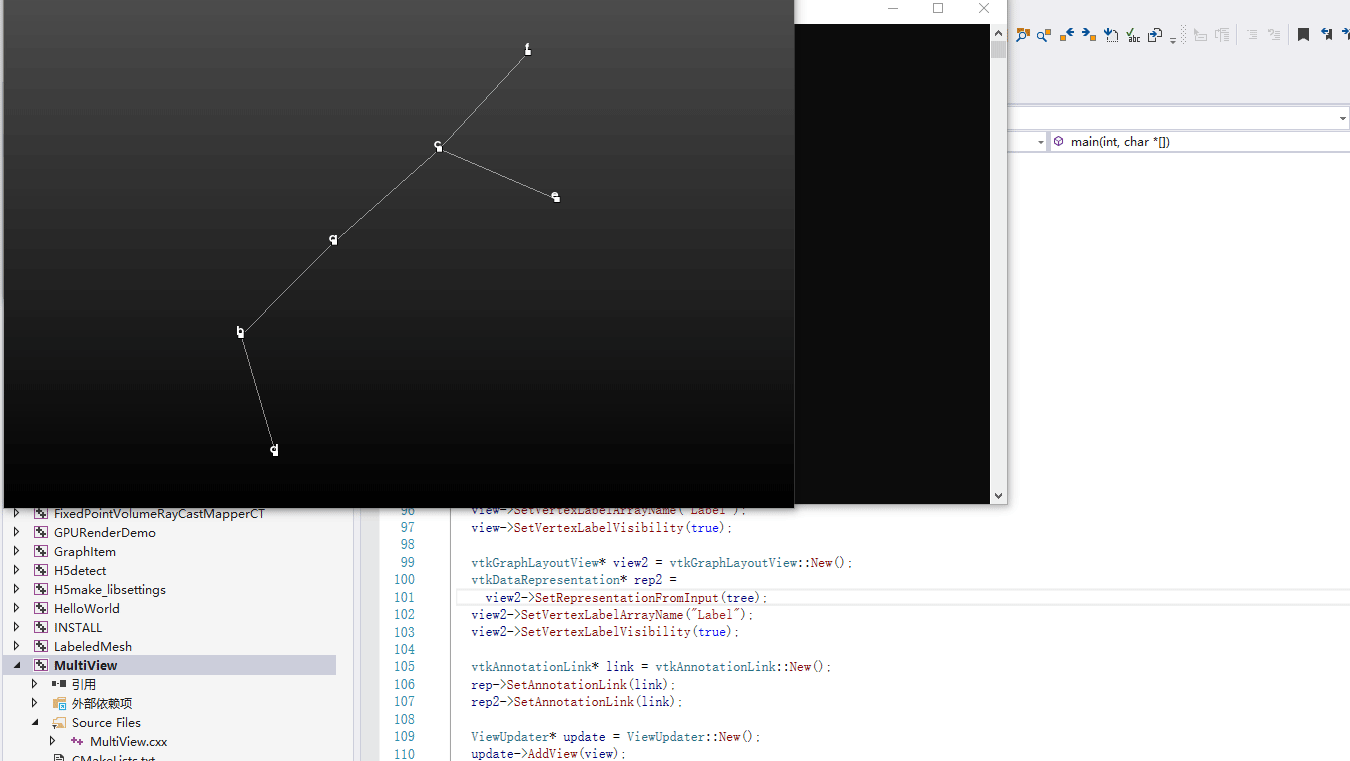

​ 从运行界面来看，和我们之前搬运的CreateTree没有啥区别呀。官方的描述也很简单呀，设个描述是不是很迷呀。

2 代码搬运

2.1 multiview.h

#ifndef MULTIVIEW_H
#define MULTIVIEW_H

#include <QWidget>
#include "QVTKOpenGLWidget.h"               //新版本，旧版QVTKWidget
#include "vtkAutoInit.h"
#include "vtkAnnotationLink.h"
#include "vtkCommand.h"
#include "vtkDataRepresentation.h"
#include "vtkDataSetAttributes.h"
#include "vtkGraphLayoutView.h"
#include "vtkMutableDirectedGraph.h"
#include "vtkRandomGraphSource.h"
#include "vtkRenderer.h"
#include "vtkRenderWindow.h"
#include "vtkRenderWindowInteractor.h"
#include "vtkStringArray.h"
#include "vtkTree.h"
#include "vtkViewTheme.h"
#include "vector"


class ViewUpdater :public vtkCommand
{
public:
    static ViewUpdater* New()
    {
        return new ViewUpdater;
    }
    void AddView(vtkView *view)
    {
        this->Views.push_back(view);
        view->AddObserver(vtkCommand::SelectionChangedEvent,this);
    }

    void Execute(vtkObject*,unsigned long,void*)override
    {
        for(unsigned int i = 0;i<this->Views.size();i++)
        {
            this->Views[i]->Update();
        }
    }


private:
    ViewUpdater() = default;
    ~ViewUpdater() override = default;
    std::vector<vtkView*> Views;
};




namespace Ui {
class MultiView;
}

class MultiView : public QWidget
{
    Q_OBJECT

public:
    explicit MultiView(QWidget *parent = 0);
    ~MultiView();

private:
    Ui::MultiView *ui;

    vtkMutableDirectedGraph *graph = nullptr;

    vtkStringArray* labels = nullptr;

    vtkTree* tree = nullptr;

    vtkGraphLayoutView* view = nullptr;

    vtkGraphLayoutView* view2 = nullptr;

    vtkAnnotationLink* link = nullptr;

    ViewUpdater* update = nullptr;


};

#endif // MULTIVIEW_H







1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87


2.2 multiview.cpp

#include "multiview.h"
#include "ui_multiview.h"

MultiView::MultiView(QWidget *parent) :
    QWidget(parent),
    ui(new Ui::MultiView)
{
    ui->setupUi(this);

    graph = vtkMutableDirectedGraph::New();
    vtkIdType a = graph->AddVertex();
    vtkIdType b = graph->AddChild(a);
    vtkIdType c = graph->AddChild(a);
    vtkIdType d = graph->AddChild(b);
    vtkIdType e = graph->AddChild(c);
    vtkIdType f = graph->AddChild(c);

    labels = vtkStringArray::New();
    labels->SetName("Label");
    labels->InsertValue(a, "a");
    labels->InsertValue(b, "b");
    labels->InsertValue(c, "c");
    labels->InsertValue(d, "d");
    labels->InsertValue(e, "e");
    labels->InsertValue(f, "f");
    graph->GetVertexData()->AddArray(labels);


    tree = vtkTree::New();
    bool validTree = tree->CheckedShallowCopy(graph);
    if (!validTree)
    {
        std::cout << "ERROR: Invalid tree" << std::endl;
        graph->Delete();
        labels->Delete();
        tree->Delete();
    }

    view = vtkGraphLayoutView::New();
    view->SetRenderWindow(ui->widget->GetRenderWindow());
    vtkDataRepresentation* rep =view->SetRepresentationFromInput(tree);
    vtkViewTheme* theme = vtkViewTheme::CreateMellowTheme();
    view->ApplyViewTheme(theme);
    view->SetVertexColorArrayName("VertexDegree");
    view->SetColorVertices(true);
    view->SetVertexLabelArrayName("Label");
    view->SetVertexLabelVisibility(true);

    view2 = vtkGraphLayoutView::New();
    vtkDataRepresentation* rep2 =view2->SetRepresentationFromInput(tree);
    view2->SetVertexLabelArrayName("Label");
    view2->SetVertexLabelVisibility(true);

    link = vtkAnnotationLink::New();
    rep->SetAnnotationLink(link);
    rep2->SetAnnotationLink(link);

    update = ViewUpdater::New();
    update->AddView(view);
    update->AddView(view2);

}

MultiView::~MultiView()
{
    delete ui;
}







1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68


3 运行效果

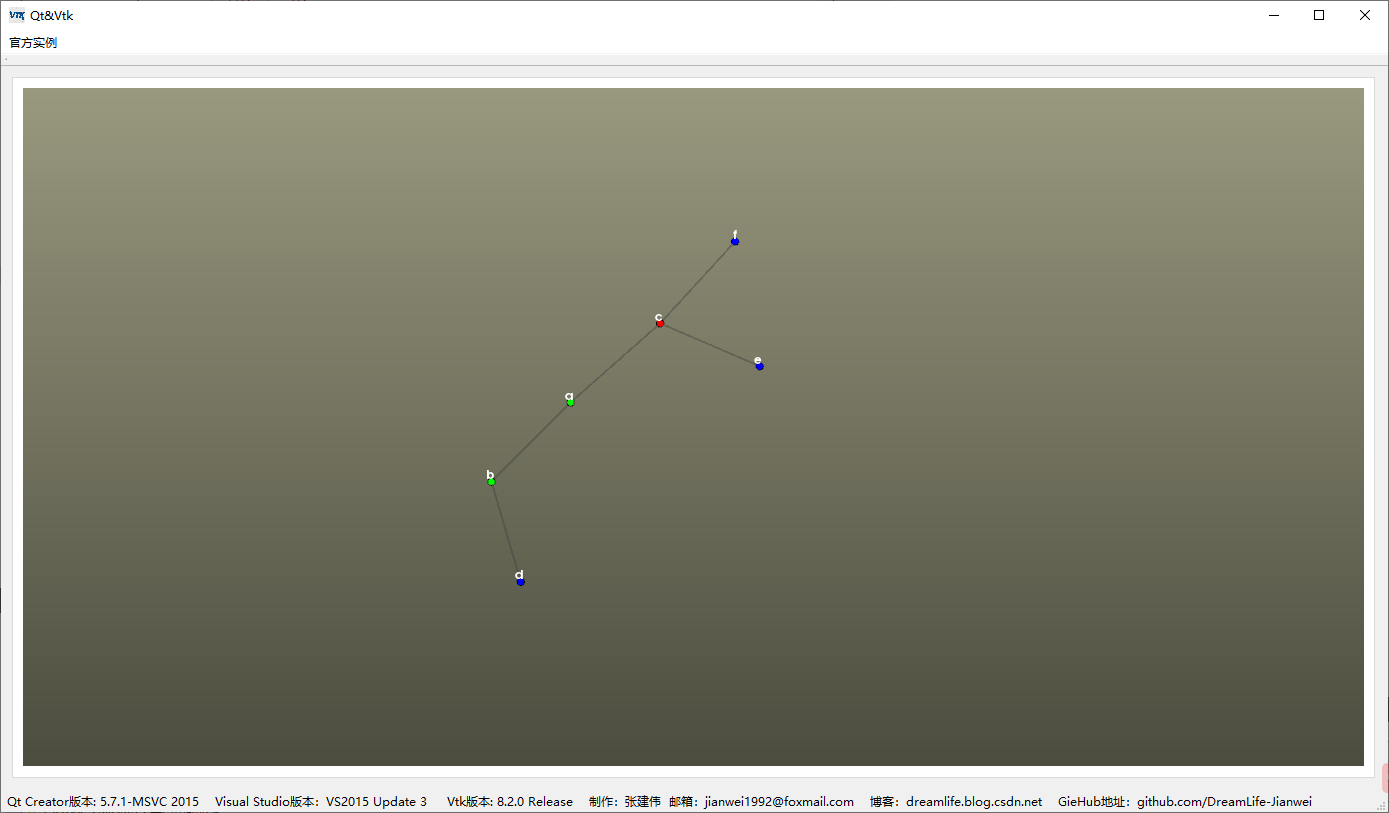

​ 这个是我的运行效果了，但是呢不知道为什么这些代码跑到Qt里面，点就成了圆点了。

★ 源码 ★

​ 源码分享一时爽，一直分享一直爽， 链接如下：

自取：https://github.com/DreamLife-Jianwei/Qt-Vtk

文章来源: dreamlife.blog.csdn.net，作者：DreamLife.，版权归原作者所有，如需转载，请联系作者。

原文链接：dreamlife.blog.csdn.net/article/details/119633322
