1 和Docker相关的概念

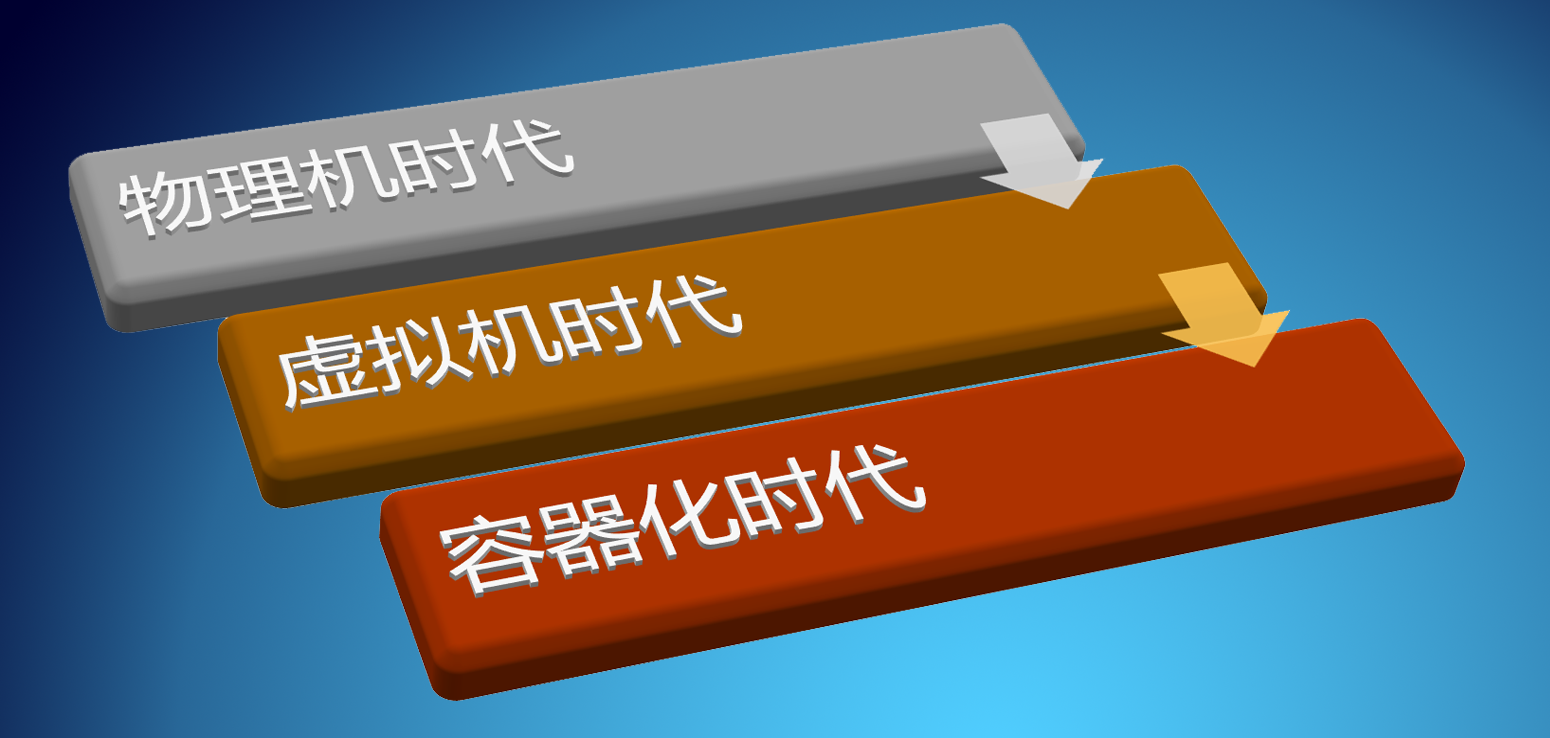

想要真正理解Docker,就不得不从虚拟化技术的发展历程说起。普遍认为虚拟化技术经历了物理机时代、虚拟机时代,目前已经进入到了容器化时代。可以说,Docker是虚拟化技术不断发展的必然结果。

在这里插入图片描述
那么,什么是容器呢?容器和虚拟机有什么不同?Docker和容器又是什么关系呢?搞明白这几个问题,Docker的概念就清晰了。

1.1 虚拟机和容器

借助于VMWare等软件,可以在一台计算机上创建多个虚拟机,每个虚拟机都拥有独立的操作系统,可以各自独立的运行程序。这种分身术虽然隔离度高(操作系统级),使用方便(类似物理机),但占用存储资源多(GB级)、启动速度慢(分钟级)的缺点也是显而易见的。

相较于虚拟机,容器(Container)是一种轻量型的虚拟化技术,它虚拟的是最简运行环境(类似于沙盒)而非操作系统,启动速度快(秒级)、占用存储资源少(KB级或MB级),容器间隔离度为进程级。在一台计算机上可以运行上千个容器,这是容器技术对虚拟机的碾压式优势。

1.2 容器、镜像和Docker

Docker是一个开源的应用容器引擎,可以创建容器以及基于容器运行的程序。Docker可以让开发者打包他们的应用和依赖包到一个轻量级、可移植的容器中,然后发布到任何流行的Linux机器上,也可以实现虚拟化。

听起来很简单,但是在Docker和容器之间,还隐藏着一个镜像的概念,令初学者颇感困惑。本质上,Docker镜像是一个特殊的文件系统,它提供容器运行时所需的程序、库、资源、配置等文件。Docker镜像类似于一个py文件,它需要Docker的运行时(类似于Python解释器)运行。镜像被运行时,即创建了一个镜像的实例,一个实例就是一个容器。

1.3 Docker和k8s

作为容器引擎,Docker为容器化的应用程序提供了开放的标准,使得开发者可以用管理应用程序的方式来管理基础架构,实现快速交付、测试和部署代码。随着容器的大量使用,又产生了如何协调、调度和管理容器的问题,Docker的容器编排应运而生。

k8s是Google开源的一个容器编排引擎,它支持自动化部署、大规模可伸缩、应用容器化管理,是一个开源的,用于管理云平台中多个主机上的容器化的应用,k8s的目标是让部署容器化的应用简单并且高效,k8s提供了应用部署、规划、更新、维护的一种机制。

Docker和k8sr都是以containerd(容器化标准)作为运行时,因此使用Docker创建的镜像完全可以在k8s中无障碍的使用。


2 Docker的安装

2.1 在ubuntu中安装

在linux系统中安装Docker非常简单,官方为我们提供了一键安装脚本。这个方法也适用于Debian或CentOS等发行版。

curl -sSL https://get.daocloud.io/docker | sh

安装过程如果出现超时,不要灰心,多试几次,总会成功的。安装完成后,Docker只能被root用户使用,可以使用下面的命令取消权限限制:

sudo gpasswd -a <你的用户名> docker

然后,重启docker服务:

sudo service docker restart

最后,关闭当前的命令行,重新打开新的命令行就可以了。

顺便提一下,如果在CentOS下安装,可能会出现一堆类似于下面的错误:

问题 1: problem with installed package podman-2.0.5-5.module_el8.3.0+512+b3b58dca.x86_64
  - package podman-2.0.5-5.module_el8.3.0+512+b3b58dca.x86_64 requires runc >= 1.0.0-57, but none of the providers can be installed
  - package podman-3.0.1-6.module_el8.4.0+781+acf4c33b.x86_64 requires runc >= 1.0.0-57, but none of the providers can be installed
  - package podman-3.0.1-7.module_el8.4.0+830+8027e1c4.x86_64 requires runc >= 1.0.0-57, but none of the providers can be installed
  - package containerd.io-1.4.6-3.1.el8.x86_64 conflicts with runc provided by runc-1.0.0-68.rc92.module_el8.3.0+475+c50ce30b.x86_64
  - package containerd.io-1.4.6-3.1.el8.x86_64 obsoletes runc provided by runc-1.0.0-68.rc92.module_el8.3.0+475+c50ce30b.x86_64
  - package containerd.io-1.4.6-3.1.el8.x86_64 conflicts with runc provided by runc-1.0.0-70.rc92.module_el8.4.0+673+eabfc99d.x86_64
  - package containerd.io-1.4.6-3.1.el8.x86_64 obsoletes runc provided by runc-1.0.0-70.rc92.module_el8.4.0+673+eabfc99d.x86_64
  - package containerd.io-1.4.6-3.1.el8.x86_64 conflicts with runc provided by runc-1.0.0-73.rc93.module_el8.4.0+830+8027e1c4.x86_64
  - package containerd.io-1.4.6-3.1.el8.x86_64 obsoletes runc provided by runc-1.0.0-73.rc93.module_el8.4.0+830+8027e1c4.x86_64
  - cannot install the best candidate for the job
  - package runc-1.0.0-64.rc10.module_el8.4.0+522+66908d0c.x86_64 is filtered out by modular filtering
  - package runc-1.0.0-65.rc10.module_el8.4.0+819+4afbd1d6.x86_64 is filtered out by modular filtering
  - package runc-1.0.0-70.rc92.module_el8.4.0+786+4668b267.x86_64 is filtered out by modular filtering
  - package runc-1.0.0-71.rc92.module_el8.4.0+833+9763146c.x86_64 is filtered out by modular filtering
 问题 2: package podman-3.0.1-6.module_el8.4.0+781+acf4c33b.x86_64 requires runc >= 1.0.0-57, but none of the providers can be installed
  - package containerd.io-1.4.3-3.1.el8.x86_64 conflicts with runc provided by runc-1.0.0-70.rc92.module_el8.4.0+673+eabfc99d.x86_64
  - package containerd.io-1.4.3-3.1.el8.x86_64 obsoletes runc provided by runc-1.0.0-70.rc92.module_el8.4.0+673+eabfc99d.x86_64
  - package containerd.io-1.4.3-3.1.el8.x86_64 conflicts with runc provided by runc-1.0.0-73.rc93.module_el8.4.0+830+8027e1c4.x86_64
  - package containerd.io-1.4.3-3.1.el8.x86_64 obsoletes runc provided by runc-1.0.0-73.rc93.module_el8.4.0+830+8027e1c4.x86_64
  - package docker-ce-3:20.10.7-3.el8.x86_64 requires containerd.io >= 1.4.1, but none of the providers can be installed
  - package containerd.io-1.4.3-3.2.el8.x86_64 conflicts with runc provided by runc-1.0.0-70.rc92.module_el8.4.0+673+eabfc99d.x86_64
  - package containerd.io-1.4.3-3.2.el8.x86_64 obsoletes runc provided by runc-1.0.0-70.rc92.module_el8.4.0+673+eabfc99d.x86_64
  - package containerd.io-1.4.3-3.2.el8.x86_64 conflicts with runc provided by runc-1.0.0-73.rc93.module_el8.4.0+830+8027e1c4.x86_64
  - package containerd.io-1.4.3-3.2.el8.x86_64 obsoletes runc provided by runc-1.0.0-73.rc93.module_el8.4.0+830+8027e1c4.x86_64
  - package podman-catatonit-3.0.1-6.module_el8.4.0+781+acf4c33b.x86_64 requires podman = 3.0.1-6.module_el8.4.0+781+acf4c33b, but none of the providers can be installed
  - problem with installed package podman-catatonit-2.0.5-5.module_el8.3.0+512+b3b58dca.x86_64
  - package podman-catatonit-3.0.1-7.module_el8.4.0+830+8027e1c4.x86_64 requires podman = 3.0.1-7.module_el8.4.0+830+8027e1c4, but none of the providers can be installed
  - package podman-3.0.1-7.module_el8.4.0+830+8027e1c4.x86_64 requires runc >= 1.0.0-57, but none of the providers can be installed
  - package containerd.io-1.4.3-3.1.el8.x86_64 conflicts with runc provided by runc-1.0.0-68.rc92.module_el8.3.0+475+c50ce30b.x86_64
  - package containerd.io-1.4.3-3.1.el8.x86_64 obsoletes runc provided by runc-1.0.0-68.rc92.module_el8.3.0+475+c50ce30b.x86_64
  - package containerd.io-1.4.3-3.2.el8.x86_64 conflicts with runc provided by runc-1.0.0-68.rc92.module_el8.3.0+475+c50ce30b.x86_64
  - package containerd.io-1.4.3-3.2.el8.x86_64 obsoletes runc provided by runc-1.0.0-68.rc92.module_el8.3.0+475+c50ce30b.x86_64
  - package containerd.io-1.4.4-3.1.el8.x86_64 conflicts with runc provided by runc-1.0.0-68.rc92.module_el8.3.0+475+c50ce30b.x86_64
  - package containerd.io-1.4.4-3.1.el8.x86_64 obsoletes runc provided by runc-1.0.0-68.rc92.module_el8.3.0+475+c50ce30b.x86_64
  - package containerd.io-1.4.6-3.1.el8.x86_64 conflicts with runc provided by runc-1.0.0-68.rc92.module_el8.3.0+475+c50ce30b.x86_64
  - package containerd.io-1.4.6-3.1.el8.x86_64 obsoletes runc provided by runc-1.0.0-68.rc92.module_el8.3.0+475+c50ce30b.x86_64
  - cannot install the best candidate for the job
  - package runc-1.0.0-64.rc10.module_el8.4.0+522+66908d0c.x86_64 is filtered out by modular filtering
  - package runc-1.0.0-65.rc10.module_el8.4.0+819+4afbd1d6.x86_64 is filtered out by modular filtering
  - package runc-1.0.0-70.rc92.module_el8.4.0+786+4668b267.x86_64 is filtered out by modular filtering
  - package runc-1.0.0-71.rc92.module_el8.4.0+833+9763146c.x86_64 is filtered out by modular filtering
  - package containerd.io-1.4.4-3.1.el8.x86_64 conflicts with runc provided by runc-1.0.0-70.rc92.module_el8.4.0+673+eabfc99d.x86_64
  - package containerd.io-1.4.4-3.1.el8.x86_64 obsoletes runc provided by runc-1.0.0-70.rc92.module_el8.4.0+673+eabfc99d.x86_64
  - package containerd.io-1.4.4-3.1.el8.x86_64 conflicts with runc provided by runc-1.0.0-73.rc93.module_el8.4.0+830+8027e1c4.x86_64
  - package containerd.io-1.4.4-3.1.el8.x86_64 obsoletes runc provided by runc-1.0.0-73.rc93.module_el8.4.0+830+8027e1c4.x86_64
  - package containerd.io-1.4.6-3.1.el8.x86_64 conflicts with runc provided by runc-1.0.0-70.rc92.module_el8.4.0+673+eabfc99d.x86_64
  - package containerd.io-1.4.6-3.1.el8.x86_64 obsoletes runc provided by runc-1.0.0-70.rc92.module_el8.4.0+673+eabfc99d.x86_64
  - package containerd.io-1.4.6-3.1.el8.x86_64 conflicts with runc provided by runc-1.0.0-73.rc93.module_el8.4.0+830+8027e1c4.x86_64
  - package containerd.io-1.4.6-3.1.el8.x86_64 obsoletes runc provided by runc-1.0.0-73.rc93.module_el8.4.0+830+8027e1c4.x86_64
  - package podman-catatonit-2.0.5-5.module_el8.3.0+512+b3b58dca.x86_64 requires podman = 2.0.5-5.module_el8.3.0+512+b3b58dca, but none of the providers can be installed
  - package podman-2.0.5-5.module_el8.3.0+512+b3b58dca.x86_64 requires runc >= 1.0.0-57, but none of the providers can be installed

这是由于docker和Podman冲突造成的,需要先卸载Podman:

yum erase podman buildah

2.2 在Win10中安装

Docker的运行,依赖linux的环境,官方提供了Docker Desktop for Windows,但是它需要安装Hyper-V,Hyper-V是微软开发的虚拟机,类似于 VMWare 或 VirtualBox,仅适用于 Windows 10。这个虚拟机一旦启用,QEMU、VirtualBox 或 VMWare Workstation 15 及以下版本将无法使用!如果你必须在电脑上使用其他虚拟机(例如开发 Android 应用必须使用的模拟器),请不要使用 Hyper-V!

我的电脑是win10家庭版,不能直接安装hyper-v,需要将下面的命令保存到cmd文件中:

pushd "%~dp0"

dir /b %SystemRoot%\servicing\Packages\*Hyper-V*.mum >hyper-v.txt

for /f %%i in ('findstr /i . hyper-v.txt 2^>nul') do dism /online /norestart /add-package:"%SystemRoot%\servicing\Packages\%%i"

del hyper-v.txt

Dism /online /enable-feature /featurename:Microsoft-Hyper-V-All /LimitAccess /ALL

然后在cmd文件上点击右键,选择使用管理员运行。执行完毕后会重启,在重启的过程中进行安装。

2.3 Hello world

docker服务启动的情况下,运行下面的命令:

docker run ubuntu:20.04 /bin/echo "Hello world"

此命令的含义是:

  • docker run:运行docker镜像命令
  • ubuntu:20.04:镜像名称为ubuntu版本号为20.04
  • /bin/echo “Hello world”:运行参数,此镜像的参数含义为运行镜像的echo命令显示hello world

第一次运行时,因为本地没有ubuntu:20.04镜像,docker会自动从镜像服务器下载。下载过程可能需要多试几次,只要成功一次,以后执行就不再需要下载了。

docker官方还提供了一个hello-world镜像,可以直接运行:

docker run hello-world

此命令省略了镜像版本和运行参数,docker使用latest作为版本,即最新版本。

从hello world的例子中,也可以体验到,docker实例的运行是非常快的。


3 Docker镜像的使用

docker官方的镜像库比较慢,在进行镜像操作之前,需要将镜像源设置为国内的站点。

新建文件/etc/docker/daemon.json,输入如下内容:

{
    "registry-mirrors" : [
        "https://registry.docker-cn.com",
        "https://docker.mirrors.ustc.edu.cn",
        "http://hub-mirror.c.163.com",
        "https://cr.console.aliyun.com/"
    ]
}

然后重启docker的服务:

systemctl restart docker

3.1 列出本地所有镜像

执行命令docker images可以查看

$ docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
ubuntu              20.04               f643c72bc252        5 weeks ago         72.9MB
hello-world         latest              bf756fb1ae65        12 months ago       13.3kB

当前我本地只有刚才安装的两个镜像。

3.2 从镜像库中查找镜像

执行命令docker search 镜像名称可以从docker镜像库中查找镜像。

$ docker search python
NAME                             DESCRIPTION                                     STARS              OFFICIAL          AUTOMATED
python                           Python is an interpreted, interactive, objec…   5757                [OK]
django                           Django is a free web application framework, …   1039                [OK]
pypy                             PyPy is a fast, compliant alternative implem…   260                 [OK]
joyzoursky/python-chromedriver   Python with Chromedriver, for running automa…   57                                      [OK]
nikolaik/python-nodejs           Python with Node.js                             57                                      [OK]
arm32v7/python                   Python is an interpreted, interactive, objec…   53
circleci/python                  Python is an interpreted, interactive, objec…   42
centos/python-35-centos7         Platform for building and running Python 3.5…   38
centos/python-36-centos7         Platform for building and running Python 3.6…   30
hylang                           Hy is a Lisp dialect that translates express…   29                  [OK]
arm64v8/python                   Python is an interpreted, interactive, objec…   24
revolutionsystems/python         Optimized Python Images                         18
centos/python-27-centos7         Platform for building and running Python 2.7…   17
bitnami/python                   Bitnami Python Docker Image                     10                                      [OK]
publicisworldwide/python-conda   Basic Python environments with Conda.           6                                       [OK]
d3fk/python_in_bottle            Simple python:alpine completed by Bottle+Req…   5                                       [OK]
dockershelf/python               Repository for docker images of Python. Test…   5                                       [OK]
clearlinux/python                Python programming interpreted language with…   4
i386/python                      Python is an interpreted, interactive, objec…   3
ppc64le/python                   Python is an interpreted, interactive, objec…   2
centos/python-34-centos7         Platform for building and running Python 3.4…   2
amd64/python                     Python is an interpreted, interactive, objec…   1
ccitest/python                   CircleCI test images for Python                 0                                       [OK]
s390x/python                     Python is an interpreted, interactive, objec…   0
saagie/python                    Repo for python jobs                            0

最好选择官方(OFFICIAL)的镜像,这样的镜像最稳定一些。

3.3 下载新的镜像

执行命令docker pull 镜像名称:版本号即可下载新的镜像。

$ docker pull python:3.8
3.8: Pulling from library/python
6c33745f49b4: Pull complete
ef072fc32a84: Pull complete
c0afb8e68e0b: Pull complete
d599c07d28e6: Pull complete
f2ecc74db11a: Pull complete
26856d31ce86: Pull complete
2cd68d824f12: Pull complete
7ea1535f18c3: Pull complete
2bef93d9a76e: Pull complete
Digest: sha256:9079aa8582543494225d2b3a28fce526d9a6b06eb06ce2bac3eeee592fcfc49e
Status: Downloaded newer image for python:3.8
docker.io/library/python:3.8

镜像下载后,就可以使用镜像来创建容器了。


4 Docker容器的使用

4.1 启动容器

执行命令docker run即可启动容器,也就是创建某个镜像的实例。docker run命令非常复杂,可以先执行一个docker run --help来查看帮助:

$ docker run --help

Usage:	docker run [OPTIONS] IMAGE [COMMAND] [ARG...]

Run a command in a new container

Options:
      --add-host list                  Add a custom host-to-IP mapping (host:ip)
  -a, --attach list                    Attach to STDIN, STDOUT or STDERR
      --blkio-weight uint16            Block IO (relative weight), between 10 and 1000, or 0 to disable (default 0)
      --blkio-weight-device list       Block IO weight (relative device weight) (default [])
      --cap-add list                   Add Linux capabilities
      --cap-drop list                  Drop Linux capabilities
      --cgroup-parent string           Optional parent cgroup for the container
      --cidfile string                 Write the container ID to the file
      --cpu-period int                 Limit CPU CFS (Completely Fair Scheduler) period
      --cpu-quota int                  Limit CPU CFS (Completely Fair Scheduler) quota
      --cpu-rt-period int              Limit CPU real-time period in microseconds
      --cpu-rt-runtime int             Limit CPU real-time runtime in microseconds
  -c, --cpu-shares int                 CPU shares (relative weight)
      --cpus decimal                   Number of CPUs
      --cpuset-cpus string             CPUs in which to allow execution (0-3, 0,1)
      --cpuset-mems string             MEMs in which to allow execution (0-3, 0,1)
  -d, --detach                         Run container in background and print container ID
      --detach-keys string             Override the key sequence for detaching a container
      --device list                    Add a host device to the container
      --device-cgroup-rule list        Add a rule to the cgroup allowed devices list
      --device-read-bps list           Limit read rate (bytes per second) from a device (default [])
      --device-read-iops list          Limit read rate (IO per second) from a device (default [])
      --device-write-bps list          Limit write rate (bytes per second) to a device (default [])
      --device-write-iops list         Limit write rate (IO per second) to a device (default [])
      --disable-content-trust          Skip image verification (default true)
      --dns list                       Set custom DNS servers
      --dns-option list                Set DNS options
      --dns-search list                Set custom DNS search domains
      --domainname string              Container NIS domain name
      --entrypoint string              Overwrite the default ENTRYPOINT of the image
  -e, --env list                       Set environment variables
      --env-file list                  Read in a file of environment variables
      --expose list                    Expose a port or a range of ports
      --gpus gpu-request               GPU devices to add to the container ('all' to pass all GPUs)
      --group-add list                 Add additional groups to join
      --health-cmd string              Command to run to check health
      --health-interval duration       Time between running the check (ms|s|m|h) (default 0s)
      --health-retries int             Consecutive failures needed to report unhealthy
      --health-start-period duration   Start period for the container to initialize before starting health-retries countdown (ms|s|m|h) (default 0s)
      --health-timeout duration        Maximum time to allow one check to run (ms|s|m|h) (default 0s)
      --help                           Print usage
  -h, --hostname string                Container host name
      --init                           Run an init inside the container that forwards signals and reaps processes
  -i, --interactive                    Keep STDIN open even if not attached
      --ip string                      IPv4 address (e.g., 172.30.100.104)
      --ip6 string                     IPv6 address (e.g., 2001:db8::33)
      --ipc string                     IPC mode to use
      --isolation string               Container isolation technology
      --kernel-memory bytes            Kernel memory limit
  -l, --label list                     Set meta data on a container
      --label-file list                Read in a line delimited file of labels
      --link list                      Add link to another container
      --link-local-ip list             Container IPv4/IPv6 link-local addresses
      --log-driver string              Logging driver for the container
      --log-opt list                   Log driver options
      --mac-address string             Container MAC address (e.g., 92:d0:c6:0a:29:33)
  -m, --memory bytes                   Memory limit
      --memory-reservation bytes       Memory soft limit
      --memory-swap bytes              Swap limit equal to memory plus swap: '-1' to enable unlimited swap
      --memory-swappiness int          Tune container memory swappiness (0 to 100) (default -1)
      --mount mount                    Attach a filesystem mount to the container
      --name string                    Assign a name to the container
      --network network                Connect a container to a network
      --network-alias list             Add network-scoped alias for the container
      --no-healthcheck                 Disable any container-specified HEALTHCHECK
      --oom-kill-disable               Disable OOM Killer
      --oom-score-adj int              Tune host's OOM preferences (-1000 to 1000)
      --pid string                     PID namespace to use
      --pids-limit int                 Tune container pids limit (set -1 for unlimited)
      --platform string                Set platform if server is multi-platform capable
      --privileged                     Give extended privileges to this container
  -p, --publish list                   Publish a container's port(s) to the host
  -P, --publish-all                    Publish all exposed ports to random ports
      --read-only                      Mount the container's root filesystem as read only
      --restart string                 Restart policy to apply when a container exits (default "no")
      --rm                             Automatically remove the container when it exits
      --runtime string                 Runtime to use for this container
      --security-opt list              Security Options
      --shm-size bytes                 Size of /dev/shm
      --sig-proxy                      Proxy received signals to the process (default true)
      --stop-signal string             Signal to stop a container (default "SIGTERM")
      --stop-timeout int               Timeout (in seconds) to stop a container
      --storage-opt list               Storage driver options for the container
      --sysctl map                     Sysctl options (default map[])
      --tmpfs list                     Mount a tmpfs directory
  -t, --tty                            Allocate a pseudo-TTY
      --ulimit ulimit                  Ulimit options (default [])
  -u, --user string                    Username or UID (format: <name|uid>[:<group|gid>])
      --userns string                  User namespace to use
      --uts string                     UTS namespace to use
  -v, --volume list                    Bind mount a volume
      --volume-driver string           Optional volume driver for the container
      --volumes-from list              Mount volumes from the specified container(s)
  -w, --workdir string                 Working directory inside the container

比如我们要执行python的shell,需要添加-it参数,即:docker run -it python:3.8

$ docker run -it python:3.8
Python 3.8.7 (default, Dec 22 2020, 18:46:25)
[GCC 8.3.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>>

4.2 将宿主机的文件挂载到容器

docker容器与宿主机是隔离的,要想让容器内的程序能访问宿主机上的文件,需要通过-v参数将宿主机的文件挂载到容器中。

比如我们在宿主机上有一个hello.py,可以打印hello,想要在python容器中执行,就需要进行挂载。-v后还需要接两个参数,分别是宿主机的目录和容器内的目录,两者使用:分隔,路径必须都是绝对路径。

我的hello.py保存在主目录的/docker_test目录中,将这个目录挂载到容器的/docker_test目录,然后在容器内执行python /docker_test/hello.py:

$ docker run -v ~/docker_test:/docker_test python:3.8 python /docker_test/hello.py
hello

4.3 容器的端口映射

我们修改一下hello.py,创建一个socket服务端,并监听5000端口,当有客户端连接时,打印客户端的地址,先客户端发送hello,然后关闭连接:

import socket

ip_port = ('127.0.0.1', 5000)

sk = socket.socket()
sk.bind(ip_port)
sk.listen(5)

while True:
    print('server waiting...')
    conn,addr = sk.accept()
    print(addr)
    conn.sendall(b'hello\n')
    conn.close()

在容器内执行:

docker run -v ~/docker_test:/docker_test python:3.8 python /docker_test/hello.py

接下来,尝试用telnet命令连接,结果却是失败的。原因是,127.0.0.1是宿主机的ip地址,5000是容器的端口,这与我们的习惯稍微有些不同。事实上,docker的容器是非常轻量的,它并没有自己的网络,要想访问容器的端口,需要进行端口映射,将容器的某端口映射到宿主机的端口,客户端连接时,只要与宿主机的端口进行连接就可以了。

需要注意的是,上面的代码创建的服务器,无论如何也不可能被客户端连接,因为代码中绑定了127.0.0.1的ip,在容器中运行时,需要绑定所有ip,即0.0.0.0。

import socket

ip_port = ('0.0.0.0', 5000)

sk = socket.socket()
sk.bind(ip_port)
sk.listen(5)

while True:
    print('server waiting...')
    conn,addr = sk.accept()
    print(addr)
    conn.sendall(b'hello\n')
    conn.close()

然后,再使用-p参数,-p还需要三个参数,即宿主机的ip地址、宿主机的端口、容器的端口,三者之间使用:分隔。一般的,可以将宿主机的ip地址省略,只写宿主机的端口:容器的端口即可。

docker run -v ~/docker_test:/docker_test -it -p 5001:5000 python:3.8 python /docker_test/hello.py

这样,就将容器的5000端口映射到了宿主机的5001端口,使用:

telnet 127.0.0.1 5001

即可与容器中的服务器进行连接。

4.4 容器管理

上面的服务运行之后,可以使用docker ps命令,查看运行中的容器:

$ docker ps
CONTAINER ID     IMAGE           COMMAND                  CREATED           STATUS         PORTS                    NAMES
ec4c86b8a163     python:3.8      "python /docker_test…"   5 seconds ago     Up 4 seconds   0.0.0.0:5000->5000/tcp   eager_wilson

显示的内容有下面几列:

  • CONTAINER ID:容器ID
  • IMAGE:镜像名称和版本
  • COMMAND:执行的命令
  • CREATED:容器创建时间
  • STATUS:容器的状态
  • PORTS:端口映射
  • NAMES:容器名

要想结束容器,可以使用docker kill 容器ID命令。


5 自制Docker镜像

一般而言,当我们的程序开发完成后,会连同程序文件与运行环境一起制作成一个新的镜像。

要制作镜像,需要编写Dockerfile。DockeFile由多个命令组成,常用的命令有:

  • FROM:基于某个镜像来制作新的镜像。格式为:FROM 镜像名称:镜像版本。
  • COPY:从宿主机复制文件,支持?*等通配符。格式为:COPY 源文件路径 目标文件路径。
  • ADD:从宿主机添加文件,格式与COPY相同,区别在于当文件为压缩文件时,会解压缩到目标路径。
  • RUN:在创建新镜像的过程中执行的shell命令。格式为:RUN shell命令行。注意,此shell命令将在容器内执行。
  • CMD:在容器实例中运行的命令,格式与RUN相同。注意,如果在docker run时指定了命令,将不会执行CMD的内容。
  • ENTRYPOINT:在容器实例中运行的命令,格式与CMD相同。注意,如果在docker run时指定了命令,该命令会以命令行参数的形式传递到ENTRYPOINT中。
  • ENV:在容器中创建环境变量,格式为:ENV 变量名 值

注意,Docker镜像中有一个层的概念,每执行一个RUN命令,就会创建一个层,层过多会导致镜像文件体积增大。尽量在RUN命令中使用&&连接多条shell命令,减少RUN命令的个数,可以有效减小镜像文件的体积。

5.1 自制显示文本文件内容镜像

编写cat.py,接收一个文件名,由python读取文件并显示文件的内容:

import os
import sys

input = sys.argv[1]

with open(input, "r") as fp:
    print(fp.read())

这个例子比较简单,缩写Dockerfile如下:

FROM python:3.8
WORKDIR /files
COPY cat.py /cat.py
ENTRYPOINT ["python", "/cat.py"]

这个Dockerfile的含义是:

  1. 以python:3.8为基础镜像
  2. 容器启动命令的工作目录为/files,在运行镜像时,需要我们把宿主机的某目录挂载到容器的/files目录
  3. 复制cat.py到容器的根目录下
  4. 启动时运行python /cat.py命令

需要说明的是,ENTRYPOINT有两种写法:

ENTRYPOINT python /cat.py
ENTRYPOINT ["python", "/cat.py"]

这里采用第二种写法,是因为我们要在外部给容器传递参数。执行命令编译Docker镜像:

docker build -t cat:1.0 .

这个命令中,-t的含义是目标,即生成的镜像名为hello,版本号为1.0,别忘了最后那个.,这叫到上下文路径,是指 docker 在构建镜像,有时候想要使用到本机的文件(比如复制),docker build 命令得知这个路径后,会将路径下的所有内容打包。

这样,我们的第一个镜像就制作完成了,使用下面的命令执行它:

docker run -it -v ~/docker_test/cat/files:/files cat:1.0 test.txt

即可看到~/docker_test/cat/files/test.txt的内容。

5.2 自制web服务器镜像

我们使用tornado开发一个网站,而python的官方镜像是没有tornado库的,这就需要在制作镜像时进行安装。

测试的ws.py如下:

import tornado.httpserver
import tornado.ioloop
import tornado.options
import tornado.web

from tornado.options import define, options
define("port", default=8000, help="run on the given port", type=int)

class IndexHandler(tornado.web.RequestHandler):
    def get(self):
        self.write("Hello world")

if __name__ == "__main__":
    tornado.options.parse_command_line()
    app = tornado.web.Application(handlers=[(r"/", IndexHandler)])
    http_server = tornado.httpserver.HTTPServer(app)
    http_server.listen(options.port)
    tornado.ioloop.IOLoop.instance().start()

编写Dockerfile文件如下:

FROM python:3.8
WORKDIR /ws
COPY ws.py /ws/ws.py
RUN pip install tornado
CMD python hello.py

在此我们验证一下CMD与ENTRYPOINT的区别。在Dockerfile所在有目录下执行如下命令:

docker build -t ws:1.0 .

执行完成后,再使用docker images使用就可以看到生成的镜像了,然后使用下面的命令运行:

docker run -it -p 8000:8000 ws:1.0

在浏览器中输入宿主机的ip和8000端口,就可以看到页面了。

在这个例子中,我使用的运行命令是CMD,如果在docker run中指定的其他的命令,此命令就不会被执行,如:

$ docker run -it -p 8000:8000 ws:1.0 python
Python 3.8.7 (default, Dec 22 2020, 18:46:25)
[GCC 8.3.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>>

此时,容器中被执行的是python命令,而不是我们的服务。在更多情况下,我们希望在docker run命令中为我们的服务传参,而不是覆盖执行命令,那么,我们应该使用ENTRYPOINT而不是CMD

FROM python:3.8
WORKDIR /ws
COPY ws.py /ws/ws.py
RUN pip install tornado
ENTRYPOINT python ws.py

上面这种写法,是不支持传递参数的,ENTRYPOINTCMD还支持另一种写法:

FROM python:3.8
WORKDIR /ws
COPY ws.py /ws/ws.py
RUN pip install tornado
ENTRYPOINT ["python", "ws.py"]

使用这种写法,docker run命令中的参数才可以传递给hello.py:

docker run -it -p 8000:9000 ws:1.0 --port=9000

这个命令中,--port=9000被作为参数传递到hello.py中,因此容器内的端口就成了9000。

在生产环境中运行时,不会使用-it选项,而是使用-d选项,让容器在后台运行:

$ docker run -d -p 8000:9000 ws:1.0 --port=9000
4a2df9b252e2aff6a8853b3a8bf46c0577545764831bb7557b836ddcd85cba70
$ docker ps
CONTAINER ID   IMAGE        COMMAND                  CREATED           STATUS            PORTS                    NAMES
4a2df9b252e2   hello:1.0    "python ws.py --p…"   9 seconds ago     Up 8 seconds      0.0.0.0:8000->9000/tcp   elegant_sammet

这种方式下,即使当前的控制台被关闭,该容器也不会停止。

5.3 自制apscheduler服务镜像

接下来,制作一个使用apscheduler编写的服务镜像,代码如下:

import sys
import shutil
from apscheduler.schedulers.blocking import BlockingScheduler
from apscheduler.triggers.cron import CronTrigger

def scan_files():
    shutil.copytree(sys[1], sys[2])

scheduler = BlockingScheduler()
scheduler.add_job(
    scan_files,
    trigger=CronTrigger(minute="*"),
    misfire_grace_time=30
)

Dockerfile也是信手拈来:

FROM python:3.8
WORKDIR /
COPY sch.py /sch.py
RUN pip install apscheduler
ENTRYPOINT ["python", "sch.py"]

生成镜像:

docker build -t sch:1.0 .

应该可以运行了,文件复制需要两个目录,在运行时,可以使用两次-v来挂载不同的目录:

docker run -d -v ~/docker_test/sch/src:/src -v ~/docker_test/sch/dest:/dest sch:1.0 /src /dest

6 多阶段构建压缩镜像体积

前面用到的官方python镜像大小足足882MB,在这个基础上,再安装用到的第三方库,添加项目需要的图片等资源,大小很容易就超过1个G,这么大的镜像,网络传给客户非常的不方便,因此,减小镜像的体积是非常必要的工作。

docker hub上有个一python:3.8-alpine镜像,大小只有44.5MB。之所以小,是因为alpine是一个采用了busybox架构的操作系统,一般用于嵌入式应用。我尝试使用这个镜像,发现安装一般的库还好,但如果想安装numpy等就会困难重重,甚至网上都找不到解决方案。

还是很回到基本的路线上来,主流的操作系统镜像,ubuntu的大小为72.9MB,centos的大小为209MB——这也算是我更喜欢使用ubuntu的一个重要原因吧!使用ubuntu作为基础镜像,安装python后的大小为139MB,再安装pip后的大小一下子上升到了407MB,要是再安装点其他东西,很容易就赶上或超过python官方镜像的大小了。

看来,寻常路线是很难压缩镜像文件体积了。幸好,还有一条曲线救国的路可走,这就是多阶段构建法。

多阶段构建的思想其实很简单,先构建一个大而全的镜像,然后只把镜像中有用的部分拿出来,放在一个新的镜像里。在我们的场景下,pip只在构建镜像的过程中需要,而对运行我们的程序却一点用处也没有。我们只需要安装pip,再用pip安装第三方库,然后将第三方库从这个镜像中复制到一个只有python,没有pip的镜像中,这样,pip占用的268MB空间就可以被节省出来了。

  1. 在ubuntu镜像的基础上安装python:

    FROM ubuntu
    RUN apt update \
        && apt install python3


    然后运行:

    docker build -t python:3.8-ubuntu .


    这样,就生成了python:3.8-ubuntu镜像。

  2. 在python:3.8-ubuntu的基础上安装pip:

    FROM python:3.8-ubuntu
    RUN apt install python3


    然后运行:

    docker build -t python:3.8-ubuntu-pip .


    这样,就生成了python:3.8-ubuntu-pip镜像。

  3. 多阶段构建目标镜像:

    FROM python:3.8-ubuntu-pip
    RUN pip3 install -i https://pypi.tuna.tsinghua.edu.cn/simple numpy
    FROM python:3.8-ubuntu
    COPY --from=0 /usr/local/lib/python3.8/dist-packages/ /usr/local/lib/python3.8/dist-packages/


    这个dockerfile需要解释一下了,因为它有两个FROM命令。

    第一个是以python:3.8-ubuntu-pip镜像为基础,安装numpy,当然,在实际应用中,把所有用到的第三方库出写在这里。

    第二个FROM是以FROM python:3.8-ubuntu镜像为基础,将第三方库统统复制过来,COPY命令后的–from=0的意思是从第0阶段进行复制。实际应用中再从上下文中复制程序代码,添加需要的ENTRYPOINT等。

    最后,再运行:

    docker build -t project:1.0 .


    这然,用于我们项目的镜像就做好了。比使用官方python镜像构建的版本,小了大约750MB。

7 导入镜像到生产环境

到此,我们的镜像已经制作好了,可是,镜像文件在哪,如何在生产环境下运行呢?

刚才使用docker images命令时,已经看到了生成的镜像:

$ docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
hello               1.0                 01fe19111dc7        59 minutes ago      893MB
python              3.8                 f5041c8ae6b1        13 days ago         884MB
ubuntu              20.04               f643c72bc252        5 weeks ago         72.9MB
hello-world         latest              bf756fb1ae65        12 months ago       13.3kB

我们可以使用docker save命令将镜像保存到指定的文件中,保存的文件是一个.tar格式的压缩文件:

docker save -o hello.tar hello:1.0

将hello.tar复制到生产环境的机器上,然后执行导入命令:

docker load -i hello.tar

就可以使用了。

文章来源: xufive.blog.csdn.net,作者:天元浪子,版权归原作者所有,如需转载,请联系作者。

原文链接:xufive.blog.csdn.net/article/details/124101613

【版权声明】本文为华为云社区用户转载文章,如果您发现本社区中有涉嫌抄袭的内容,欢迎发送邮件进行举报,并提供相关证据,一经查实,本社区将立刻删除涉嫌侵权内容,举报邮箱: cloudbbs@huaweicloud.com
  • 点赞
  • 收藏
  • 关注作者

评论(0

0/1000
抱歉,系统识别当前为高风险访问,暂不支持该操作

全部回复

上滑加载中

设置昵称

在此一键设置昵称,即可参与社区互动!

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。

*长度不超过10个汉字或20个英文字符,设置后3个月内不可修改。

举报
请填写举报理由
0/200
