Google Earth Engine ——Hyperion高分辨率的高光谱（200个波段）数据集

Hyperion is a high resolution hyperspectral imager producing 220 unique spectral channels ranging from 0.357 to 2.576 micrometers with a 10-nm bandwidth. The instrument operates in a pushbroom fashion, with a spatial resolution of 30 meters for all bands and a standard scene width of 7.7 kilometers.

This dataset contains level 1A radiance images, radiometrically calibrated and orthorectified. The SWIR bands have a scaling factor of 80 and the VNIR bands have a scaling factor of 40 applied.

• VNIR bands (B008-B057, 426.82nm - 925.41nm): L = Digital Number / 40

• SWIR bands (B077-B224, 912.45nm - 2395.50nm): L = Digital Number / 80

Note that bands B001-B007, B058-B076, and B225-242 are not calibrated, have no valid values and are not included into EE assets. See the detailed spectral coverage information.

This is a preview dataset; only a portion of the data from the original source have been downloaded so far. The remainder are in progress.

Hyperion是一个高分辨率的高光谱成像仪，产生220个独特的光谱通道，范围从0.357到2.576微米，带宽为10纳米。该仪器以pushbroom方式运行，所有波段的空间分辨率为30米，标准场景宽度为7.7千米。

该数据集包含1A级辐射度图像，经过辐射度校准和正射处理。SWIR波段的缩放系数为80，VNIR波段的缩放系数为40。

VNIR波段（B008-B057，426.82nm - 925.41nm）。L = 数字编号/40

SWIR波段（B077-B224，912.45nm - 2395.50nm）。L = 数字编号 / 80

请注意，B001-B007、B058-B076和B225-242波段没有经过校准，没有有效的数值，不包括在EE资产中。参见详细的光谱覆盖信息。

这是一个预览数据集；到目前为止，只有一部分来自原始资料的数据被下载。其余的正在进行中。

Dataset Availability

2001-05-01T00:00:00 - 2017-03-13T00:00:00

Dataset Provider

USGS

Collection Snippet

ee.ImageCollection("EO1/HYPERION")

Resolution

30 meters

Bands Table

CLOSEIMPORT

影像属性：

CLOSEIMPORT

数据来源：

Data available from the U.S. Geological Survey.

代码:














      var dataset = ee.ImageCollection('EO1/HYPERION')













                        .filter(ee.Filter.date('2016-01-01', '2017-03-01'));













      var rgb = dataset.select(['B050', 'B023', 'B015']);













      var rgbVis = {












  min: 1000.0,












  max: 14000.0,












  gamma: 2.5,













      };













      Map.setCenter(162.0044, -77.3463, 9);

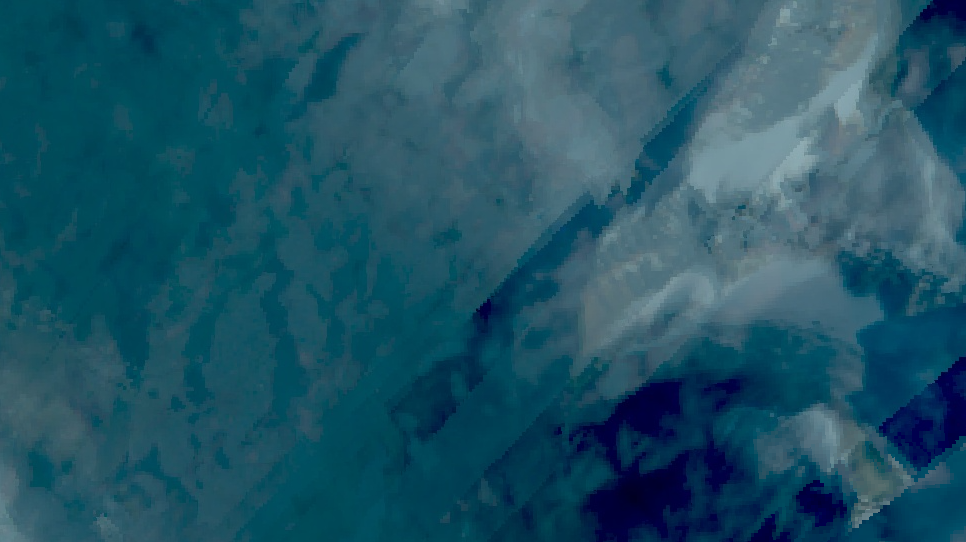

      Map.addLayer(rgb.median(), rgbVis, 'RGB');
