SpringBoot Admin

基于SpringBootAdmin的开源产品很多,我们选择这个:https://github.com/codecentric/spring-boot-admin

1.搭建Admin服务器

创建建对应的SpringBoot项目,添加相关依赖

        <dependency>
            <groupId>de.codecentric</groupId>
            <artifactId>spring-boot-admin-starter-server</artifactId>
            <version>2.5.1</version>
        </dependency>



  • 1
  • 2
  • 3
  • 4
  • 5

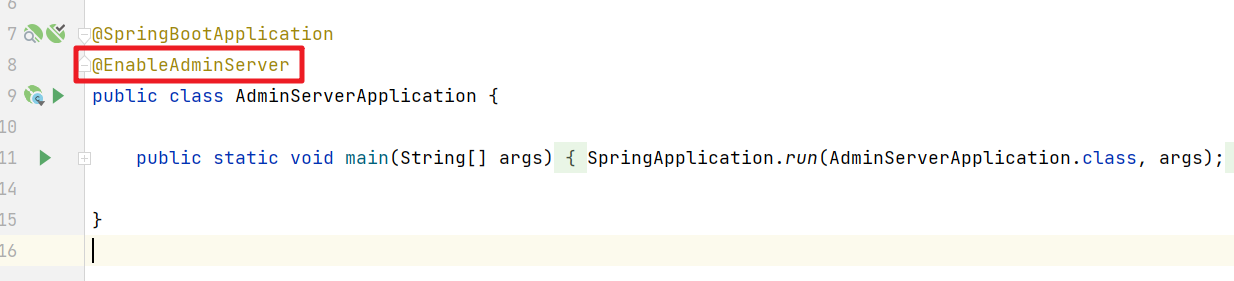

然后放开Admin服务即可


然后启动服务,即可访问

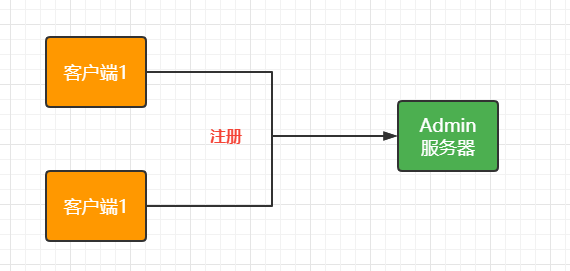

这个时候没有服务注册,所以是空的,这时我们可以创建对应的客户端来监控

2.客户端配置

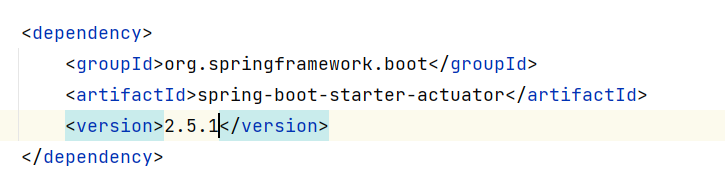

创建一个SpringBoot项目整合Actuator后添加Admin的客户端依赖

        <dependency>
            <groupId>de.codecentric</groupId>
            <artifactId>spring-boot-admin-starter-client</artifactId>
            <version>2.5.1</version>
        </dependency>



  • 1
  • 2
  • 3
  • 4
  • 5

然后在属性文件中添加服务端的配置和Actuator的基本配置

server.port=8081
# 配置 SpringBoot Admin 服务端的地址
spring.boot.admin.client.url=http://localhost:8080
# Actuator的基本配置
management.endpoints.web.exposure.include=*



  • 1
  • 2
  • 3
  • 4
  • 5

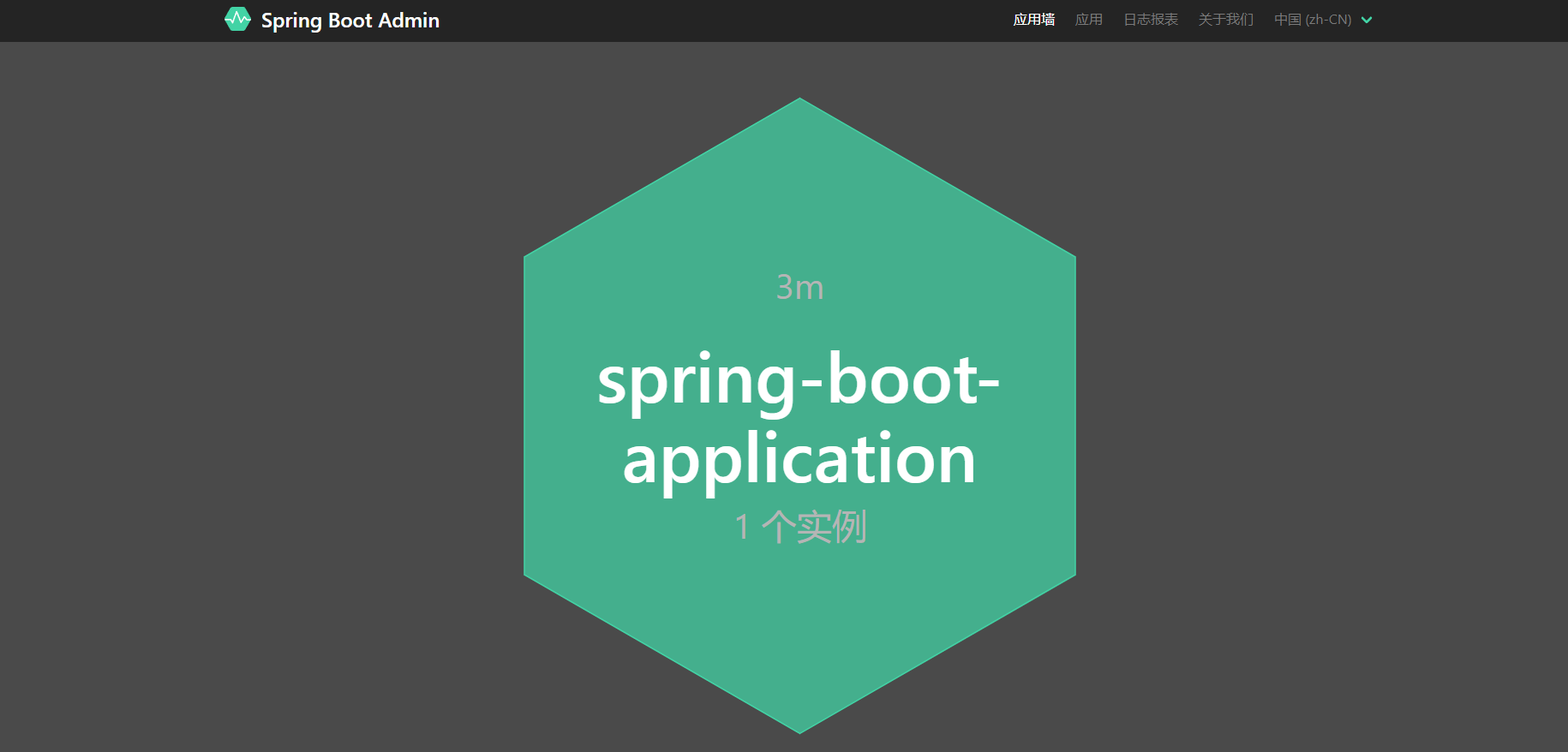

然后我们再刷新Admin的服务端页面


那么我们就可以在这个可视化的界面来处理操作了


3.服务状态

我们可以监控下MySQL的状态,先添加对应的依赖

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>



  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9

然后添加对应的jdbc配置

spring.datasource.driverClassName=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/mysql-base?serverTimezone=UTC&useUnicode=true&characterEncoding=utf-8&useSSL=true
spring.datasource.username=root
spring.datasource.password=123456



  • 1
  • 2
  • 3
  • 4

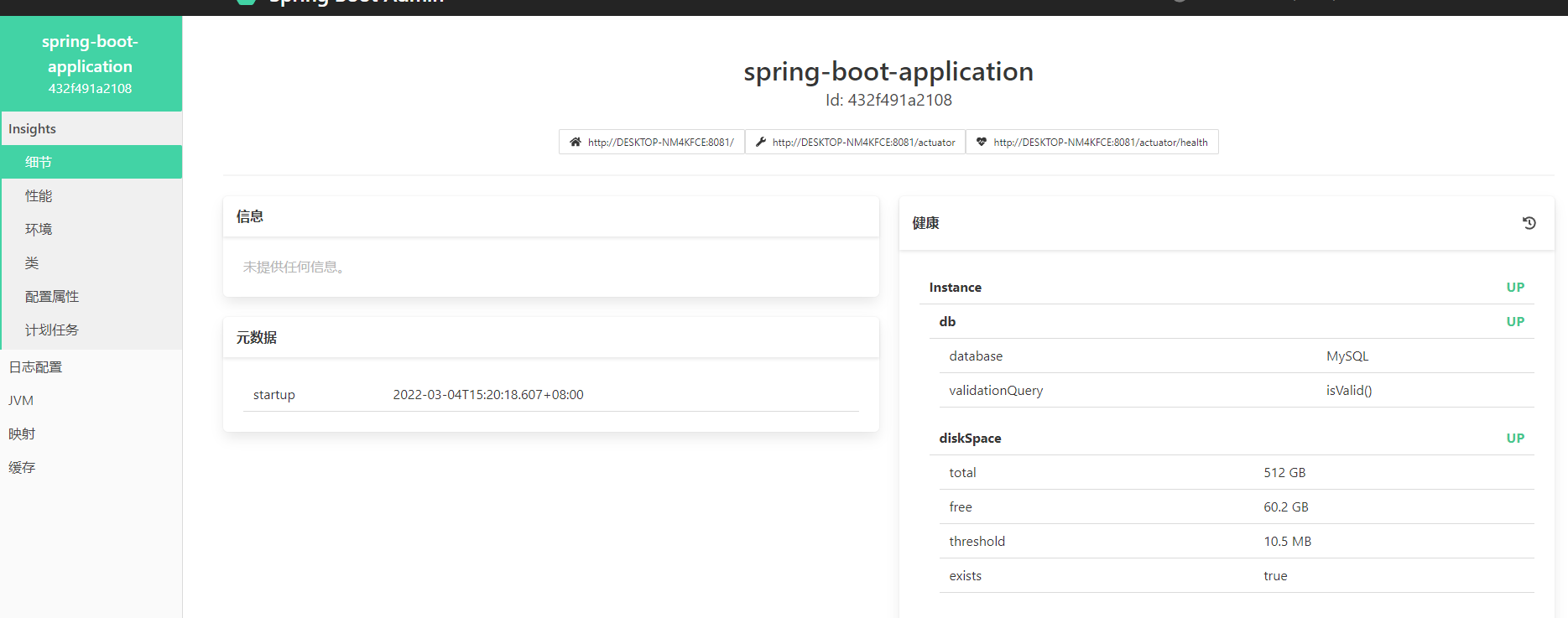

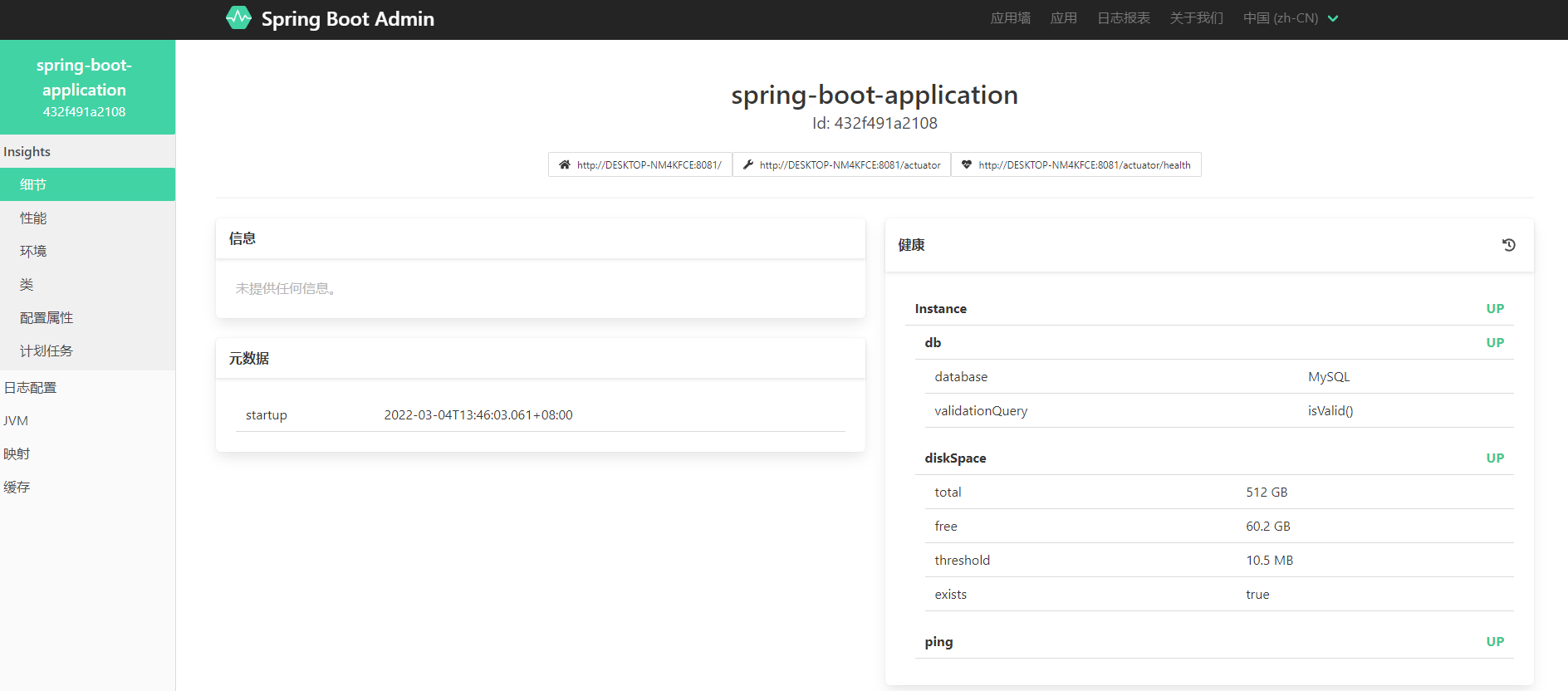

然后我们在Admin中的health中就可以看到对应的数据库连接信息

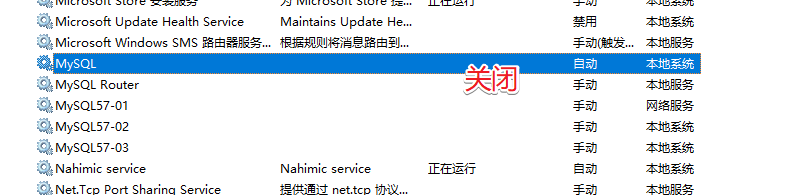

注意当我把MySQL数据库关闭后,我们来看看

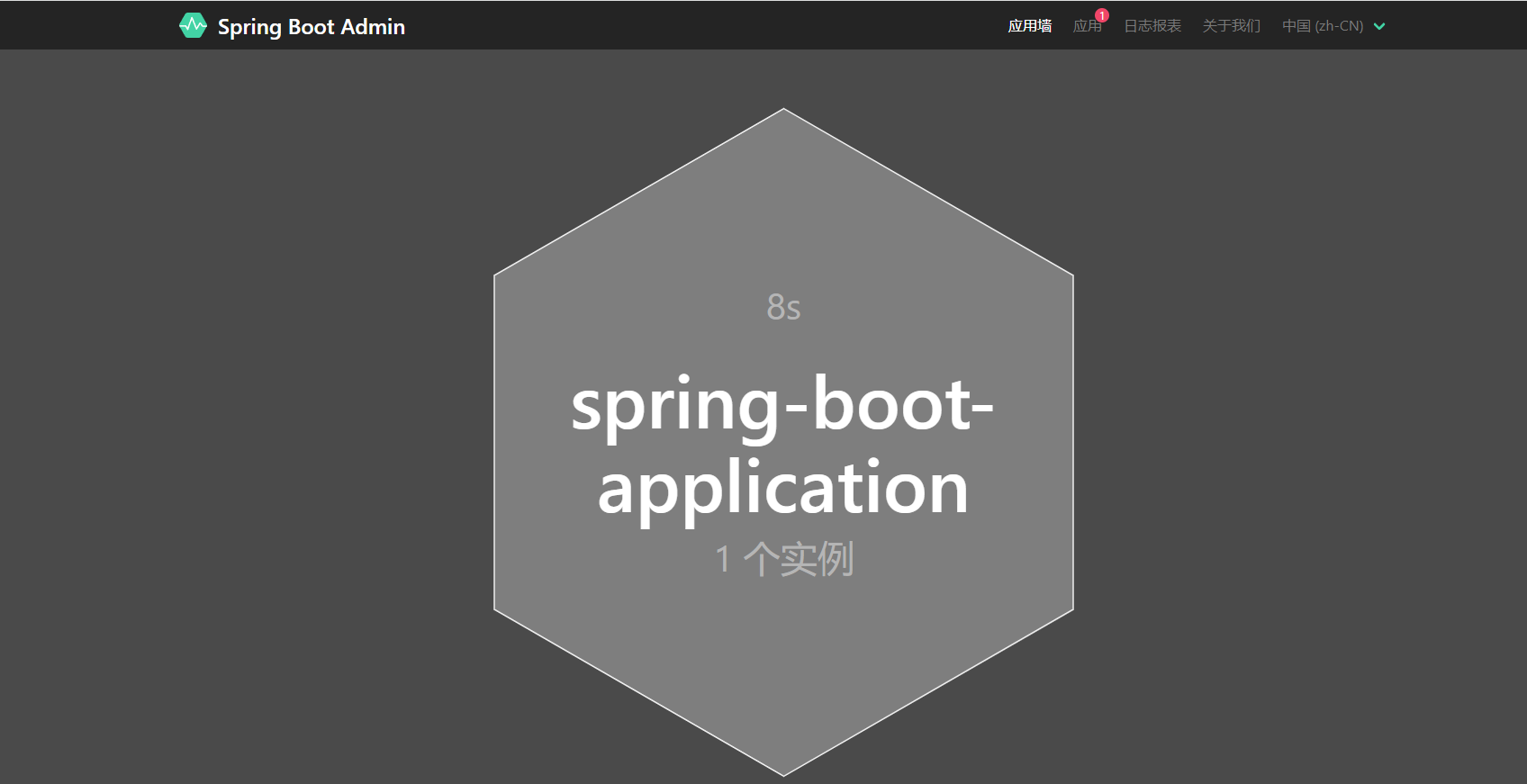

我们可以看到Admin中的应用墙变灰了



启动服务后,发现又正常了,然后我们修改下数据库连接的超时时间

# 数据库连接超时时间
spring.datasource.hikari.connection-timeout=2000



  • 1
  • 2

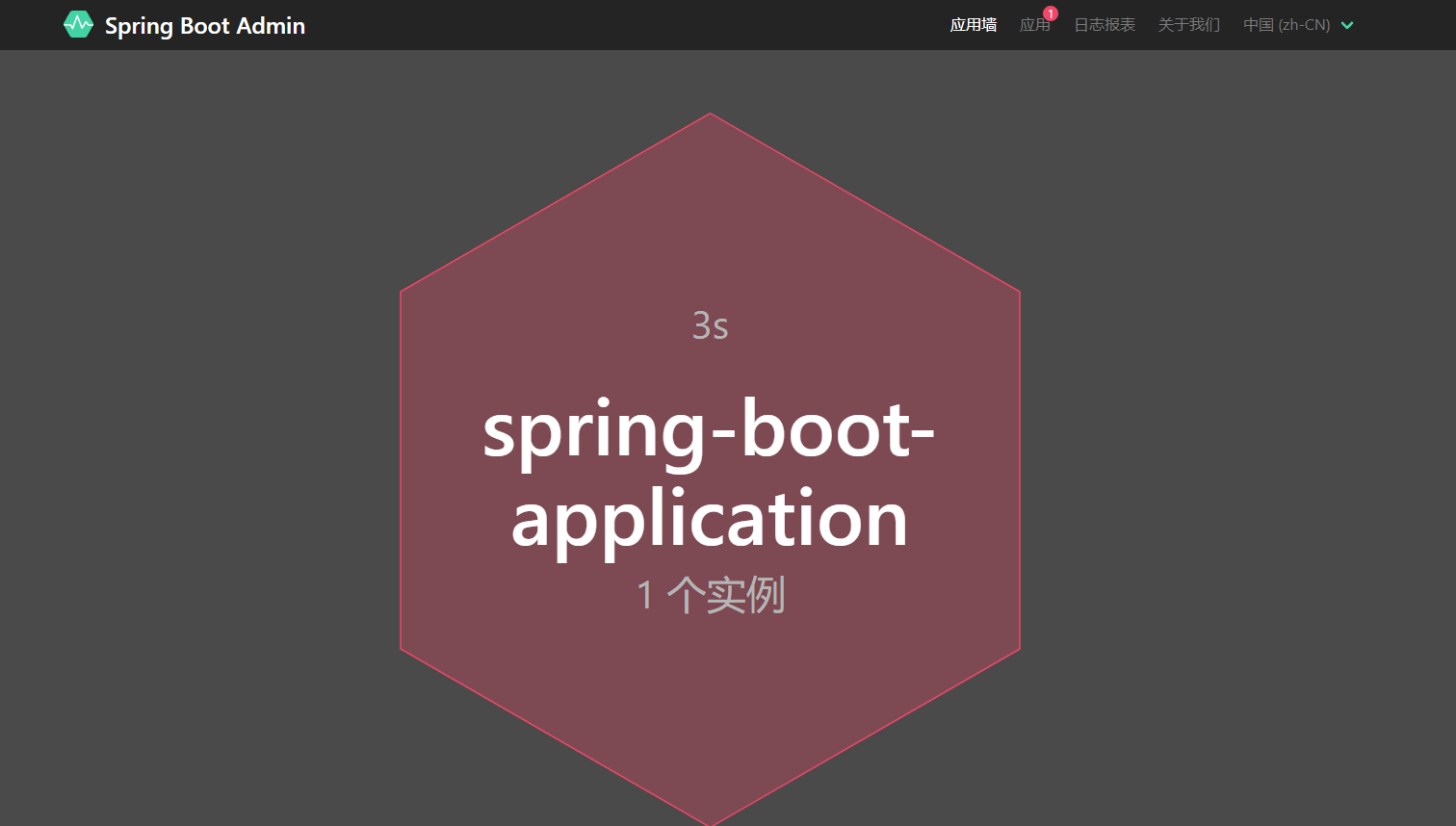

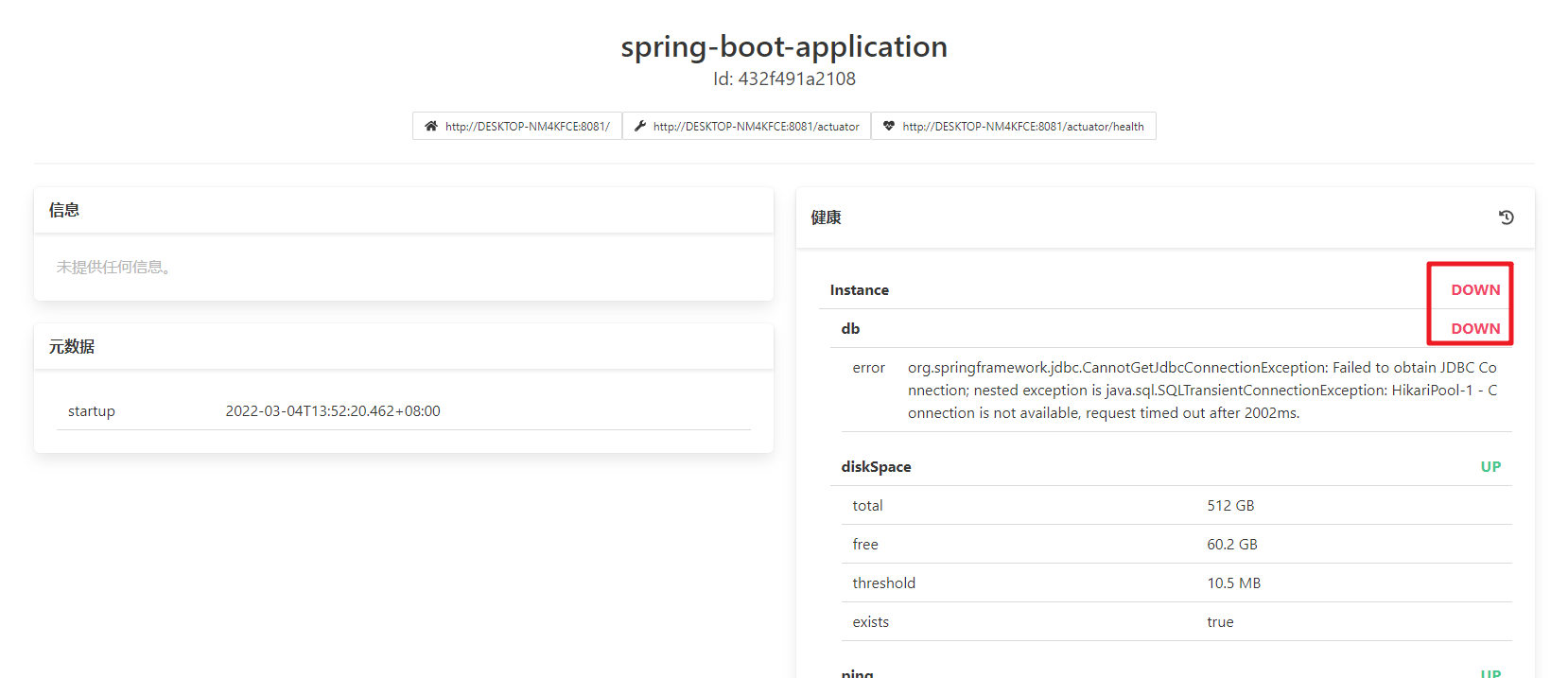

关闭数据库后,我们发下应用变红了



设置数据库连接超时后即可在有效的时间内发下应用的状态。

  • 绿色:正常状态
  • 灰色:连接客户端健康信息超时
  • 红色:可以看到具体的异常信息

4.安全防护

其实我们可以发现在SpringBootAdmin的管理页面中我们是可以做很多的操作的,这时如果别人知道了对应的访问地址,想想是不是就觉得恐怖,所以必要的安全防护还是很有必要的,我们来看看具体应该怎么来处理呢?

由于在分布式 web 应用程序中有几种解决身份验证和授权的方法,Spring Boot Admin 没有提供默认的方法。默认情况下,spring-boot-admin-server-ui 提供了一个登录页面和一个注销按钮。

导入依赖:

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>



  • 1
  • 2
  • 3
  • 4

然后添加对应的配置类

package com.bobo.admin.config;

import de.codecentric.boot.admin.server.config.AdminServerProperties;
import org.springframework.boot.autoconfigure.security.SecurityProperties;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.config.Customizer;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.web.authentication.SavedRequestAwareAuthenticationSuccessHandler;
import org.springframework.security.web.csrf.CookieCsrfTokenRepository;
import org.springframework.security.web.util.matcher.AntPathRequestMatcher;

import java.util.UUID;

@Configuration(proxyBeanMethods = false)
public class SecuritySecureConfig extends WebSecurityConfigurerAdapter {
    private final AdminServerProperties adminServer;

    private final SecurityProperties security;

    public SecuritySecureConfig(AdminServerProperties adminServer, SecurityProperties security) {
        this.adminServer = adminServer;
        this.security = security;
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        SavedRequestAwareAuthenticationSuccessHandler successHandler = new SavedRequestAwareAuthenticationSuccessHandler();
        successHandler.setTargetUrlParameter("redirectTo");
        successHandler.setDefaultTargetUrl(this.adminServer.path("/"));

        http.authorizeRequests(
                (authorizeRequests) -> authorizeRequests.antMatchers(this.adminServer.path("/assets/**")).permitAll()
                        .antMatchers(this.adminServer.path("/actuator/info")).permitAll()
                        .antMatchers(this.adminServer.path("/actuator/health")).permitAll()
                        .antMatchers(this.adminServer.path("/login")).permitAll().anyRequest().authenticated()
        ).formLogin(
                (formLogin) -> formLogin.loginPage(this.adminServer.path("/login")).successHandler(successHandler).and()
        ).logout((logout) -> logout.logoutUrl(this.adminServer.path("/logout"))).httpBasic(Customizer.withDefaults())
                .csrf((csrf) -> csrf.csrfTokenRepository(CookieCsrfTokenRepository.withHttpOnlyFalse())
                        .ignoringRequestMatchers(
                                new AntPathRequestMatcher(this.adminServer.path("/instances"),
                                        HttpMethod.POST.toString()),
                                new AntPathRequestMatcher(this.adminServer.path("/instances/*"),
                                        HttpMethod.DELETE.toString()),
                                new AntPathRequestMatcher(this.adminServer.path("/actuator/**"))
                        ))
                .rememberMe((rememberMe) -> rememberMe.key(UUID.randomUUID().toString()).tokenValiditySeconds(1209600));
    }

    // Required to provide UserDetailsService for "remember functionality"
    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.inMemoryAuthentication().withUser(security.getUser().getName())
                .password("{noop}" + security.getUser().getPassword()).roles("USER");
    }
}




  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60

然后对应的设置登录的账号密码

spring.security.user.name=user
spring.security.user.password=123456



  • 1
  • 2

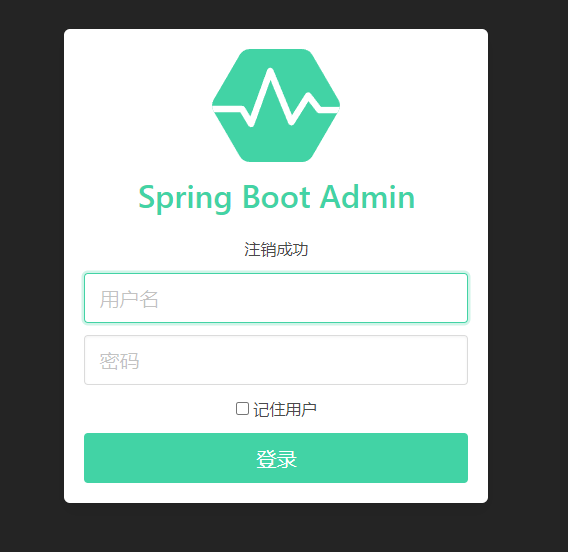

然后访问Admin管理页面


输入账号密码后可以进入,但是没有监控的应用了

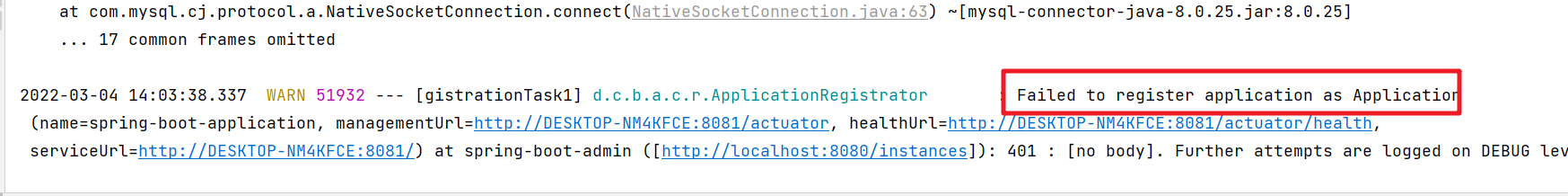

原因是被监控的服务要连接到Admin服务端也是需要认证的

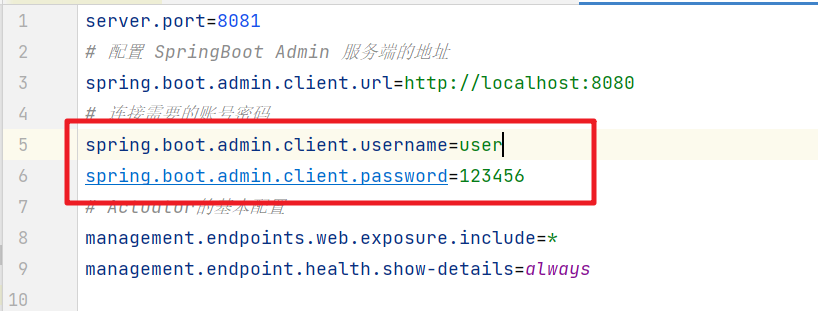

我们在客户端配置连接的账号密码即可

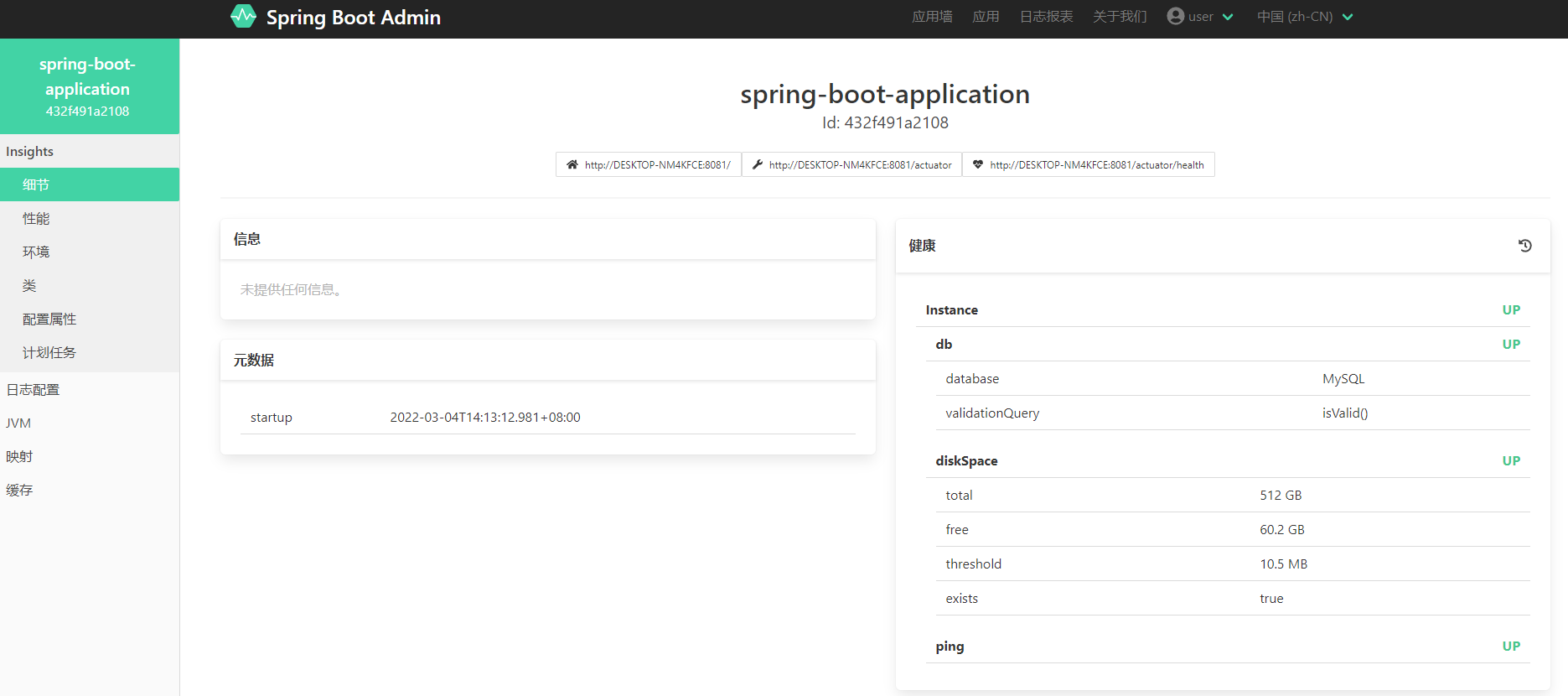

重启后访问Admin服务管理页面


搞定

5.注册中心

实际开发的时候我们可以需要涉及到的应用非常多,我们也都会把服务注册到注册中心中,比如nacos,Eureka等,接下来我们看看如何通过注册中心来集成客户端。就不需要每个客户端来集成了。

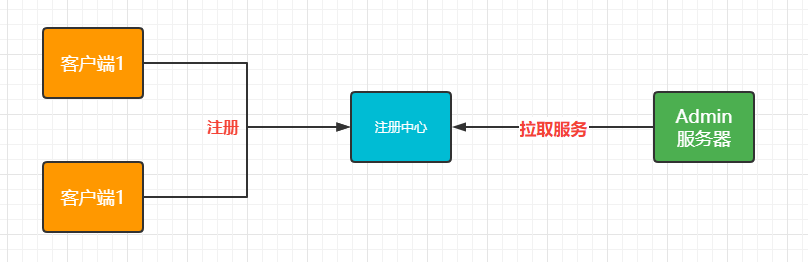

变为下面的场景


那么我们需要先启动一个注册中心服务,我们以Nacos为例

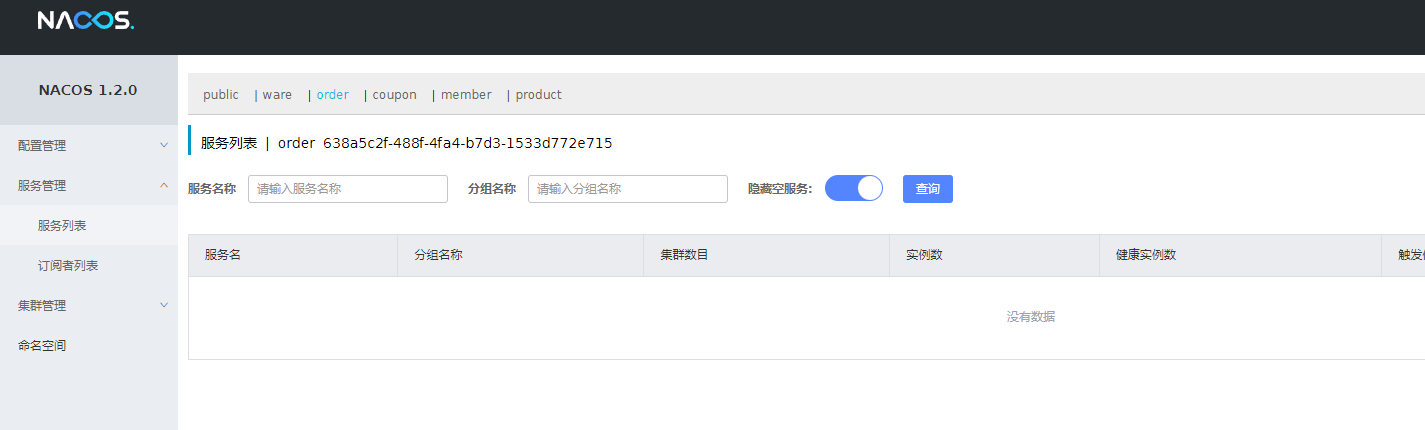

然后访问下Nacos服务

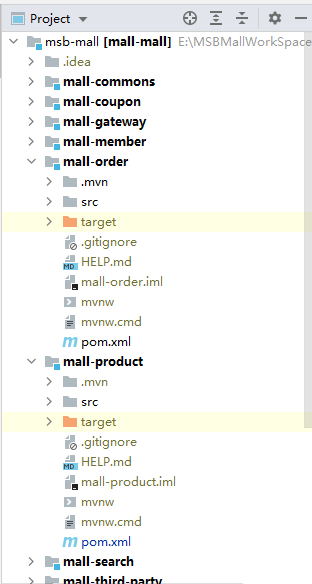

暂时还没有服务注册,这时我们可以注册几个服务,用我之前写过的案例来演示。

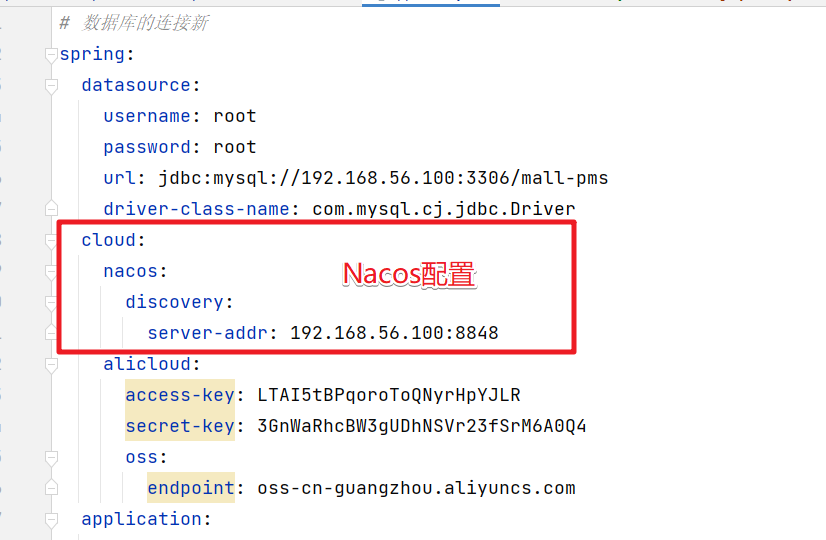

每个服务处理需要添加Nacos的注册中心配置外,我们还需要添加Actuator的配置

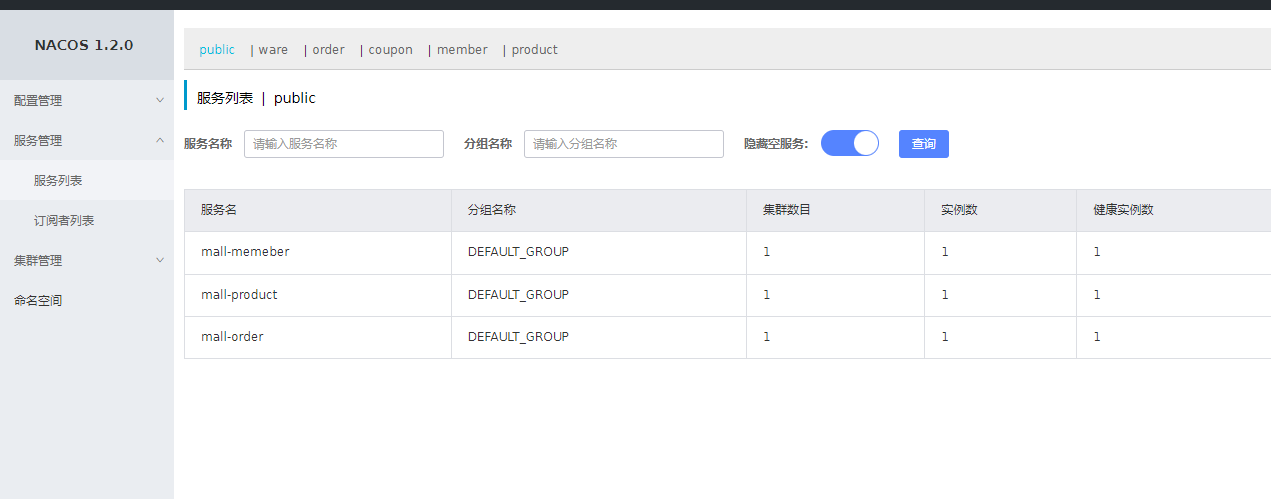

然后启动相关的服务,可以看到相关的服务


然后我们需要配置下Admin中的nacos

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.bobo</groupId>
        <artifactId>ActuatorDemo</artifactId>
        <version>1.0-SNAPSHOT</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.bobo</groupId>
    <artifactId>AdminServer</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>AdminServer</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
        <spring-cloud.version>2020.0.1</spring-cloud.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>de.codecentric</groupId>
            <artifactId>spring-boot-admin-starter-server</artifactId>
            <version>2.5.1</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
                <dependency>
                    <groupId>com.alibaba.cloud</groupId>
                    <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                    <version>2021.1</version>
                    <type>pom</type>
                    <scope>import</scope>
                </dependency>
        </dependencies>
    </dependencyManagement>

</project>




  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54
  • 55
  • 56
  • 57
  • 58
  • 59
  • 60
  • 61
  • 62
  • 63
  • 64
  • 65
  • 66
  • 67
  • 68
  • 69
  • 70
  • 71
  • 72
  • 73
  • 74
  • 75
  • 76
spring.application.name=spring-boot-admin-server
spring.cloud.nacos.discovery.server-addr=192.168.56.100:8848
spring.cloud.nacos.discovery.username=nacos
spring.cloud.nacos.discovery.password=nacos



  • 1
  • 2
  • 3
  • 4

启动服务,我们就可以看到对应的服务了

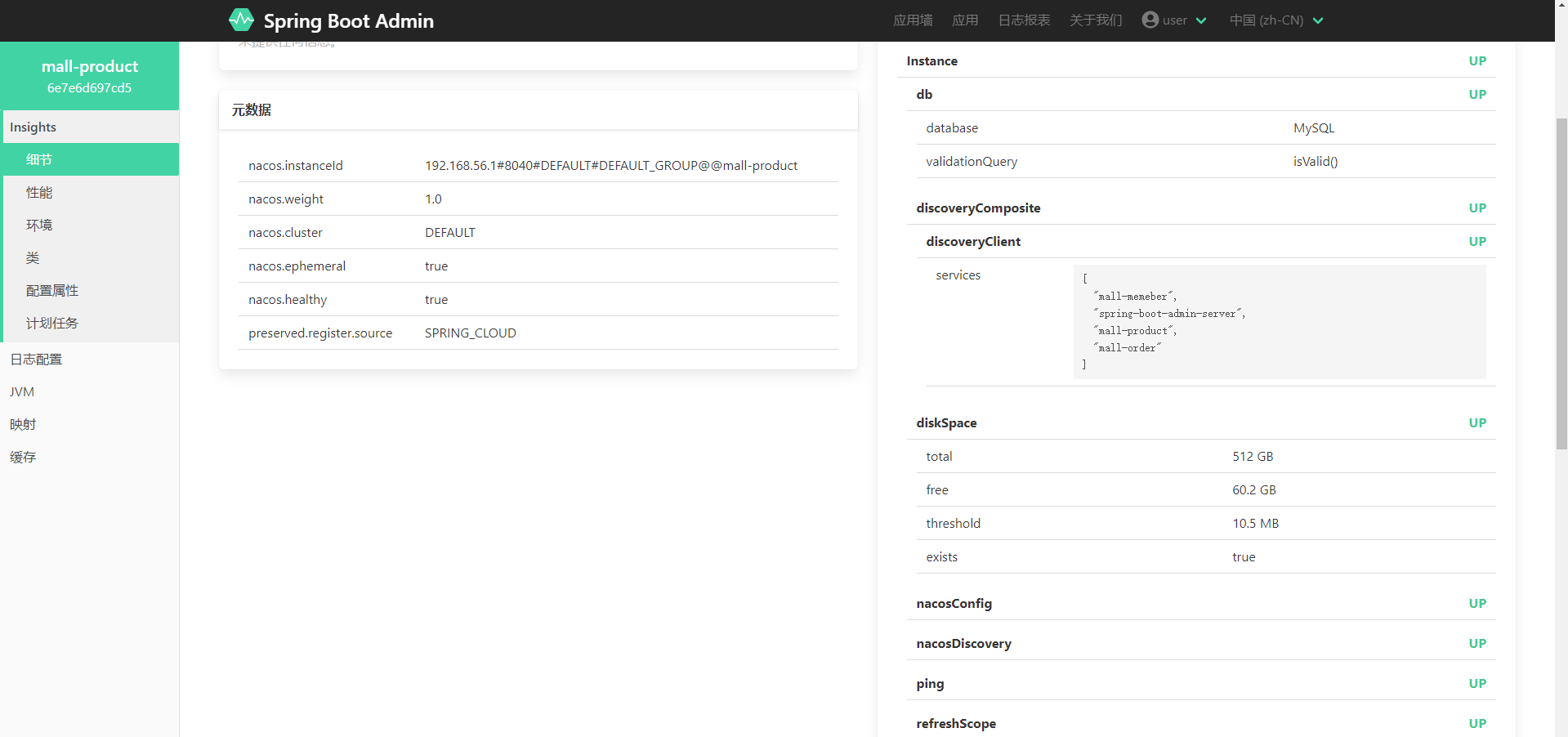

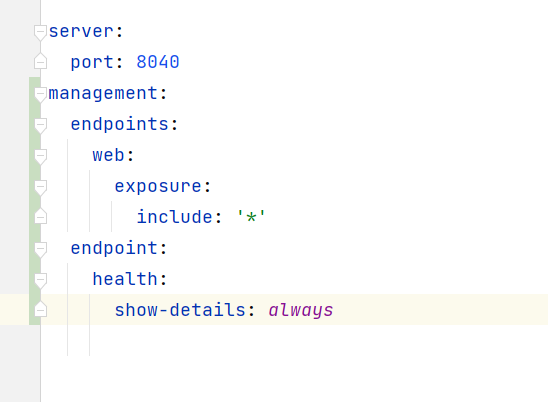

要查看服务的详细监控信息,我们需要配置对应的Actuator属性



好了注册中心处理这块就介绍到这里

6.邮件通知

如果监控的服务出现了问题,下线了,我们希望通过邮箱通知的方式来告诉维护人员,

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-mail</artifactId>
        </dependency>



  • 1
  • 2
  • 3
  • 4

然后配置对应的邮箱信息

# 使用的邮箱服务  qq 163等
spring.mail.host=smtp.qq.com
# 发送者
spring.mail.username=279583842@qq.com

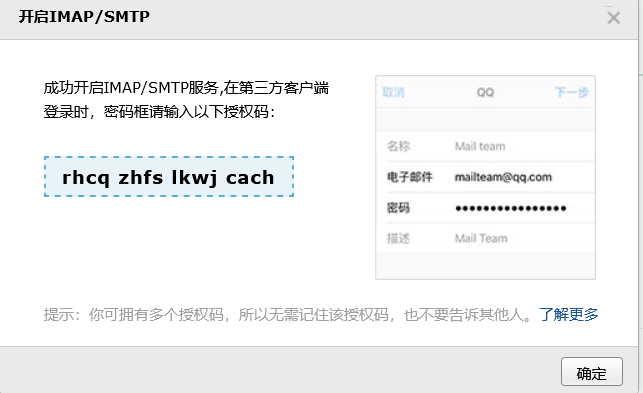

# 授权码
spring.mail.password=rhcqzhfslkwjcach
#收件人
spring.boot.admin.notify.mail.to=1226203418@qq.com
#发件人
spring.boot.admin.notify.mail.from=279583842@qq.com




  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11

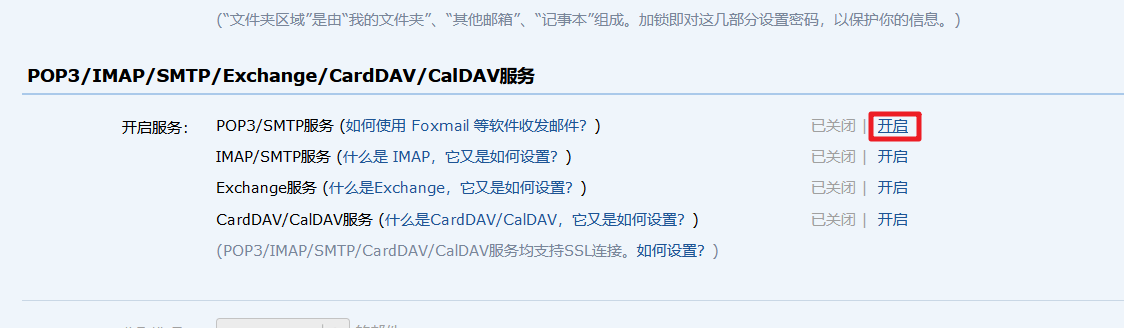

发送短信开启


然后启动服务

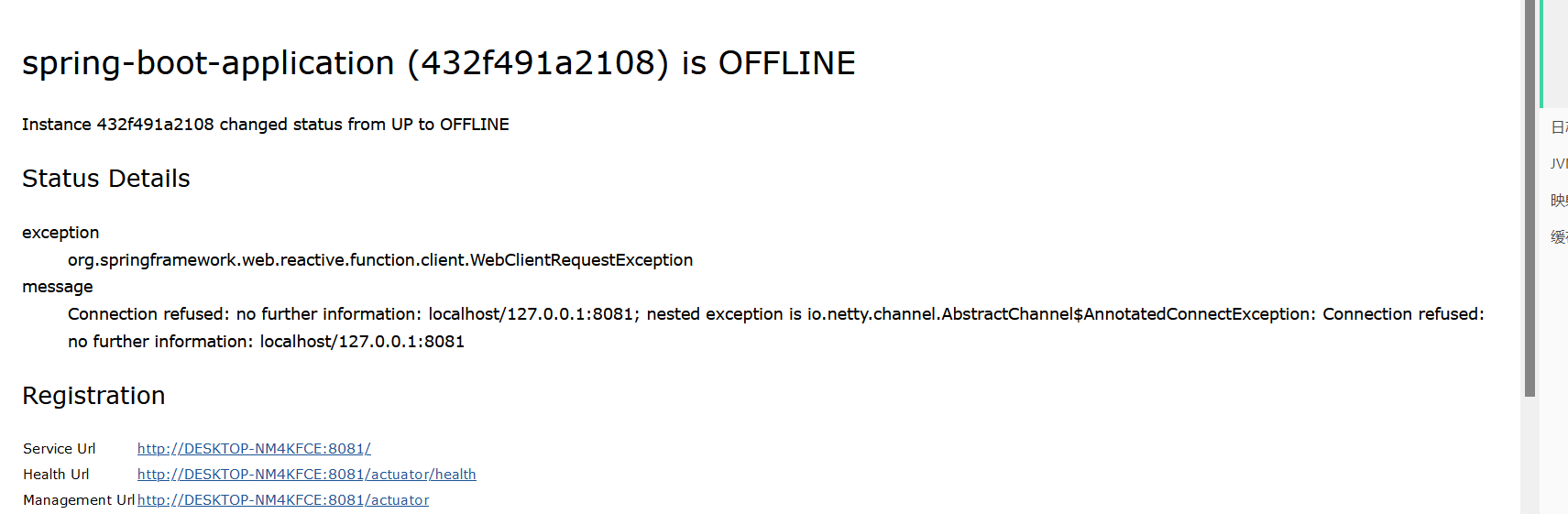

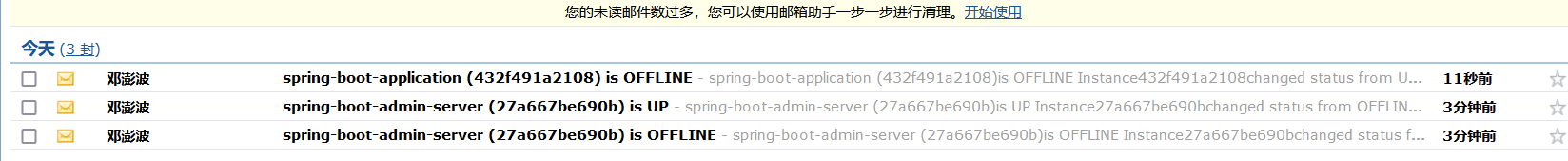

然后我们关闭服务然后查看服务和邮箱信息




好了对应的邮箱通知就介绍到这里,其他的通知方式可以参考官方网站
