echarts教程（四）： 配置hover时突出显示图例，隐藏其他图例

核心配置是

emphasis: {
  focus: 'series'
}






1

2

3

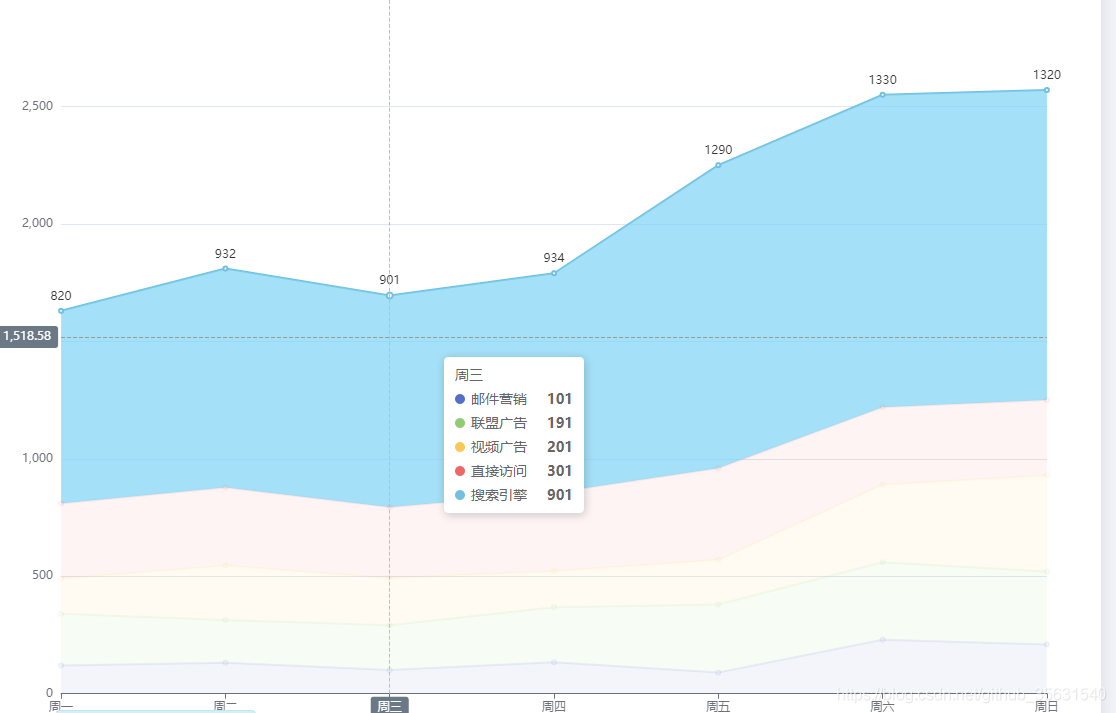

达到的效果是，隐藏其他图例，只显示当前hover的图例，在emphasis中也可以配置更多的hover效果

option = {
    title: {
        text: '堆叠区域图'
    },
    tooltip: {
        trigger: 'axis',
        axisPointer: {
            type: 'cross',
            label: {
                backgroundColor: '#6a7985'
            }
        }
    },
    legend: {
        data: ['邮件营销', '联盟广告', '视频广告', '直接访问', '搜索引擎']
    },
    toolbox: {
        feature: {
            saveAsImage: {}
        }
    },
    grid: {
        left: '3%',
        right: '4%',
        bottom: '3%',
        containLabel: true
    },
    xAxis: [
        {
            type: 'category',
            boundaryGap: false,
            data: ['周一', '周二', '周三', '周四', '周五', '周六', '周日']
        }
    ],
    yAxis: [
        {
            type: 'value'
        }
    ],
    series: [
        {
            name: '邮件营销',
            type: 'line',
            stack: '总量',
            areaStyle: {},
            emphasis: {
                focus: 'series'
            },
            data: [120, 132, 101, 134, 90, 230, 210]
        },
        {
            name: '联盟广告',
            type: 'line',
            stack: '总量',
            areaStyle: {},
            emphasis: {
                focus: 'series'
            },
            data: [220, 182, 191, 234, 290, 330, 310]
        },
        {
            name: '视频广告',
            type: 'line',
            stack: '总量',
            areaStyle: {},
            emphasis: {
                focus: 'series'
            },
            data: [150, 232, 201, 154, 190, 330, 410]
        },
        {
            name: '直接访问',
            type: 'line',
            stack: '总量',
            areaStyle: {},
            emphasis: {
                focus: 'series'
            },
            data: [320, 332, 301, 334, 390, 330, 320]
        },
        {
            name: '搜索引擎',
            type: 'line',
            stack: '总量',
            label: {
                show: true,
                position: 'top'
            },
            areaStyle: {},
            emphasis: {
                focus: 'series'
            },
            data: [820, 932, 901, 934, 1290, 1330, 1320]
        }
    ]
};










1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96


文章来源: fizzz.blog.csdn.net，作者：拿我格子衫来，版权归原作者所有，如需转载，请联系作者。

原文链接：fizzz.blog.csdn.net/article/details/113821398
