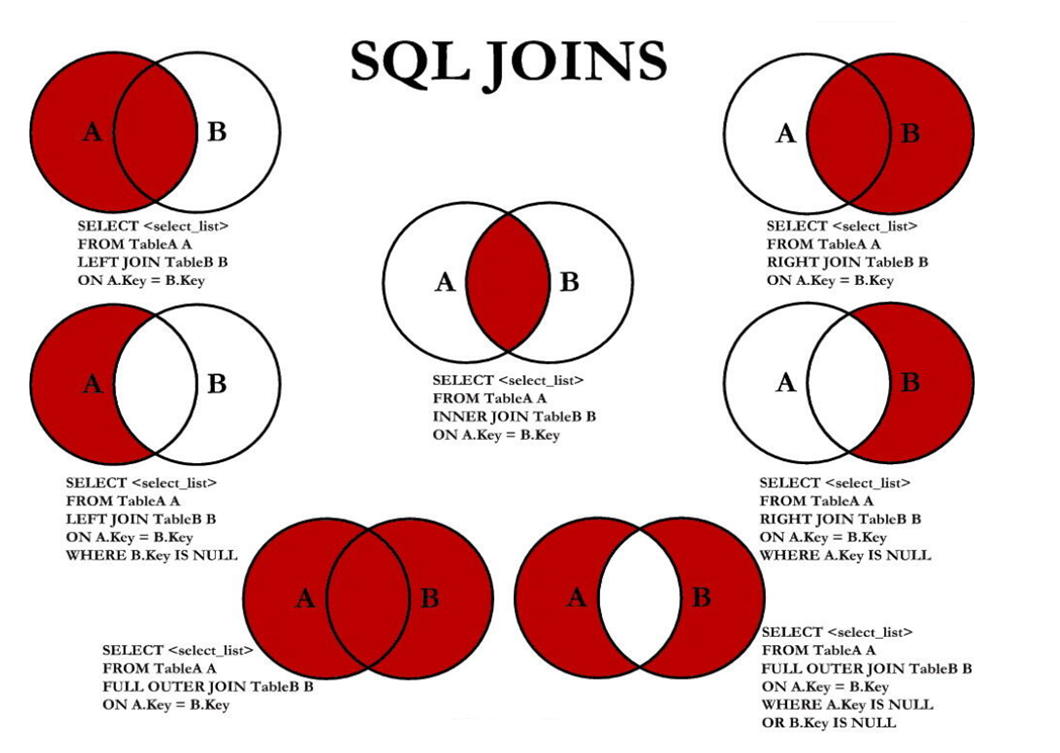

7种SQL JOINS的实现

1. sql 演示

#中图：内连接 A∩B
SELECT employee_id,last_name,department_name
FROM employees e JOIN departments d
ON e.`department_id` = d.`department_id`;

# 左上图：左外连接
SELECT employee_id,last_name,department_name
FROM employees e LEFT JOIN departments d
ON e.`department_id` = d.`department_id`;

#右上图：右外连接
SELECT employee_id,last_name,department_name
FROM employees e RIGHT JOIN departments d
ON e.`department_id` = d.`department_id`;

#左中图：A - A∩B
SELECT employee_id,last_name,department_name
FROM employees e LEFT JOIN departments d
ON e.`department_id` = d.`department_id`
WHERE d.`department_id` IS NULL

#右中图：B-A∩B
SELECT employee_id,last_name,department_name
FROM employees e RIGHT JOIN departments d
ON e.`department_id` = d.`department_id`
WHERE e.`department_id` IS NULL

#左下图：满外连接
# 左中图 + 右上图  A∪B
SELECT employee_id,last_name,department_name
FROM employees e LEFT JOIN departments d
ON e.`department_id` = d.`department_id`
WHERE d.`department_id` IS NULL
UNION ALL  #没有去重操作，效率高
SELECT employee_id,last_name,department_name
FROM employees e RIGHT JOIN departments d
ON e.`department_id` = d.`department_id`;

#右下图
#左中图 + 右中图  A ∪B- A∩B 或者 (A -  A∩B) ∪ （B - A∩B）
SELECT employee_id,last_name,department_name
FROM employees e LEFT JOIN departments d
ON e.`department_id` = d.`department_id`
WHERE d.`department_id` IS NULL
UNION ALL
SELECT employee_id,last_name,department_name
FROM employees e RIGHT JOIN departments d
ON e.`department_id` = d.`department_id`
WHERE e.`department_id` IS NULL

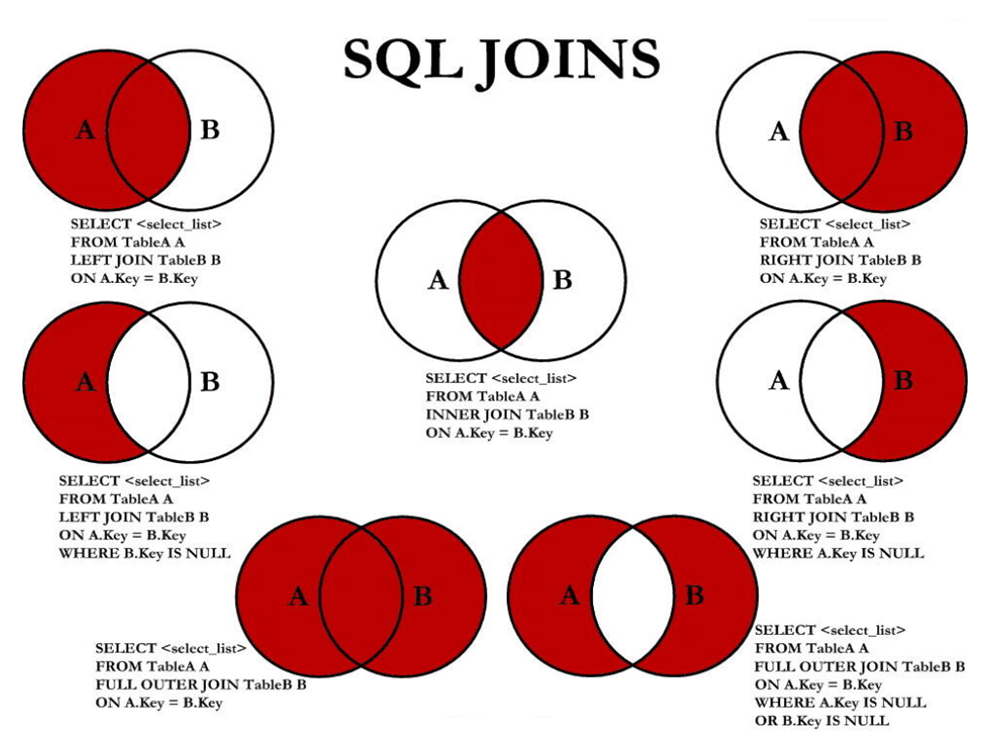

2. 语法格式小结

• 左中图

#实现A -  A∩B
select 字段列表
from A表 left join B表
on 关联条件
where 从表关联字段 is null and 等其他子句;

• 右中图

#实现B -  A∩B
select 字段列表
from A表 right join B表
on 关联条件
where 从表关联字段 is null and 等其他子句;

• 左下图

#实现查询结果是A∪B
#用左外的A，union 右外的B
select 字段列表
from A表 left join B表
on 关联条件
where 等其他子句

union

select 字段列表
from A表 right join B表
on 关联条件
where 等其他子句;

• 右下图

#实现A∪B -  A∩B  或   (A -  A∩B) ∪ （B - A∩B）
#使用左外的 (A -  A∩B)  union 右外的（B - A∩B）
select 字段列表
from A表 left join B表
on 关联条件
where 从表关联字段 is null and 等其他子句

union

select 字段列表
from A表 right join B表
on 关联条件
where 从表关联字段 is null and 等其他子句

3. 案例说明

• 中图：内连接

SELECT employee_id,department_name
FROM employees e JOIN departments d
ON e.`department_id` = d.`department_id`;

• 左上图：左外连接

SELECT employee_id,department_name
FROM employees e LEFT JOIN departments d
ON e.`department_id` = d.`department_id`;

• 右上图：右外连接

SELECT employee_id,department_name
FROM employees e RIGHT JOIN departments d
ON e.`department_id` = d.`department_id`;

• 左中图：

SELECT employee_id,department_name
FROM employees e LEFT JOIN departments d
ON e.`department_id` = d.`department_id`
WHERE d.`department_id` IS NULL;

• 右中图：

SELECT employee_id,department_name
FROM employees e RIGHT JOIN departments d
ON e.`department_id` = d.`department_id`
WHERE e.`department_id` IS NULL;

• 左下图：满外连接

1. 方式1：左上图 UNION ALL 右中图

SELECT employee_id,department_name
FROM employees e LEFT JOIN departments d
ON e.`department_id` = d.`department_id`
UNION ALL
SELECT employee_id,department_name
FROM employees e RIGHT JOIN departments d
ON e.`department_id` = d.`department_id`
WHERE e.`department_id` IS NULL;

2. 方式2：左中图 UNION ALL 右上图

SELECT employee_id,department_name
FROM employees e LEFT JOIN departments d
ON e.`department_id` = d.`department_id`
WHERE d.`department_id` IS NULL
UNION ALL
SELECT employee_id,department_name
FROM employees e RIGHT JOIN departments d
ON e.`department_id` = d.`department_id`;

• 右下图：左中图 UNION ALL 右中图

SELECT employee_id,department_name
FROM employees e LEFT JOIN departments d
ON e.`department_id` = d.`department_id`
WHERE d.`department_id` IS NULL
UNION ALL
SELECT employee_id,department_name
FROM employees e RIGHT JOIN departments d
ON e.`department_id` = d.`department_id`
WHERE e.`department_id` IS NULL;
