android 三级级联筛选列表

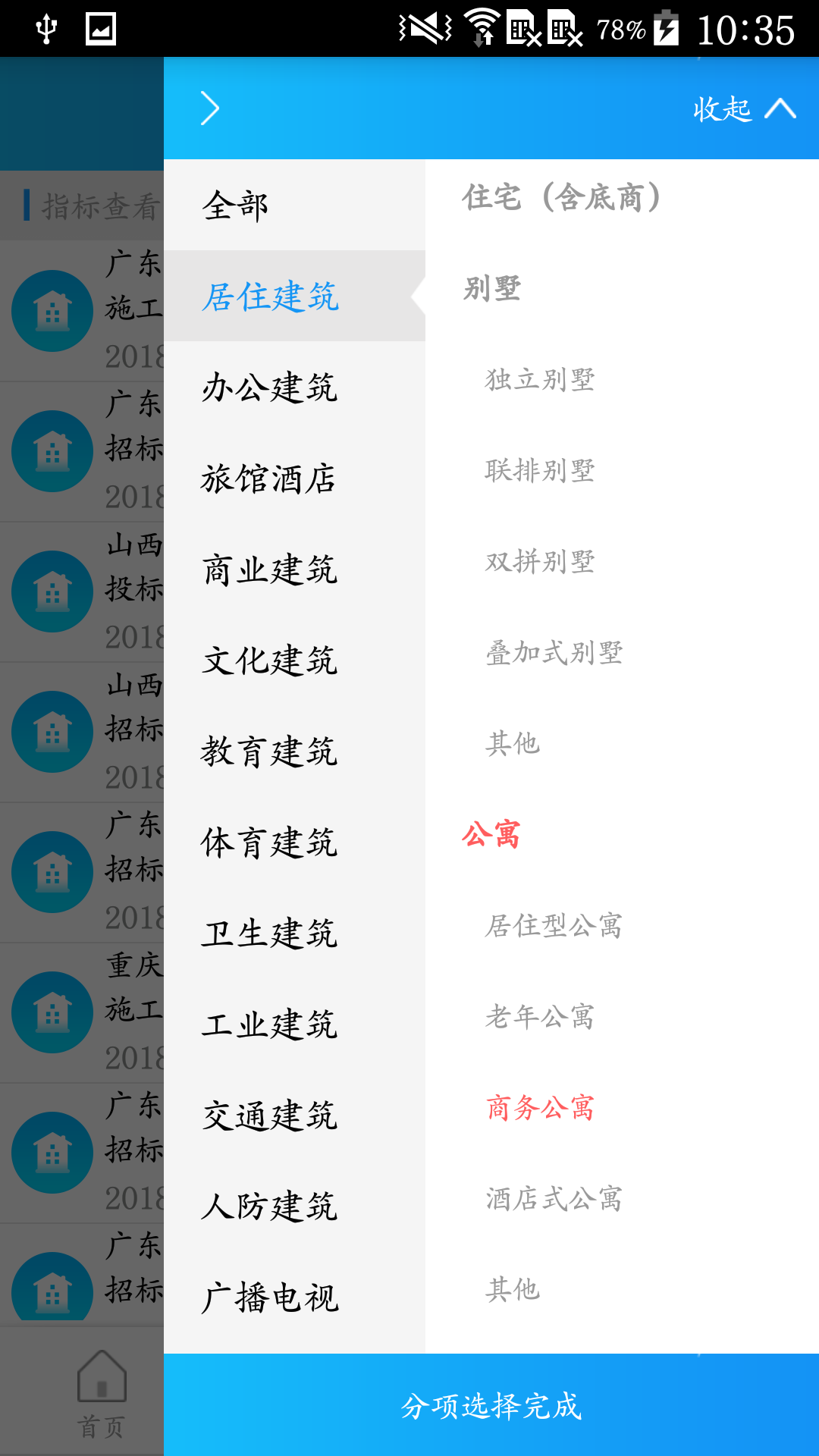

    三级级联关系的列表，上面是我项目做出来的效果图，这个是单选的效果。

实现的思路：左边这个是listView ,右边是两级的expandListView

将这两个view 动态放到viewpager里面 设置好比例，剩下的就是处理点击联动事件了。

大体代码如下：

activity中 放viewpager的xml

         <LinearLayout
                      android:id="@+id/category_ll"
                      android:layout_width="match_parent"
                      android:layout_height="wrap_content"
                      android:layout_above="@+id/button_ll"
                      android:layout_below="@+id/title_ll"
                      android:orientation="vertical"
                      android:visibility="gone">
                      <com.jky.mobile_gczjjc.widget.MyViewPager
                          android:id="@+id/category_viewpager"
                          android:layout_width="match_parent"
                          android:layout_height="match_parent"
                          android:overScrollMode="never" />
                  </LinearLayout>



target_first_parger.xml

      <?xml version="1.0" encoding="utf-8"?>
      <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
          android:layout_width="match_parent"
          android:layout_height="match_parent"
          android:background="@color/target_divider_color"
          android:orientation="vertical">
          <ListView
              android:id="@+id/target_first_lv"
              android:layout_width="fill_parent"
              android:layout_height="fill_parent"
              android:background="@color/white"
              android:cacheColorHint="@android:color/transparent"
              android:divider="@null"
              android:scrollbars="none" />



</LinearLayout>

target_second_parger.xml

      <?xml version="1.0" encoding="utf-8"?>
      <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
          android:layout_width="match_parent"
          android:layout_height="match_parent"
          android:background="@color/target_divider_color"
          android:orientation="vertical">
          <ExpandableListView
              android:id="@+id/target_second_exl"
              android:layout_width="fill_parent"
              android:layout_height="fill_parent"
              android:background="@color/white"
              android:cacheColorHint="@android:color/transparent"
              android:divider="@null"
              android:groupIndicator="@null"
              android:scrollbars="none" />
      </LinearLayout>



activity中 核心代码

        //一级
              mViewPager = findViewById(R.id.category_viewpager);
             LayoutInflater inflater = LayoutInflater.from(this);
              view1 = inflater.inflate(R.layout.target_first_parger, null);
              view2 = inflater.inflate(R.layout.target_second_parger, null);
              mFirstListView = view1.findViewById(R.id.target_first_lv);
              mSecondListView = view2.findViewById(R.id.target_second_exl);
              mFirstAdapter = new TargetCategoryFirstAdapter(this, firstBeans);
              mFirstAdapter.setSelectedBackgroundResource(R.drawable.select_white);//选中时
              mFirstAdapter.setHasDivider(false);
              mFirstAdapter.setNormalBackgroundResource(R.color.target_bg_gray);//未选中
              mFirstListView.setAdapter(mFirstAdapter);
              views.add(view1);
              views.add(view2);//加载了一二级菜单
              mViewPager.setAdapter(new MyPagerAdapter(views));



初始化数据及点击事件部分

         private void initSelectCategory(CategoryBean bean) {
             if (bean != null && bean.getData() != null) {
                  firstBeans = bean.getData();
              }
             FirstBean fBean = new FirstBean();
              fBean.setName("全部");
              fBean.setType("0");
              fBean.setItems(new ArrayList<SecondBean>());
              fBean.setSelect(true);
              firstBeans.add(0, fBean);
             if (mFirstAdapter == null) {
                  mFirstAdapter = new TargetCategoryFirstAdapter(TargetFilterActivity.this, firstBeans);
                  mSecondListView.setAdapter(mSecondAdapter);
              } else {
                  mFirstAdapter.setData(firstBeans);
              }
              mFirstListView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
                 @Override
                 public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
                     FirstBean firstBean = firstBeans.get(position);
                     for (int i = 0; i < firstBeans.size(); i++) {
                         if (i == position) {
                              firstBeans.get(i).setSelect(true);
                          } else {
                              firstBeans.get(i).setSelect(false);
                          }
                      }
                     if (mFirstAdapter == null) {
                          mFirstAdapter = new TargetCategoryFirstAdapter(TargetFilterActivity.this, firstBeans);
                          mSecondListView.setAdapter(mSecondAdapter);
                      } else {
                          mFirstAdapter.setData(firstBeans);
                      }
                     if (firstBean.getType().equals("0")) {//不限
                         if (mSecondAdapter != null) {
                              mSecondAdapter.setData(new ArrayList<SecondBean>());
                              mSecondAdapter.notifyDataSetChanged();
                          }
                      } else {
                          mSecondList = firstBean.getItems();
                         for (int i = 0; i < mSecondList.size(); i++) {
                              mSecondList.get(i).setIsSelect(false);
                             for (int j = 0; j < mSecondList.get(i).getItems().size(); j++) {
                                  mSecondList.get(i).getItems().get(j).setIsSelect(false);
                              }
                          }
                         if (mSecondAdapter == null) {
                              mSecondAdapter = new TargetCategorySecondAdapter(TargetFilterActivity.this, mSecondList);
                              mSecondListView.setAdapter(mSecondAdapter);
                          } else {
                              mSecondAdapter.setData(mSecondList);
                          }
                         String secondType = firstBean.getType();
                         String secondName = firstBean.getName();
                         if (secondType.equals("-1")) {
                              mProjectType = mFirstProjectType;
                              mProjectTypeName = mFirstProjectTypeName;
                          } else {
                              mProjectType = mFirstProjectType + "/" + secondType;
                              mProjectTypeName = mFirstProjectTypeName + "/" + secondName;
                          }
                         //默认全部展开
                         for (int i = 0; i < mSecondList.size(); i++) {
                             if (mSecondListView != null) {
                                  mSecondListView.expandGroup(i);
                              }
                          }
                      }
                  }
              });
             //二级
              mSecondListView.setOnGroupClickListener(new ExpandableListView.OnGroupClickListener() {
                 @Override
                 public boolean onGroupClick(ExpandableListView expandableListView, View view, int groupPosition, long l) {
                     for (int i = 0; i < mSecondList.size(); i++) {
                         if (i == groupPosition) {
                              mSecondList.get(i).setIsSelect(true);
                          } else {
                              mSecondList.get(i).setIsSelect(false);
                          }
                         for (int j = 0; j < mSecondList.get(i).getItems().size(); j++) {
                              mSecondList.get(i).getItems().get(j).setIsSelect(false);
                          }
                      }
                     String thirdType = mSecondList.get(groupPosition).getType();
                     String thirdName = mSecondList.get(groupPosition).getName();
                      mProjectType = mFirstProjectType + "/" + thirdType;
                      mProjectTypeName = mFirstProjectTypeName + "/" + thirdName;
                      mSecondAdapter.setData(mSecondList);
                     return true;
                  }
              });
              mSecondListView.setOnChildClickListener(new ExpandableListView.OnChildClickListener() {
                 @Override
                 public boolean onChildClick(ExpandableListView expandableListView, View view, int groupPosition, int childPosition, long l) {
                     for (int i = 0; i < mSecondList.size(); i++) {
                         if (i == groupPosition) {
                              mSecondList.get(i).setIsSelect(true);
                          } else {
                              mSecondList.get(i).setIsSelect(false);
                          }
                          List<SecondBean.ThirdBean> thirdList = mSecondList.get(i).getItems();
                         for (int j = 0; j < thirdList.size(); j++) {
                             if (i == groupPosition && j == childPosition) {
                                  thirdList.get(j).setIsSelect(true);
                              } else {
                                  thirdList.get(j).setIsSelect(false);
                              }
                          }
                      }
                     String thirdType = mSecondList.get(groupPosition).getType();
                     String thirdName = mSecondList.get(groupPosition).getName();
                     String fourType = mSecondList.get(groupPosition).getItems().get(childPosition).getType();
                     String fourName = mSecondList.get(groupPosition).getItems().get(childPosition).getName();
                      mProjectType = mFirstProjectType + "/" + thirdType + "/" + fourType;//工程类型id
                      mProjectTypeName = mFirstProjectTypeName + "/" + thirdName + "/" + fourName;//工程名称 前端显示
                      mSecondAdapter.setData(mSecondList);
                     return false;
                  }
              });
          }







MyViewPager

      package com.jky.mobile_gczjjc.widget;
      import android.content.Context;
      import android.support.v4.view.ViewPager;
      import android.util.AttributeSet;
      /**
       * Created by LaiYingtang on 2016/5/22.
       * 主页面左右滑动
       */
      public class MyViewPager extends ViewPager {
         public MyViewPager(Context context, AttributeSet attrs) {
             super(context, attrs);
          }
         public MyViewPager(Context context) {
             super(context);
          }
         //判断menu在x,y的位置
         public void scrollTo(int x,int y){
             if(getAdapter()==null||x>getWidth()*(getAdapter().getCount()-2)){
                 return;
              }
             super.scrollTo(x,y);
          }
      }



TargetCategoryFirstAdapter

      package com.jky.mobile_gczjjc.adapter;
      import android.content.Context;
      import android.graphics.Color;
      import android.view.LayoutInflater;
      import android.view.View;
      import android.view.ViewGroup;
      import android.widget.BaseAdapter;
      import android.widget.TextView;
      import com.jky.mobile_gczjjc.R;
      import com.jky.mobile_gczjjc.bean.CategoryBean.FirstBean;
      import java.util.ArrayList;
      import java.util.List;
      /**
       * 指标 建筑分类 第一级适配器
       * @author zlw
       */
      public class TargetCategoryFirstAdapter extends BaseAdapter {
         private Context mContext;
         private List<FirstBean> firstBeans =new ArrayList<>();
         private int mSelectedBackgroundResource;//选中item时的背景颜色
         private int mNormalBackgroundResource;//为选中的背景颜色
         private boolean hasDivider = true;
         public void setSelectedBackgroundResource(int mSelectedBackgroundResource) {
             this.mSelectedBackgroundResource = mSelectedBackgroundResource;
          }
         public void setNormalBackgroundResource(int mNormalBackgroundResource) {
             this.mNormalBackgroundResource = mNormalBackgroundResource;
          }
         public void setHasDivider(boolean hasDivider) {
             this.hasDivider = hasDivider;
          }
         public TargetCategoryFirstAdapter(Context mContext, List<FirstBean> firstBeans) {
             this.mContext = mContext;
             this.firstBeans = firstBeans;
          }
         public void setData(List<FirstBean> data) {
             this.firstBeans = data;
              notifyDataSetChanged();
          }
         @Override
         public int getCount() {
             if (firstBeans == null) {
                 return 0;
              }
             return firstBeans.size();
          }
         @Override
         public Object getItem(int position) {
             if (firstBeans == null) {
                 return null;
              }
             return firstBeans.get(position);
          }
         @Override
         public long getItemId(int position) {
             return position;
          }
         @Override
         public View getView(int position, View convertView, ViewGroup parent) {
             ViewHolder vh = null;
             if (convertView == null) {
                  vh = new ViewHolder();
                  convertView = LayoutInflater.from(mContext).inflate(R.layout.item_target_category_first, null);
                  vh.itemLayout = convertView.findViewById(R.id.menu_item_ly);
                  vh.nameText = convertView.findViewById(R.id.name_rb);
                  vh.dividerTextView = convertView.findViewById(R.id.menu_item_divider);
                  convertView.setTag(vh);
              } else {
                  vh = (ViewHolder) convertView.getTag();
              }
             FirstBean firstBean = firstBeans.get(position);
              vh.nameText.setText(firstBean.getName());//设置标题
             if (firstBean.isSelect){
                  vh.nameText.setTextColor(mContext.getResources().getColor(R.color.common_blue));
                  vh.itemLayout.setBackgroundResource(mSelectedBackgroundResource);
              }else{
                  vh.nameText.setTextColor(Color.BLACK);
                  vh.itemLayout.setBackgroundResource(mNormalBackgroundResource);
              }
             //隐藏view
              vh.dividerTextView.setVisibility(hasDivider ? View.VISIBLE : View.INVISIBLE);
             return convertView;
          }
         private class ViewHolder{
             private View itemLayout;
             private TextView nameText;
             private TextView dividerTextView;
          }
      }







TargetCateGorySecondAdapter

      package com.jky.mobile_gczjjc.adapter;
      import android.content.Context;
      import android.view.LayoutInflater;
      import android.view.View;
      import android.view.ViewGroup;
      import android.widget.BaseExpandableListAdapter;
      import android.widget.TextView;
      import com.jky.mobile_gczjjc.R;
      import com.jky.mobile_gczjjc.bean.CategoryBean.FirstBean.SecondBean;
      import com.jky.mobile_gczjjc.bean.CategoryBean.FirstBean.SecondBean.ThirdBean;
      import java.util.ArrayList;
      import java.util.List;
      /**
       * 指标 建筑分类 第二级适配器
       * @author zlw
       */
      public class TargetCategorySecondAdapter extends BaseExpandableListAdapter {
         private Context mContext;
         private List<SecondBean> secondBeans= new ArrayList<>();
         private int selectedPos = -1;
         public TargetCategorySecondAdapter(Context mContext, List<SecondBean> menuDatas) {
             this.mContext = mContext;
             this.secondBeans = menuDatas;
          }
         //选中的position,及时更新数据
         public void setSelectedPos(int selectedPos) {
             this.selectedPos = selectedPos;
              notifyDataSetChanged();
          }
         public void setData(List<SecondBean> data) {
             this.secondBeans = data;
              notifyDataSetChanged();
          }
         @Override
         public int getGroupCount() {
             return secondBeans.size();
          }
         @Override
         public int getChildrenCount(int groupPosition) {
             return secondBeans.get(groupPosition).getItems().size();
          }
         @Override
         public Object getGroup(int groupPosition) {
             return secondBeans.get(groupPosition);
          }
         @Override
         public Object getChild(int groupPosition, int childPosition) {
             return secondBeans.get(groupPosition).getItems().get(childPosition);
          }
         @Override
         public long getGroupId(int groupPosition) {
             return groupPosition;
          }
         @Override
         public long getChildId(int groupPosition, int childPosition) {
             return childPosition;
          }
         @Override
         public boolean hasStableIds() {
             return true;
          }
         @Override
         public View getGroupView(int groupPosition, boolean isExpanded, View convertView, ViewGroup parent) {
             ViewHolder vh = null;
             if (convertView == null) {
                  vh = new ViewHolder();
                  convertView = LayoutInflater.from(mContext).inflate(R.layout.item_target_category_second, null);
                  vh.menu_item_ly = convertView.findViewById(R.id.menu_item_ly);
                  vh.nameText = convertView.findViewById(R.id.name_rb);
                  convertView.setTag(vh);
              } else {
                  vh = (ViewHolder) convertView.getTag();
              }
             SecondBean secondBean = secondBeans.get(groupPosition);
             if (secondBean.isSelect){
                  vh.nameText.setTextColor(mContext.getResources().getColor(R.color.red_text_color));
              }else{
                  vh.nameText.setTextColor(mContext.getResources().getColor(R.color.gray_text_color));
              }
              vh.nameText.setText(secondBean.getName());//设置标题
             return convertView;
          }
         @Override
         public View getChildView(int groupPosition, int childPosition, boolean isLastChild, View convertView, ViewGroup parent) {
             View view = convertView;
             ChildHolder holder = null;
             if(view == null){
                  holder = new ChildHolder();
                  convertView = LayoutInflater.from(mContext).inflate(R.layout.item_target_category_third, null);
                  holder.menu_item_ly = convertView.findViewById(R.id.menu_item_ly);
                  holder.nameText = convertView.findViewById(R.id.name_rb);
                  convertView.setTag(holder);
              }else{
                  holder = (ChildHolder)convertView.getTag();
              }
             ThirdBean thirdBean = secondBeans.get(groupPosition).getItems().get(childPosition);
              holder.nameText.setText(thirdBean.getName());//设置标题
             if (thirdBean.isSelect){
                  holder.nameText.setTextColor(mContext.getResources().getColor(R.color.red_text_color));
              }else{
                  holder.nameText.setTextColor(mContext.getResources().getColor(R.color.gray_text_color));
              }
             return convertView;
          }
         @Override
         public boolean isChildSelectable(int groupPosition, int childPosition) {
             return true;
          }
         class ChildHolder{
             private View menu_item_ly;
             private TextView nameText;
          }
         private  class ViewHolder {
             private View menu_item_ly;
             private TextView nameText;
          }
      }







CategoryBean

      package com.jky.mobile_gczjjc.bean;
      import com.google.gson.Gson;
      import java.util.List;
      /**
       * Created by lenovo on 2018/3/13.
       */
      public class CategoryBean {
         /**
       * errorCode : 1
       * data : [{"name":"居住建筑","type":"","items":[{"name":"普通住宅","type":"","items":[{"name":"保障性住房","type":""}]}]}]
       */
         private int errorCode;
         private List<FirstBean> data;
         public List<FirstBean> getData() {
             return data;
          }
         public void setData(List<FirstBean> data) {
             this.data = data;
          }
         public static class FirstBean {
             /**
       * name : 居住建筑
       * type :
       * items : [{"name":"普通住宅","type":"","items":[{"name":"保障性住房","type":""}]}]
       */
             private String name;
             private String type;
             public boolean isSelect;
             private List<SecondBean> items;
             public boolean isSelect() {
                 return isSelect;
              }
             public void setSelect(boolean select) {
                  isSelect = select;
              }
             public String getName() {
                 return name;
              }
             public void setName(String name) {
                 this.name = name;
              }
             public String getType() {
                 return type;
              }
             public void setType(String type) {
                 this.type = type;
              }
             public List<SecondBean> getItems() {
                 return items;
              }
             public void setItems(List<SecondBean> items) {
                 this.items = items;
              }
             public  class SecondBean {
                 /**
       * name : 普通住宅
       * type :
       * items : [{"name":"保障性住房","type":""}]
       */
                 public String name;
                 public String type;
                 private List<ThirdBean> items;
                 public boolean isSelect;
                 public boolean getIsSelect() {
                     return isSelect;
                  }
                 public void setIsSelect(boolean isSelect) {
                     this.isSelect = isSelect;
                  }
                 public String getName() {
                     return name;
                  }
                 public void setName(String name) {
                     this.name = name;
                  }
                 public String getType() {
                     return type;
                  }
                 public void setType(String type) {
                     this.type = type;
                  }
                 public List<ThirdBean> getItems() {
                     return items;
                  }
                 public void setItems(List<ThirdBean> items) {
                     this.items = items;
                  }
                 public  class ThirdBean {
                     /**
       * name : 保障性住房
       * type :
       */
                     private String name;
                     private String type;
                     public boolean isSelect;
                     public boolean getIsSelect() {
                         return isSelect;
                      }
                     public void setIsSelect(boolean isSelect) {
                         this.isSelect = isSelect;
                      }
                     public  ThirdBean objectFromData(String str) {
                         return new Gson().fromJson(str, ThirdBean.class);
                      }
                     public String getName() {
                         return name;
                      }
                     public void setName(String name) {
                         this.name = name;
                      }
                     public String getType() {
                         return type;
                      }
                     public void setType(String type) {
                         this.type = type;
                      }
                  }
              }
          }
      }







涉及到的所有核心源码都提供了，参照上面的代码应该就可以实现，由于时间关系暂时没有时间整理demo了。希望可以帮助到大家，如果大家还有其他问题欢迎加入我的qq群讨论交流：

开发一群：454430053开发二群：537532956


文章来源: wukong.blog.csdn.net，作者：再见孙悟空_，版权归原作者所有，如需转载，请联系作者。

原文链接：wukong.blog.csdn.net/article/details/79728281
